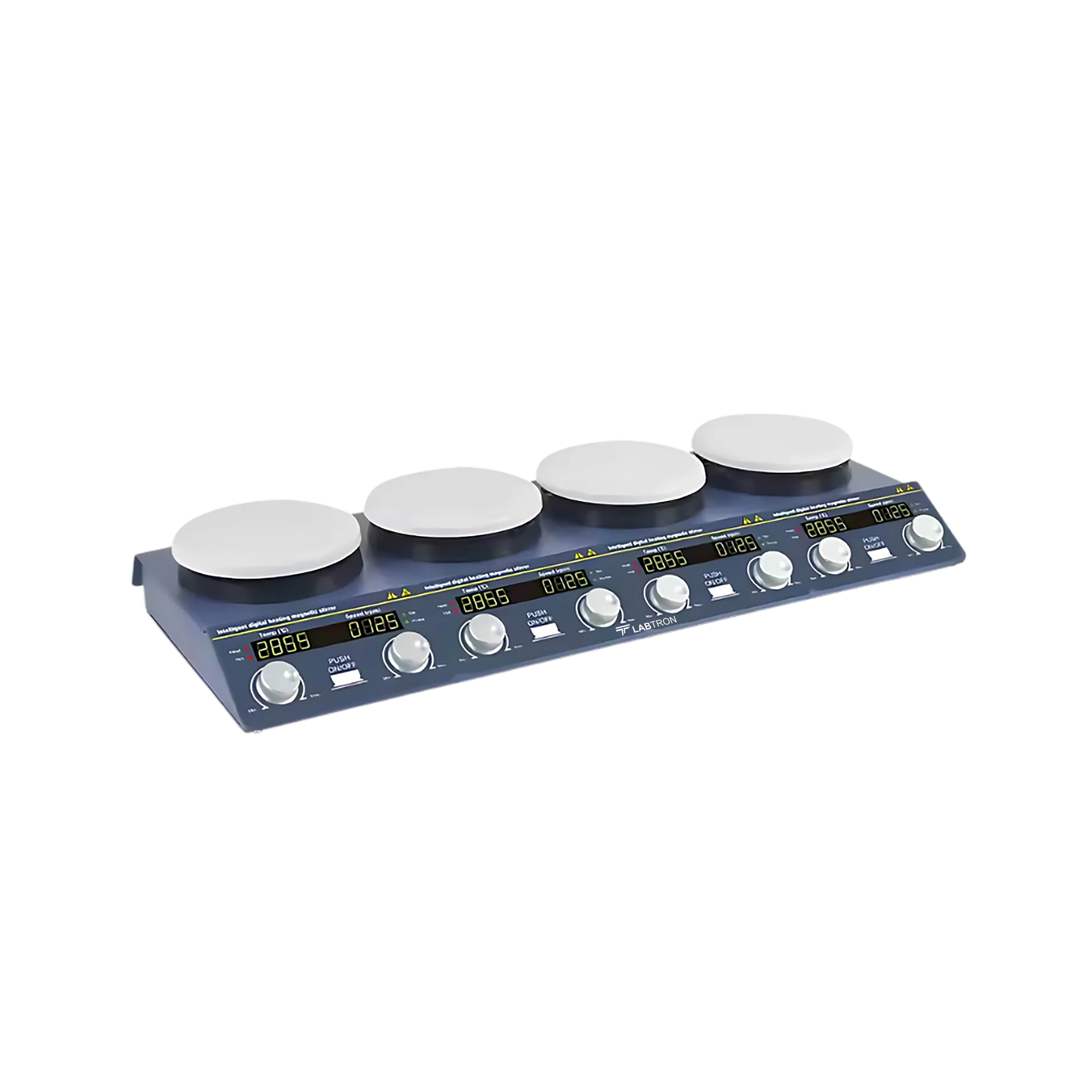

Multi-Position Hot Plate Magnetic Stirrer LMHS-A20

Name: Multi-Position Hot Plate Magnetic Stirrer LMHS-A20
Brand: Labtron
SKU: LMHS-A20
Rating: 4.9 (770 reviews)

Multi-Position Hot Plate Magnetic Stirrer LMHS-A20 has 4 hot plates for heating and stirring. Each position offers a maximum 2 L capacity, and temperature control ranges from RT +5 to 340°C. It is designed with a PID controller to ensure a precise and steady heating process. The outer casing is made of metal, with high strength, high-temperature resistance and corrosion resistance. It features a digital display and rotatory knob for setting temperature and speed on the hot plate. Our stirrer has a speed range of 200 to 1200 rpm and is equipped with a brushless DC motor.

Request Quote

Work plate Dimension	Φ137 mm
Work plate material	Enamel
Motor type	Brushless DC motor
Stirring positions	4
Max. stirring capacity	2 L × 4
Size of stirring bar	Φ 8×46 mm
Stirring speed range	200 to 1200 rpm
Display	Digital display
Temperature control range	RT +5 to 340°C
Temperature setting range	30 to 340˚C
Temperature stability	± 3°C
External temperature sensor	PT1000
Adjustable safety min. temperature loop	50°C
Adjustable safety max. temperature loop	350°C
Dimension	610 × 272 × 86 mm
Power consumption	1600 W
Fuse	250 V, 10 A, Φ 5 × 20
Power supply	AC 240V, 50/60 Hz
Weight	8.5 kg

Designed with PID controller ensures a precise and steady heating process
Multi-position magnetic hotplate stirrer maximum capacity 2 L × 4
Stirring speed ranges from 200 to 1200 rpm
The outer casing is made of metal, with high strength, high temperature resistance and corrosion resistance
Unit is designed with 4 position channel digital hotplate magnetic stirrer
Offers PT1000 external temperature sensor
Digital display shows actual temperatures and speed
Overheating protection temperature at 420℃
Rotatory knob to set temperatures and speed
Brushless DC motor, stable performance, low noise, long life and no sparks
Heated by an enamel heating plate and the maximum surface temperature can reach 340˚C

Multi-Position Hot Plate Magnetic Stirrer LMHS-A20 is used in chemical synthesis, physical and chemical analysis, biopharmaceuticals etc.

Download catalog for
Multi-Position Hot Plate Magnetic Stirrer LMHS-A20 Catalog

Available Range :

Multi-Position Hot Plate Magnetic Stirrer LMHS-B10 : 6 × Ø 120 mm Multi-Position Hot Plate Magnetic Stirrer LMHS-A21 : Ø135 mm × 4 Multi-Position Hot Plate Magnetic Stirrer LMHS-A11 : Ø135mm (5 inch) × 4 Multi-Position Hot Plate Magnetic Stirrer LMHS-A20 : Φ137 mm

Models of Multi-Position Hot Plate Magnetic Stirrer

Labtron has a wide range of Multi-Position Hot Plate Magnetic Stirrers with heating and stirring functions in a single versatile unit. These stirrers are designed to handle multiple samples at once, making them useful in high-demand laboratory settings. They feature a sturdy, heat-conductive surface, often made of stainless steel, which ensures even heat distribution. Additionally, they come equipped with digital display for monitoring and safety features like overheat protection. Our stirrers offer adjustable stirring speeds and precise temperature settings, providing optimal conditions for various experiments.
