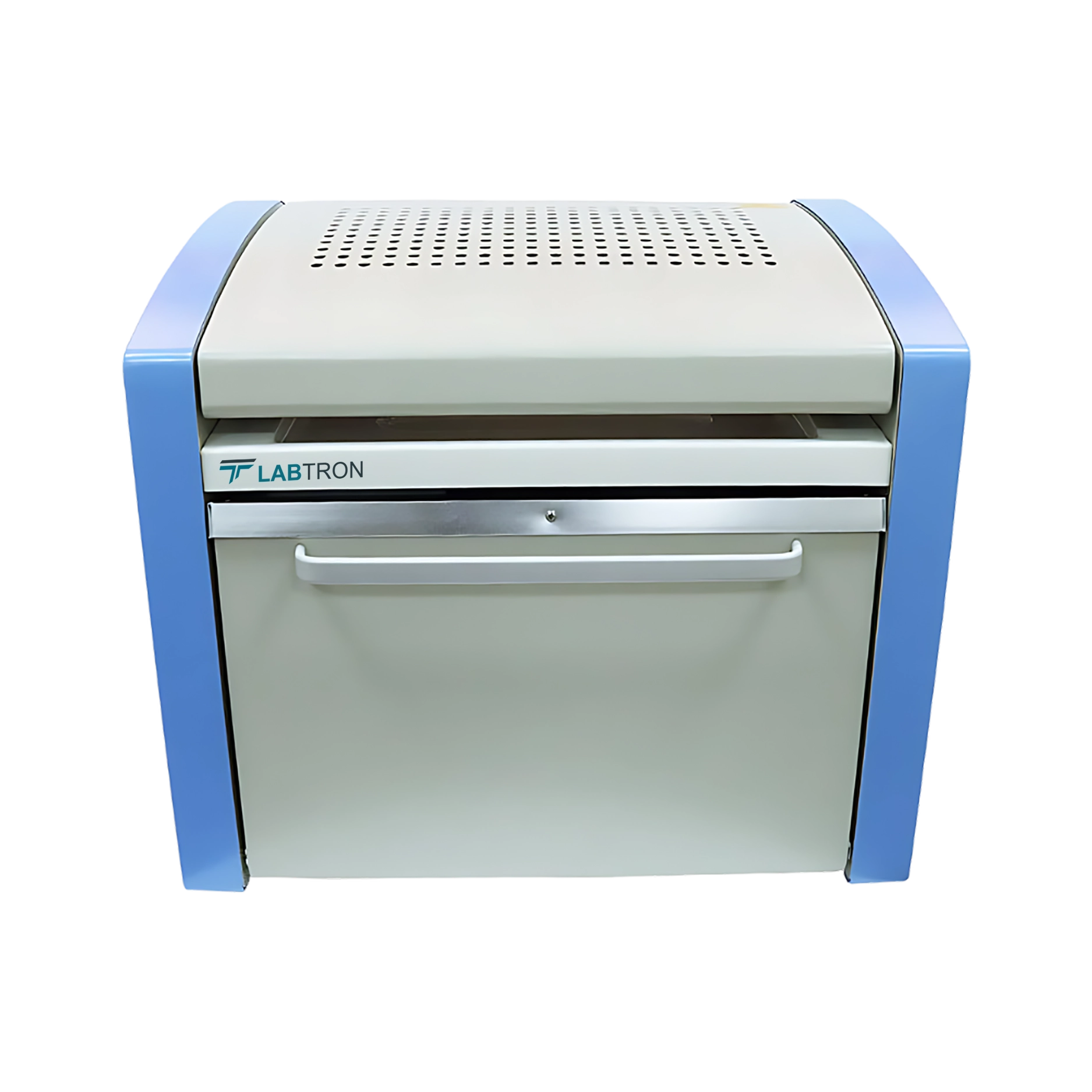

Oil Breakdown Voltage Tester LIBT-A23

Name: Oil Breakdown Voltage Tester LIBT-A23
Brand: Labtron
SKU: LIBT-A23
Rating: 4.9 (701 reviews)

Oil Breakdown Voltage Tester LIBT-A23 features an LCD for easy monitoring and provides accurate measurements in a range of 0 to 80KV. It offers an adjustable boosting speed of 0.5 to 5KV per second, with a customizable boosting interval from 0 to 5 minutes. The tester ensures stable and reliable voltage with its automatic sine wave generator and stepless voltage regulation. Designed for convenience, it is compact, lightweight, and portable, utilizing dry-type transformers for easy handling and operation.

Request Quote

Measurement Range	0 to 80KV, 0 to 100KV (optional)
Measurement Accuracy	± 3%
Number Of Experimental Cups	1 cup
Display Mode	LCD Screen
Voltage Distortion Rate	<3%
Boosting Speed	0.5 to 5KV/S (adjustable)
Accuracy	0.02
Resolution	0.01KV
Rest Time	0 to 15 minutes (adjustable)
Boosting Interval	0 to 5 minutes (adjustable)
Boosting Frequency	1 to 9 times
Automatic Function	Boosting, Zeroing, Stirring, Displaying, Calculating, and Printing.
Safety Features	Overvoltage, Overcurrent, and Automatic Zero-Return Protection.
Capacity Of Booster	1.5KVA
Applicable Temperature	0 ℃ to 45 ℃
Applicable Humidity	<75% RH
Power	200W
Power Supply Voltage	AC220V ± 10% 50Hz ± 1Hz
Dimensions	490 × 430 × 420 mm
Net Weight	25.7kg
Gross Weight	48.5 Kg

Dual CPU microcomputer control
Automatic data storage function
Multiple safety features
Includes power amplifier
High-resolution accuracy
User-friendly interface

Oil Breakdown Voltage Tester measures the dielectric strength of insulating oil. It also measures the contamination of oil caused by water and suspended particles. Suitable for use in industries such as power, petroleum, and chemical sectors.

Oil vessel
