| Max. Speed | 4000 rpm |
| Speed Accuracy | ± 10 rpm |
| Max. RCF | 3400 × g |
| Max. Capacity | 4 × 200 mL |
| Timer Range | 1min to 99h 59 min/ short spin |
| Noise | Up to 60 dB (A) |
| Rotor | Swing Out Rotors (selectable) |
| Temperature Range | Room temperature + 10 to 70℃ |
| Programs | 12 |
| ACC/DEC Rates | 40 |
| Power Consumption | 1100 W |
| Dimension | 600 × 700 × 900 mm |
| Weight | 160 Kg |
Adjustable RCF even during spinning
Low noise operation
Microprocessor control
Variable frequency motor drive
Durable structure

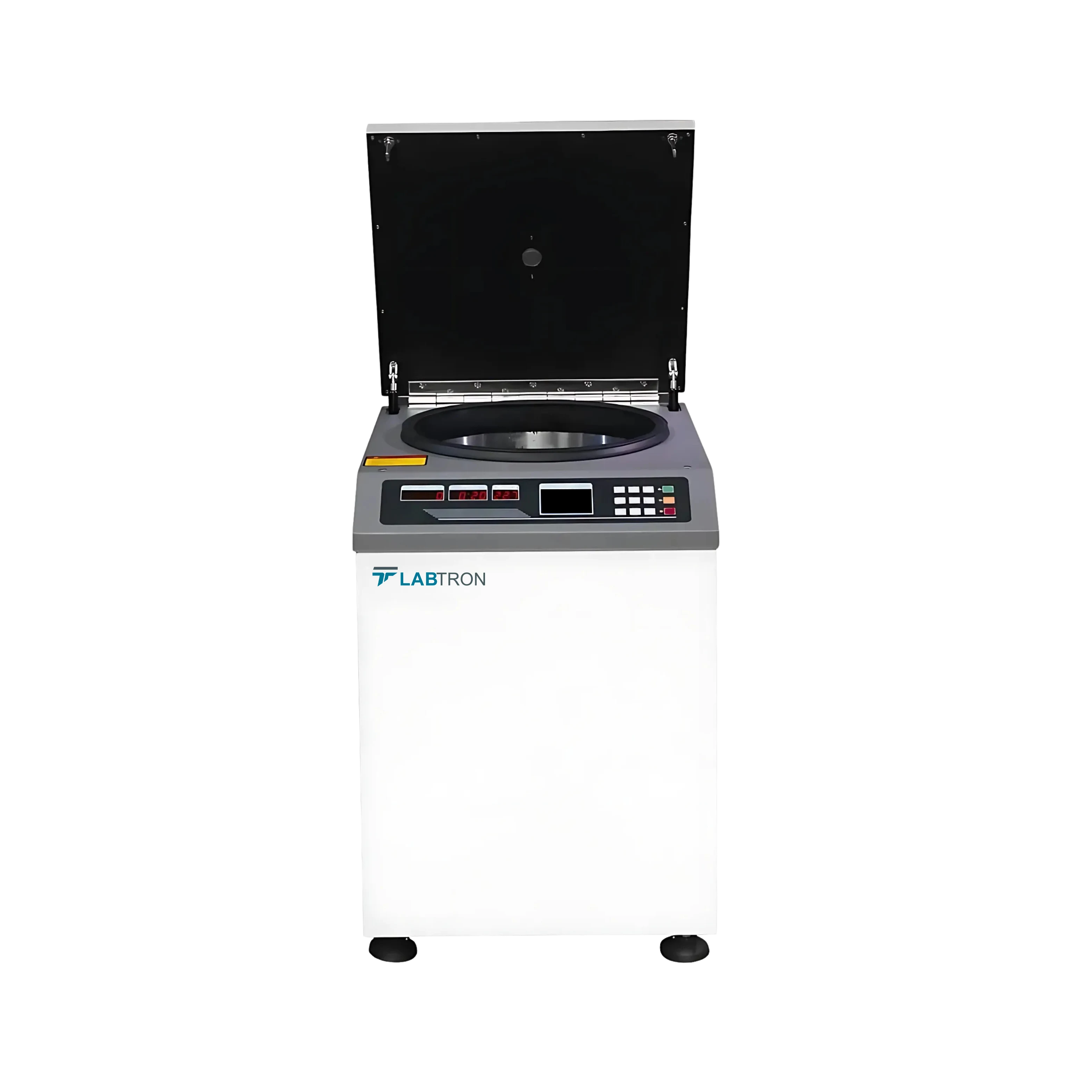

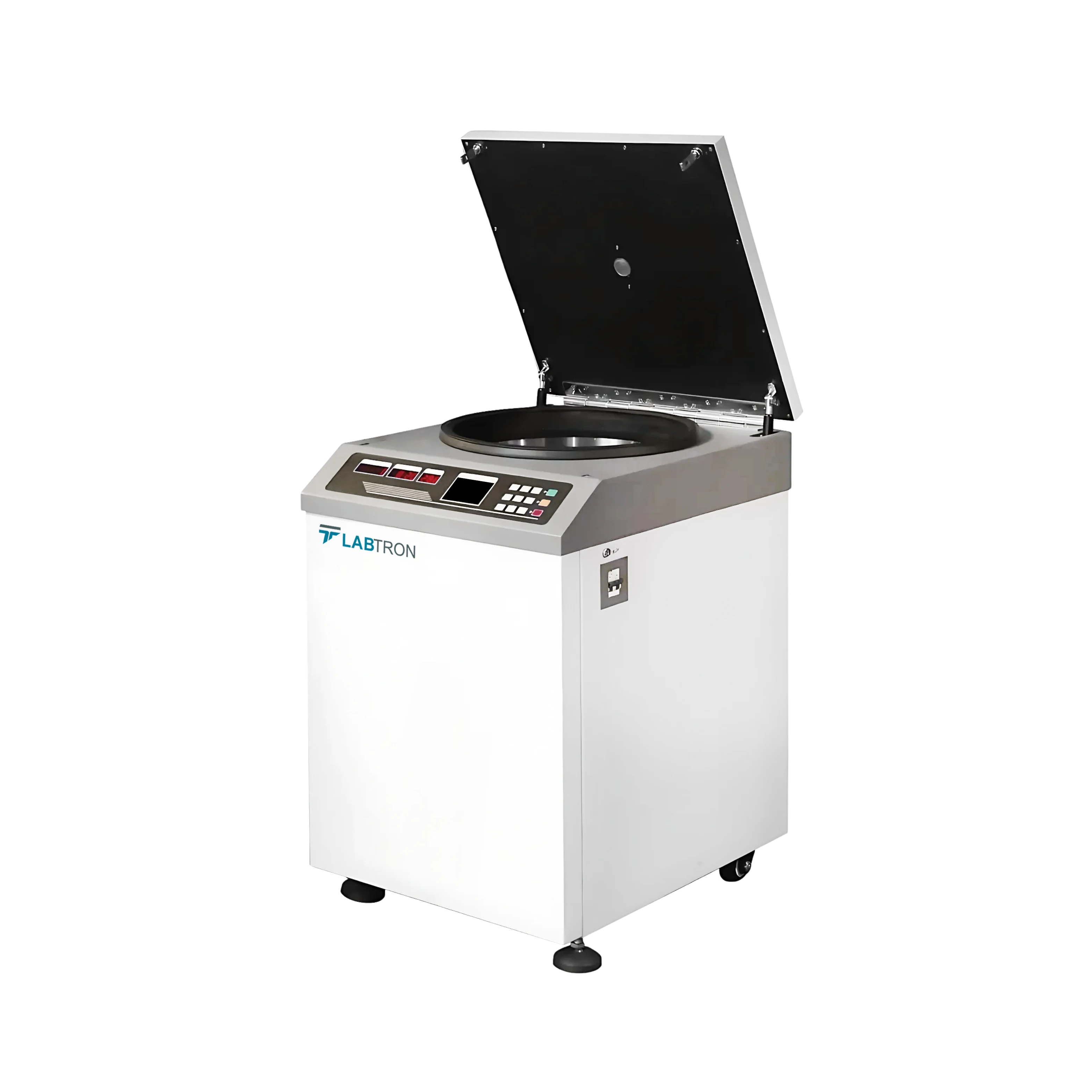

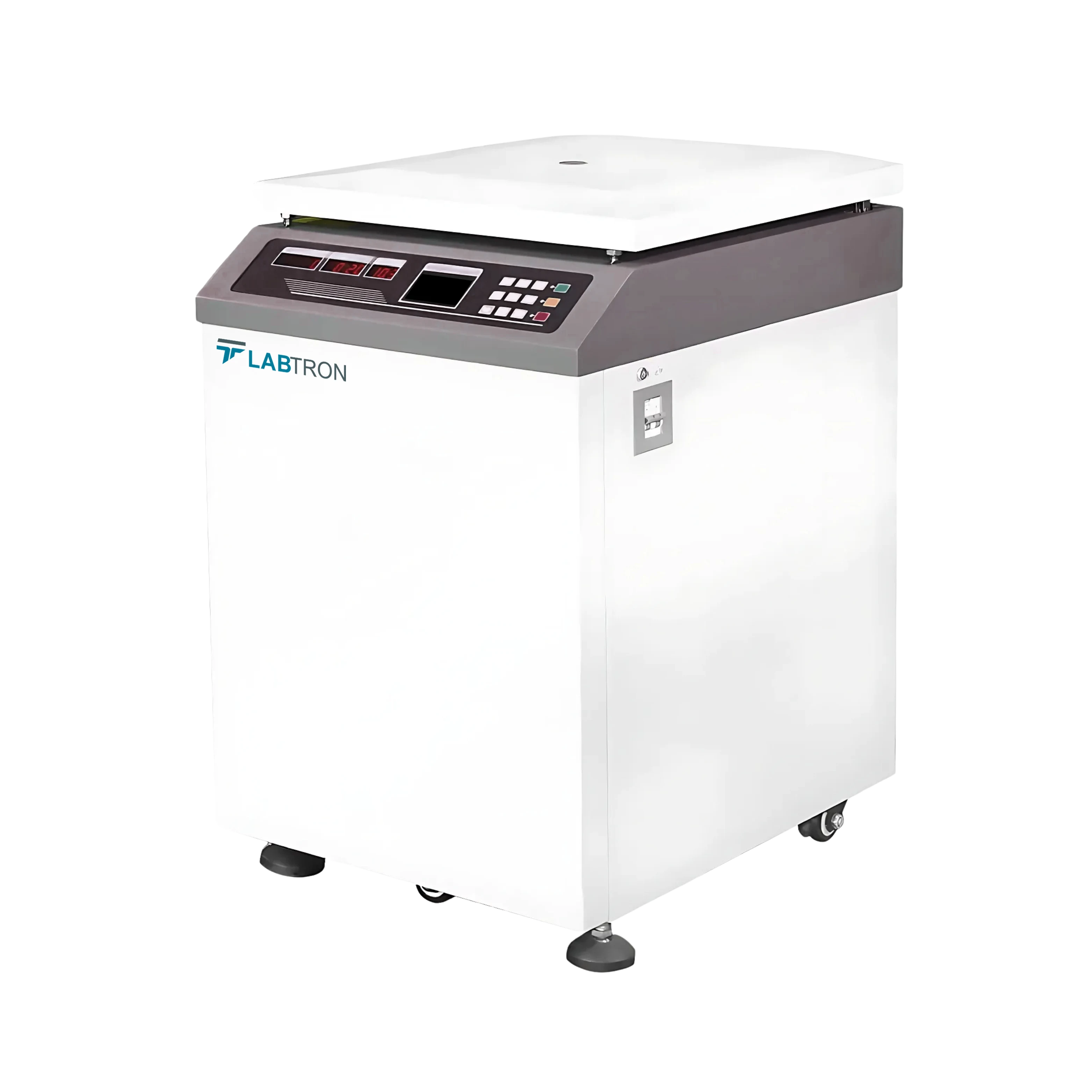

Our Oil Test Centrifuge LOT-A20 is used to determine water and sediment content in crude oil using the centrifugal method. It is ideal for applications in oil-drilling operations and research laboratories.
Name | Max. Speed | Max. RCF | Capacity |
Swing Out Rotor 01 | 4000 rpm | 3400 × g | 36 × 10 mL |
Swing Out Rotor 02 | 3000 rpm | 2062 × g | 4 × 100 mL |
Swing Out Rotor 03 | 3000 rpm | 1000 × g | 4 × 200 mL |
Note: Any one of the above-mentioned rotors can be selected.
Download catalog for
Oil Test Centrifuge LOT-A20 Catalog
Labtron Oil Test Centrifuge assess quality and properties of various oils and fuels at 2000r/min. They are equipped with powerful motors that enables rapid acceleration and deceleration for efficient processing. Their design is constructed with stainless steel ensuring longevity and resistance to harsh operational conditions. They include vibration-dampening system that minimizes disturbances and maintains stability and accuracy effectively. Our Oil Test Centrifuge measure sediment, test viscosity, study emulsification, recycle oil and support R&D.
Labtron’s Oil Test Centrifuge LOT-A20 is specifically engineered for the determination of water and sediment content in crude oil through centrifugal separation. This process is critical in oil quality assessment, where it enables fast, reproducible, and standardized analysis compliant with petroleum industry protocols.
Our Oil Test Centrifuge LOT-A20 operates at speeds up to 4000 rpm with an impressive accuracy of ±10 rpm, and provides a maximum RCF of 3400 × g. It allows real-time adjustment of RCF even during spinning, ensuring precise control over separation dynamics. Combined with 40 acceleration/deceleration rates, it delivers customizable conditions to match varying oil sample viscosities and test standards.
The Oil Test Centrifuge LOT-A20 offers three swing-out rotor options with capacities ranging from 10 mL to 200 mL tubes. Users can select the rotor that best suits their sample volume and application, whether it's small-scale rapid analysis or high-volume sediment separation. This modularity ensures that the centrifuge remains adaptable to research, field, and industrial-grade testing environments.
Our Oil Test Centrifuge LOT-A20 is built with a heavy-duty steel housing and a corrosion-resistant 304 food-grade stainless steel chamber. This ensures durability and resistance to harsh chemical residues common in petroleum testing. Additionally, its low-noise operation (up to 60 dB) and microprocessor-based control system make it both robust and user-friendly for frequent, high-load operation.
With a wide programmable timer range (from 1 minute to nearly 100 hours) and 12 user-defined programs, the Oil Test Centrifuge LOT-A20 offers the flexibility needed in dynamic testing environments. Its ability to handle up to 4 × 200 mL crude oil samples in one cycle, combined with precise control and rugged construction, makes it an ideal choice for both on-site oilfield analysis and centralized laboratory operations.
