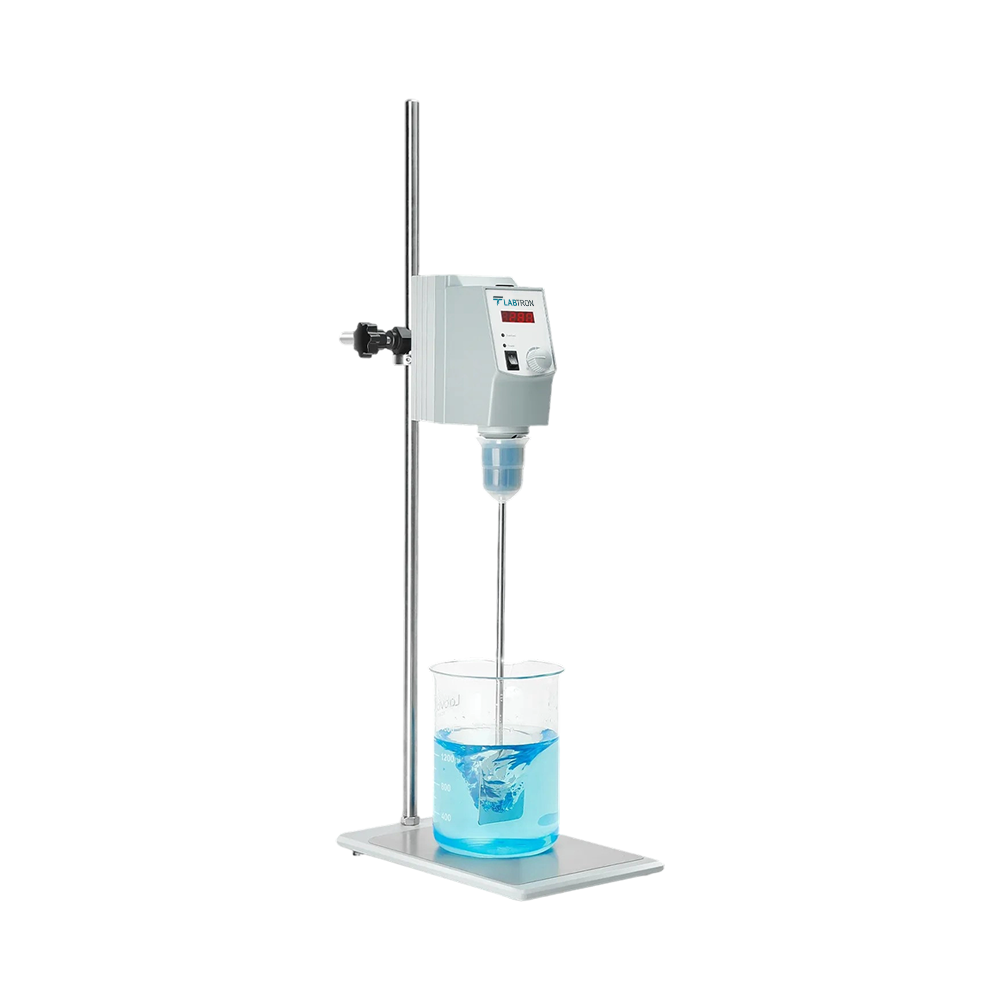

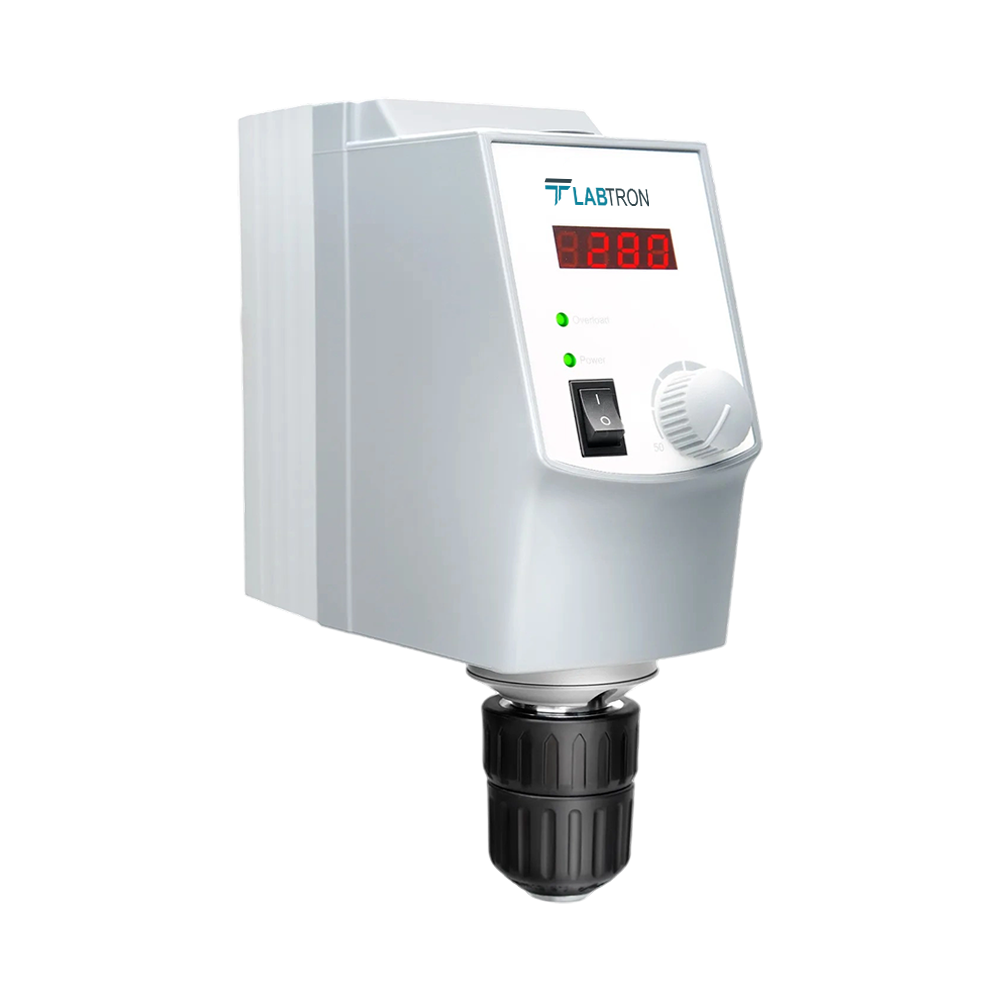

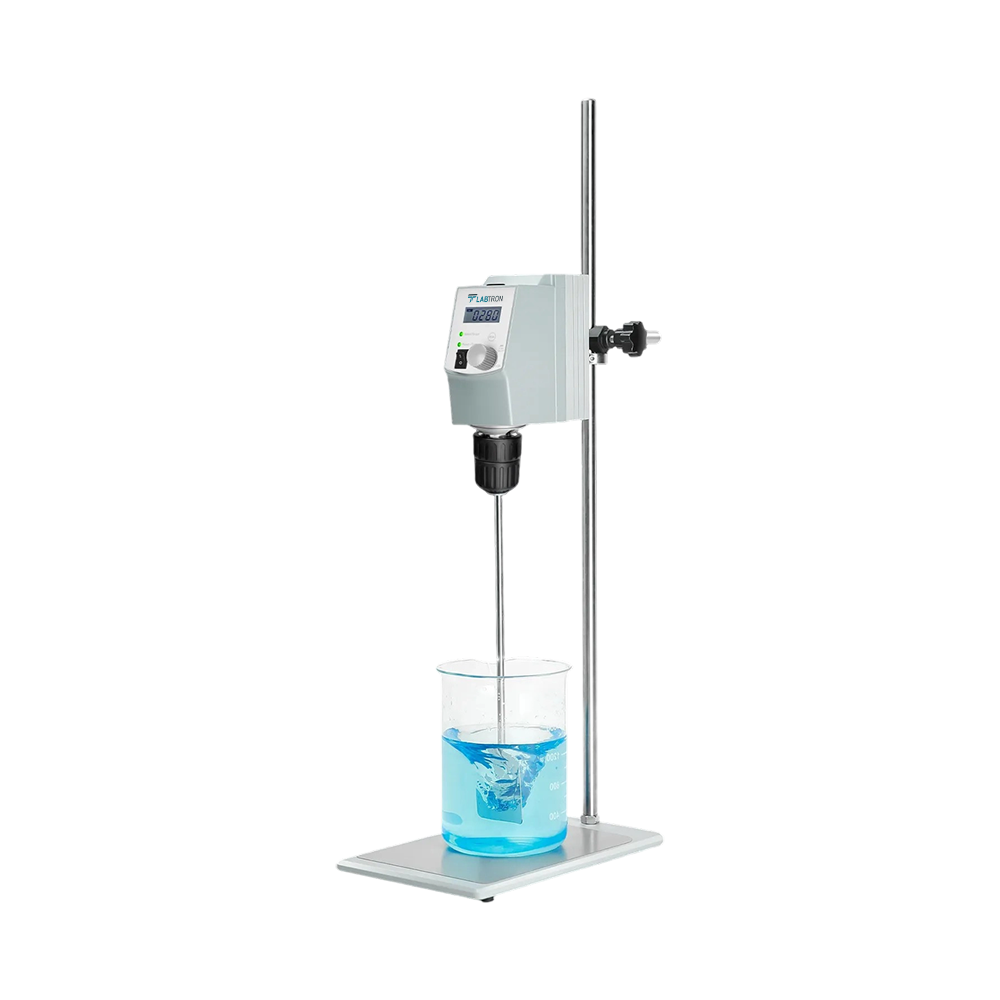

LCD Overhead Stirrer LOSR-D11

LCD Overhead Stirrer LOSR-D11

LCD Overhead Stirrer LOSR-D11 handles up to 40 L of water-based mixtures for high-capacity mixing needs. It maintains a speed range of 50 to 2200 rpm for consistent control during daily operations. With a torque output of 60 N·cm, it efficiently handles moderate to high-viscosity samples. Real-time LCD feedback includes speed, torque, and overload protection monitoring. Ideal for routine mixing of dense solutions in research and industrial settings.

LCD Overhead Stirrer LOSR-D11
LCD Overhead Stirrer LOSR-D11
LCD Overhead Stirrer LOSR-D11
LCD Overhead Stirrer LOSR-D11
Request Quote
Max. Stirring Quantity [H₂O] 40 L
Speed Range 50 to 2200 rpm
Maximum Torque 60 N·cm
Maximum Viscosity 50,000 mPa·s
Motor Type Brushless DC
Speed Display LCD
Torque Display LCD
Overload Protection Display LCD
Speed Display Accuracy ±3 rpm
Chuck Clamp Range Diameter 0.5 to 10 mm
Permissible Ambient Temperature 5 to 40 °C
Permissible Ambient Humidity 80% RH
Protection Class IP21
Data Interface RS232
Motor Input Power 120 W
Motor Output Power 100 W
Power 130 W
Voltage / Frequency 100 to 240 V, 50/60 Hz
Dimensions (W × H × D) 83 × 220 × 186 mm
Weight 2.8 kg
  • Anti-corrosive PET surface
  • Motorless silent operation
  • Lightweight compact build
  • Single-button speed control
  • Low power consumption

Our LCD Overhead Stirrer LOSR-D11 is designed for advanced mixing applications where greater volume and moderate viscosity handling are required in chemical, pharma, and industrial labs.

Accessory NameQuantity
Universal plate stand1
Crossed stirrer1
Accessory NameQuantity
Straight stirrer1 pc
Blade stirrer1 pc
Centrifugal stirrer1 pc
Spill-proof crossed stirrer1 pc
Flat-blade stirrer1 pc
Radial-flow stirrer1 pc
Anchor stirrer1 pc
Spiral stirrer1 pc
Overhead chuck1 pc
Self-locking drill chuck1 pc
Container locking mechanism1 pc
Stirrer tool 1 set

Models of Overhead Stirrer

Labtron Overhead Stirrer is specialized to agitate larger volume liquids. Their motors provide 50rpm to 6000rpm speed ensuring uniform mixing throughout process. They include various types of blades, optimized for different viscosities and fluid types. Their safety features include automatic shut-off in case of overload or malfunction. Our Overhead Stirrer is used for blending sauces in food industry, creams and lotion in cosmetics and dispersion of pigments.

Overhead stirrer LOSR-A11

Overhead stirrer LOSR-A11

  • Max. stirring capacity H₂O : 20 L
  • Speed range : 100 to 2500 rpm
  • Maximum torque : 40 ncm
  • Maximum viscosity : 10000 cps
LED Overhead Stirrer LOSR-C11

LED Overhead Stirrer LOSR-C11

  • Max. stirring quantity [H₂O] : 40 L
  • Speed range : 50 to 2200 rpm
  • Maximum torque : 60 N·cm
  • Maximum Viscosity : 50000 mPa·s
Overhead Stirrer LOSR-A14

Overhead Stirrer LOSR-A14

  • Max. Viscosity : 50000mpas
  • Max. Torque : 60Ncm
  • Max. Capacity : 40L
  • Speed : 50 to 2200rpm
Overhead stirrer LOSR-A10
Overhead stirrer LOSR-A10
  • Max. Stirring Capacity (H₂O) : 20 L
  • Speed Range : 100 to 2500 rpm
  • Maximum Torque : 40 ncm
  • Maximum Viscosity : 10,000 cps
Overhead Stirrer LOSR-E12
Overhead Stirrer LOSR-E12
  • Maximum stirring volume (H₂O) : 60 L
  • Stirring speed : 50 to 1200 rpm
  • Control accuracy of stirring speed : ±1 rpm
  • Ambient temperature : 5 to 40°C
LCD Overhead Stirrer LOSR-D12

LCD Overhead Stirrer LOSR-D12

  • Max. Stirring Quantity (H₂O) : 70 L
  • Speed Range : 50 to 1100 rpm
  • Maximum Torque : 300 N·cm
  • Maximum Viscosity : 100,000 mPa·s
Overhead Stirrer LOSR-E10

Overhead Stirrer LOSR-E10

  • Maximum stirring volume (H₂O) : 20 L
  • Stirring speed : 50 to 2200 rpm
  • Control accuracy of stirring speed : ±1 rpm
  • Ambient temperature : 5 to 40°C
Overhead stirrer LOSR-A12

Overhead stirrer LOSR-A12

  • Max. stirring capacity H₂O : 40 L
  • Speed range : 100 to 2500 rpm
  • Maximum torque : 40 ncm
  • Maximum viscosity : 10000 cps
LCD Overhead Stirrer LOSR-D11 FAQ's
  • The LCD Overhead Stirrer LOSR-D11 is designed to handle higher volumes and moderately viscous materials. It delivers consistent performance during preparation of gels, emulsions, or buffered reagents. Its brushless motor ensures stable operation without the need for frequent service. The unit provides feedback during mixing, making it easy to monitor sample conditions in real time.

  • Our LCD Overhead Stirrer LOSR-D11 is straightforward to assemble and operate, even for users unfamiliar with overhead mixers. Its intuitive controls and clear LCD display guide users through speed and function settings. The secure chuck makes it easy to insert and lock mixing shafts. It is ready to use out of the box with minimal adjustments required.

  • Labtron’s LCD Overhead Stirrer LOSR-D11 is built for sustained performance and includes thermal safeguards to protect the motor. It can mix for extended periods, especially under moderate load. For very dense samples, periodic rest intervals are recommended to avoid excess wear. Users appreciate its reliability during multi-hour protocols.

  • Routine maintenance for the LCD Overhead Stirrer LOSR-D11 includes cleaning the external surfaces and checking for proper shaft alignment. Users should avoid over-tightening the chuck and ensure shafts are balanced during use. The brushless motor requires no lubrication, making upkeep easier. Periodic software or interface checks ensure consistent functionality.

  • Labtron LCD Overhead Stirrer LOSR-D11 should be used with securely mounted shafts and balanced containers to prevent instability. Gloves and eye protection are recommended when working with chemical samples. The overload protection helps avoid mechanical failure due to resistance. Users should avoid reaching near the shaft while the unit is operating.
