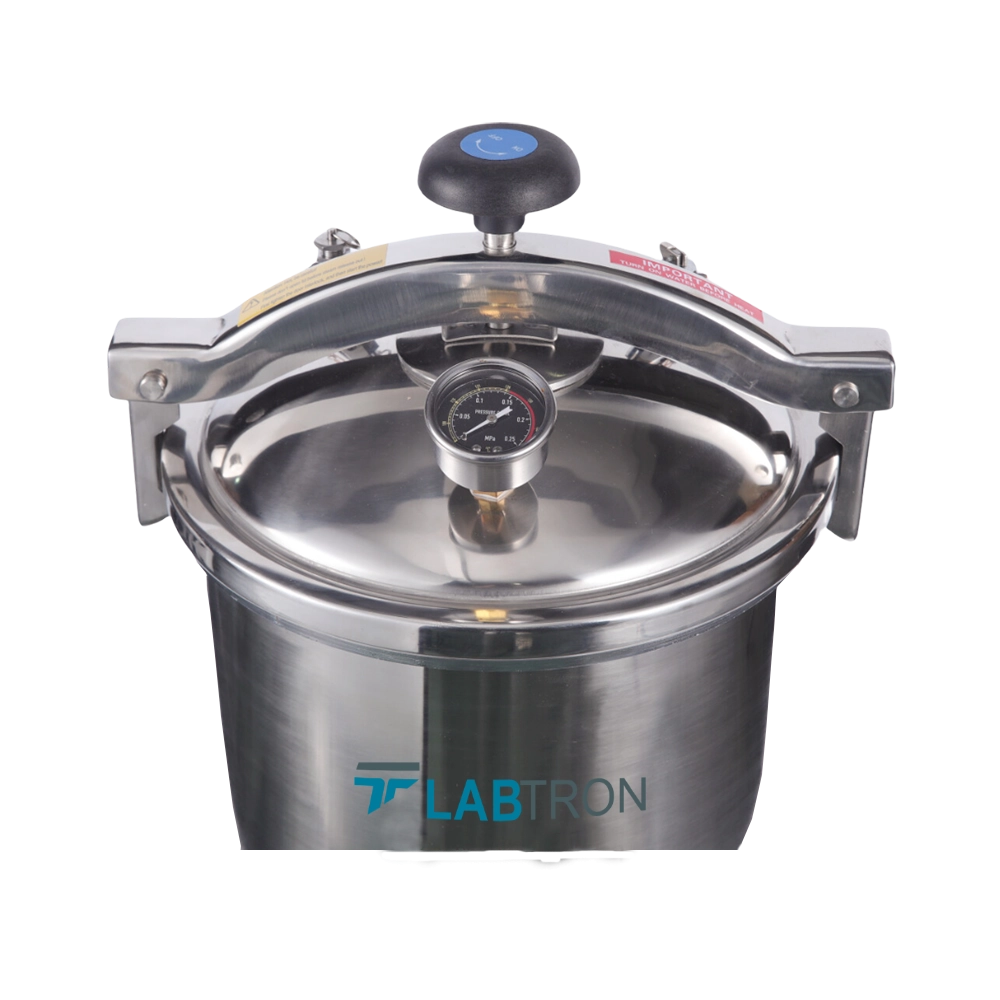

Portable autoclave LPOA-B16 is a 24 L top loading microprocessor controlled automatic autoclave with a sterilizing temperature of 126 °C. The lid is a hand wheel, making it easy to use than the conventional knobs. Self-inflating leak proof chamber provides efficient sterilization. Equipped with safety features like automatic shutoff preventing overload of current, auto protection against raised temperature and pressure making a reliable and user friendly device.
Request QuoteVolume of Chamber | 24 L |
Working temperature | 126 ℃ |
Heating mode | Electrically heated |
Working pressure | 0.14 ~ 0.16 MPa |
Max safety pressure | 0.165 MPa |
Heat average | ≤ ± 1℃ |
Temp adjustment | 105 ~ 126 ℃ |
Power | AC 220 V / 50 Hz |
Overall Dimension | 420 × 420 × 750 mm |
Net Weight | 14 Kg |
Gross Weight | 15 Kg |
Used in industries to sterilize equipment, bacteriological and research laboratories, medical, clinical and pharmaceutical industries
Available Range :
Volume of Chamber : 18 L Volume of Chamber : 24 L Volume of Chamber : 18 L Volume of Chamber : 24 L Volume of Chamber : 18 L Volume of Chamber : 24 LRelated Models :
Model | Volume of Chamber | Working temperature | Heating mode | Timer range | Working pressure | Max safety pressure | Heat average | Temp adjustment | Power | Overall Dimension | Net Weight | Gross Weight |
LPOA-A11 | 18 L | 126 ℃ | Electrically / LPG heated | - | 0.14 ~ 0.16 MPa | 0.165 MPa | ≤ ± 1℃ | 105 ~ 126 ℃ | AC 220 V / 50 Hz | 410 × 410 ×430 mm | 14 Kg | 16 Kg |
LPOA-A12 | 24 L | 126 ℃ | Electrically / LPG heated | - | 0.14 ~ 0.16 MPa | 0.165 MPa | ≤ ± 1℃ | 105 ~ 126 ℃ | AC 220 V / 50 Hz | 410 × 410 × 550 mm | 15 Kg | 17 Kg |
LPOA-A13 | 18 L | 126 ℃ | Electrically heated | - | 0.14 ~ 0.16 MPa | 0.165 MPa | ≤ ± 1℃ | 105 ~ 126 ℃ | AC 220 V / 50 Hz | 410 × 410 × 520 mm | 23 Kg | 25 Kg |
LPOA-A14 | 24 L | 126 ℃ | Electrically heated | - | 0.14 ~ 0.16 MPa | 0.165 MPa | ≤ ± 1℃ | 105 ~ 126 ℃ | AC 220 V / 50 Hz | 410 × 410 × 630 mm | 18 Kg | 20 Kg |
LPOA-A15 | 18 L | 126 ℃ | Electrically heated | 0 ~ 60 min | 0.14 ~ 0.16 MPa | 0.165 MPa | ≤ ± 1℃ | 105 ~ 126 ℃ | AC 220 V / 50 Hz | 410 × 410 × 520 mm | 16 Kg | 18 Kg |
LPOA-A16 | 24 L | 126 ℃ | Electrically heated | 0 ~ 60 min | 0.14 ~ 0.16 MPa | 0.165 MPa | ≤ ± 1℃ | 105 ~ 126 ℃ | AC 220 V / 50 Hz | 410 × 410 × 630 mm | 18 Kg | 20 Kg |
LPOA-B11 | 18 L | 126 ℃ | Electrically / LPG heated | - | 0.14 ~ 0.16 MPa | 0.165 MPa | ≤ ± 1℃ | 105 ~ 126 ℃ | AC 220 V / 50 Hz | 410 × 410 × 550 mm | 11 Kg | 13 Kg |
LPOA-B12 | 24 L | 126 ℃ | Electrically / LPG heated | - | 0.14 ~ 0.16 MPa | 0.165 MPa | ≤ ± 1℃ | 105 ~ 126 ℃ | AC 220 V / 50 Hz | 420 × 420 × 650 mm | 13 Kg | 15 Kg |
LPOA-B13 | 18 L | 126 ℃ | Electrically heated | 0 ~ 60 mins | 0.14 ~ 0.16 MPa | 0.165 MPa | ≤ ± 1℃ | 105 ~ 126 ℃ | AC 220 V / 50 Hz | 420 × 420 × 630 mm | 19 Kg | 21 Kg |
LPOA-B14 | 24 L | 126 ℃ | Electrically heated | 0 ~ 60 mins | 0.14 ~ 0.16 MPa | 0.165 MPa | ≤ ± 1℃ | 105 ~ 126 ℃ | AC 220 V / 50 Hz | 420 × 420 × 750 mm | 14 Kg | 15 Kg |
LPOA-B15 | 18 L | 126 ℃ | Electrically heated | - | 0.14 ~ 0.16 MPa | 0.165 MPa | ≤ ± 1℃ | 105 ~ 126 ℃ | AC 220 V / 50 Hz | 420 × 420 × 630 mm | 12 Kg | 14 Kg |
LPOA-B16 | 24 L | 126 ℃ | Electrically heated | - | 0.14 ~ 0.16 MPa | 0.165 MPa | ≤ ± 1℃ | 105 ~ 126 ℃ | AC 220 V / 50 Hz | 420 × 420 × 750 mm | 14 Kg | 15 Kg |
LPOA-B17 | 30 L | - | - | - | - | - | - | - | - | - | - | - |
