| Gas Detected | H2 |
| Measuring Range | 0 to 5000 ppm |
| Resolution | 1 ppm |
| Flow Range | 0 to 500 ml/Min |
| Precision | 2% FS |
| Response Time | ≤8 s |
| Repeatability | ≤±1% |
| Recovery Time | ≤10 s |
| Concentration Unit | ppm, mg/m3, %VOL, %LEL, can be switched by one button |
| Modular Structure | Can detect up to 1 to 4 kinds of gases |
| Display | 3.5-inch color display |
| Display Content | Gas formula, concentration data, unit of measure, gas curve trend, battery level, time, temperature (optional), humidity(optional), pressure (optional), pump status, wireless status(optional) |
| Temperature Detection Range | -20 °C to 50 °C resolution: 0. 1 °C |
| Humidity Detection Range | 0-99% RH resolution: 1% RH |
| Data Storage | 100000 groups |
| Degree of Protection | IP66 |
| Explosion Proof | ExicIICT3Gc |
| Network Frequency | Lora (470M), DTU (2.4G) |
| Wireless Trans. Distance | Lora (1.6km), DTU (unlimited) |
| Battery Capacity | 3800 mA |
| Dimension | 270 ×75 ×41mm |
| Net Weight | 400 g |
| Gross Weight | 2 Kg |
Real‑Time Data Display
Multiple Display Modes
Adjustable Pump Flow
Multi‑Layer Filter
Flexible Sampling System

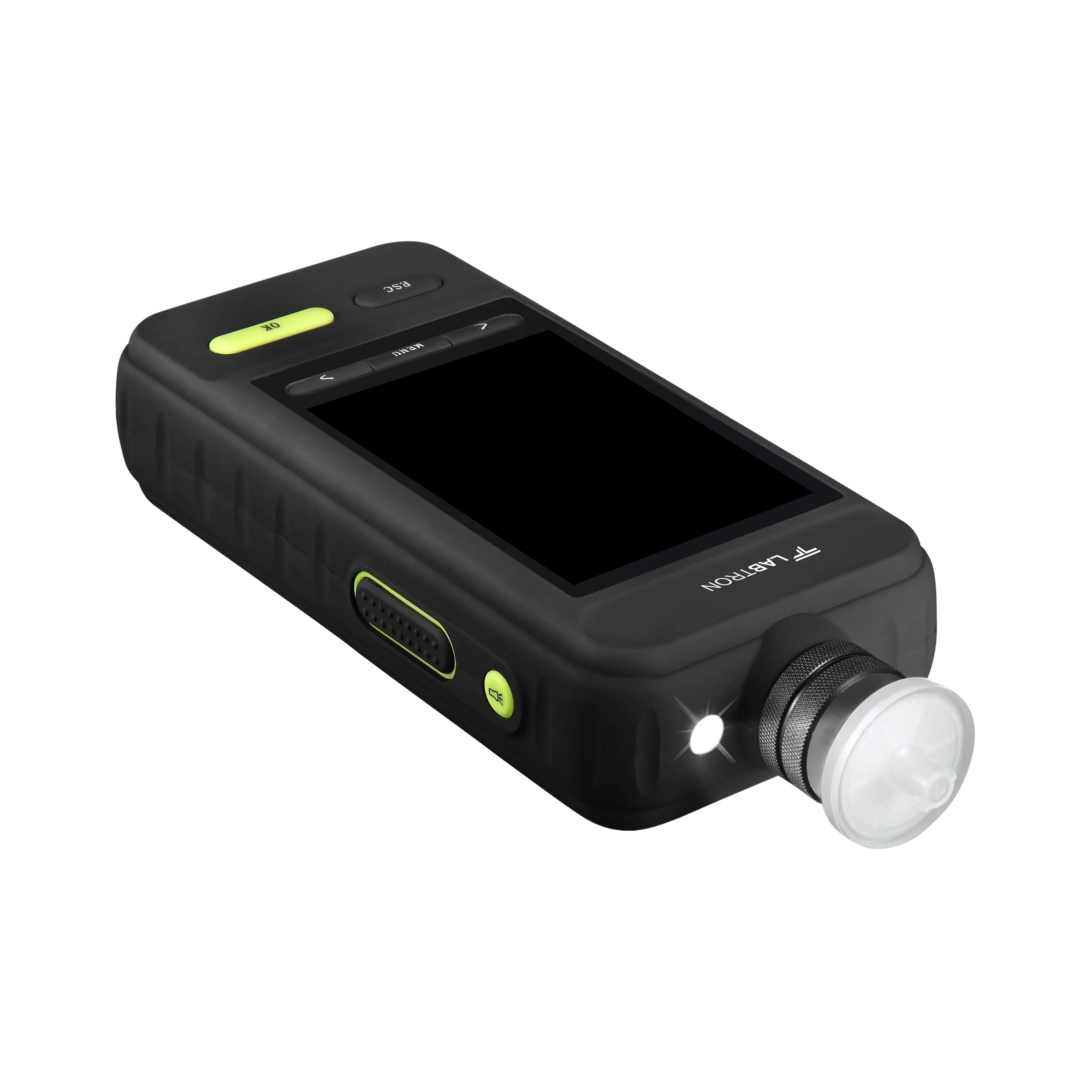

Portable Dissolved Hydrogen Analyzer LPDH-A10 is designed for the accurate on-site measurement of hydrogen in gas. It is widely utilized in monitoring hydrogen levels during experiments or processes involving hydrogen gas and is used in chemical plants and refineries.
Accessories Name | Quantity |
Water and Oil Filter | 1 set |
Carrying Case | 1 pc |
Power Charger | 1 pc |
Download catalog for
Portable Dissolved Hydrogen Analyzer LPDH-A10 Catalog
Labtron Portable Dissolved Hydrogen Analyzer is designed for the accurate on-site measurement of dissolved hydrogen in liquids. These units offer fully automatic remote calibration, eliminating manual calibration and reducing operator error and downtime. Their wide range analysis ensures the device can detect both trace and high hydrogen concentrations. Our portable dissolved hydrogen analyzer is used in environmental monitoring and in drinking water treatment and laboratory use.
