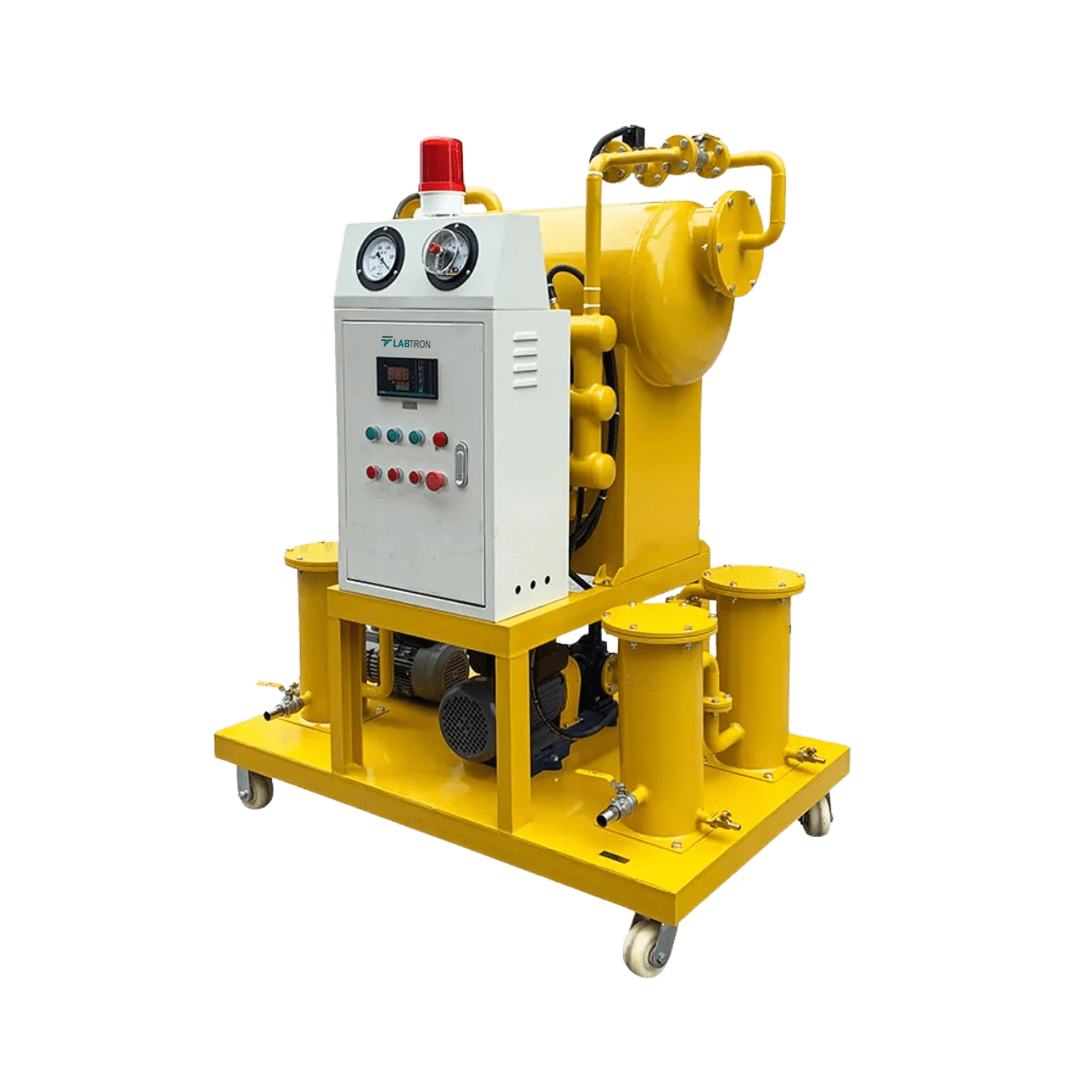

Portable Oil Purification System LPOP-A15

Portable Oil Purification System LPOP-A15

Portable Oil Purification System LPOP-A15 delivers a flow rate of 6000 (L/H), ensuring high efficiency for large-scale oil purification application. The automatic bubble elimination system removes air bubbles, maintaining the oil's dielectric strength and equipment performance. It features high-efficiency electric heating system for uniform heating and low energy use. Our Oil Purification System includes an advanced vacuum gauge for precise vacuum measurement.

Portable Oil Purification System LPOP-A15
Portable Oil Purification System LPOP-A15
Portable Oil Purification System LPOP-A15
Portable Oil Purification System LPOP-A15 Video
Request Quote
Flow Rate 6000 L/H
Vacuum Degree -0.06 to -0.095 MPa
Working Pressure ≤ 0.4 MPa
Temperature Range 20 to 80℃
Normal Working Hour ≥ 4000 H
Continuous Working 150 H
Working Noise 75 dB(A)
Oil Outlet/Inlet Φ 42 mm
Moisture Content ≤5 PPM
Gas Content 0.1 %
Impurity Size ≤1 μm
Value β 96 %
Heating Power 48000 W
Power Consumption 53000 W
Power Supply 380V/50HZ/3
Dimensions (L×W×H) 1600 × 1000 × 1800mm
Weight 500 kg
  • Overpressure protection system

  • Real-time moisture monitoring

  • Multistage purification technology

  • Weatherproof enclosure option

  • Temperature regulation mechanism

Portable Oil Purification System LPOP-A15 is widely used in the power transmission, electrical, and mining industries. It is essential for maintaining the quality and performance of insulating oils in transformers and other electrical equipment.



Models of Portable Oil Purification System

Labtron Portable Oil Purification System features efficient electric heating system that ensures uniform heating with low energy consumption. They include oil regeneration function to remove acids, sludge, and discoloration, restoring oil quality. Their real-time data display enables instant monitoring and improved operational control. These multi-protection safety systems ensure reliable operation and protection against potential risks. Our Oil Purification System is ideal for removing water, gases, and impurities from insulating oils, and restoring dielectric strength.

Portable Oil Purification System LPOP-A17

Portable Oil Purification System LPOP-A17

  • Flow Rate : 12000 L/H
  • Vacuum Degree : -0.06 to -0.095 MPa
  • Working Pressure : ≤ 0.4 MPa
  • Temperature Range : 20 to 80℃
Portable Oil Purification System LPOP-A14

Portable Oil Purification System LPOP-A14

  • Flow Rate : 3000 L/H
  • Vacuum Degree : -0.06 to -0.095 MPa
  • Working Pressure : ≤ 0.4 MPa
  • Temperature Range : 20 to 80℃
Portable Oil Purification System LPOP-A11

Portable Oil Purification System LPOP-A11

  • Flow Rate : 600 L/H
  • Vacuum Degree : -0.06 to -0.095 MPa
  • Working Pressure : ≤ 0.4 MPa
  • Temperature Range : 20 to 80℃
Portable Oil Purification System LPOP-A16
Portable Oil Purification System LPOP-A16
  • Flow Rate : 9000 L/H
  • Vacuum Degree : -0.06 to -0.095 MPa
  • Working Pressure : ≤ 0.4 MPa
  • Temperature Range : 20 to 80℃
Portable Oil Purification System LPOP-A10
Portable Oil Purification System LPOP-A10
  • Flow Rate : 360 L/H
  • Vacuum Degree : -0.06 to -0.095 MPa
  • Working Pressure : ≤ 0.4 MPa
  • Temperature Range : 20 to 80℃
Portable Oil Purification System LPOP-A12

Portable Oil Purification System LPOP-A12

  • Flow Rate : 1200 L/H
  • Vacuum Degree : -0.06 to -0.095 MPa
  • Working Pressure : ≤ 0.4 MPa
  • Temperature Range : 20 to 80℃
Portable Oil Purification System LPOP-A13

Portable Oil Purification System LPOP-A13

  • Flow Rate : 1800 L/H
  • Vacuum Degree : -0.06 to -0.095 MPa
  • Working Pressure : ≤ 0.4 MPa
  • Temperature Range : 20 to 80℃
Portable Oil Purification System LPOP-A18

Portable Oil Purification System LPOP-A18

  • Flow Rate : 18000 L/H
  • Vacuum Degree : -0.06 to -0.095 MPa
  • Working Pressure : ≤ 0.4 MPa
  • Temperature Range : 20 to 80℃

Portable Oil Purification System LPOP-A15 FAQ's
  • Labtron's Portable Oil Purification System is equipped with an advanced automatic bubble elimination system that effectively removes air bubbles from the oil during the purification process. This ensures the oil's dielectric strength is maintained, preventing electrical breakdown and enhancing the overall reliability, efficiency, and longevity of transformers and other electrical equipment. By eliminating trapped air, the system also reduces oxidation, minimizes insulation degradation, and ensures smooth operation in high-voltage applications.

  • By extending the usable life of industrial oils through effective purification, Portable Oil Purification System reduces the frequency of oil disposal and replacement. This not only leads to significant cost savings but also minimizes environmental impact by decreasing the volume of waste oil generated. Additionally, it helps industries comply with environmental regulations, lowers carbon emissions associated with new oil production, and promotes sustainable resource management by ensuring cleaner and more efficient oil usage over time.

  • Yes, Labtron's Portable Oil Purification System is designed with portability in mind, allowing for easy transportation to various sites. Its user-friendly interface and robust construction ensure that it can be operated efficiently in different industrial environments, providing reliable oil purification services wherever needed. Equipped with durable wheels, a sturdy frame, and a compact design, it is ideal for on-site maintenance, emergency oil filtration, and long-term industrial use, ensuring uninterrupted machinery performance.

  • Our Portable Oil Purification System features online filtration, allowing oil to be purified without halting equipment operation. This capability is crucial for industries that require continuous performance, such as power plants and heavy machinery sectors. By enabling oil purification during active operation, it minimizes downtime and enhances efficiency. This continuous integration improves productivity and reduces costs in high-demand environments.

  • Our LPOP-A15 is equipped with a high-efficiency electric heating system that ensures uniform heating with low energy consumption. The temperature is adjustable between 20 to 80°C, preventing overheating and degradation of oil properties. This advanced system allows precise control, optimizing performance while maintaining the integrity of the oil. Additionally, its energy-saving design helps reduce operational costs, making it a cost-effective solution for industries.
