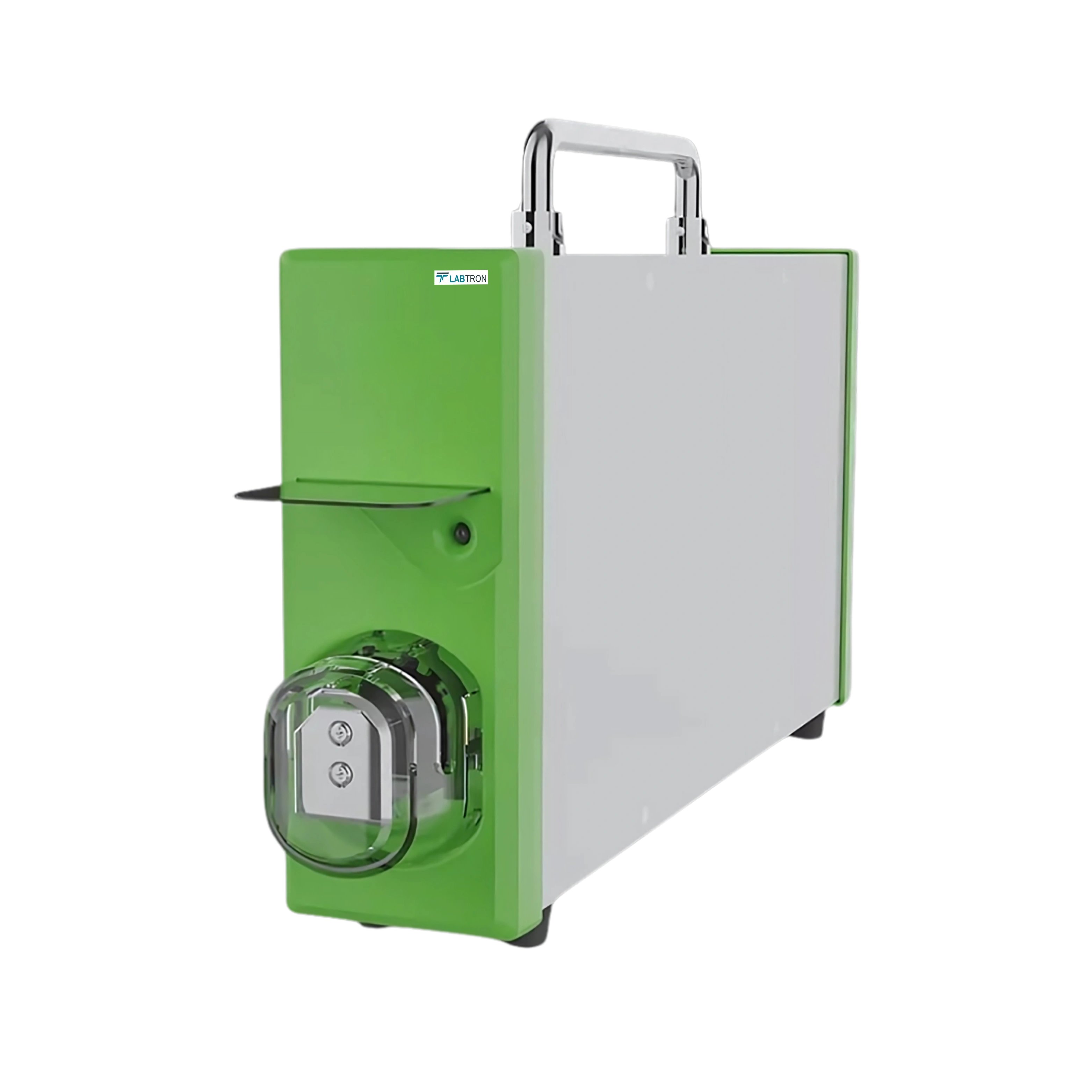

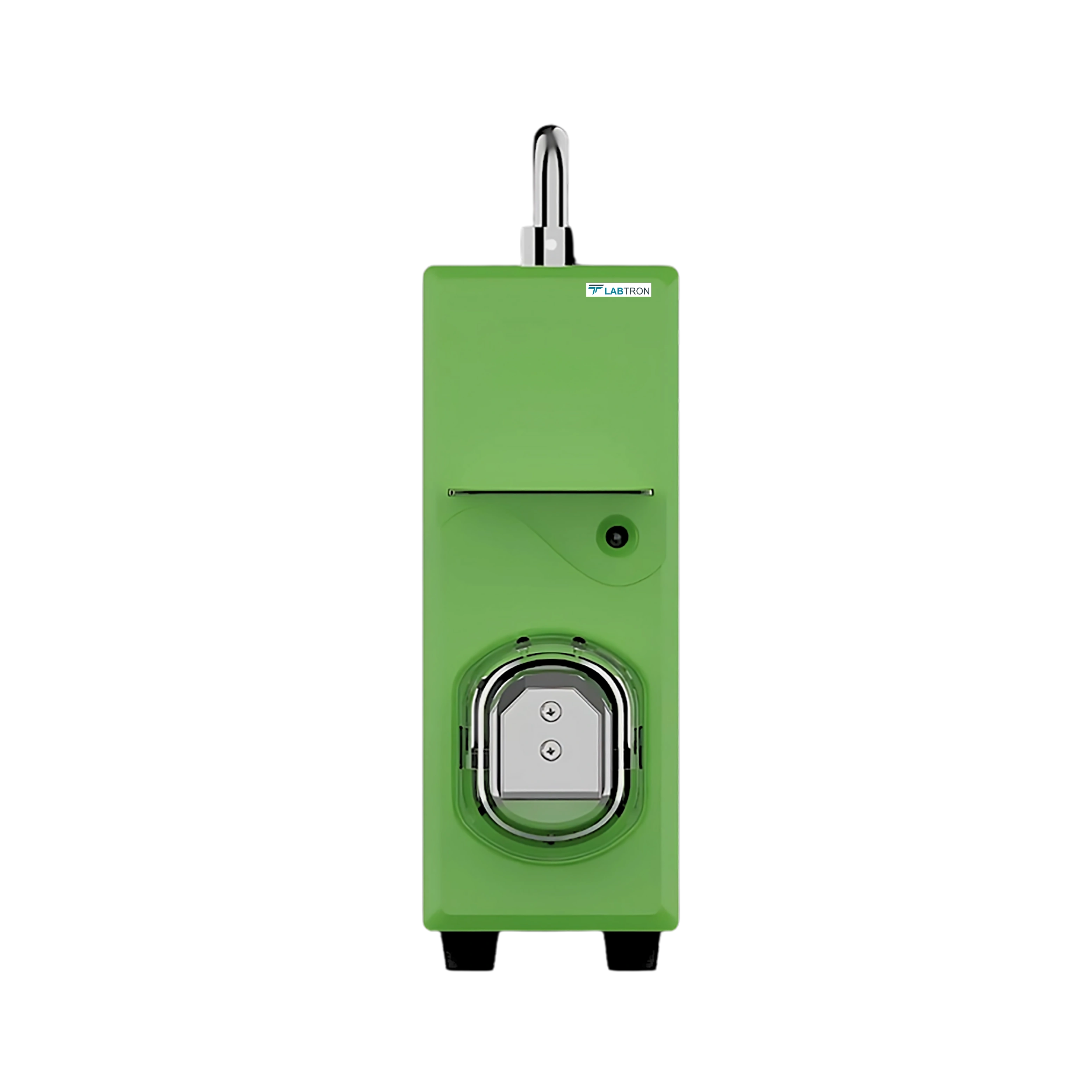

PVC Tube Sealer LPVT-A11

PVC Tube Sealer LPVT-A11

PVC Tube Sealer LPVT-A11 has a vertical design and offers a rapid heat-sealing time of 0.5 to 2.0 seconds. It uses radio-frequency heat sealing to close tubes quickly and securely. This sealer is designed to be ultra-slim, so multiple units can be used side-by-side. Additionally, it supports a wide range of voltage, making it suitable to be used in various places. Our tube sealer is suitable for long-term use without causing any overheating and is widely used in various medical and laboratory settings.

 PVC Tube Sealer LPVT-A11
 PVC Tube Sealer LPVT-A11
Request Quote
Heat Sealing Time 0.5 to 2.0 sec
Heat Sealing Tube Outer Diameter 2 to 6 mm
Indicator Light Colors Red/blue
RF Frequency 40.68 MHz
Grounding Protection Class I
Operating Temperature 0 to 40℃
Storage Temperature - 20℃ to + 70℃
Spacing Adjustment 65, 70, 75, 80, 85, 90, 95, 100 mm
Operating Power 250 W
Standby Power 100 W
Overall Power Supply 100 V to 120 V/ 220V to 240 V AC
Overall Dimension 336 × 65 × 173 mm
Net Weight 4.5 kg
  • Triple heat dissipation

  • Continuous heat-sealing capability

  • Splash protect plate

  • Compact design

Our PVC Tube Sealer LPVT-A11 is used for securely sealing PVC blood or fluid bags in hospitals, blood banks, and laboratories. It ensures sterile, leak-proof seals for safe storage and transport of biological samples.

Download catalog for
PVC Tube Sealer LPVT-A11 Catalog

Models of PVC Tube Sealer

Labtron offers a wide range of PVC Tube Sealers offering rapid tube sealing. All of our sealers are well-equipped with various safety features to enhance their reliability. Most of them offer continuous operation without any overheating and also they do not require any preheating. They are well-designed to fir in various laboratory settings and can be used with multiple units running side-by-side. Our sealers are used in medical setting such as hospitals, diagnostic clinics and various laboratories.

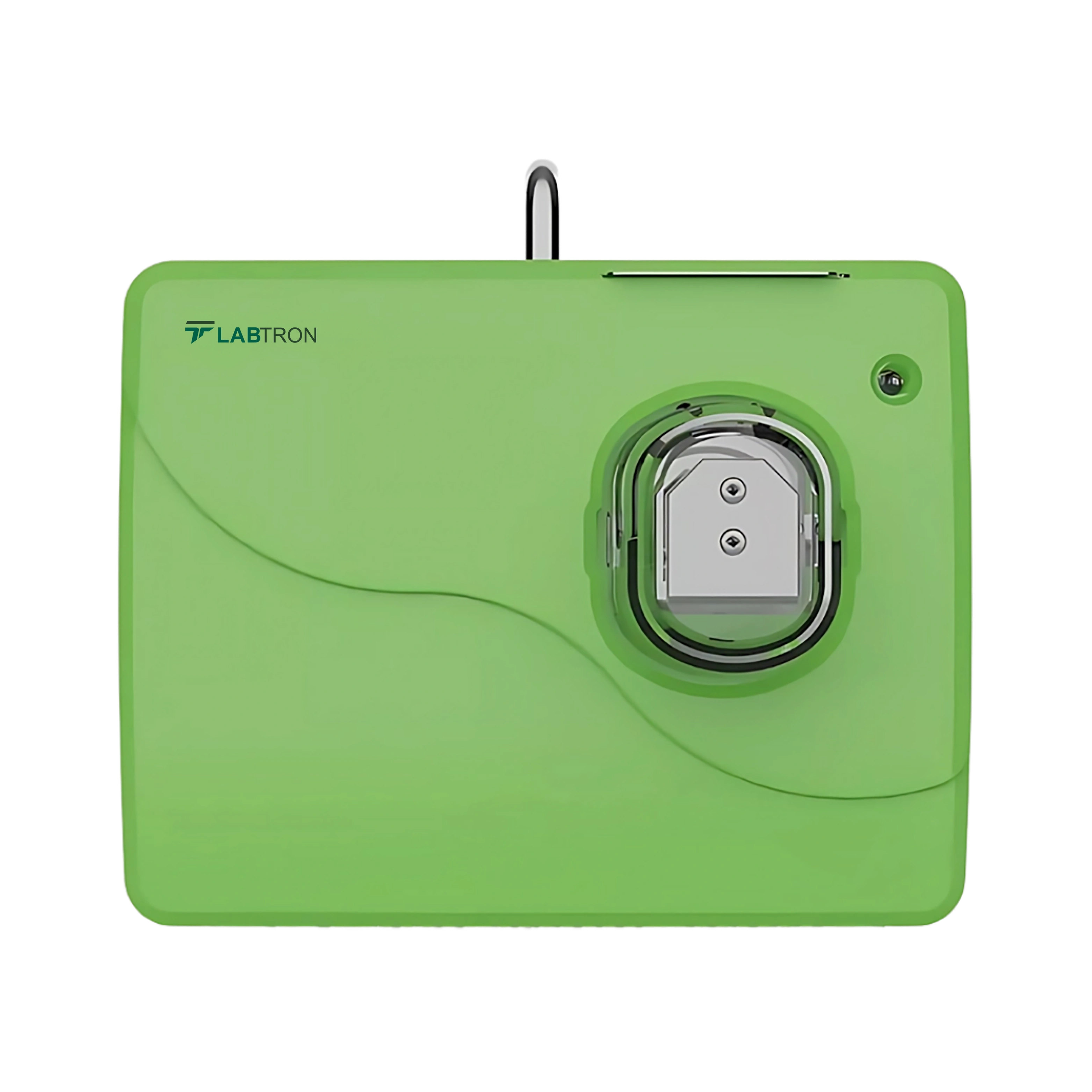

PVC Tube Sealer LPVT-A10

PVC Tube Sealer LPVT-A10

  • Heat Sealing Time : 0.5 to 2.0 sec
  • Heat Sealing Tube Outer Diameter : 2 to 6 mm
  • Indicator Light Colors : Red/blue
  • RF Frequency : 40.68 MHz

PVC Tube Sealer LPVT-A11 FAQ's
  • Labtron’s PVC Tube Sealer is mainly used for sealing plastic tubing, especially those made from polyvinyl chloride (PVC). It is commonly used in hospitals, blood banks, laboratories, and pharmaceutical environments where there is a need to securely seal tubes that carry fluids or biological samples. The sealed ends ensure sterility and prevent any leakage or contamination during storage or transportation.

  • Our PVC Tube Sealer works by applying controlled heat and pressure to the plastic tube. This heat melts the inner layers of the tube and fuses them together, creating a tight and sterile seal. Some devices use radio-frequency (RF) heating while others may use resistive heating elements. The process is typically quick, often taking just a couple of seconds, and is designed to work without damaging the tube material.

  • No, it doesn’t require preheating. It is designed for instant operation and this is a major convenience feature, allowing users to start sealing immediately after switching on the device. It also reduces downtime and improves overall workflow efficiency in busy environments.

  • Yes, our PVC Tube Sealer is designed for continuous use and can handle multiple sealing operations without overheating. This is made possible through advanced heat dissipation systems such as built-in cooling fans or metal heat sinks. Continuous operation is especially important in settings like blood banks where high-volume sealing is often required.

  • This tube sealer comes equipped with several safety features to protect the user and the sealer itself. It includes a splash protection plate to prevent accidental contact with hot parts, insulated housing to avoid electric shocks, built-in fuses to prevent electrical overloads, and indicator lights that show the operational status. These features make the device safer and more reliable in professional settings.
