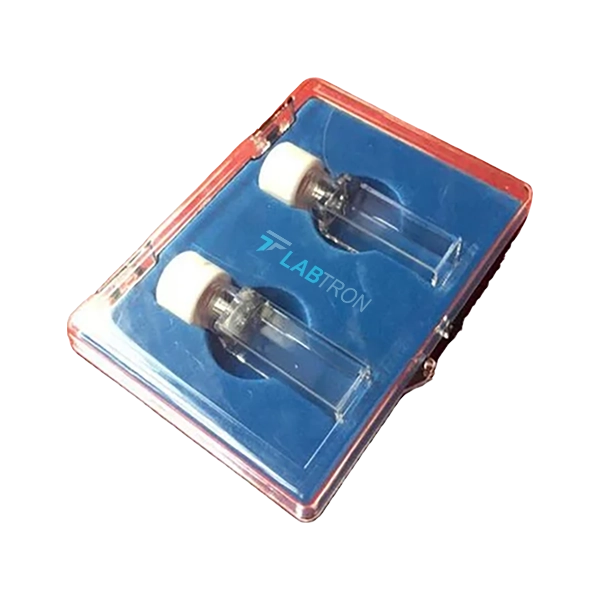

Quartz Cell LQC100L

Quartz Cell LQC100L

Quartz Cell LQC100L is a both side transparent Quartz Cell with 10 mm optical path and spiral port. Features 3.5 ml volume capacity and screw cap with Quartz transparent UV material. With good thermal properties and chemical compatibility, it offers accurate results with high repeatability within 190 to 2500 nm range.
Request Quote
Volume 3.5 ml
Optical path 10 mm
Transparency Both side transparent
Material Quartz transparent UV material
Wavelength Compatibility 190 to 2500 nm
Port Spiral port
Cap Screw cap
Dimension (W×D×H) 12.5×12.5×54 mm
  • A both side transparent Quartz Cell, ensures most light transmission
  • 10 mm optical path and spiral port, can be used for different solution analysis
  • 3.5 ml volume capacity and screw cap, able to be used under anaerobic conditions
  • Quartz transparent UV material, high transparency within UV range
  • Good thermal properties and chemical compatibility, long-term usage
  • Can be used for 190 to 2500 nm of wavelength range
  • Offers accurate results with high repeatability
Quartz cell is used to hold samples for measuring of the absorbance, transmittance, fluorescence intensity, fluorescence polarization, or fluorescence lifetime of samples for spectroscopic measurement across various medical, research and scientific institutes.

Download catalog for
Quartz Cell LQC100L Catalog

Available Range :

Quartz Cell LQC100L : 3.5 ml

Quartz Cell Supplier

Labtron Quartz Cell provide maximum light transmission with dual-sided optical clarity. They are made from high-quality quartz, that offers excellent thermal and chemical resistance. Their combination of precise path length and convenient sample handling support accurate and consistent measurements. Ideal for Spectroscopic analysis, our Quartz Cells deliver dependable results with precision across a broad wavelength range.
