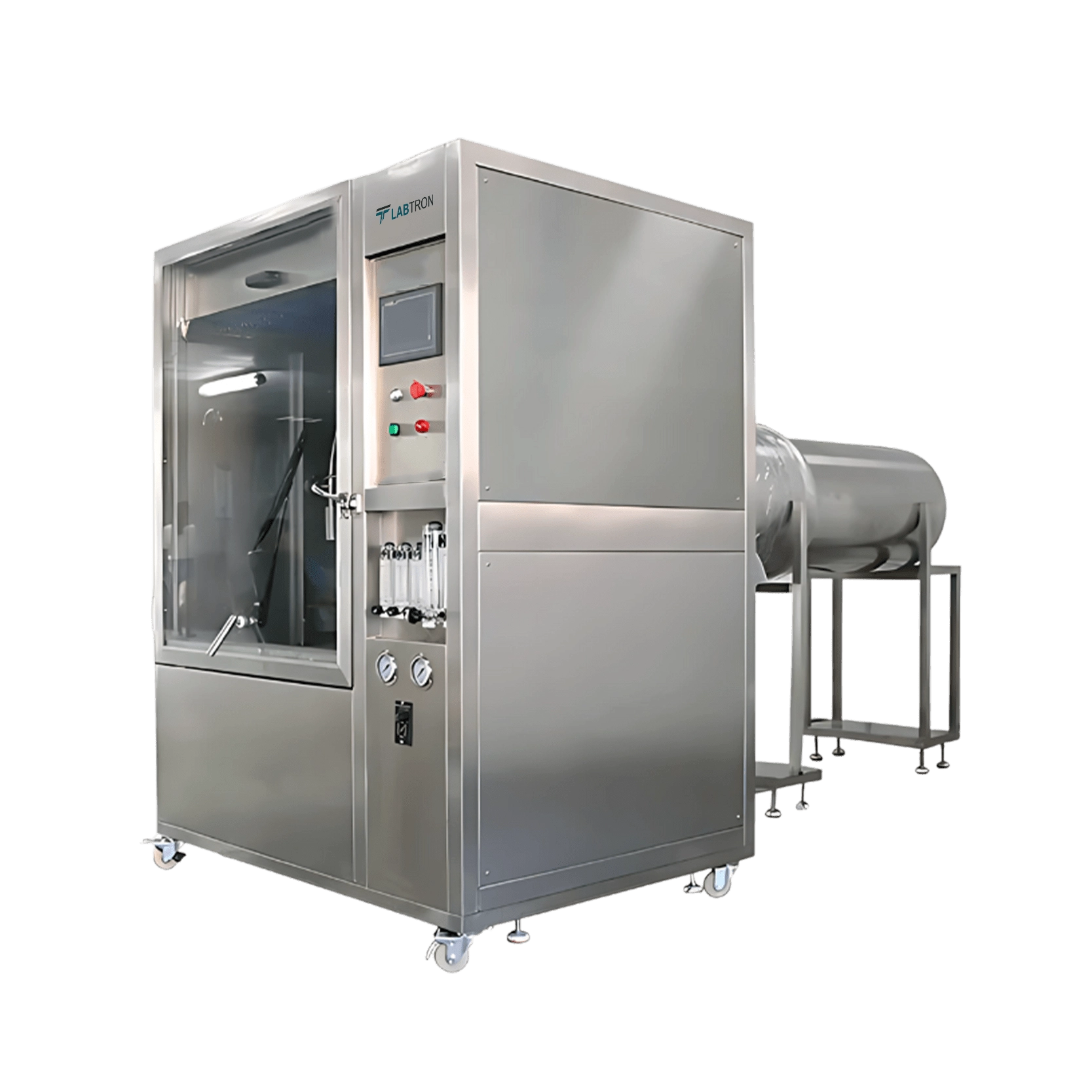

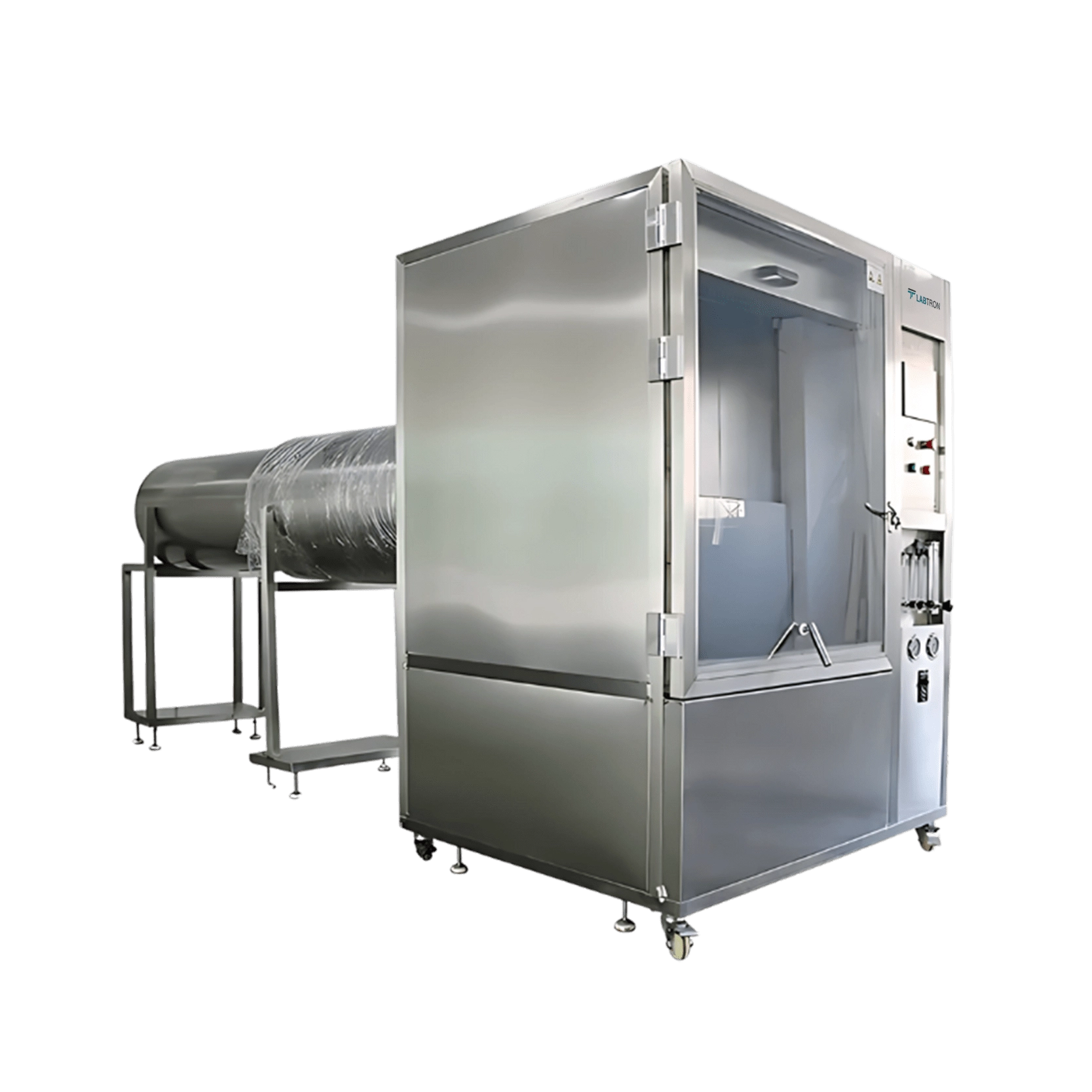

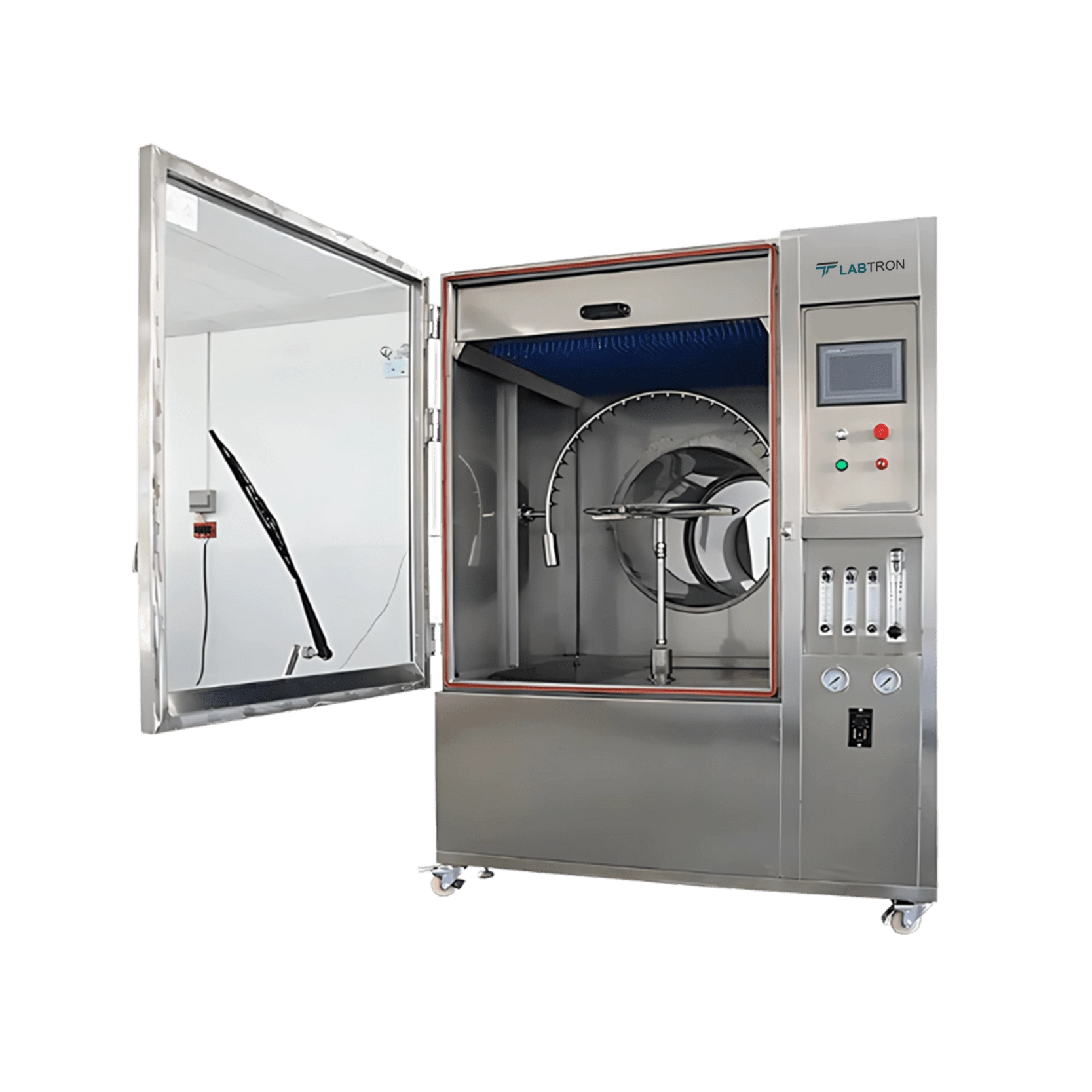

Rain Test Chamber LRTC-A13

Name: Rain Test Chamber LRTC-A13
Brand: Labtron
SKU: LRTC-A13
Rating: 5 (870 reviews)

Rain Test Chamber LRTC-A13 has a 600 mm capacity, providing sample space for various testing, ensuring efficiency and versatility. The non-sparking interior enhances safety by preventing ignition risks in sensitive environments. Its temperature uniformity control maintains consistent conditions throughout the chamber for precise testing results. The heavy-duty fan system ensures optimal airflow and temperature stability, improving overall performance. Our rain test chamber has high-performance insulation that enhances energy efficiency while maintaining stable internal conditions.

Request Quote

Swing Pipe	600 mm
Test Bench Speed	1 to 3 r/min
Size of Spray Aperture	0.4 mm
Space of Spray Aperture	50 mm
Flow of Spray Aperture (L/min)	0.07 L/min ±5%
Water Spray Pressure	80 to 150 Kpa
Swing Angle Range of Spray Pipe	120°, 320°
Nozzle Angle	120° (IPX3), 180° (IPX3)
Swing Angle	120° (IPX3), 180° (IPX3)
Swing Amplitude	Max ±180°
Swing Speed of Spray Pipe	IPX3: 15/min; IPX4: 5/min
Test Time	1S to 9999H59M59S
Environmental Temperature	5℃ to 40℃
Relative humidity	≤85% RH
Turntable Load	20 kg
Turntable Diameter	500 mm
Adjustable Turntable Height	100 mm
Power Consumption	220 V/3 KW
Internal Dimensions (W × D × H)	800 × 3500 × 800 mm
External Dimensions (W × D × H)	1080 × 3600 × 1750 mm

Sealed electrical wiring
Advanced safety sensors
Explosion-proof thermostat
Heat-resistant glass window
Consistent thermal performance

Rain Test Chamber LRTC-A13 is specialized testing equipment that evaluates water resistance by simulating rainfall, splashing, and heavy downpour conditions. It ensures compliance with IP waterproofing standards for testing electronics and automotive components.

Download catalog for
Rain Test Chamber LRTC-A13 Catalog

Available Range :

Rain Test Chamber LRTC-A10 : 200 mm Rain Test Chamber LRTC-A11 : 300 mm Rain Test Chamber LRTC-A12 : 400 mm Rain Test Chamber LRTC-A13 : 600 mm

Models of Rain Test Chamber

Labtron Rain Test Chamber is used to streamline testing processes with automated test cycles, ensuring consistent and efficient performance. These feature a user-friendly interface that simplifies operation and allows for seamless control. Their energy-efficient operation minimizes power consumption while maintaining high performance. They customize test settings for users to adjust parameters based on specific testing requirements, enhancing flexibility and accuracy. Our rain test chamber has high-pressure water jets that provide powerful and precise cleaning or testing capabilities, making it ideal for various applications.
