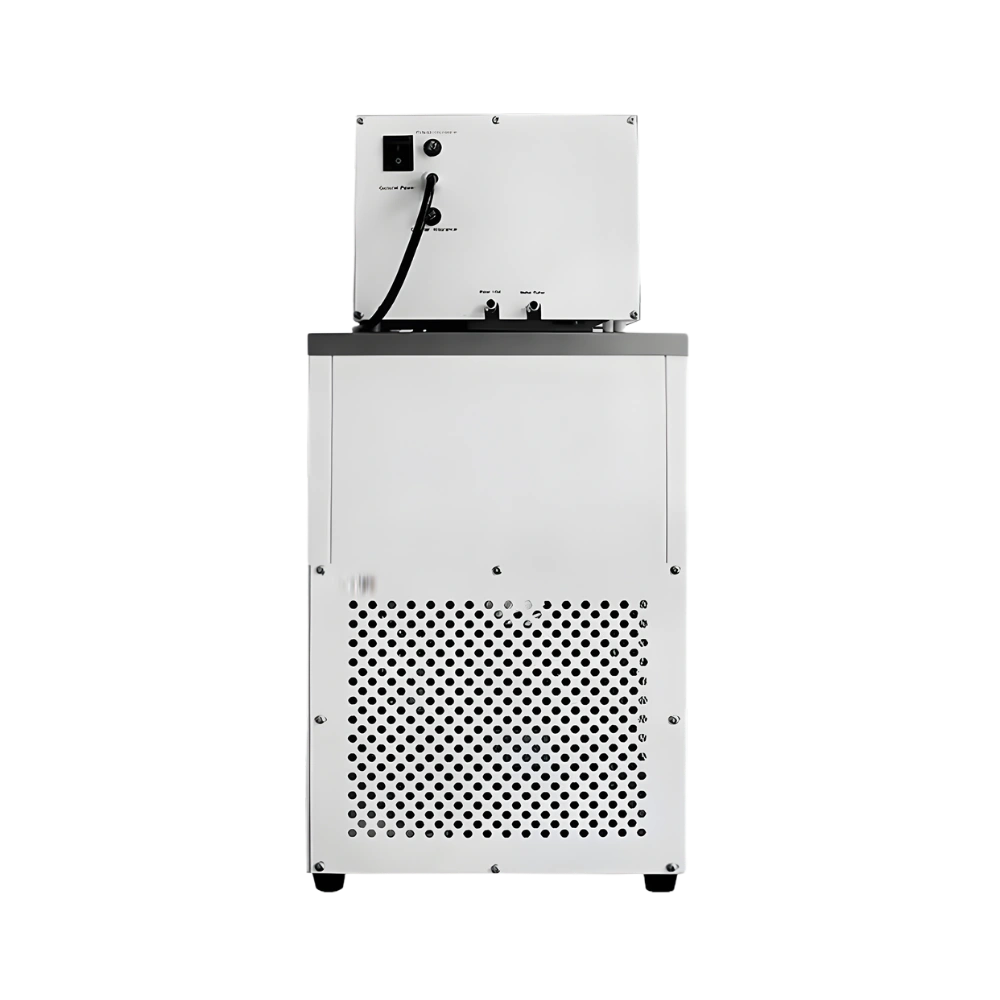

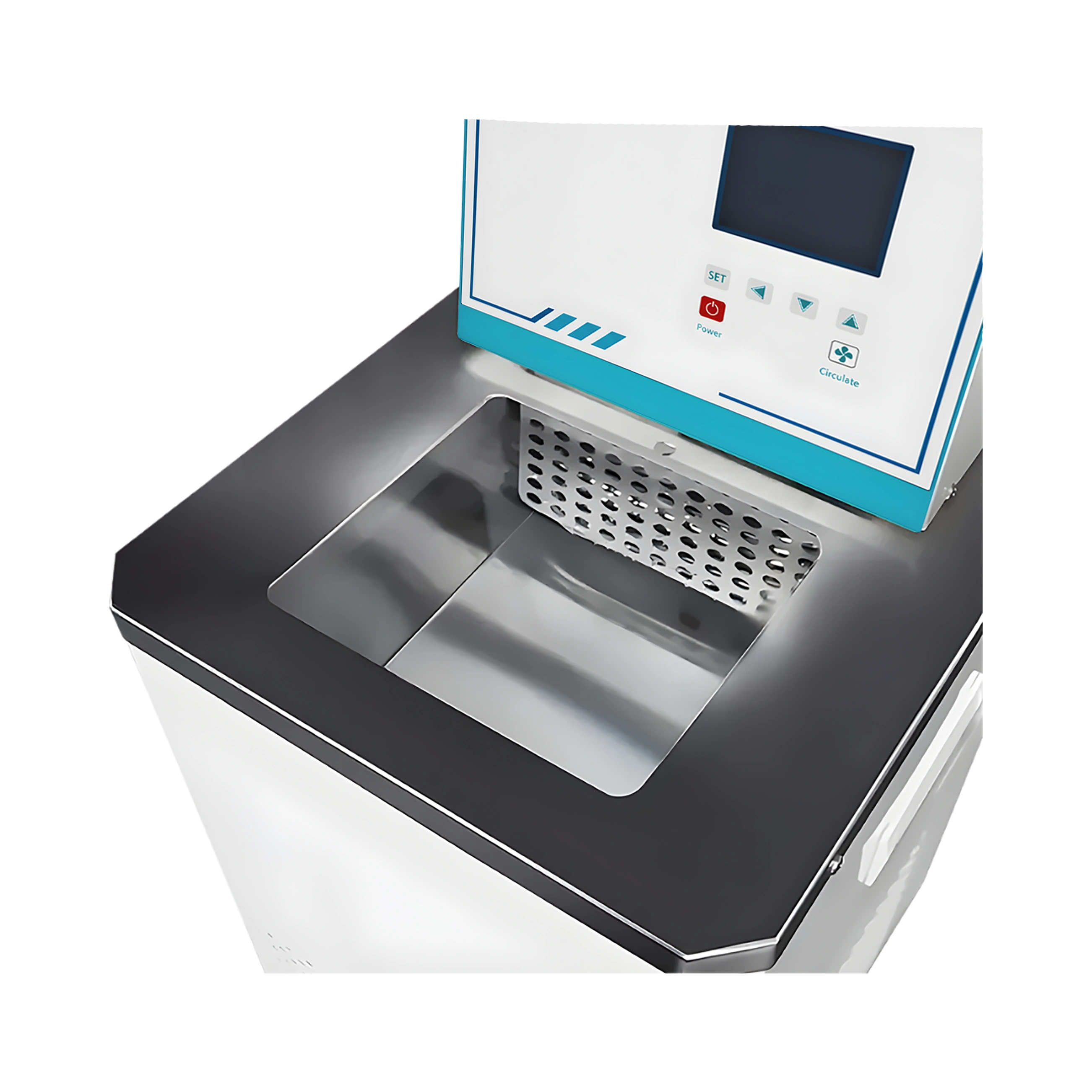

Refrigerated Circulating Bath LRBC-A20

Name: Refrigerated Circulating Bath LRBC-A20
Brand: Labtron
SKU: LRBC-A20
Rating: 4.9 (720 reviews)

Refrigerated Circulating Bath LRBC-A20 offers a 50L capacity and operates within a temperature range of 0 to 300℃. It has a high-efficiency compressor for fast cooling, with overheating/overcurrent protection. It is equipped with an advanced self-developed temperature control system, utilizing a high-standard PT100 sensor for accuracy. The large LCD offers a resolution of 0.01℃ for easy monitoring. Our bath supports both internal and external circulation with a 10mm tube, ensuring versatility for various experimental needs.

Request Quote

Capacity	50L
Temperature Range	0 to 300℃
Resolution	0.01℃
Tank Temperature Fluctuation	Water: ±0.05℃, Dimethyl silicone oil: ±0.1℃
Heating Element	Heating tube
Circulation Method	Internal and external circulation
Circulation Pump Flow Rate	13L/min
Time Setting	Yes
Display	LCD
Inner Material	Inner liner made of stainless steel
Outer Shell Material	galvanized sheet sprayed with plastic
Power Consumption	4.5kw
Power Supply	220V 50HZ
Internal Dimension (L × W ×D)	400 × 300 × 280 mm
External Dimensions (L × W × H)	565 × 590 × 1200 mm
Weight	80 Kg

Software for accurate temperature display
Over-temperature protection alarm
Timing function for working time setting
Automatic cut-off function
Hidden cooling coil for tank space
Intelligent PID software for adjustment
Digital lock system

The Refrigerated Circulating Bath is ideal for constant temperature experiments, heating, cooling, or as a supplementary heat/cold source. It is widely used in biology, chemical engineering, chemistry, pharmaceuticals, life sciences, and physical property testing.

Cover plate ×1 piece

Thermal insulation pipe ×1 piece

Silicon gel tube ×1 piece

Fuse × 2 pieces

Download catalog for
Refrigerated Circulating Bath LRBC-A20 Catalog

Download manual for
Refrigerated Circulating Bath LRBC-A20 Manual

Available Range :

Refrigerated Circulating Bath LRBC-D11 : 10 L Refrigerated Circulating Bath LRBC-A18 : 100L Refrigerated Circulating Bath LRBC-A11 : 10L Refrigerated Circulating Bath LRBC-A12 : 15L Refrigerated Circulating Bath LRBC-A13 : 20L Refrigerated Circulating Bath LRBC-A14 : 30L Refrigerated Circulating Bath LRBC-A15 : 40L Refrigerated Circulating Bath LRBC-A16 : 50L Refrigerated Circulating Bath LRBC-A17 : 60L Refrigerated Circulating Bath LRBC-A10 : 6L

Models of Refrigerated Circulating Bath

Labtron manufactures various capacities of refrigerated circulating baths with wide temperature ranges from -80℃ to 100℃. They are equipped with a new-generation temperature control program and intelligent PID control. The powerful, fully enclosed compressor cooling system offers robust performance with built-in protection against overheating and overcurrent. Our refrigerated circulating baths provide reliable and efficient cooling and heating capabilities, ideal for various uses, including research, quality control, and production processes.
