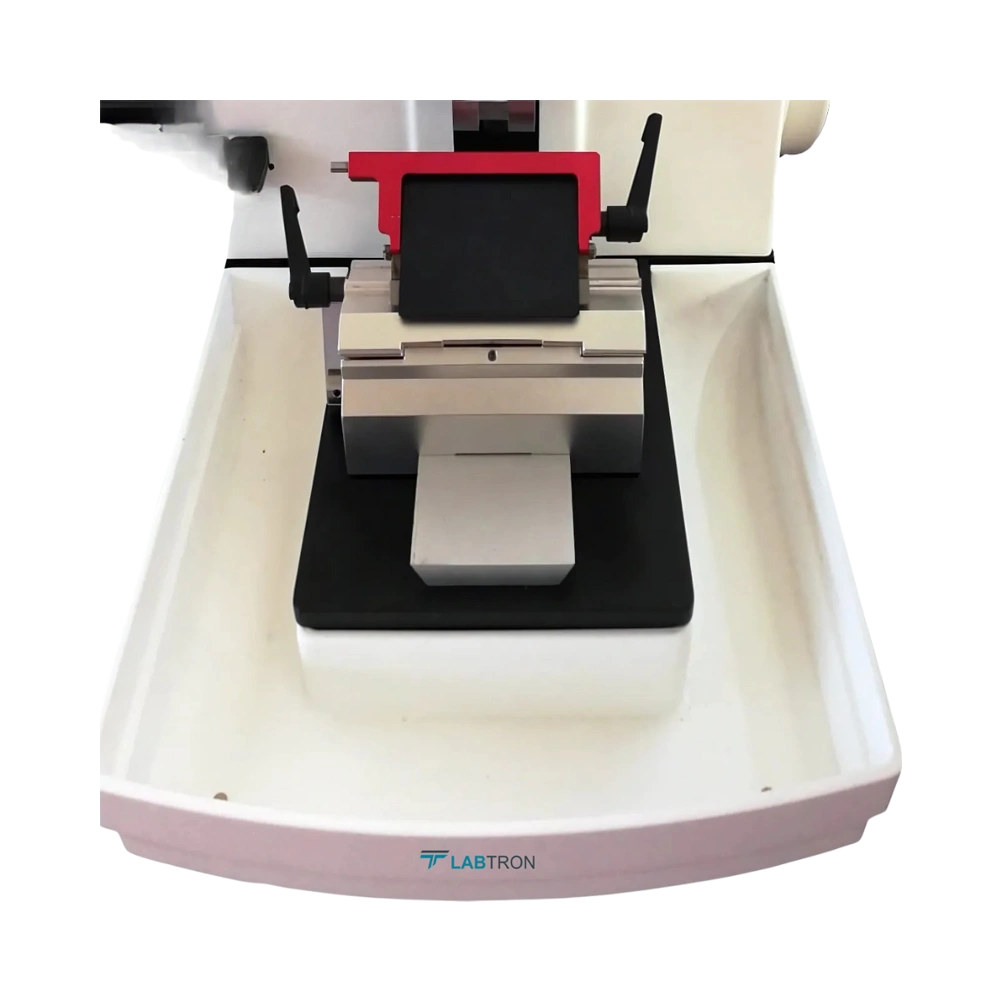

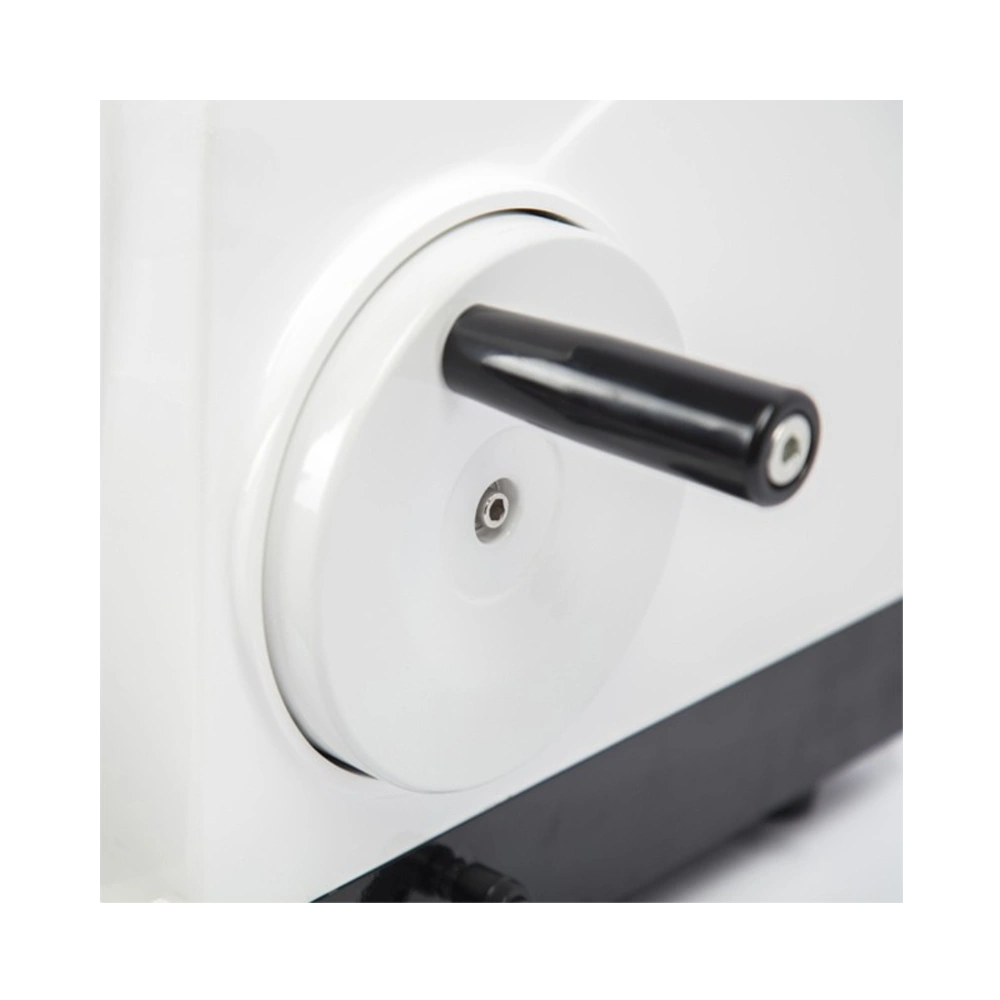

Rotary Microtome LRMI-A13 features a smooth vertical and horizontal feeding (70mm range) with a secure clamping system for stable, vibration-free cuts. It offers an adjustable slicing angle (0° to 8°) and 360° specimen orientation for versatile applications. The table is engineered for flawless results, combining robust construction with advanced features to streamline your workflow and enhance reproducibility. This rotary microtome features a large, smooth handwheel and intuitive controls, reducing fatigue during prolonged use. Our LRMI-A13 is suitable for clinical studies, cancer research, and pathology.
| Section Thickness Range | 0.5 to 60 µm (Adjustable increments: 2 to 25 µm) |
| Precision & Error | ±2 µm (for 10 to 20 µm sections), ±5 µm (for 20 to 60 µm sections) |
| Specimen Size Capacity | Max 70 mm (vertical) × 28.5 mm (horizontal) |
| Specimen Orientation | 360° rotatable with XY-axis adjustment (0°–8° angulation) |
| Feeding Mechanism | Vertical feed: 70 mm (forward/backward) Horizontal feed: 23 mm (left/right) |
| Blade Holder Movement | Adjustable with replaceable clamping system |
| Slicing Angle Adjustment | 0° to 8° (fine-tunable) |
| Working Temperature | 5°C to 40°C |
| Operating Humidity | ≤80% RH |
| Package Dimensions | 690 mm × 590 mm × 500 mm |
| Dimensions | 500 mm × 500 mm × 300 mm |
| Weight | 30 kg |
Precision sectioning
Advanced specimen control

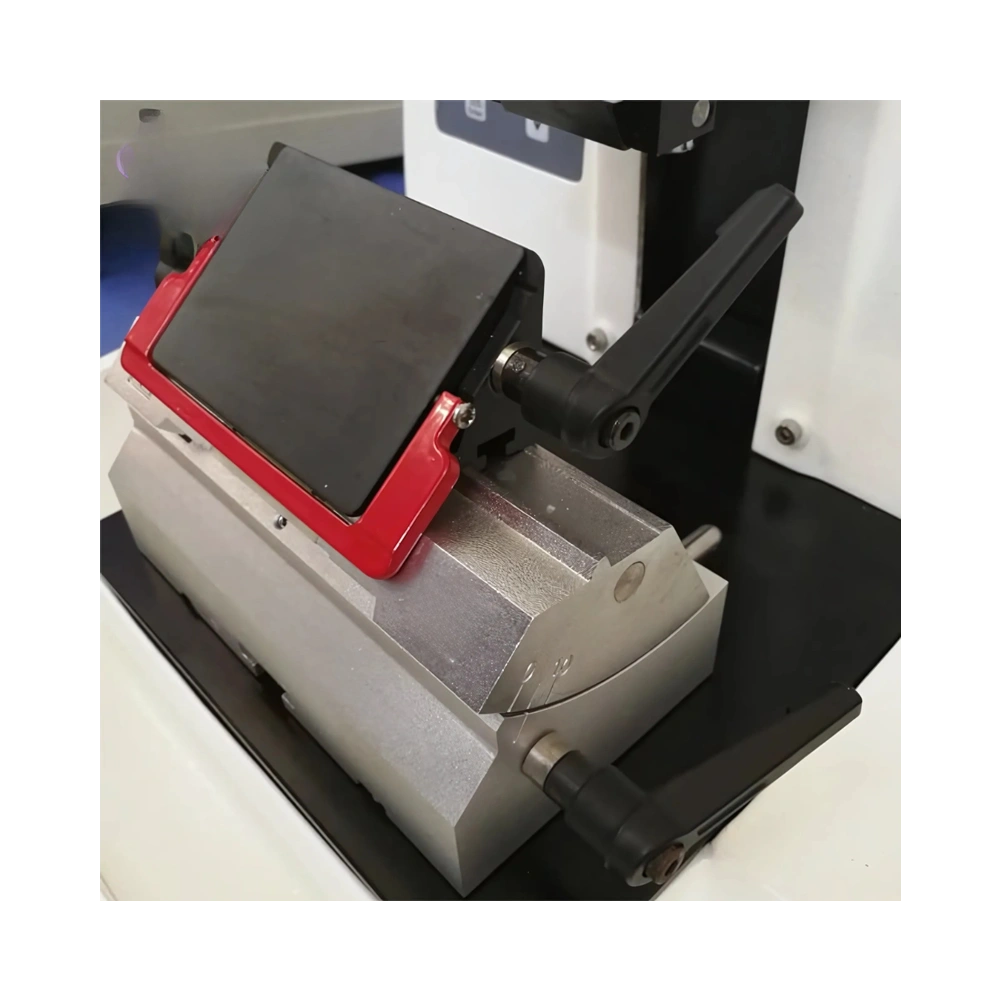

360° rotatable specimen head
Sturdy & stable design
User-friendly adjustments
Our Rotary Microtome LRMI-A13 is ideal for histology and pathology laboratories, enabling precise sectioning of tissue samples for microscopic analysis. It is widely used in medical diagnostics, research, and education to prepare high-quality paraffin-embedded or frozen sections. Its accuracy and reliability make it suitable for clinical studies, cancer research, and veterinary pathology, ensuring consistent results for critical examinations.
Labtron Rotary Microtome provide consistent thickness sectioning of tissues through rotating circular blade. They are equipped with holder that can be adjusted vertically allowing accurate control over slice depth for mounted specimens. Their handwheel operation allows smooth and controlled slicing through tough materials. They incorporate waste tray to collect debris, keeping the workspace clean and organized during process. Our Rotary Microtome is ideal for cryosectioning, veterinary pathology, and paraffin embedding.
The LRMI-A13 uses a dual-motion screw mechanism and laser-calibrated thickness settings (0.5–60 µm) to reduce sectioning errors by 30% compared to standard models. Its anti-vibration base ensures razor-sharp samples every time.
Yes! The LRMI-A13’s adaptive specimen clamp and temperature-resistant components (5°C–40°C) allow seamless switching between paraffin blocks and cryo-preserved tissues without recalibration.
Unlike fixed-angle microtomes, LRMI-A13’s 360° rotation lets you: Adjust cutting angles (0°–8°) for challenging tissues (e.g., brittle biopsies). Share the device between multiple users without manual repositioning.
Absolutely. The LRMI-A13 supports standard and disposable blades with a quick-release holder, reducing contamination risks and blade-change time by 50%.
The auto-retract feature of LRMI-A13 pulls the blade back after each cut to: Prevent specimen damage during return strokes. Extend blade life by reducing friction.
