| Measuring Range | 0 to 4.500 Abs |
| Test Methods | Kinetic, End Point, Two Point, Absorbance |
| Photometric Linearity | ± 1% (0 to 4.000 Abs) |
| Photometric Accuracy | ± 0.0001 Abs (outside), ±0.00001 Abs (inside) |
| Light Source | Philips 6 V, 10 W halogen lamp (long-life) |
| Filters (Wavelengths) | 340 nm, 405 nm, 492 nm, 510 nm, 546 nm, 578 nm, 630 nm (1 free position) |
| Wavelength Precision | ± 2 nm |
| Spectral Bandwidth | ≤ 10 nm |
| Incubators | 10 positions at 37.0 ± 0.3 °C |
| Flow Cell Incubator Temperature | 37 °C, 30 °C, 25 °C (precision ±0.1 °C) |
| Timers | 3 timers; precision ±0.1 s |
| Sample Volume | 0 to 300 µL (recommended 500 µL) |
| Flow Cell | 32 µL quartz glass, 10 mm path length |
| Test Compatibility | Supports flow-cell and cuvette test modes |
| Quality Control Functions | X–SD, CV%, Levey–Jennings (LJ) quality control curves |
| Repeatability | < 1 % (CV) |
| Carry Over | < 1 % |

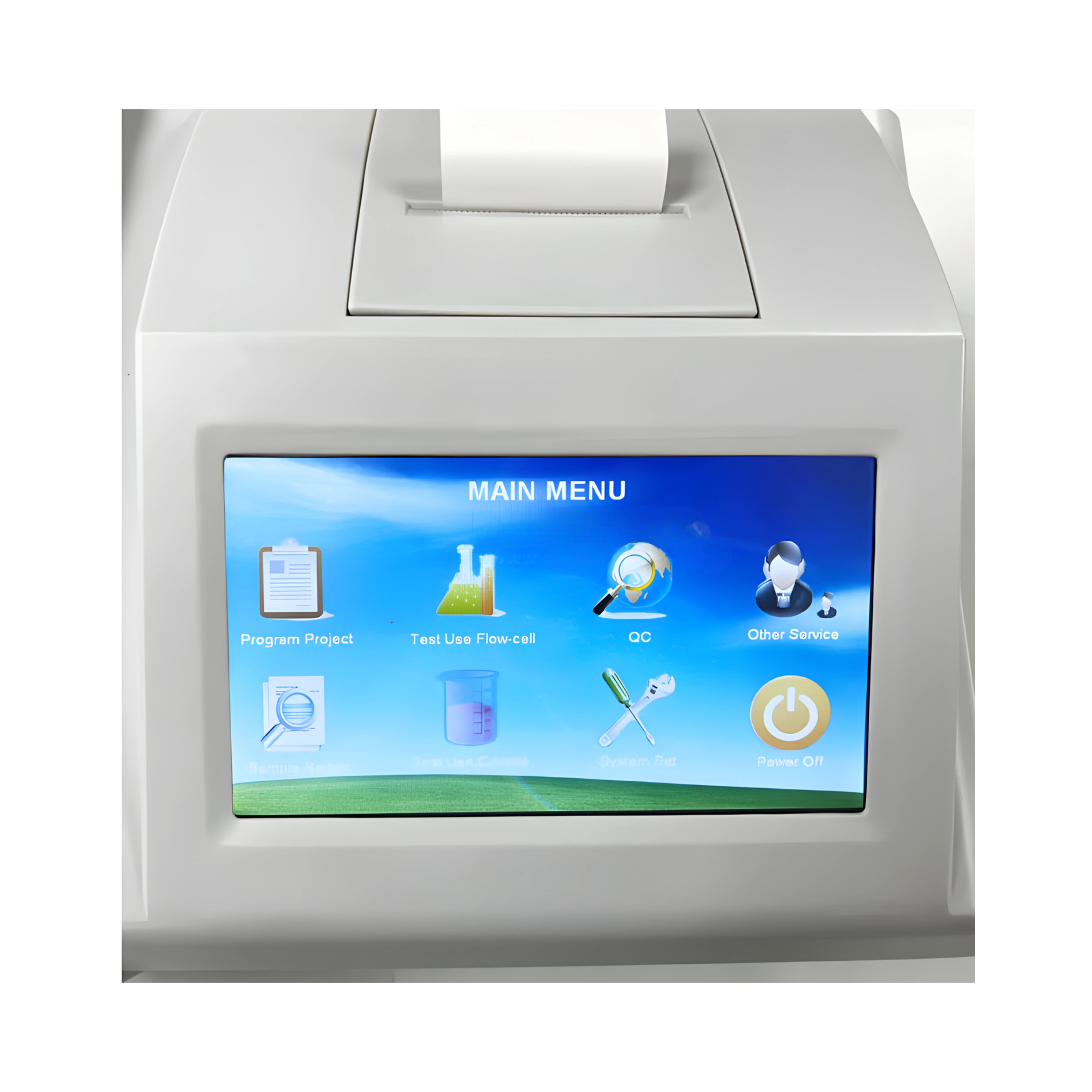

| Display Screen | 7-inch color LCD touchscreen |
| Processor | ARM high-speed microprocessor (CPU) |
| Printer | Built-in thermal-sensitive printer |
| Interface | RS-232 (for PC connection) |
| Data Storage Capacity | 10000 results |
| Pre-programmed Tests | 80 test items |
| Operating Temperature Range | 0 °C to 40 °C |
| Operating Humidity | ≤ 80 % |
| Power Supply | 100–240 VAC, 50/60 Hz, 100 VA |
| Dimensions (L × W × H) | 360 × 270 × 180 mm |
| Packing Dimensions (L × W × H) | 500 × 460 × 290 mm |
| Net Weight | 5 kg |
| Gross Weight | 7.7kg |
Flow cell and cuvette compatible
Real-time curve display
Light source hibernation
RS-232 PC connectivity

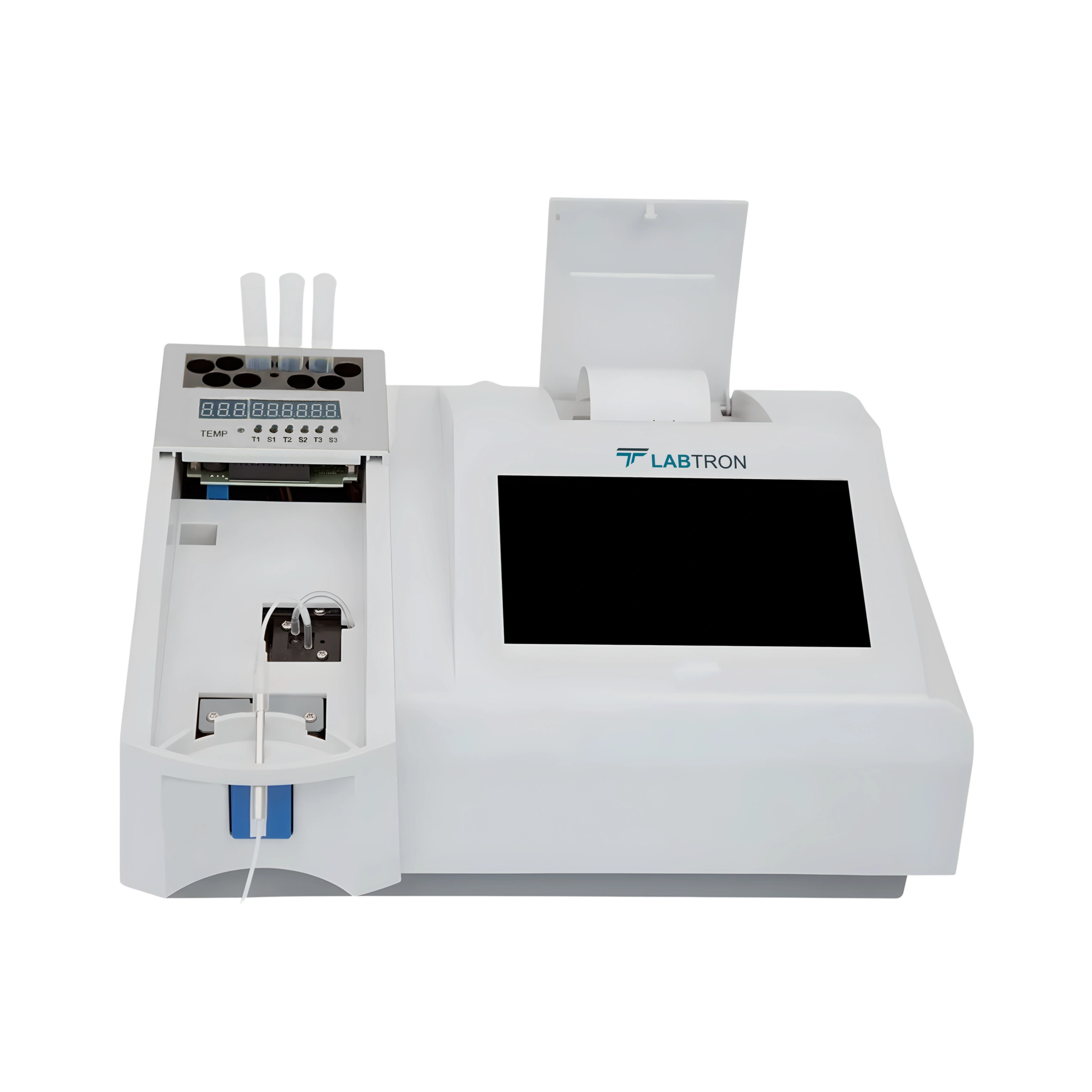

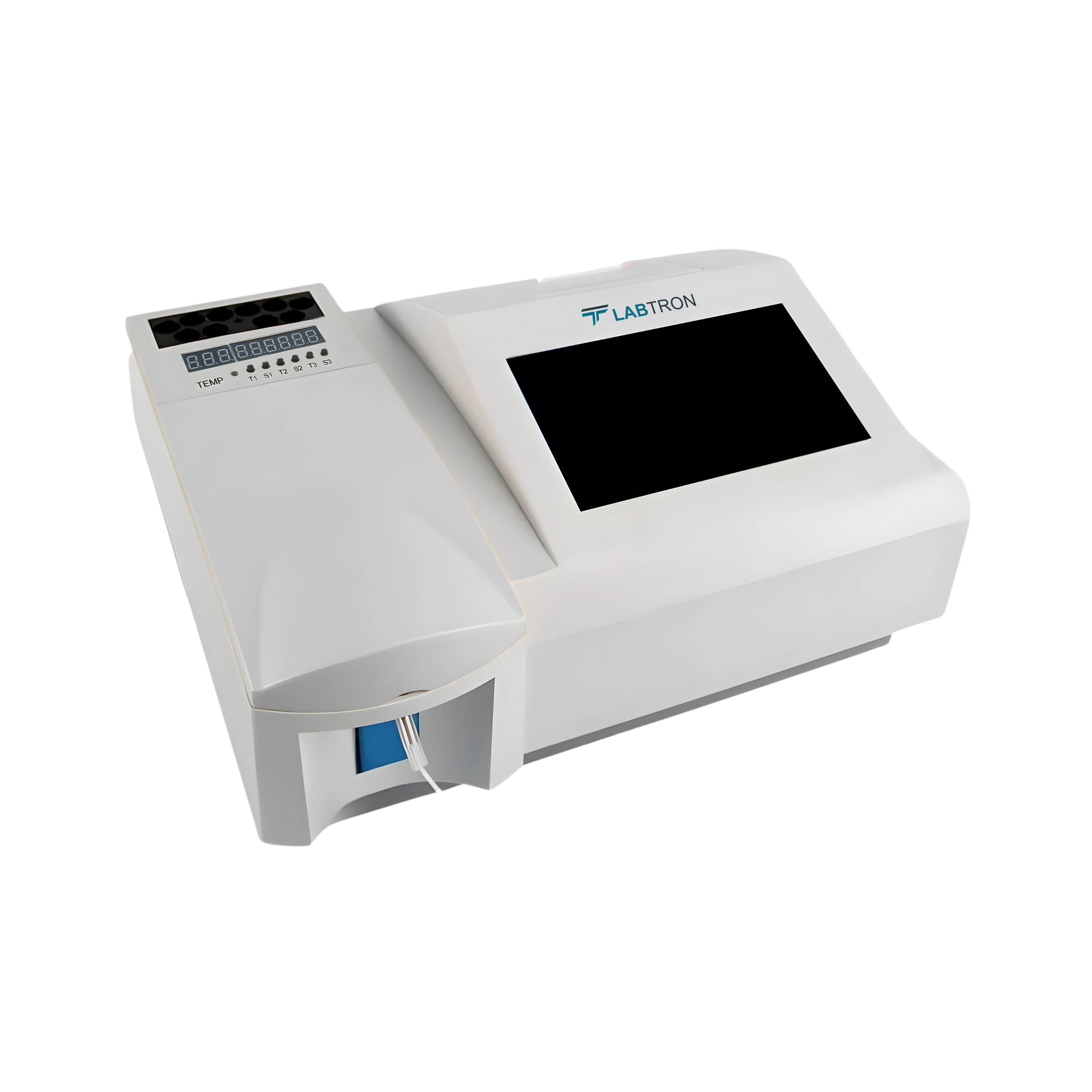

Semi-Automatic Chemistry Analyzer LSCA-A11 is used for biochemical and enzymatic assays. It is widely used in clinical laboratories, diagnostic centers, research facilities, and hospital labs for routine sample analysis and quality control.
Three-core Power Line × 1 Pc
12V DC Power Supply × 1 Pc
Stylus × 1 Pc
Thermo-Sensitive Paper × 1 Pc
Spare Bump Tube × 1 Pc
Lamp Assembly × 1 Pc
Download catalog for
Semi-Automatic Chemistry Analyzer LSCA-A11 Catalog
Labtron Semi-Automatic Chemistry Analyzer is versatile to perform chemical analyses with partial automation, enhancing efficiency and accuracy. They feature advanced optical sensors that detects sensitivity for various biochemical components and analytes. Their reagent compartments are designed for optimal storage, preserving integrity for reliable test results. They utilize pipetting system to ensure accurate sample volume measurement during testing procedures consistently. Our Semi-Automatic Chemistry Analyzer is essential for routine blood tests, analyzing enzymes and hormones and assessing water quality.
