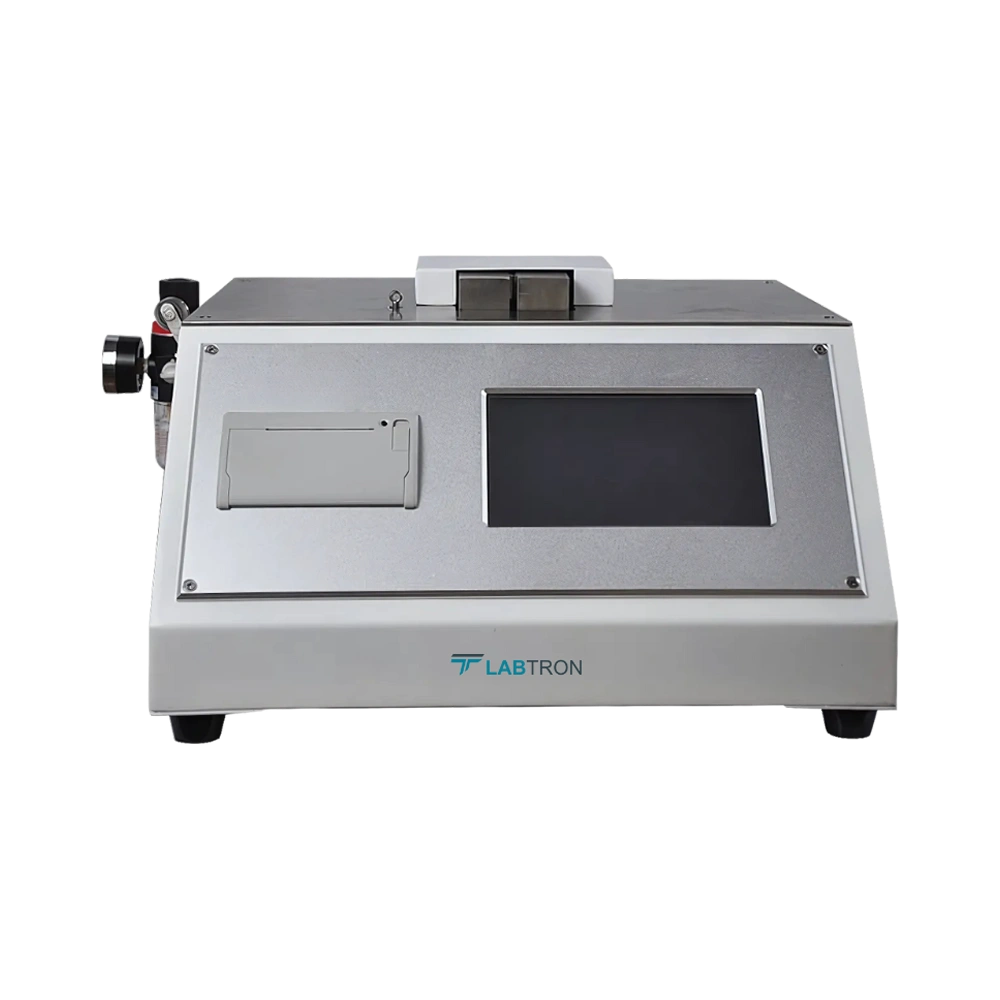

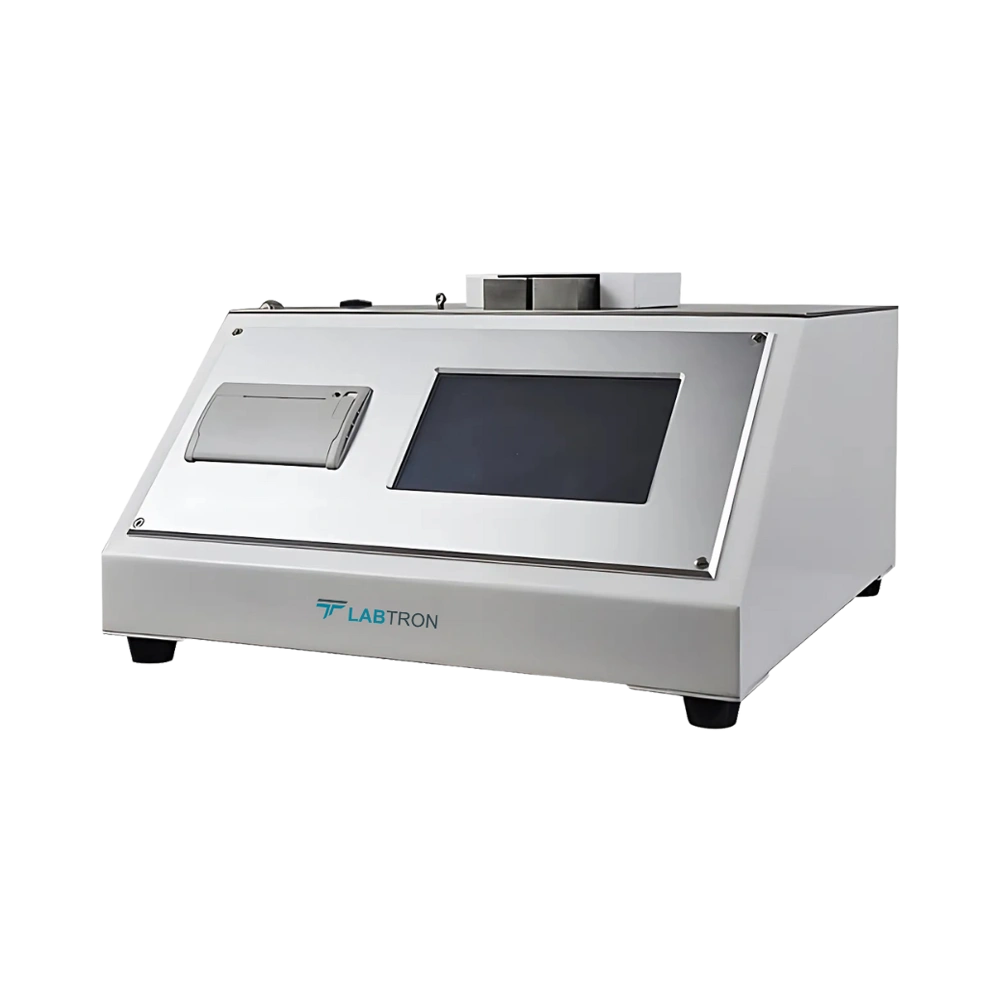

Short Span Compression Tester LSCT-A10

Short Span Compression Tester LSCT-A10

Short Span Compression Tester LSCT-A10 offers a measuring range of 10 to 500 N with a holding force of 2300 N. It utilizes a 24-bit analog-to-digital converter and an ARM processor for fast and accurate sampling. Driven by a stepping motor for accurate and stable speed, with quick return capability. Allows for both vertical and horizontal tests within the same batch and can print average values. Our tester adheres to the international standard ISO 9895 and the national standard GB/T 2679.10 for the short-distance compression test method of paper and cardboard.
Request Quote
Measuring Range 10 to 500 N
Specimen Holding Force 2300 ± 500 N
Gas Source ≥ 0.5MPa
Gauge Pressure 0.3 to 0.45Mpa
Display 7-inch color touchscreen
Resolution 0.1N
Indication Range 5% to 100 %
Indication Error ±1 %
Indication Variability ≤ 1%
Free Spacing of Specimen Clamps 0.70 ± 0.05 mm
Test Speed 3 mm ±1min
Specimen Holding Surface Size 30×15 mm
Communication Interface RS232 (Default)
USB, WIFI (optional)
Storage 5000 sets of batch data,
Printer Built-in thermal printer
Working Temperature 10 ℃ to 35℃
Working Humidity ≤ 85 %
Power Consumption 50W
Power Supply AC 100 to 240V, 50/60Hz
Dimension 530 × 425 × 305 mm
Net Weight 34kg
  • Double cylinders with pneumatic clamping
  • Built-in thermal printer
  • Automatic data storage on power failure
  • Displays the real-time force value-displacement curve
  • RS232 Communication Interface
Our Short Span Compression Tester’s primary use is in the manufacturing of paper and cardboard for cartons. It is also applicable for testing paper sheets prepared in laboratories during pulp testing.
RS232 interface and computer software × 1 set
Punch Standard Distance Cutter × 1 set
