Single Automated Stainer Fluorescence LSAS-A10F

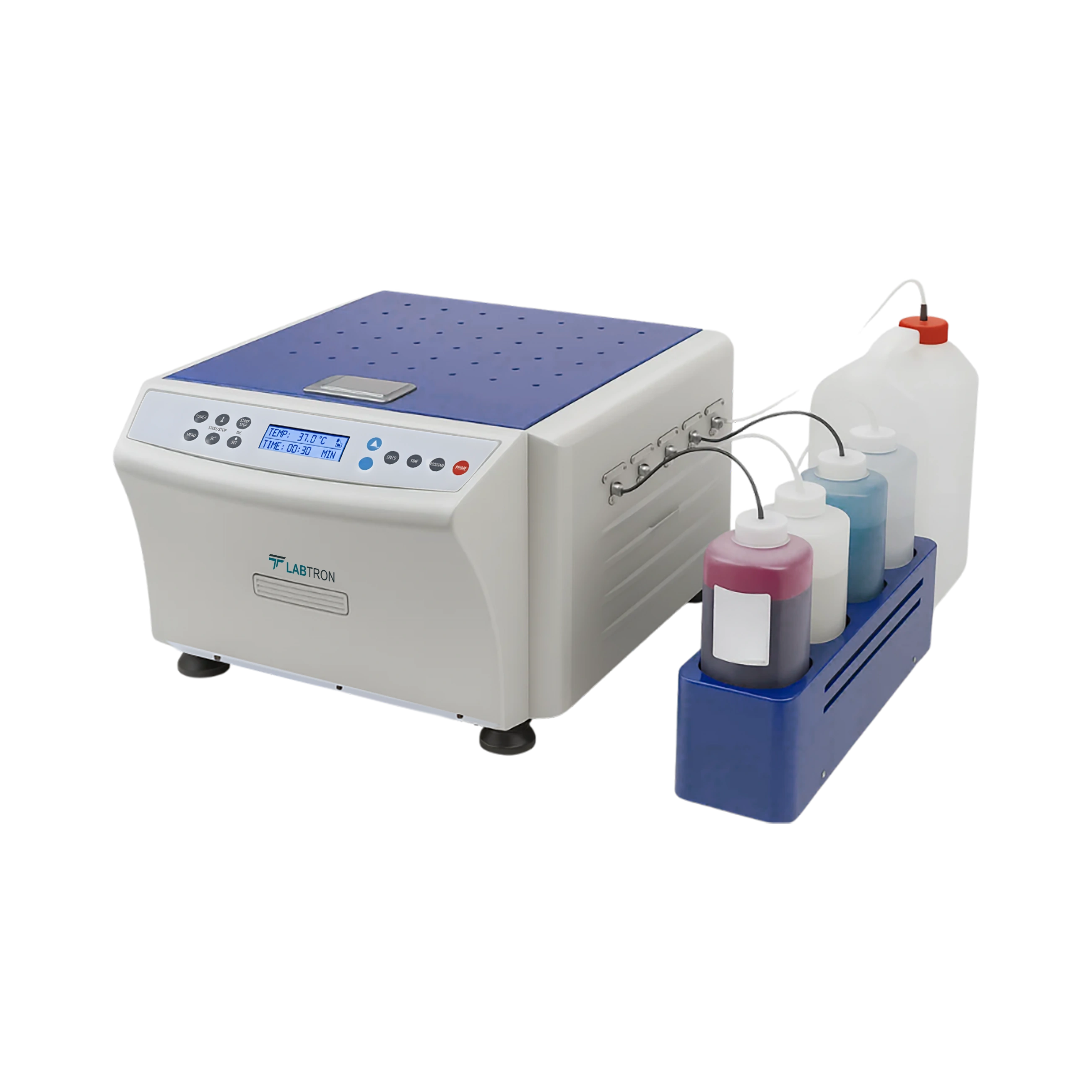

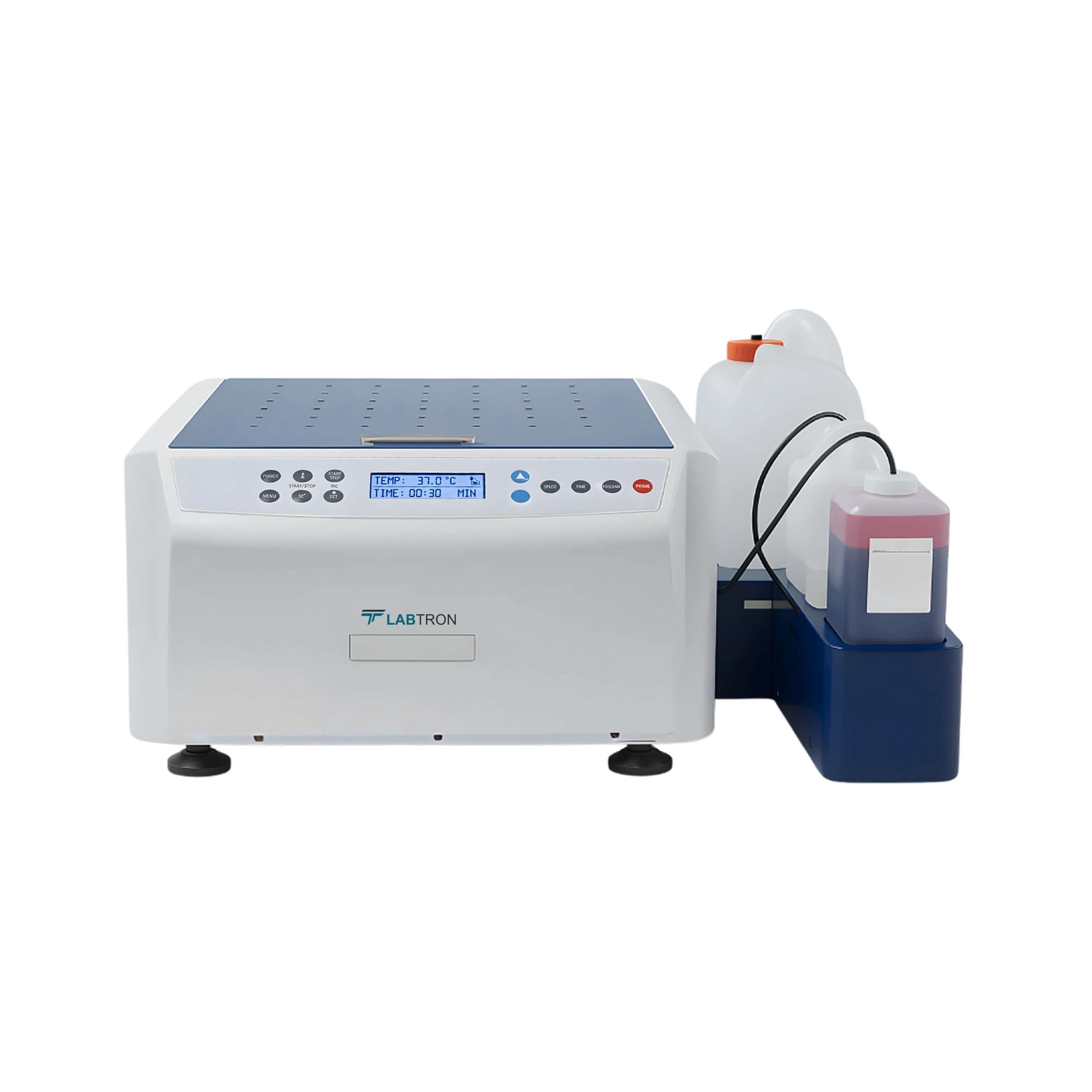

Single Automated Stainer Fluorescence LSAS-A10F

Single Automated Stainer Fluorescence LSAS-A10F provides rapid, standardized results for all types of specimens using a fully automated system. The gram stainer chamber's built-in microprocessor with multiple running functions is designed to provide accurate and precision staining for up to 10 slides (20 slides with optional tray) loaded in the stainer chamber. In 13 to 18 minutes, each slide is automatically stained, decolorized, and counter stained. The unit includes an automatic cleaning cycle as well as an internal diagnostic software. The fluorochrome gram stainer is small enough to fit on any countertop and is quick and easy to use.

Request Quote
Slide Tray Capacity 1 to 10 slides(1 to 20 slides by adding Optional Tray)
Clearance Height Lid Open: 565 mm
Tray Rotation Speed Approx. 6 rpm (stain mode) / Approx. 300 rpm (dry mode)
Used Reagent Auramine-Rhodamine
(Auramine-O) Acid Alcohol
Potassium Permanganate
Reagent Consumption 1.2 ml to 1.8 ml
Operating Control 6 mode key (stain, prime, clean, dry, reset, slide up/down)
1 Cycle Stain Time 10 slides : 13 minutes
20 slides: 18 minutes (Option-Kinyoun)
Display LCD
Staining Process Stain, Prime, Clean, Dry, Reset, Slide up/down
Optional Accessories   Additional slide for 10 slides
Drain Connection Nipple on rear Panel
Power Max.50W
Power Supply AC100 to 240V /50 to 60 Hz(Auto selection)
Dimension (WxDxH) 480x 445x265 mm
Weight 20 kg
  • Innovative and compact design
  • Automated gram stainer is capable of uniformly staining up to 10 slides (optional 20 slides and optional tray available) in a matter of minutes
  • The device comes with a self-contained and more convenient staining reagent kits
  • Staining is controlled with a microprocessor built with advanced software for flexibility in stain application
  • Offers high-quality and excellent adhesive, features microscopic slides for longer adhesion of sample without any cross-contamination
  • The front operative panel provides easy regulation and adjustment for rapid loading with the carousel button
  • Provides automatic cleaning system for easy and maintenance free for tray cleaning
  • Prevents falling of the sample slides by fixing slides horizontally inside the automated stain chamber
  • Avoids excess use of reagent by allowing the reagent to get along the plastic tubing through the carousel inside the chamber with total reagent consumption of 1.2 to 1.8 ml per slide
  • The unit comes with six functional key controls including Stain, Prime, Clean, Dry, Reset, Up & Down stains for quick and manual free staining
  • The unit is prompt with easy 7 to 8 steps processing
  • An automatic stainer allows stain time for a single cycle of 13 to 18 minutes, which can be varied by a timer

The Automated Gram Stainer is vastly used in positive and negative gram staining in R&D, microbiological and clinical diagnostic applications.

Compare Models

Model Slide Tray Capacity Clearance Height Tray Rotation Speed Used Reagent Reagent Consumption Operating Control 1 Cycle Stain Time Display Staining Process Optional Accessories   Drain Connection Power Power Supply Dimension (WxDxH) Weight
LSAS-A10Z 1 to 10 slides(1 to 20 slides by adding Optional Tray) Lid Open: 565 mm Approx. 6 rpm (stain mode) / Approx. 300 rpm (dry mode) Carbol Fuchsin
Acid Alcohol
Methylene blue
1.2 ml to 1.8 ml 6 mode key (stain, prime, clean, dry, reset, slide up/down) 10 slides : 13 minutes
20 slides: 18 minutes (Option-Kinyoun)
LCD Stain, Prime, Clean, Dry, Reset, Slide up/down Additional slide for 10 slides Nipple on rear Panel Max.800 W (heating) AC100 to 240V /50 to 60 Hz(Auto selection) 480x 445x265 mm 20 kg
LSAS-A10F 1 to 10 slides(1 to 20 slides by adding Optional Tray) Lid Open: 565 mm Approx. 6 rpm (stain mode) / Approx. 300 rpm (dry mode) Auramine-Rhodamine
(Auramine-O) Acid Alcohol
Potassium Permanganate
1.2 ml to 1.8 ml 6 mode key (stain, prime, clean, dry, reset, slide up/down) 10 slides : 13 minutes
20 slides: 18 minutes (Option-Kinyoun)
LCD Stain, Prime, Clean, Dry, Reset, Slide up/down Additional slide for 10 slides Nipple on rear Panel Max.50W AC100 to 240V /50 to 60 Hz(Auto selection) 480x 445x265 mm 20 kg
LSAS-A10H 1 to 10 slides(1 to 20 slides by adding Optional Tray) Lid Open: 565 mm Approx. 6 rpm (stain mode) / Approx. 300 rpm (dry mode) Wright-Giemsa Reagent
Wright Reagent
MGG Reagent
Phosphate Buffer
1.2 ml to 1.8 ml 6 mode key (stain, prime, clean, dry, reset, slide up/down) 10 slides : 7 minutes (wright)
20 slides: 11 minutes (wright
LCD Stain, Prime, Clean, Dry, Reset, Slide up/down Additional slide for 10 slides Nipple on rear Panel Max.50W AC100 to 240V /50 to 60 Hz(Auto selection) 480x 445x265 mm 20 kg
LSAS-A10K 1 to 10 slides(1 to 20 slides by adding Optional Tray) Lid Open: 565 mm Approx. 6 rpm (stain mode) / Approx. 300 rpm (dry mode) Carbol Fuchsin
Acid Alcohol
Methylene blue
1.2 ml to 1.8 ml 6 mode key (stain, prime, clean, dry, reset, slide up/down) 10 slides : 13 minutes
20 slides: 18 minutes (Option-Kinyoun)
LCD Stain, Prime, Clean, Dry, Reset, Slide up/down Additional slide for 10 slides Nipple on rear Panel Max.50W AC100 to 240V /50 to 60 Hz(Auto selection) 480x 445x265 mm 20 kg
LAGS-A10 1 to 10 slides
1 to 20 slides (Optional by adding tray)
Lid open: 565 mm Approx., 6 rpm (Stain Mode)
Approx. 200 RPM (Dry Mode)
Crystal Violet
Gram-iodine
Acetone Alcohol
Safranine
- Stain, Prime, Clean, Dry, Reset, up & downslide. - 4-line LCD, 20-character alpha-numeric GRAM Positive stain → Mordanting → Decolorizing → GRAM Negative stain → Washing & Dry - - - AC 100 V/ 50Hz; 240V/60 Hz - 17 kg
