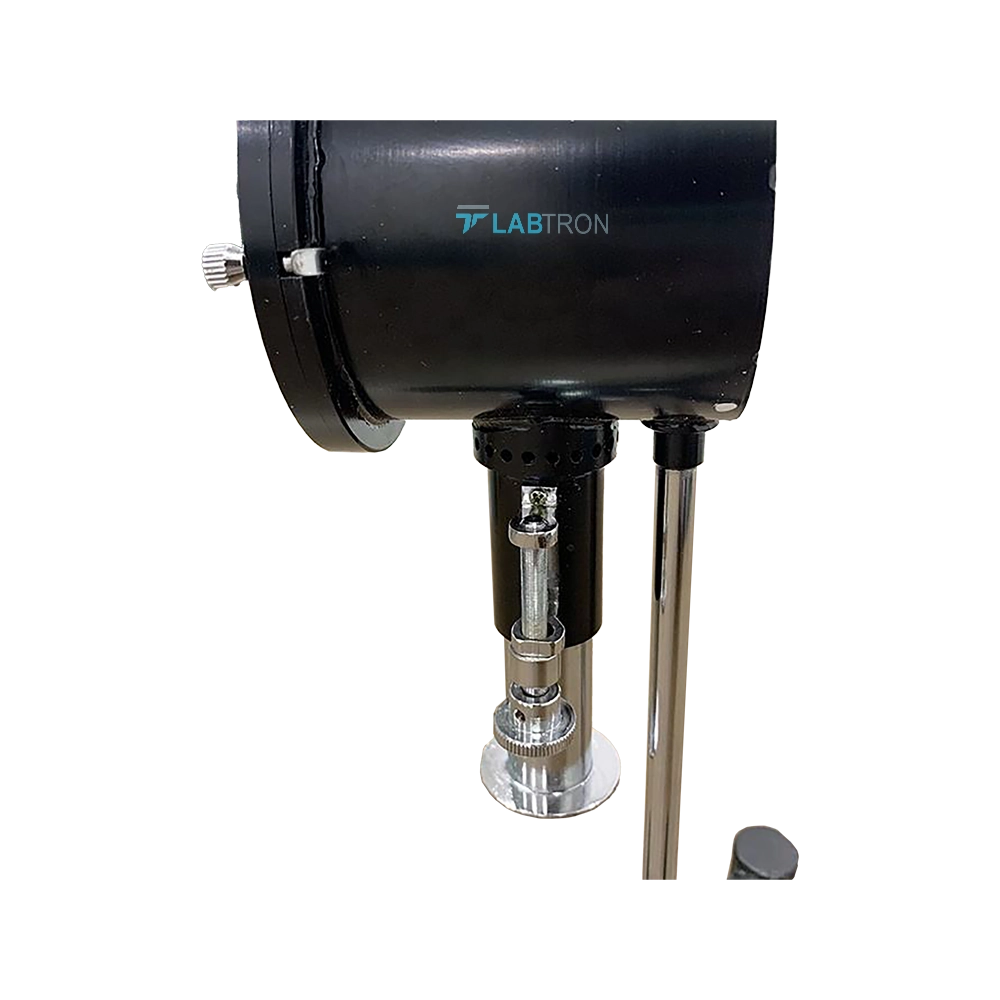

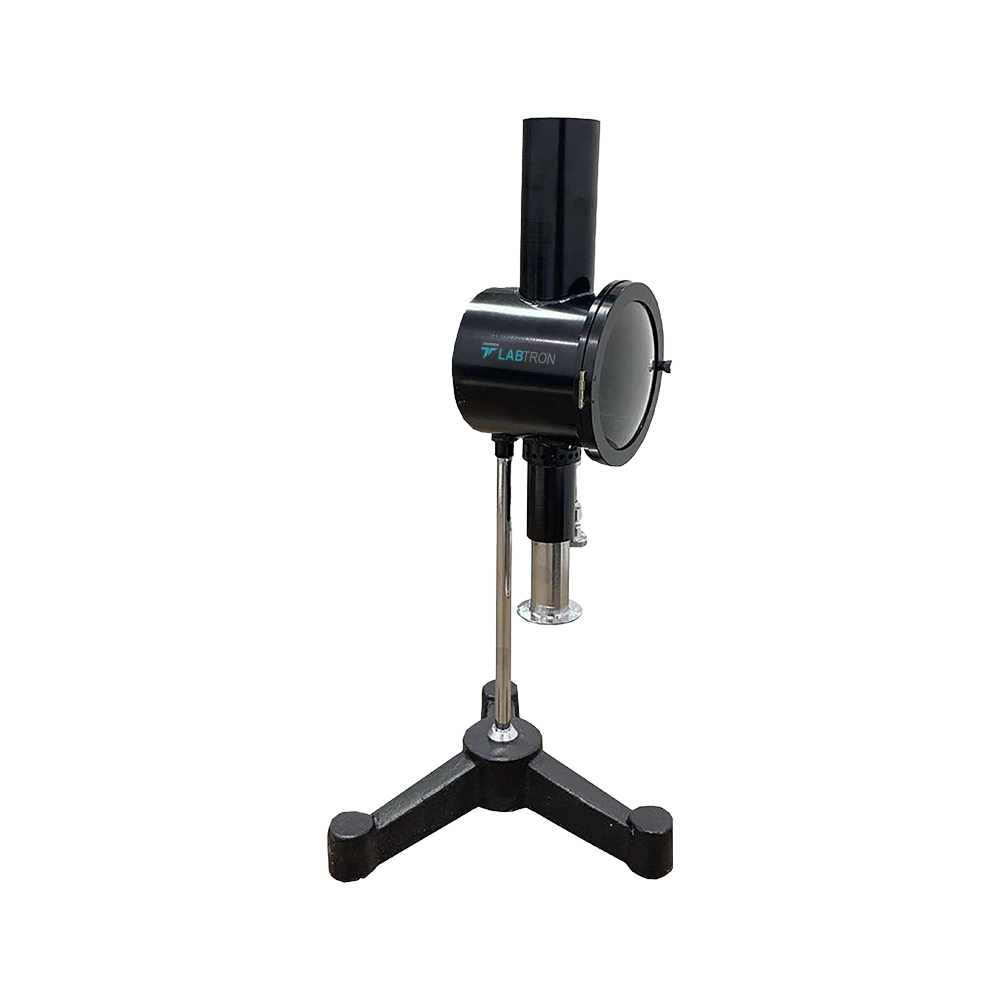

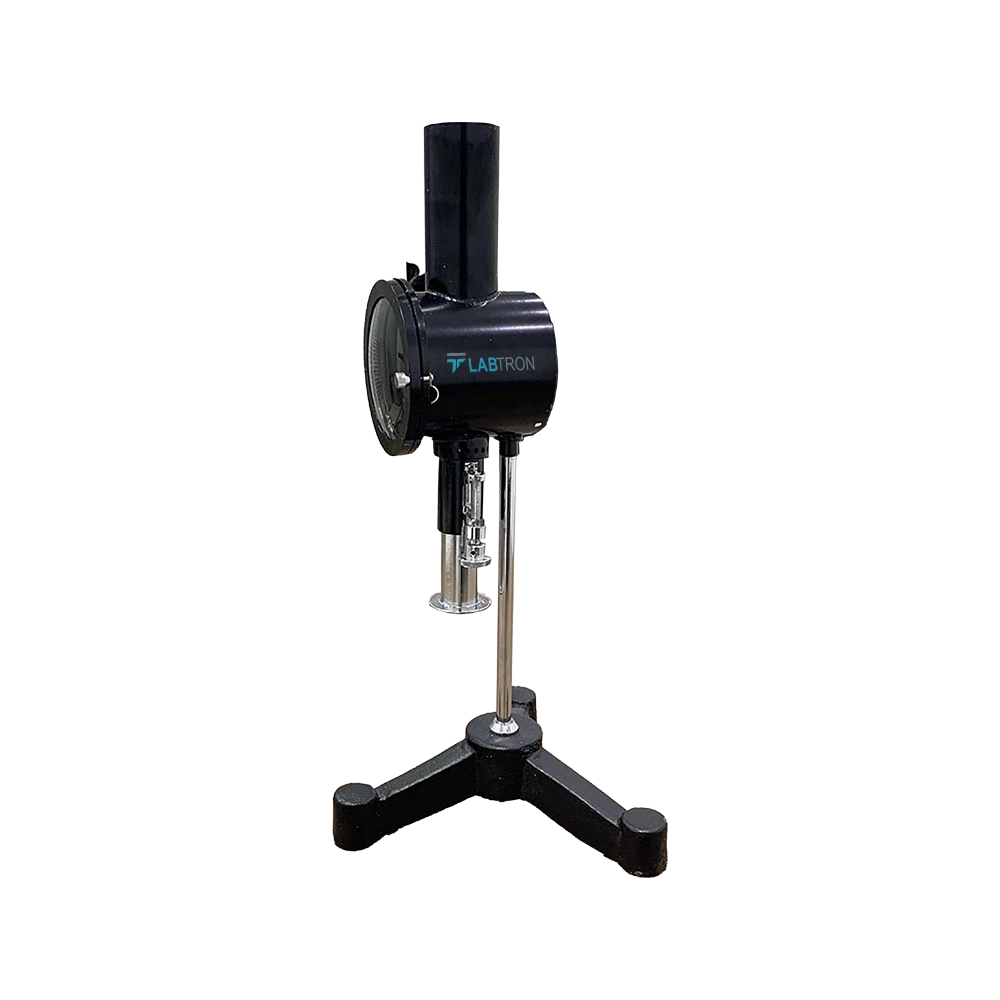

Smoke Point Tester LSKP-A10

Name: Smoke Point Tester LSKP-A10
Brand: Labtron
SKU: LSKP-A10
Rating: 4.9 (989 reviews)

Smoke Point Tester LSKP-A10 comes with a measuring range of 0 to 50 mm, with numbers marked at every 10 mm. It complies with ASTM D1322, the standard test method for determining kerosene smoke points. The flame height variations are displayed against a millimeter ruler as the sample burns in the standard lamp. Our Smoke Point Tester measures the relative smoke-producing properties of kerosene in a diffusion flame.

Request Quote

Measuring Range	0 to 50 mm
Numbers Marked	Every 10 mm
Candle Lifting Stand Stroke Range	10 mm, with smooth and uniform movement
Wick Guide Stretches	6 mm from the top
Oil conservator (noumenon) Inner diameter	φ21.25 ± 0.05 mm
Oil conservator (noumenon) Length	109.0 ± 0.05 mm
Wick tube Inner diameter	φ4.7 ± 0.05 mm
Wick tube Length	82.0 ± 0.005 mm
Air tube Inner diameter	φ3.5 ± 0.05 mm
Air tube Length	90.0 ± 0.05 mm
Dimension	510 × 310 × 290 mm
Weight	7 Kg

Attractive Appearance
Compact Structure
No electrical element

Smoke point tester LSKP-A10 is used in industries like petroleum, oil refining, and aviation to measure the temperature at which oils start to smoke and degrade.

Main engine

Lamp wick

Standard

Reflector

Download catalog for
Smoke Point Tester LSKP-A10 Catalog

Available Range :

Smoke Point Tester LSKP-A10 : 0 to 50 mm
