| Total Volume | 750 L |
| Working Volume | 225 to 525 L |
| Vessel Material | 316L Stainless Steel (contact parts), 304 Stainless Steel jacket |
| Vessel Type | Jacketed Vessel |
| Design Pressure (Jacket Layer) | 0.35 MPa |
| Sterilization Method | Automatic SIP (Sterilization in Place) |
| Cleaning Method | Automatic CIP with 2 spray balls (360° rotation) |
| Speed Range | 50 ~ 500 rpm ±1% |
| Temperature Control Range | Cooling water +5°C to 70°C ±0.1°C |
| Air Flow Rate | 1 vvm |
| Sampling Valve | Sterilizable manual sampling valve |
| Exhaust System | Condenser with diaphragm valve control |
| Pressure Control | Automatic with pressure transmitter and gauge |
| Material | 316L Stainless Steel |
| PLC System | Siemens S7-1200 PLC |
| Display | 10-inch LCD Touch Screen |
| Software | Siemens S7 + FORCE CONTROL |
| Data Export | USB & Excel compatible |
| Control Modes | Manual, PID automatic, sequence, remote PC control |
| Power Supply | 17 KW |
| Gross Weight | 920 Kg |
Integrated Antifoam System
Real-Time Data Logging
Automated Process Control
High-Speed Agitation
Programmable Process Settings

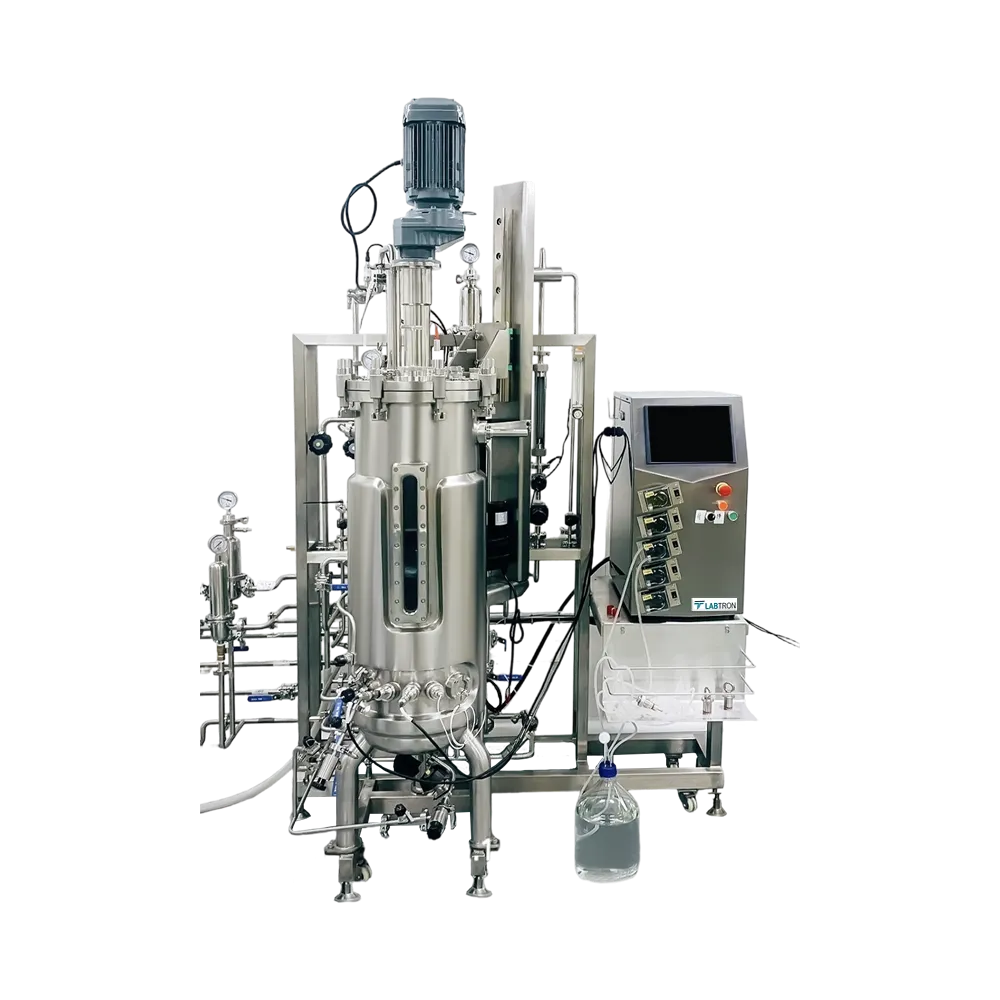

Stainless Steel Fermenter LSSF-B11 is widely used for microbial and cell culture fermentation in biotechnology, pharmaceutical, food, enzyme, and vaccine production industries. It is suitable for pilot-scale and industrial-scale cultivation processes.
Download catalog for
Stainless Steel Fermenter LSSF-B11 Catalog
Labtron’s Stainless Steel Fermenters are built for efficient microbial and cell culture applications. They are suitable for laboratory, pilot-scale, and industrial bioprocessing needs. Made from high-grade 316L stainless steel, they offer excellent corrosion resistance and long-term durability. These fermenters support SIP (Sterilization-In-Place) and CIP (Cleaning-In-Place) for safe and hygienic operations. Advanced PLC or PC-based control systems ensure accurate regulation of temperature, pH, DO, and agitation. Their robust design and automation capabilities make them ideal for use in pharmaceutical, biotech, and research environments.
