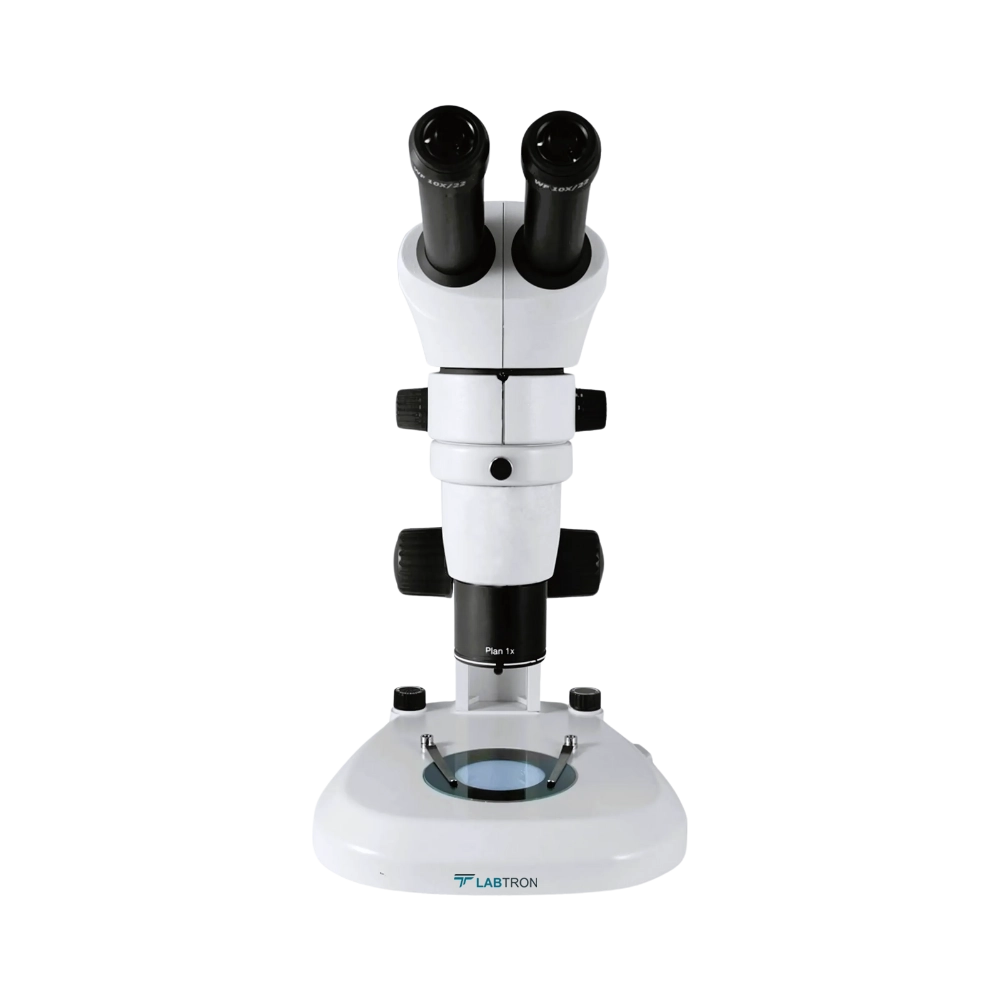

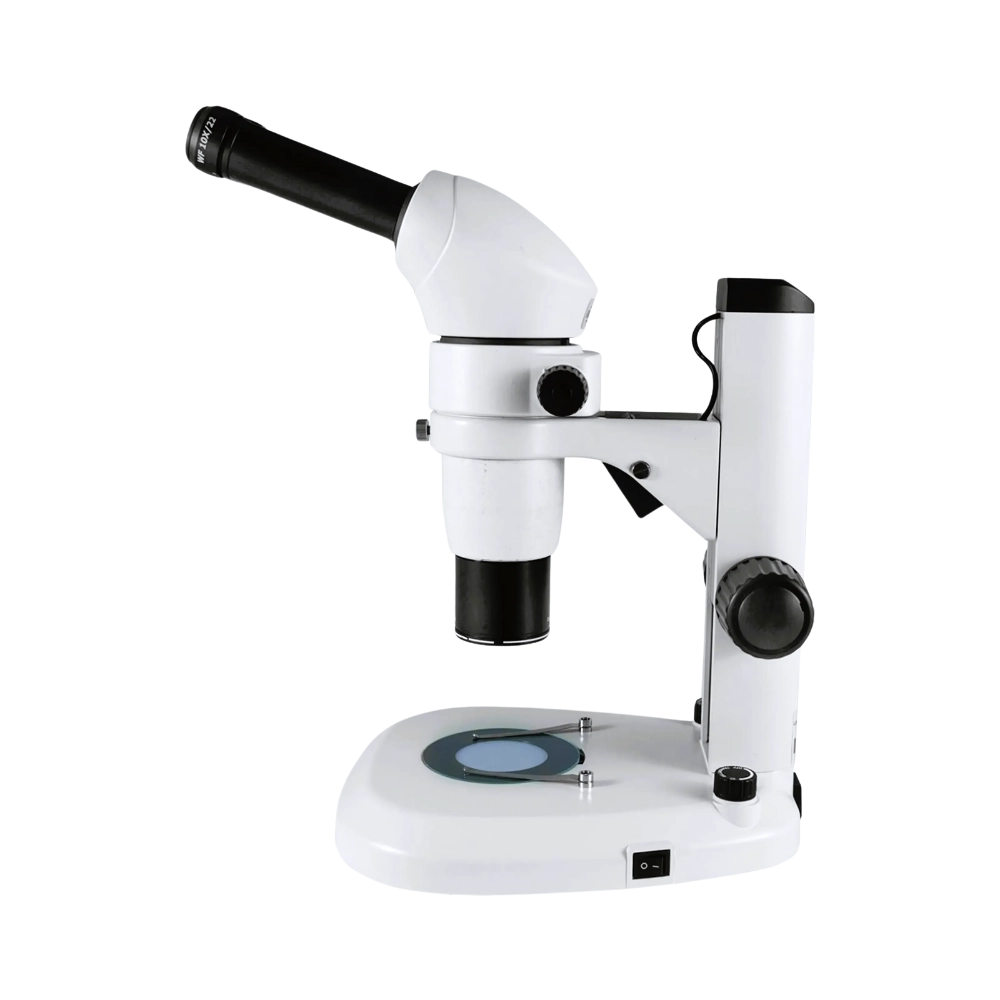

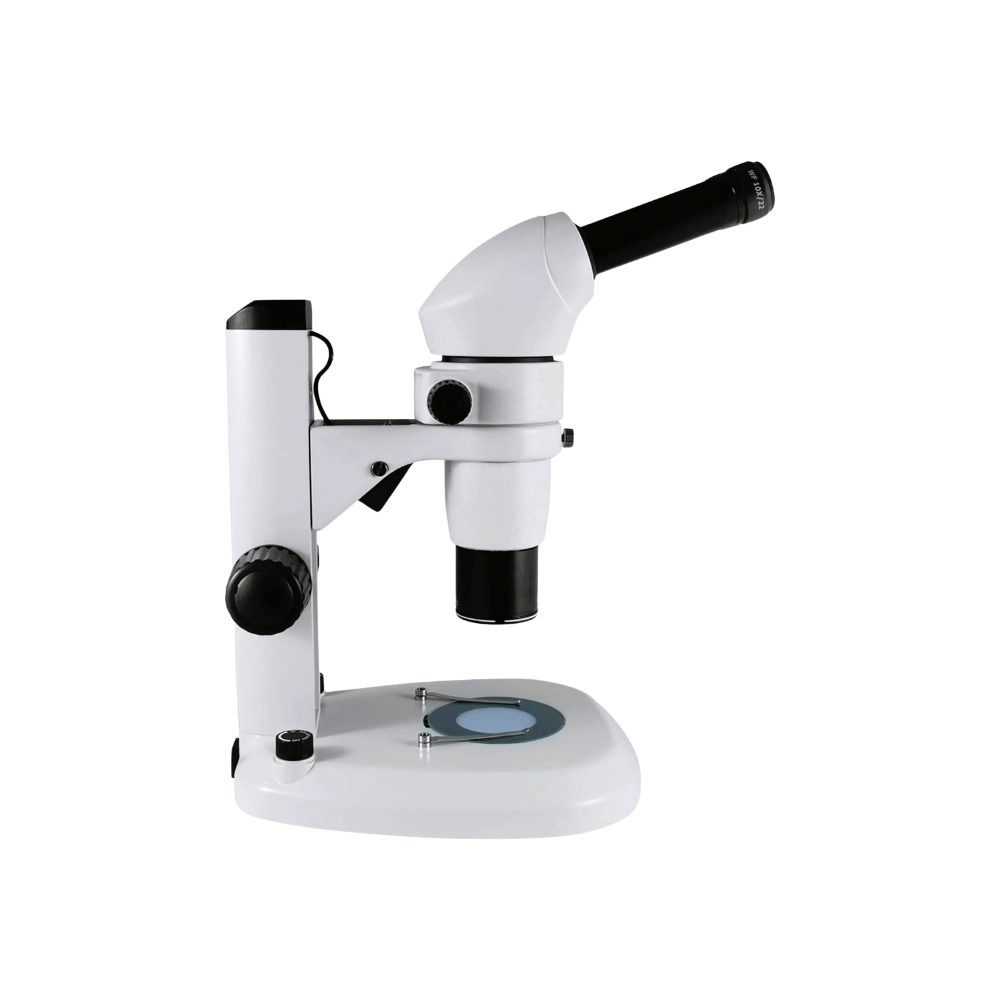

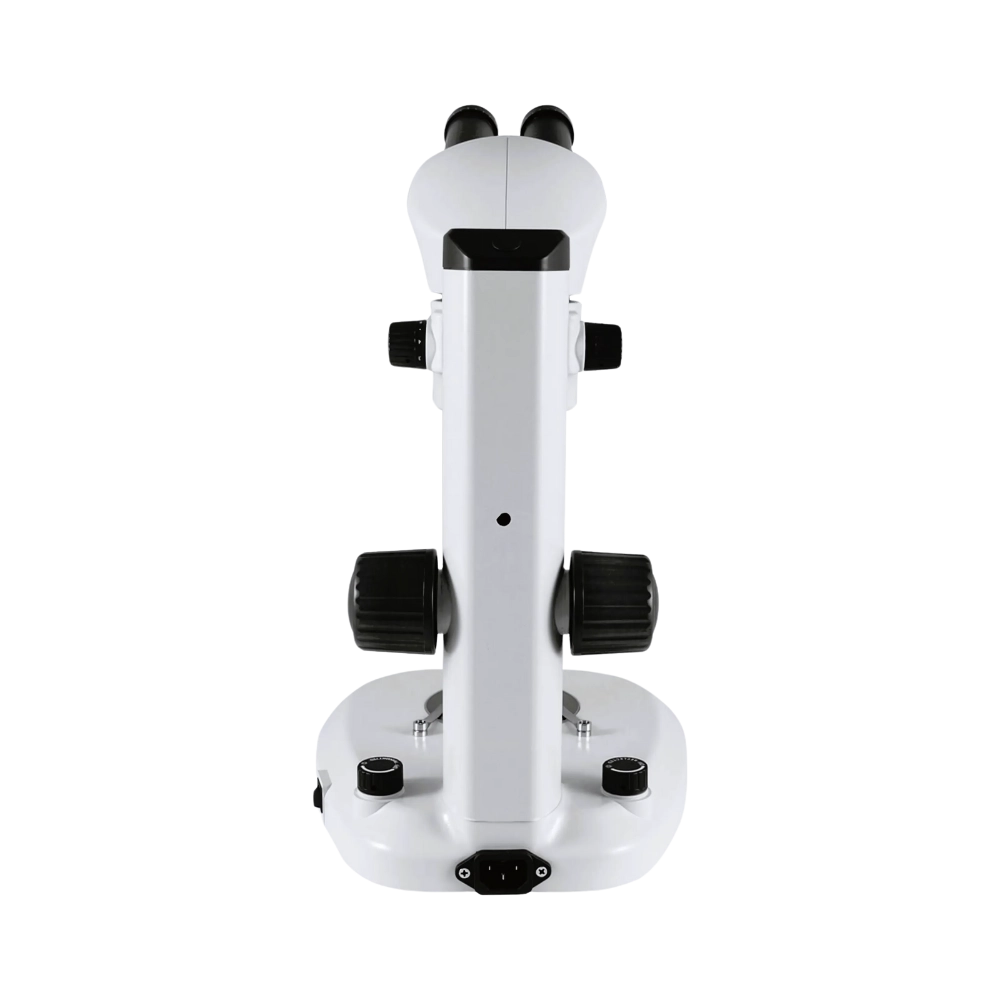

Stereo Microscope LSM-B11

Name: Stereo Microscope LSM-B11
Brand: Labtron
SKU: LSM-B11
Rating: 4.8 (995 reviews)

Stereo microscopes LSM– B11 is known for its long working distance & parallel zoom optical system. Sample can be viewed at three dimensional angle by zooming in particular part of interest. It is generally used for more complex applications in gemology, dissections in biology and others.

Request Quote

Optical system	Parallel zoom optical system
Viewing Head	Binocular head, inclined at 20°
Eyepiece	Extra wide field EW10X/22 mm
Zoom Stereo Objective	0.8X to 6.4X
Achromatic Objective	1X plan achromatic objective
Zoom ratio	1 : 8
Focusing range	78 mm
Working distance	105 mm
Illumination	Transmission & reflection LED illumination,brightness adjustable
Focusing	Coarse focusing knobs, rack and pinion mechanism stand
Dimension	370×320×670 mm
Net weight	9 kg
Gross weight	10 kg

Binocular 20° inclined viewing head
EW10X/22 mm Eyepiece, Zoom and plan achromatic objective for Zoom magnification
Transmission & reflected LED illumination
Dual side precise coarse and fine focusing knobs
User-friendly operations

Used in botany, zoology for dissection purpose, in gemology, minerology for examination and inspection of rocks, jewel, and microelectronic components, circuit boards and others.

Accessories no.	Name
1	Eyepiece WF10X/24 mm
2	Eyepiece WF20X/12 mm
3	Eyepiece: EW15X/16 mm
4	Achromatic objective: 0.3x
5	Plan achromatic objective: 2x
6	Plan apochromatic objective: 0.5x
7	Dark field attachment/ Dark field slider for condenser
8	Polarization attachment/ Simple polarization (with analyzer & polarizer)
9	Epi-fluorescent attachment
10	Iris diaphragm with adapter
11	Epi-fluorescent attachment
12	Beam splitter (one port)
13	Beam splitter (two port)
14	LCD attachment with software

Download catalog for
Stereo Microscope LSM-B11 Catalog

Available Range :

Stereo Microscope LSM-C10 : Greenough optical system Stereo Microscope LSM-E10 : Infinite Parallel Galileo Zoom Optical System Wide Field Stereo Microscope LSM-F10 : Parallel Light Optical System Stereo Microscope LSM-B10 : Parallel zoom optical system Stereo Microscope LSM-B15 : Zoom optical system

Models of Stereo Microscope

Labtron Stereo Microscope is specialized to perceive depth and spatial relationships providing three-dimensional view of small specimens. They utilize eyepieces that provide comfortable viewing, reducing strain during extended use. Their built-in LED illumination offers consistent lighting, improving clarity of samples. Thy are equipped with combination of lenses and mirrors to produce detailed, stereoscopic image. Our Stereo Microscope is essential in biological research, dissection in educational settings, quality control in manufacturing, and inspection in fields like jewelry design and electronics.

Stereo Microscope LSM-D12

Viewing Head : Trinocular head
Visual Observation : 45° oblique, and 360° rotatable, adjustable left and right visual acuity
Dioptric Adjustment : ± 5mm
Zoom Working Mode : Continuous

Compare Remove

Wide Field Stereo Microscope LSM-F11

Optical System : Parallel Light Optical System
Viewing Head : 2x high-quality optical head without eyepiece
Total Magnification : 4x to 12x
Objectives : 2x, WD: 208mm, FOV: 68mm 4x, WD: 98mm, FOV: 34mm 6x, WD: 80mm, FOV: 22.7mm

Compare Remove

Stereo Microscope LSM-B15

Optical system : Zoom optical system
Viewing head : 45°inclined and 360° rotatable binocular head54 to 76 mm interpupillary distance
Eyepiece : WF10X/ 20 mm
Objectives : Zoom objectives: 0.7X to 4.5X

Compare Remove

Stereo Microscope LSM-E11

Optical System : Infinite Parallel Galileo Zoom Optical System
Viewing Head : 30° inclined trinocular head, fixed light distribution, interpupillary 50-76mm
Eyepiece : High eye-point wide field PL10×/22mm, diopter adjustable
Total Magnification : 6.3x to 80x

Compare Remove

Stereo Microscope LSM-D10

Viewing Head : Binocular tube, 45° inclined, 360° rotatable, interpupillary distance 52-75mm
Eyepieces : EW 20x/12 Wide field; (O 30 mm), with diopter
Objectives : Zoom Objective 1x-4.5x
Zoom Magnification : 10x-45x

Compare Remove

Stereo Microscope LSM-A10

Main body : Sharp stereo erect image over a wide field of view Supplied with pillar style stand
Viewing head : 45° inclined and 360° rotable binocular head with locked-in eyepieceLeft ocular tube with diopter adjustment ±5 dpInterpupillary distance 55-75 mm
Eyepiece : WF10X
Rotational objective : 2x-4x

Compare Remove

Stereo Microscope LSM-B20

Optical system : Parallel zoom optical system
Viewing head : 45°inclined and 360° rotatable trinocular head
Eyepiece : WF10x/22 mm
Interpupillary distance : 55 to 75 mm

Compare Remove

Wide Field Stereo Microscope LSM-F10

Optical System : Parallel Light Optical System
Viewing Head : 2x high-quality optical head without eyepiece
Total Magnification : 4x to 12x
Objectives : 2x, WD: 208mm, FOV: 68mm 4x, WD: 98mm, FOV: 34mm 6x, WD: 80mm, FOV: 22.7mm

Compare Remove
