X-ray Fluorescence Sulfur in Oil Analyzer LST-A10

Name: X-ray Fluorescence Sulfur in Oil Analyzer LST-A10
Brand: Labtron
SKU: LST-A10
Rating: 5 (742 reviews)

X-ray Fluorescence Sulfur in Oil Analyzer LST-A10 offers wide measurement range 0.0050%–5% with 10 ppm detection limit. Employs fluorescence intensity ratio method with automatic correction adjustments. Corrects automatically for temperature, pressure, and carbon-hydrogen ratio. Fully complies with ASTM D4294-02 national sulfur analysis standards. Provides accurate sulfur measurement for crude oil and petrochemical processes. Ideal for determining total sulfur in various petroleum-based products.

X-ray Fluorescence Sulfur in Oil Analyzer LST-A10_Front View

X-ray Fluorescence Sulfur in Oil Analyzer LST-A10_Side View

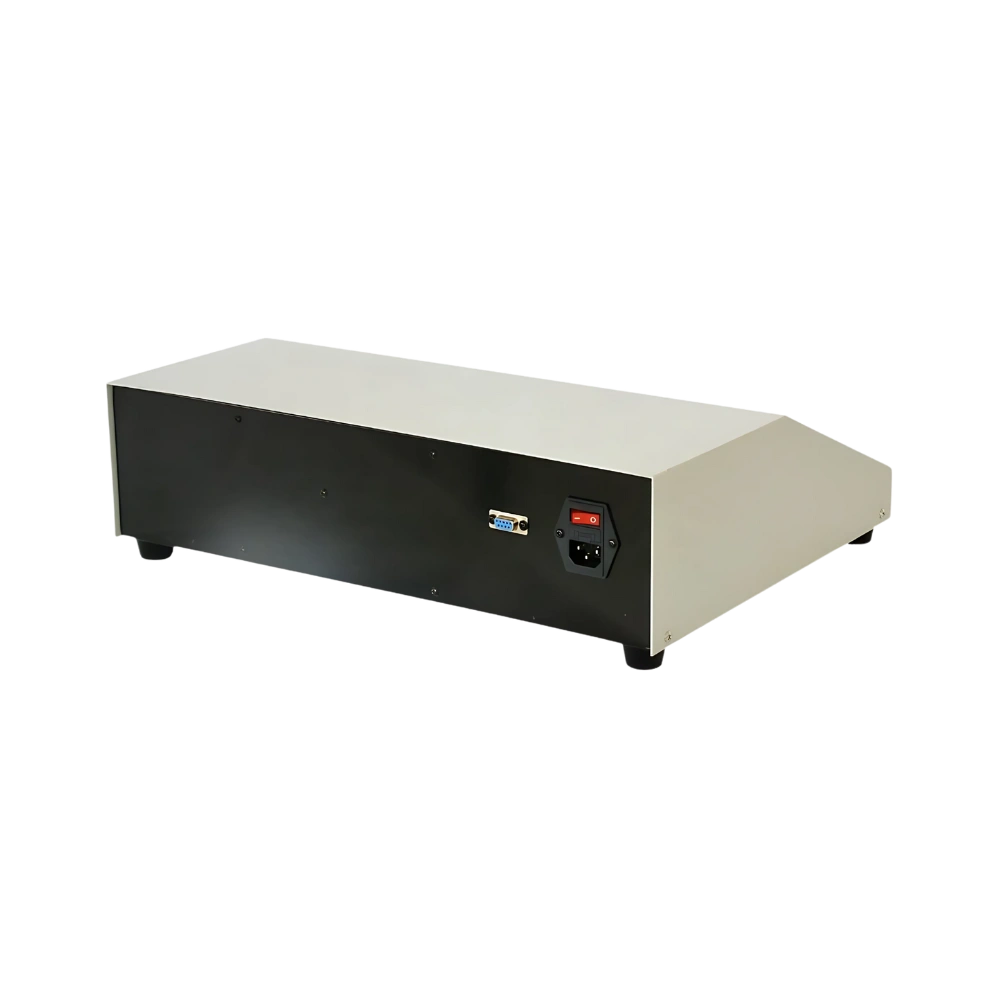

X-ray Fluorescence Sulfur in Oil Analyzer LST-A10_Back View

Request Quote

Sulfur Measuring Range	0.0050% to 5%
Detection Limit	10ppm
Repeatability	Less than 0.02894 (S + 0.1691)
Reproducibility (R)	Less than 0.1215 (S + 0.05555)
Sample Volume	3ml to 4ml, (equivalent to an oil layer thickness of 3 to 5mm)
Measurement Time	60, 120, 240, 300 or 600 seconds, adjustable
Number of measurements	2, 3 ,5 ,10 ,50 times
Temperature	5 ℃ to 40 ℃
Relative humidity	Less than or equal to 85 % (30 ℃)
Rated Power	30W
Power Supply	AC220V±20V, 50Hz
Dimension	468 x 368 x 136 mm
Weight	13kg

Elegant microcomputer design
Large interactive LCD
Operational error alarm
RS-232C communication

Our X-ray Fluorescence Sulfur in Oil Analyzer LST-A10 measure the total sulfur content (by mass) in crude oil, petroleum, heavy oil, diesel, kerosene, gasoline, naphtha and in coal chemical products, such as primary benzene and in other liquid samples.

Accessories	Quantity
X-ray fluorescence sulfur analyzer	1 unit
Three-core power cord	1 unit
Sample cups	100 sets
Sample cup membrane (6μm Mylar)	100 sets
Oil leak prevention kit (2 pieces per set)	1 set
Multi-function pressure element (2 pieces per set)	1 set
Thermal paper roll (57mm width, 30mm diameter)	1 roll
Plastic pipettes (3ml)	100 pieces

Download catalog for
X-ray Fluorescence Sulfur in Oil Analyzer LST-A10 Catalog

Models of Sulphur Content Tester

Labtron Sulphur Content Tester features a microprocessor controller, ensuring precise operation and efficient performance. These are designed for large-screen LCDs and provide a rapid and convenient interface for easy monitoring and control. Their sample holder on a slide rail ensures smooth handling and secure placement of samples. They feature an integrated thermal printer that enables quick and clear printing of reports for documentation. Our sulphur content tester has X-ray safety features to ensure secure operation, protecting users from radiation exposure.
