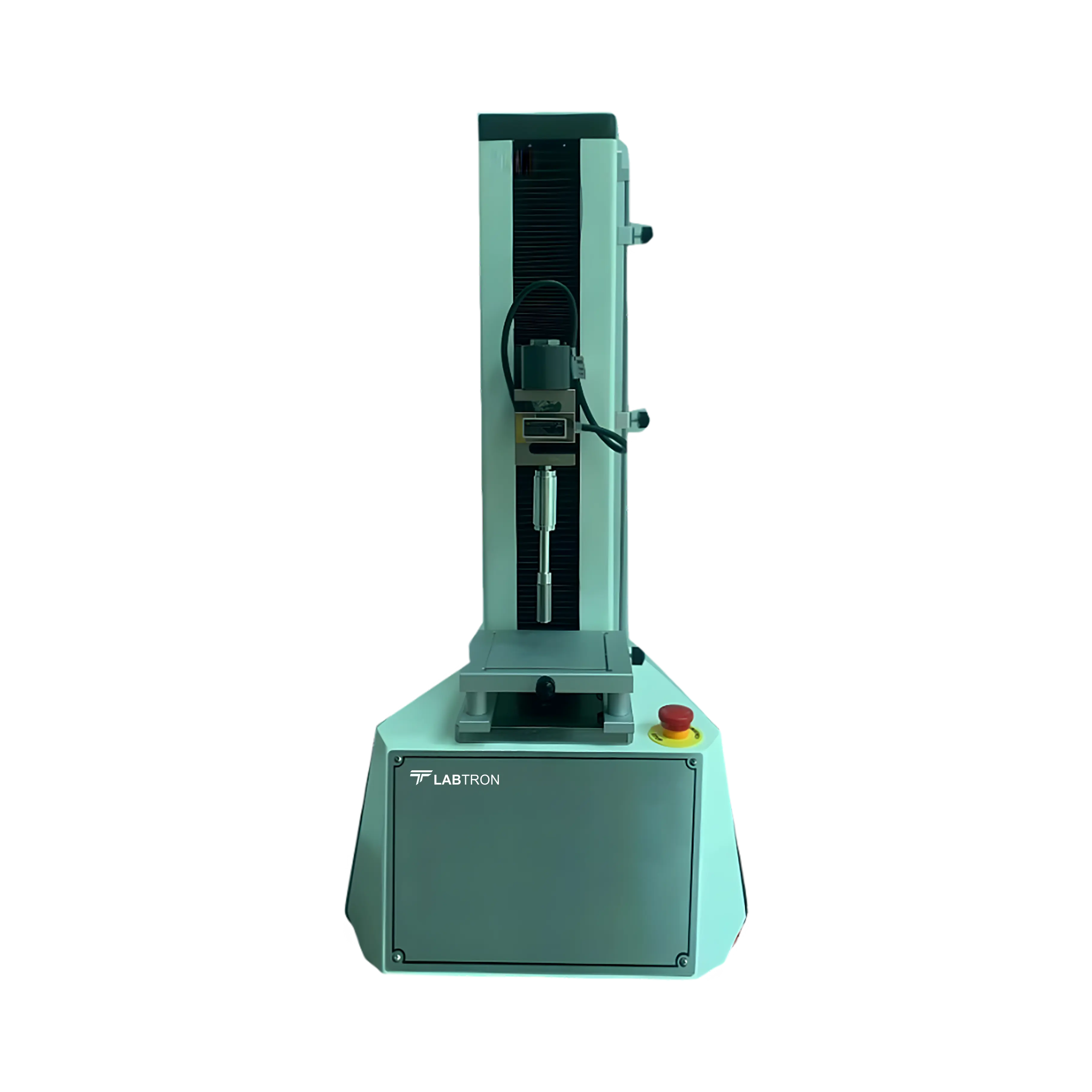

Digital Texture Analyzer LTDA-A11 offers a 100 kg force capacity for accurate testing of sample hardness and elasticity. It delivers precise, real-time analysis of force, distance, and deformation with 0.001 mm resolution. Integrated with a dual - CPU microprocessor for high-speed, precise data processing. Built with a high-precision AD converter to ensure accurate and stable force detection. Our Digital Texture Analyzer delivers reliable testing and precise analysis for quality control, and production.
| Maximum Force | 100 Kg |
| Force Resolution | 0.01 Kg |
| Deformation Resolution | 0.001 mm |
| Test Speed | 0.01 to 0.1 mm / s (0.6 to 6 mm / min) |
| Travel Distance | 300 mm |
| Dimensions | 430 × 480 × 680 mm |
| Packing Dimensions | 630 × 580 × 840 mm |
| Net Weight | 31 kg |
| Gross Weight | 39 kg |
Our Digital Texture Analyzer LTDA-A11 is used for analyzing the physical properties of food, pharmaceutical, and chemical samples, measuring texture parameters like hardness, elasticity, and chewiness in laboratory and industrial applications.
Accessory Name | Quantity |
Physical Property Analyzer Host | 1 |
A Set of Special Software (Including Common TPA Mode) | 1 |
Special Operating Platform for Food | 1 |
Force Sensing Element | 1 |
Connect Converter | 1 |
Cylindrical Probe | 3 |
Accessory Name | Parameters Description |
Cylindrical Probe | Used for Penetration and Compression Tests |
TPA Software Module | For Analyzing Hardness, Elasticity, Chewiness, Resilience |
Force Sensing Element | ISO 7500 Part 1 / ASTM E4 Compliant |
Operating Platform | Adjustable for Multiple Sample Types |
Connection Converter | Ensures Stable Data Communication |
Download catalog for
Digital Texture Analyzer LTDA-A11 Catalog
Available Range :
Digital Texture Analyzer LTDA-A11 : 100 KgLabtron offers a comprehensive range of Texture Analyzers designed to measure various materials' physical and mechanical properties. They offer high-precision analysis of parameters such as hardness, elasticity, chewiness, gel strength, and viscosity. Most of our models are equipped with features like ultra-high data resolution, automated calibration, and multi-curve comparison. All of these are engineered for performance, reliability, and regulatory compliance. Our analyzers are suitable for routine quality control or advanced R&D and support various test modes.
A Texture Analyzer is a precision instrument used to measure the mechanical and physical properties of materials such as hardness, elasticity, chewiness, gel strength, and viscosity. Labtron’s Texture Analyzer widely used in food, pharmaceuticals, cosmetics, and biomaterials to quantify texture attributes and ensures product consistency, quality, and consumer satisfaction.
Our Texture Analyzers can be used to test a wide variety of samples including gelatin, dough, meat, dairy products, fruits, jelly, pharmaceuticals, creams, hydrogels, and even packaging films. They are ideal for both soft and firm materials, depending on the load cell and probe configuration used.
Labtron’s Texture Analyzer works by applying a controlled force to a sample using a probe while measuring the sample’s response in terms of deformation, resistance, or breakage. The data is captured in real-time as force vs. distance or time curves, which can be analyzed to determine key texture parameters.
Common tests which can be done with the help of our Texture Analyzers, include compression, tension, puncture, shear, bending, relaxation, and creep testing. These tests help determine properties such as gel strength, firmness, chewiness, tensile strength, brittleness, and elasticity.
