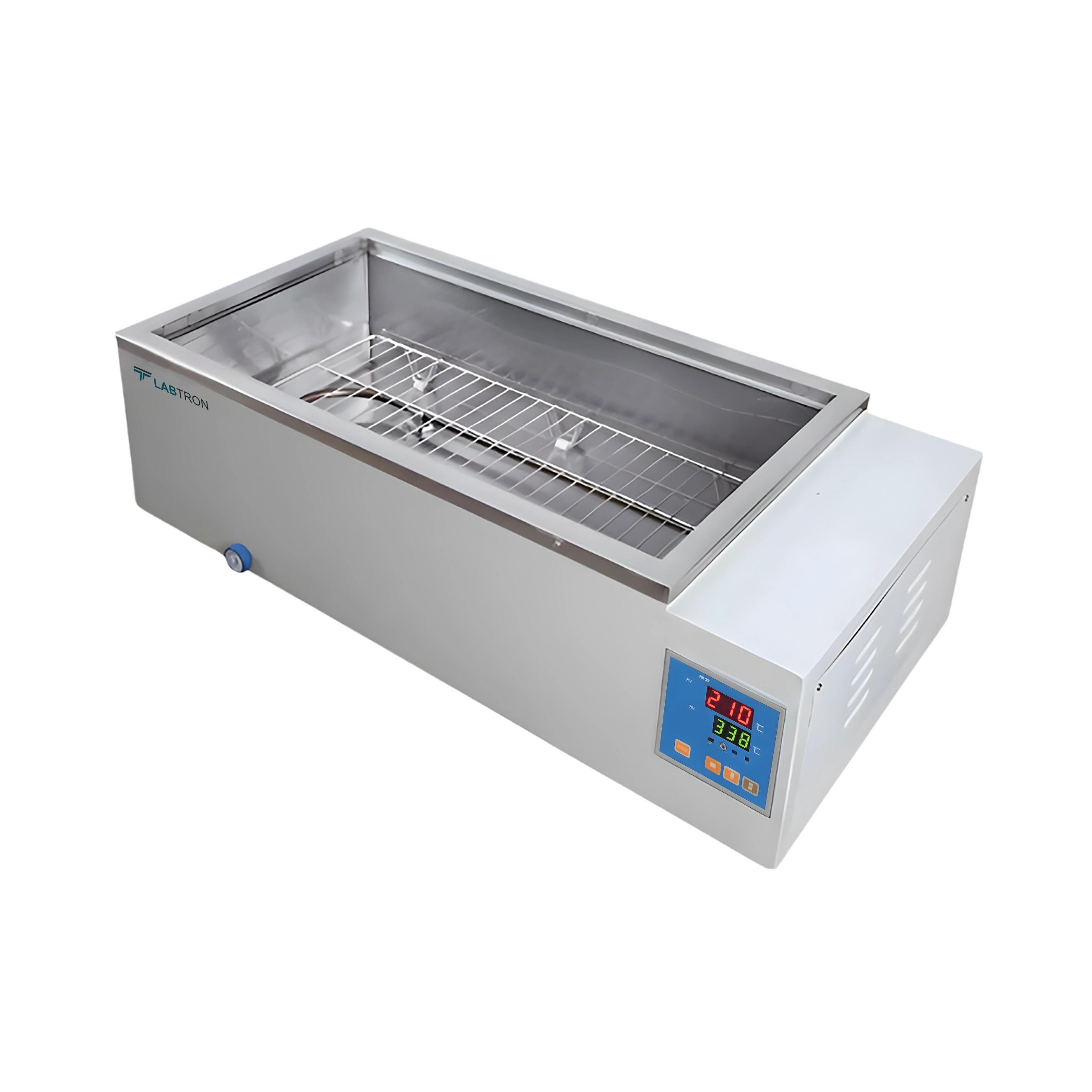

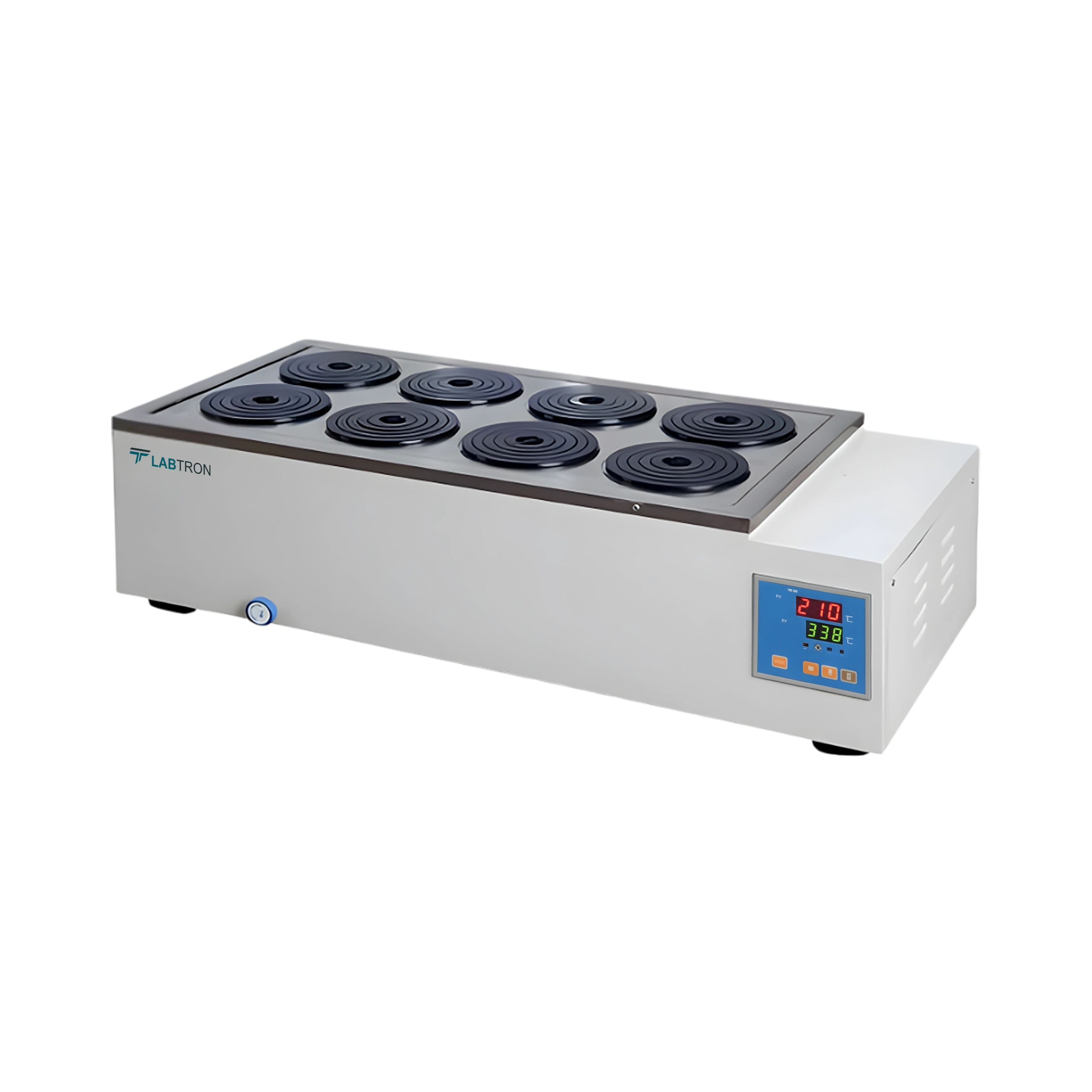

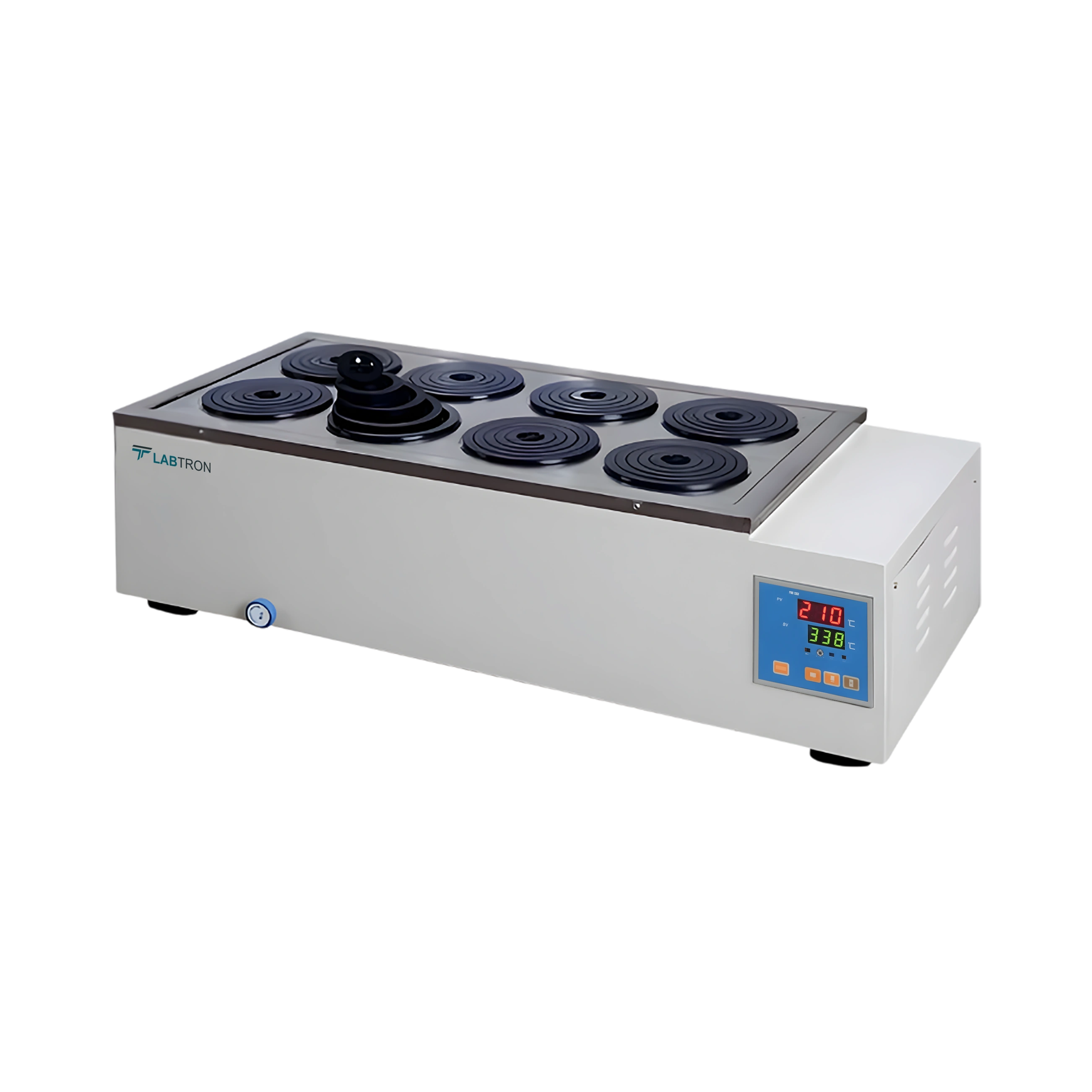

8 Hole Thermostatic Bath LOTB-A22 is a 19.8 L bottom heating bath with a temperature range of 5°C to 99°C. Water sink is surface electrolysis treated with cold rolled outer shell. Equipped with multi-section programmed control, touch button temperature setting mode and 3 digit temperature display. Easy to use, controller allows the user to monitor and set temperature and time. Easy to use functions like deviation correction, menu key lock, power failure backup and restoration of parameters on power off included.
Request Quote| Volume | 19.8 L |
| Rows | 2 |
| Holes | 8 |
| Internal dimension ( W x L x H ) | 600 × 300 × 110 mm |
| Heating mode | Bottom heating |
| Temperature range | RT + 5°C to 99°C |
| Temperature resolution | 0.1°C |
| Temperature motion | ± 0.5°C |
| Temperature uniformity | ± 1°C |
| Temperature setting mode | Touch mode |
| Temperature display mode | 3 digit display |
| Temperature control mode | PID |
| Inner water sink | Electrolysis treated |
| Outer shell | Cold rolled steel plate |
| Heater | U type heating tube |
| Sensor | Thermal resistor |
| Timer | 1 to 5999 min |
| Timing function | Fixed temperature ( auto stop ) |
| Programme | Multi-section program control |
| Cover apperture | Diameter of 120 mm |
| Cover material | PP plastic Porous Lid |
| Cover number per hole | 5 |
| External dimension ( W x L x H ) | 850× 420×300 mm |
| Power | 2000 W |
| Power supply | 220 V, 50 Hz |
| Net weight | 13 kg |
Thermostatic Water Bath used in biochemical, petrochemical industry, life science, environmental monitoring and other research and quality testing industries for analysis of varieties of fluids, solid chemical compounds, and samples.
Available Range :
Capacity : 5 L Capacity : 9 L Capacity : 21 L Volume : 3.3 L Volume : 6.3 L Volume : 12.8 LRelated Models :
Thermostatic Water Bath LOTB-B10
Thermostatic Water Bath LOTB-B11
Thermostatic Water Bath LOTB-B12

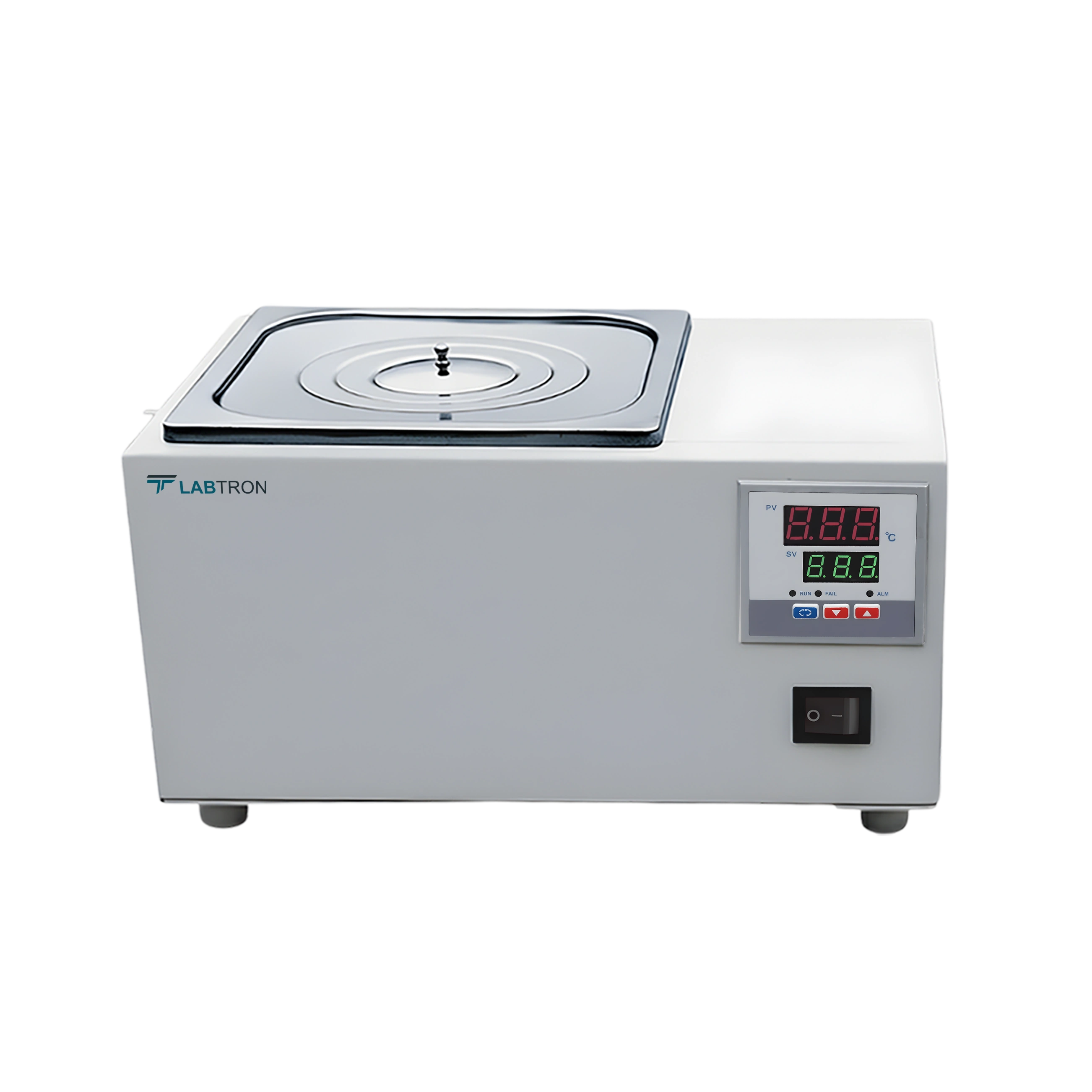

1 Hole Thermostatic Bath LOTB-A10
2 Hole Thermostatic Bath LOTB-A11
4 Hole Thermostatic Bath LOTB-A12
6 Hole Thermostatic Bath LOTB-A13
4 Hole Thermostatic Bath LOTB-A20
6 Hole Thermostatic Bath LOTB-A21
Thermostatic Water Bath LOTB-C10
Thermostatic Water Bath LOTB-C11
Thermostatic Water Bath LOTB-C12
Thermostatic Water Bath LOTB-D10
| Model | Volume | Rows | Holes | Internal dimension ( W x L x H ) | Heating mode | Temperature range | Temperature resolution | Temperature motion | Temperature uniformity | Temperature setting mode | Temperature display mode | Temperature control mode | Inner water sink | Outer shell | Heater | Sensor | Timer | Timing function | Programme | Cover apperture | Cover material | Cover number per hole | External dimension ( W x L x H ) | Power | Power supply | Net weight |
| LOTB-B10 | - | 1 | 2 holes | - | electric heating | - | 0.1°C | - | - | touch button setting | - | PID control | stainless steel 304 | stainless steel 30 | stainless steel U type heating tube | PT100 | - | - | - | - | stainless steel 304 | - | - | - | - | - |
| LOTB-B11 | - | 2 | 4 holes | - | electric heating | - | 0.1°C | - | - | touch button setting | - | PID control | stainless steel 304 | stainless steel 30 | stainless steel U type heating tube | PT100 | - | - | - | - | stainless steel 304 | - | - | - | - | - |
| LOTB-B12 | - | 3 | 6 holes | - | electric heating | - | 0.1°C | - | - | touch button setting | - | PID control | stainless steel 304 | stainless steel 30 | stainless steel U type heating tube | PT100 | - | - | - | - | stainless steel 304 | - | - | - | - | - |
| LOTB-A10 | 3.3 L | 1 | 1 | 160 x 160 x 130 mm | Bottom heating | RT + 5 °C ~ 100 °C | 0.1°C | ± 0.5°C | ± 1°C | Touch mode | 3 digit display | PID | Electrolysis treated | Cold rolled steel plate | U type heating tube | Thermal resistor | 0 ~ 999 min | Fixed temperature ( auto stop ) | Multi-section program control | Diameter of 120 mm | PP plastic | 5 | 200 x 210 x 210 mm | 300 W ; AC 220 V | 50 / 60 Hz | 3 kg |
| LOTB-A11 | 6.3 L | 1 | 2 | 305 x 160 x 130 mm | Bottom heating | RT + 5 °C ~ 100 °C | 0.1°C | ± 0.5°C | ± 1°C | Touch mode | 3 digit display | PID | Electrolysis treated | Cold rolled steel plate | U type heating tube | Thermal resistor | 0 ~ 999 min | Fixed temperature ( auto stop ) | Multi-section program control | Diameter of 120 mm | PP plastic | 5 | 340 x 210 x 210 mm | 600 W ; AC 220 V | 50 / 60 Hz | 4 kg |
| LOTB-A12 | 12.8 L | 1 | 4 | 600 x 165 x 130 mm | Bottom heating | RT + 5 °C ~ 100 °C | 0.1°C | ± 0.5°C | ± 1°C | Touch mode | 3 digit display | PID | Electrolysis treated | Cold rolled steel plate | U type heating tube | Thermal resistor | 0 ~ 999 min | Fixed temperature ( auto stop ) | Multi-section program control | Diameter of 120 mm | PP plastic | 5 | 635 x 165 x 210 mm | 1000 W ; AC 220 V | 50 / 60 Hz | 7 kg |
| LOTB-A13 | 19.3 L | 1 | 6 | 900 x 165 x 130 mm | Bottom heating | RT + 5 °C ~ 100 °C | 0.1°C | ± 0.5°C | ± 1°C | Touch mode | 3 digit display | PID | Electrolysis treated | Cold rolled steel plate | U type heating tube | Thermal resistor | 0 ~ 999 min | Fixed temperature ( auto stop ) | Multi-section program control | Diameter of 120 mm | PP plastic | 5 | 930 x 210 x 210 mm | 1500 W ; AC 220 V | 50 / 60 Hz | 8 kg |
| LOTB-A20 | 12 L | 2 | 4 | 305 x 305 x 130 mm | Bottom heating | RT + 5 °C ~ 100 °C | 0.1°C | ± 0.5°C | ± 1°C | Touch mode | 3 digit display | PID | Electrolysis treated | Cold rolled steel plate | U type heating tube | Thermal resistor | 0 ~ 999 min | Fixed temperature ( auto stop ) | Multi-section program control | Diameter of 120 mm | PP plastic | 5 | 340 x 350 x 210 mm | 800 W ; AC 220 V | 50 / 60 Hz | 6 kg |
| LOTB-A21 | 18.6 L | 2 | 6 | 470 x 305 x 130 mm | Bottom heating | RT + 5 °C ~ 100 °C | 0.1°C | ± 0.5°C | ± 1°C | Touch mode | 3 digit display | PID | Electrolysis treated | Cold rolled steel plate | U type heating tube | Thermal resistor | 0 ~ 999 min | Fixed temperature ( auto stop ) | Multi-section program control | Diameter of 120 mm | PP plastic | 5 | 510 x 350 x 210 mm | 1200 W ; AC 220 V | 50 / 60 Hz | 8 kg |
| LOTB-A22 | 19.8 L | 2 | 8 | 600 × 300 × 110 mm | Bottom heating | RT + 5°C to 99°C | 0.1°C | ± 0.5°C | ± 1°C | Touch mode | 3 digit display | PID | Electrolysis treated | Cold rolled steel plate | U type heating tube | Thermal resistor | 1 to 5999 min | Fixed temperature ( auto stop ) | Multi-section program control | Diameter of 120 mm | PP plastic Porous Lid | 5 | 850× 420×300 mm | 2000 W | 220 V, 50 Hz | 13 kg |
| LOTB-C10 | - | - | - | - | - | - | - | - | ≤ ± 0.3℃ (@ 37℃) | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 300 W | AC 110 V or 220 V, 50/60 Hz | - |
| LOTB-C11 | - | - | - | - | - | - | - | - | ≤ ± 0.3℃ (@ 37℃) | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 600 W | AC 110 V or 220 V, 50/60 Hz | - |
| LOTB-C12 | - | - | - | - | - | - | - | - | ≤ ± 0.3℃ (@ 37℃) | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 900 W | AC 110 V or 220 V, 50/60 Hz | - |
| LOTB-D10 | - | 2 | 12 (6 holes in each row) | - | Electric | RT +5 to 99.9°C | 0.1°C | - | ±0.5℃ | Keyboard | LED | LED | Stainless-steel | - | Stainless-steel | PT100 | Yes | Yes | - | - | - | - | - | 3000 W | - | - |
