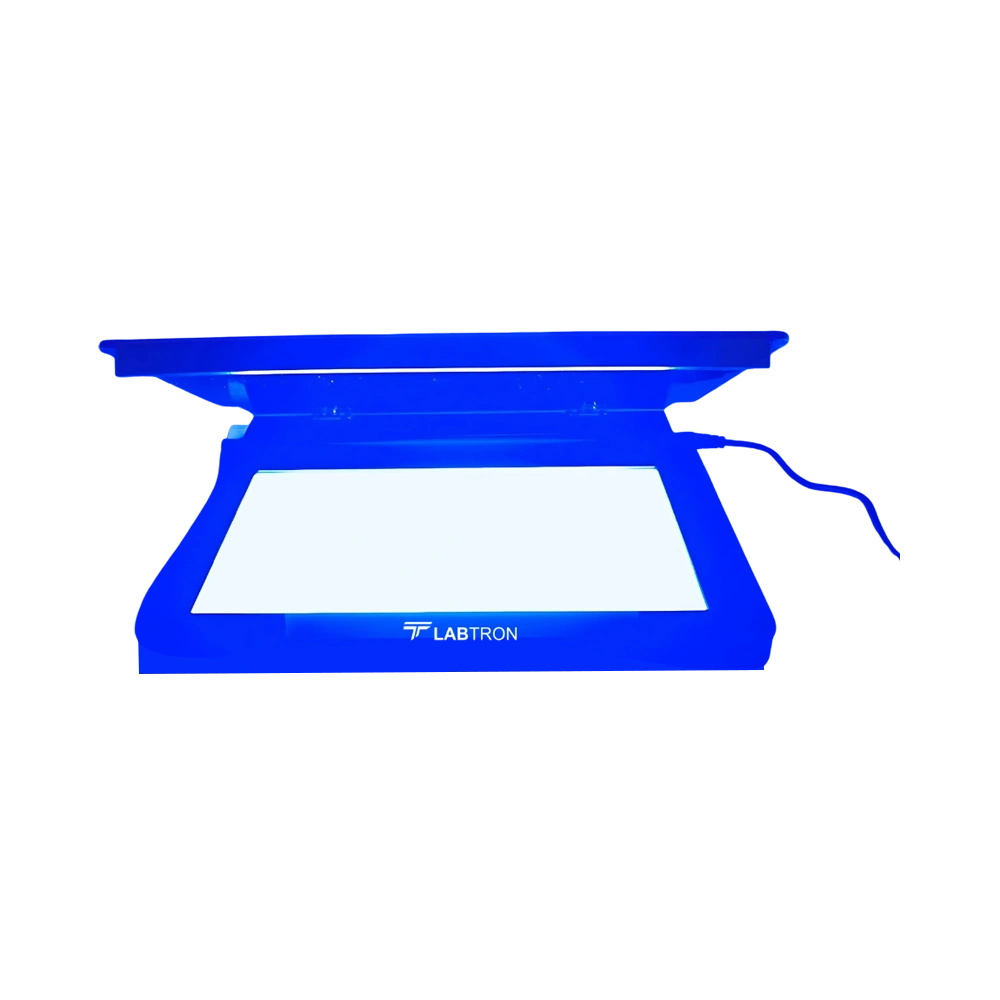

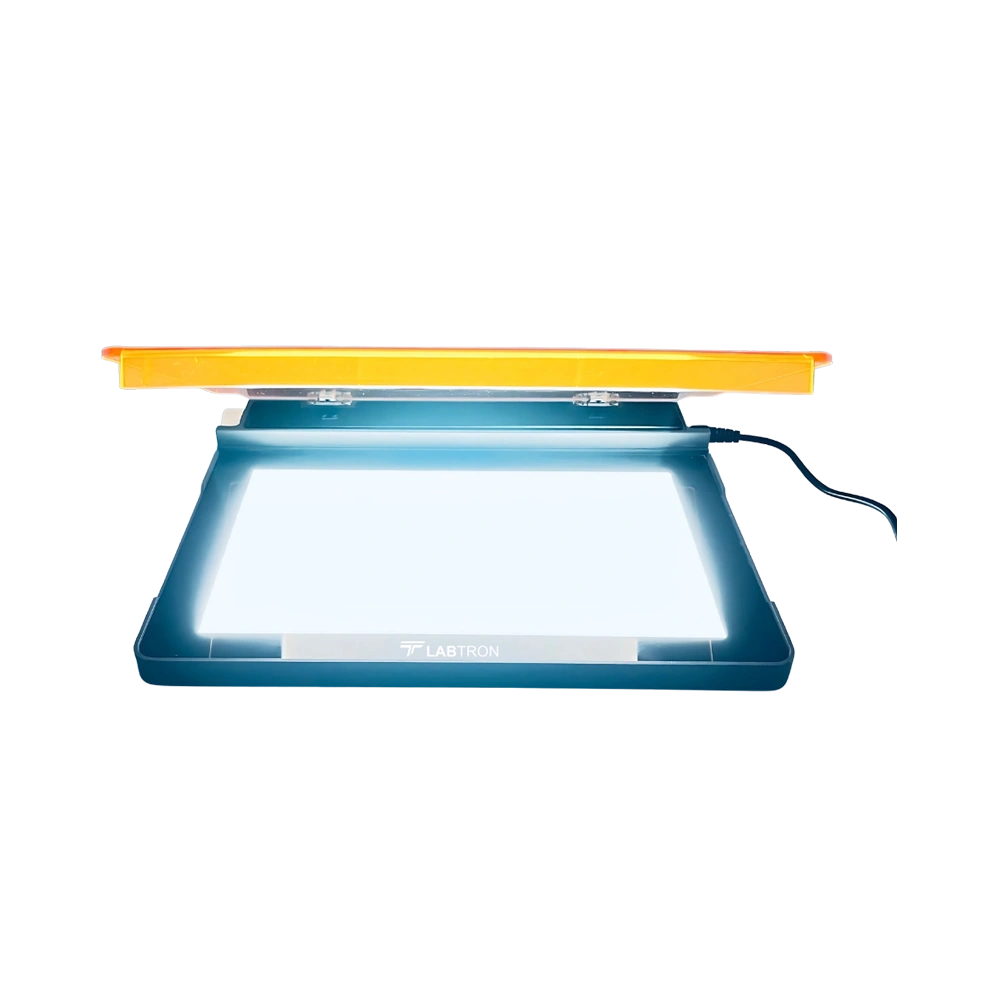

Dual LED Blue & White Transilluminator LTI-D10

The Dual LED Blue & White Transilluminator LTI-D10 is designed for visualization of nucleic acid gels, protein gels, and membrane stains. With its dual LED modes, it allows precise observation of DNA, RNA, and protein samples. The 470 nm blue LED mode is particularly suitable for qualitative and quantitative nucleic acid experiments using dyes like SYBR Green, GelGreen, and SYPRO Orange. The white LED mode provides uniform illumination for protein gels stained with Coomassie Blue or silver nitrate. Additionally, the LTI-D10 can function as a light box for X-ray films and diagnostic applications, making it versatile for research and clinical laboratories.

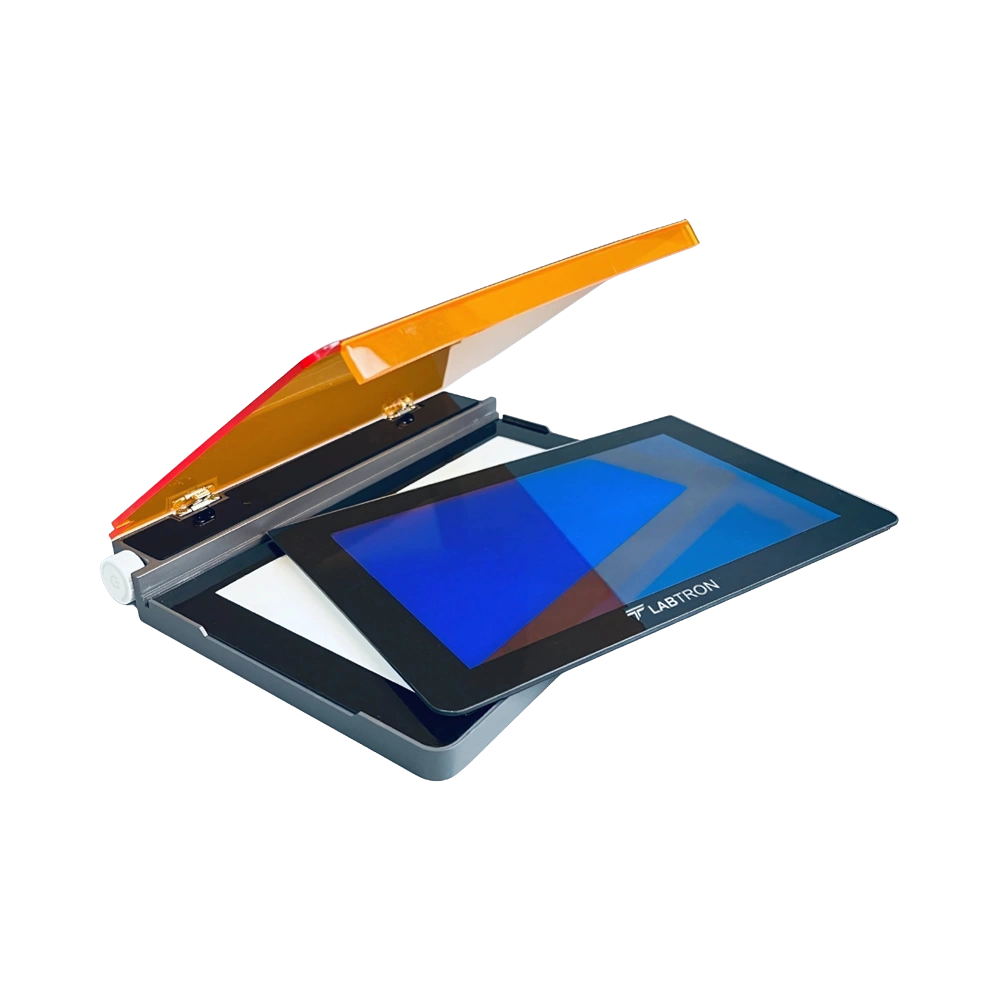

The Dual LED Blue & White Transilluminator LTI-D10 offers multiple user-friendly features that enhance laboratory workflows. It includes dual LED illumination (blue and white), anti-reflection bottom lighting to reduce glare, and a rotatable filter cover for safe observation and gel cutting. A foldable mini darkroom and precision gel cutting knife are provided as standard accessories. It also supports adjustable light intensity, allowing users to optimize contrast based on sample type and concentration. Its compact and durable metal body ensures long-term reliability, while the automatic shutdown after 5 minutes saves energy and protects the LED system.

The Dual LED Blue & White Transilluminator LTI-D10 is equipped with Blue & White LED light sources with a lifetime of more than 50,000 hours. It operates at a maximum emission wavelength of 470 nm in blue mode and provides full-spectrum white light. The system has a power consumption of 12V DC, 1A, with a power supply range of 100 to 240V at 50/60Hz, making it suitable for global laboratory use. Its observation area is L210 × W120 mm, with compact overall dimensions of L255 × W190 × H30 mm and a lightweight design at 1.5 kg. These specifications make it an efficient and portable choice for molecular biology and clinical labs.

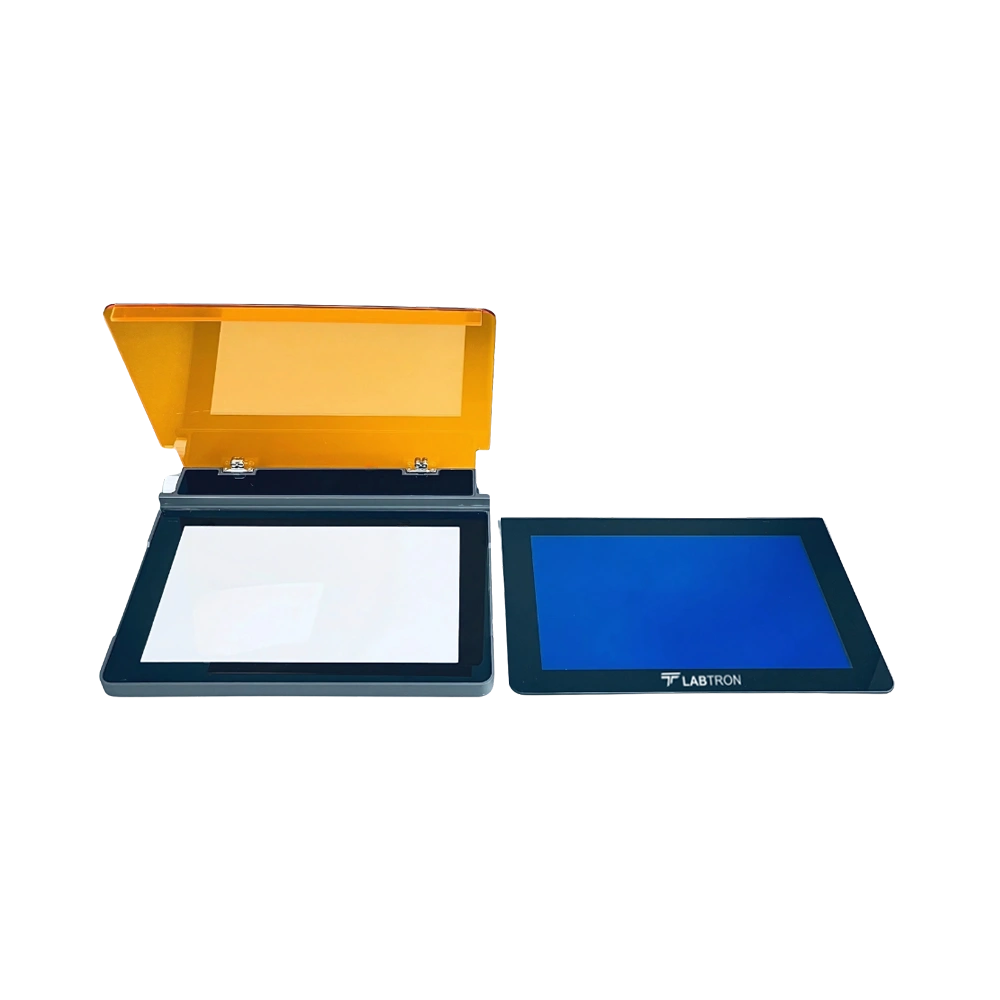

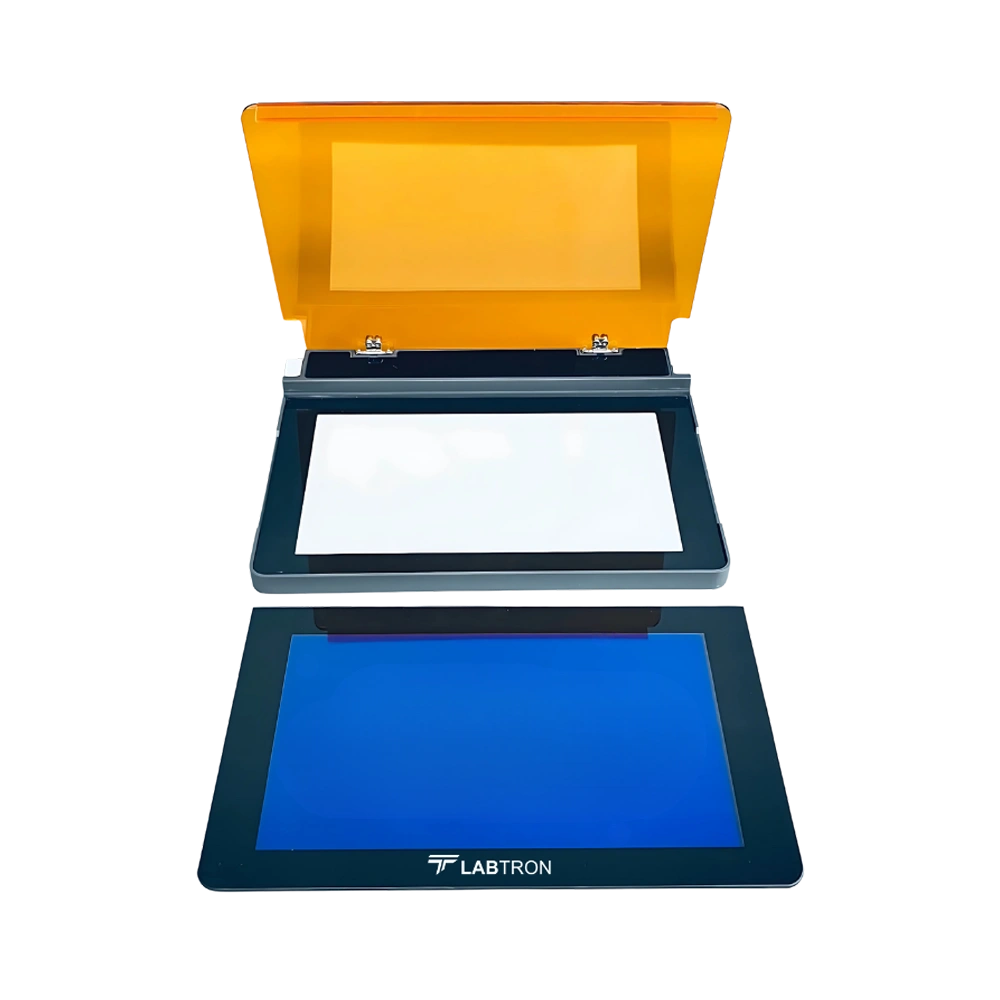

The Dual LED Blue & White Transilluminator LTI-D10 comes with essential accessories to enhance its usability. The standard package includes one gel cutting knife (1 pc) for precise band excision and one foldable mini darkroom (1 pc) for gel band photography and enhanced visualization. These accessories ensure users can immediately perform gel documentation and sample preparation without requiring additional purchases, making the LTI-D10 a complete solution for electrophoresis gel observation.

The Dual LED Blue & White Transilluminator LTI-D10 is widely applied across molecular biology, genetics, clinical laboratories, and research institutions. It is used for accurate gel cutting, DNA visualization, electrophoresis analysis, and sample observation under controlled environments. Researchers benefit from its compatibility with popular fluorescent dyes and protein stains, while clinical laboratories utilize it for diagnostic applications, including nucleic acid and protein analysis. The LTI-D10 supports reliable, efficient imaging, making it an essential tool for both academic and commercial research facilities.
