What makes the Labtron Ultrasonic Thickness Gauge suitable for industrial use?

The Labtron Ultrasonic Thickness Gauge is designed to deliver high-precision thickness measurements, making it ideal for critical applications in industries like petroleum, chemical processing, shipbuilding, and aerospace. Its advanced features like excellent timer chips, a double crystal probe, and switchable automatic gain ensure accurate and consistent results across different materials and environments. The device also has an E-E (Echo-Echo) measurement mode, which allows for precise readings even when there are surface coatings, making it extremely useful for non-destructive testing and inspection in industrial settings.

How does the resolution of the Labtron Ultrasonic Thickness Gauge change based on the material thickness?

The Labtron Ultrasonic Thickness Gauge offers different resolutions depending on the thickness of the material being measured, which ensures both accuracy and efficiency. For thin materials ranging from 0.8 mm to 10 mm, it provides a high resolution of 0.001 mm. When measuring thicknesses between 10 mm and 100 mm, the resolution is 0.01 mm, and for thicker materials from 100 mm to 600 mm, it uses a resolution of 0.1 mm. This variable resolution helps users get precise results without compromising on speed or ease of use, especially when measuring different material types and thicknesses.

What measurement modes are available in the Labtron Ultrasonic Thickness Gauge and how do they help?

The Labtron Ultrasonic Thickness Gauge features two key modes: QC Mode and Statistics Mode. QC Mode is ideal for quick quality checks, enabling users to rapidly assess the thickness of a material and determine whether it meets required standards. Statistics Mode, on the other hand, is more suitable for detailed analysis, as it calculates and displays the average, maximum, and minimum thickness readings from multiple measurements. These modes help users perform both routine inspections and in-depth assessments depending on their specific needs.

Does the Labtron Ultrasonic Thickness Gauge support measurements for different materials?

Yes, the Labtron Ultrasonic Thickness Gauge comes with preset sound velocity values for various materials, allowing users to take quick and accurate measurements without having to manually enter data. It supports a wide sound velocity range from 1000 to 9999 m/s, covering most common engineering materials such as steel, aluminum, copper, and plastics. This makes it versatile and convenient, especially in industrial environments where materials vary from project to project.

What storage and power features make the Labtron Ultrasonic Thickness Gauge user-friendly?

The Labtron Ultrasonic Thickness Gauge is built with user convenience in mind. It can store up to 999 measurement readings, which is particularly helpful for fieldwork or when multiple readings need to be recorded for later analysis. The device is powered by two 1.5V AA alkaline batteries, making it portable and easy to use in different locations without the need for external power sources. Additionally, its compact design and lightweight build (just 0.7 kg net weight) make it easy to carry and operate, even in tight or hard-to-reach areas.

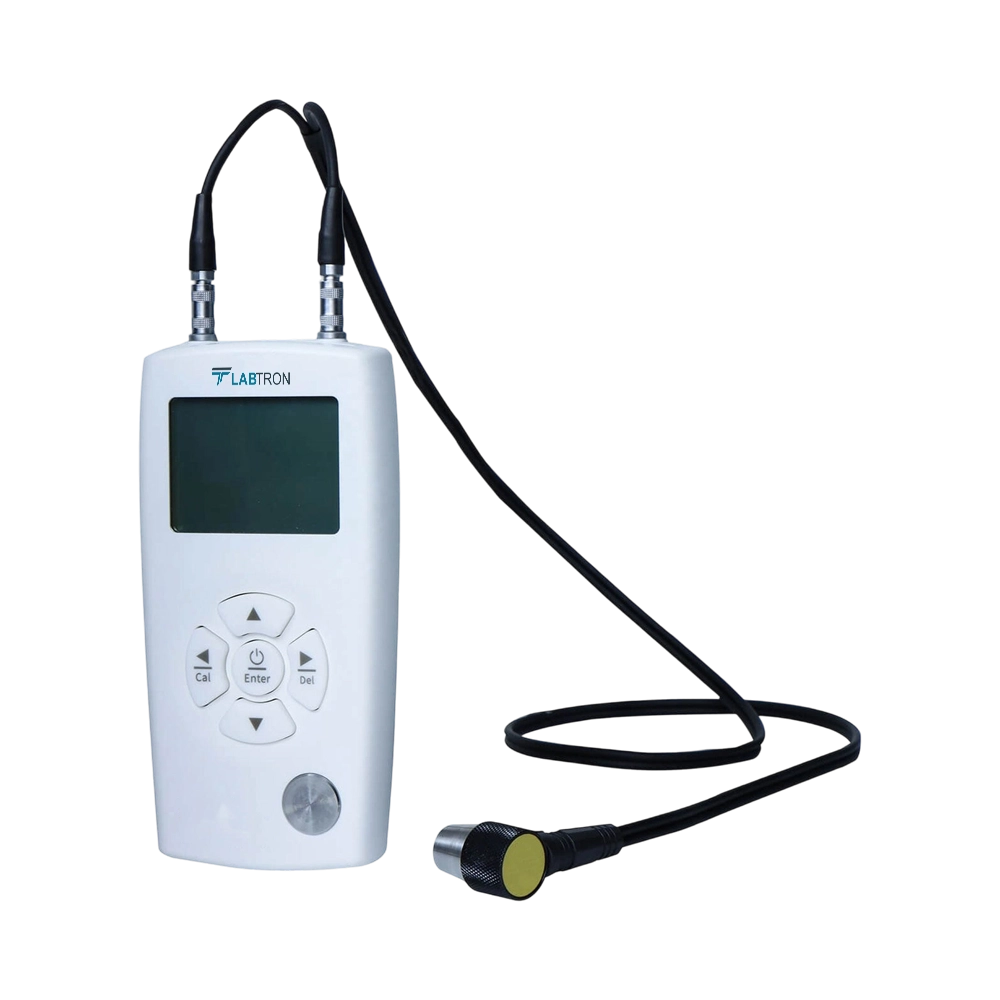

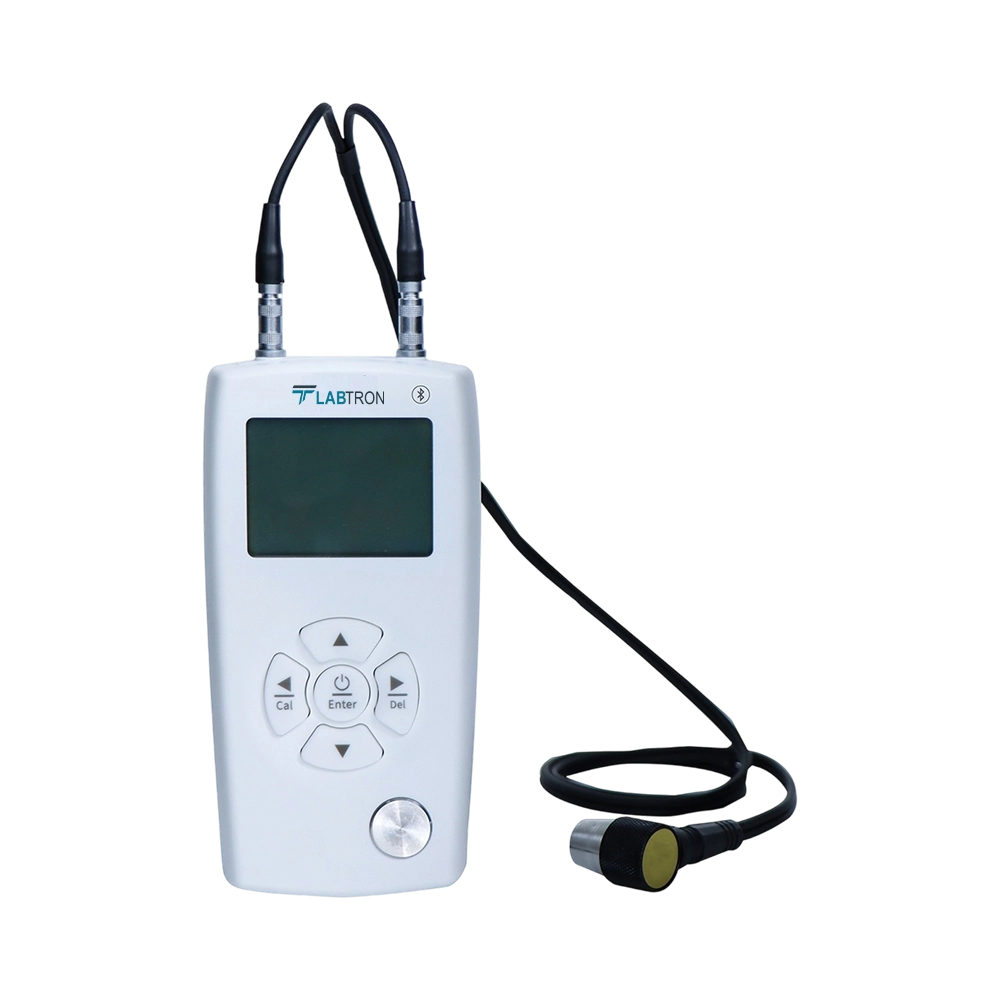

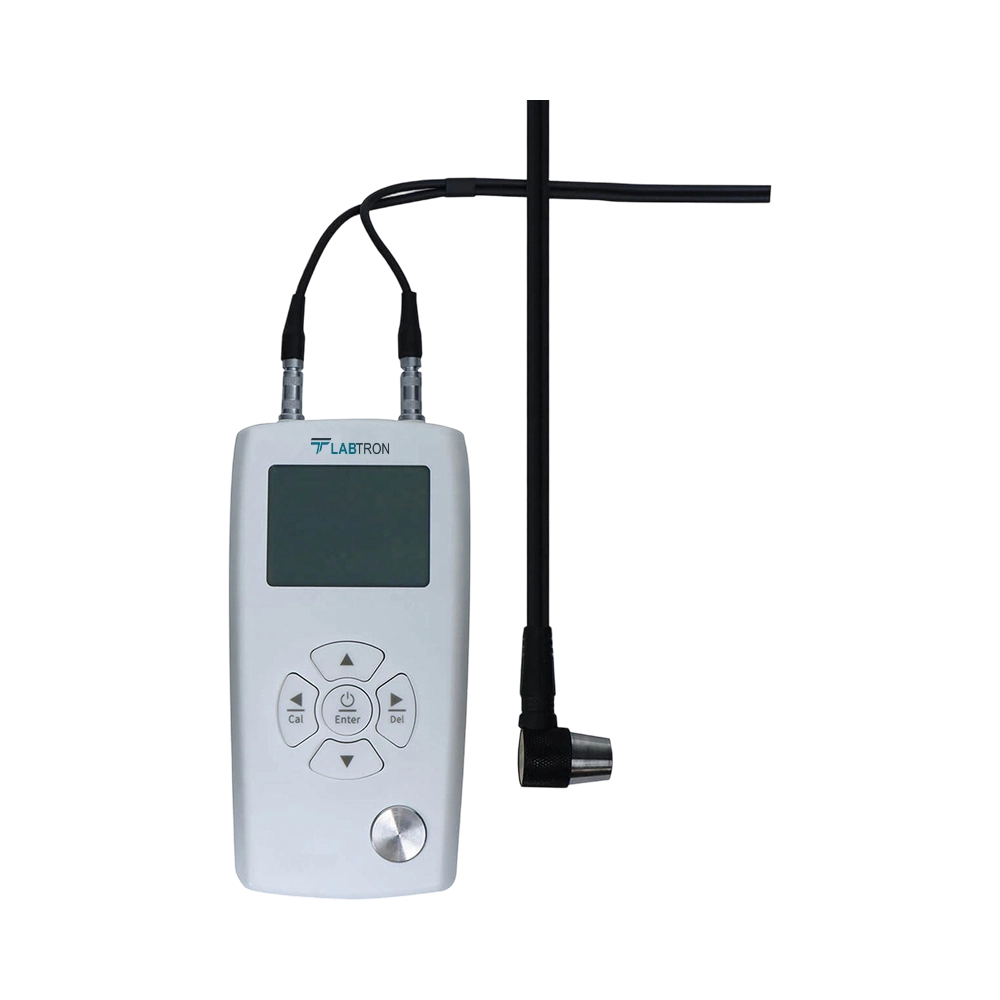

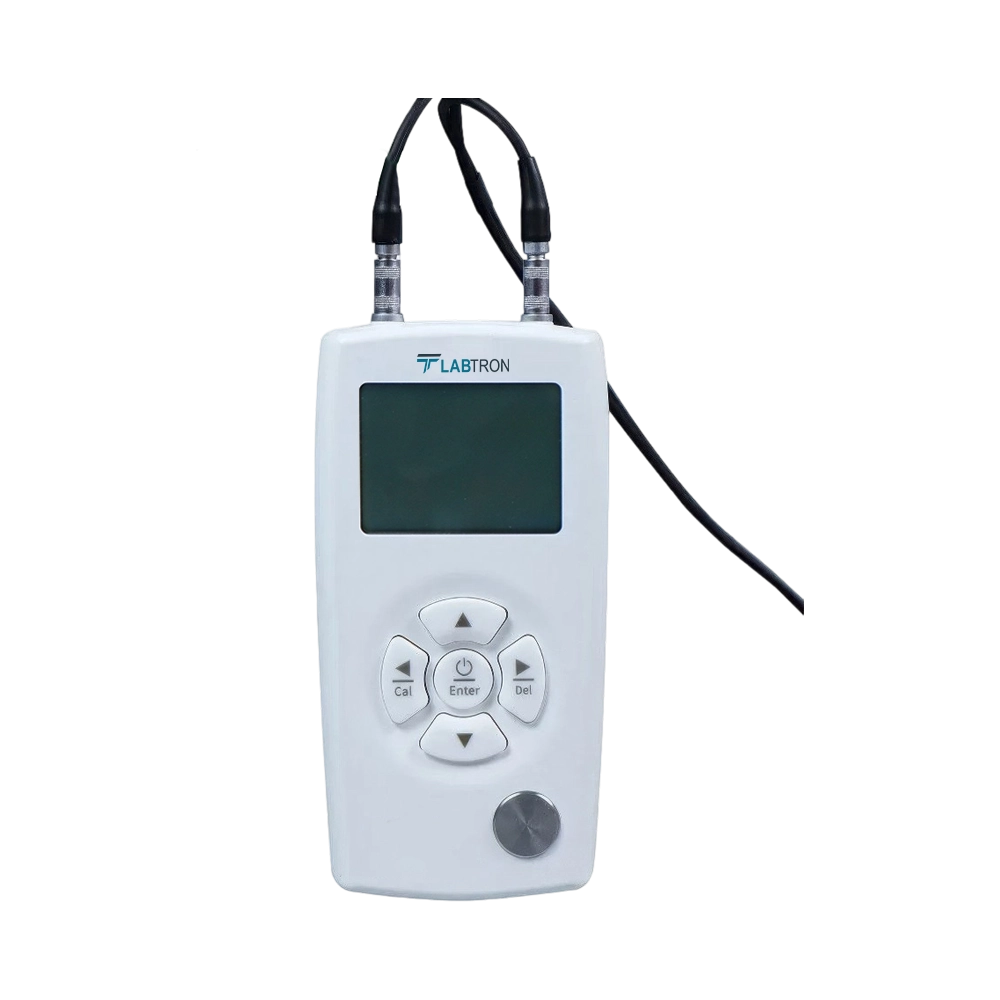

Ultrasonic Thickness Gauge LUTG-A10

Name: Ultrasonic Thickness Gauge LUTG-A10
Brand: Labtron
SKU: LUTG-A10
Rating: 5 (811 reviews)

Ultrasonic Thickness Gauge LUTG-A10 provides precise resolution based on range 0.001 mm for 0.8 to 10 mm, 0.01 mm for 10 to 100 mm, and 0.1 mm for 100 to 600 mm measurements. The Ultrasonic Thickness Gauge has two modes QC Mode for quick quality checks and Statistics Mode for analyzing average, maximum, and minimum thickness. It comes with extra-large storage capacity, allowing up to 999 measurement readings to be saved. Our Ultrasonic Thickness Gauge includes preset sound velocities for various materials, enabling quick and accurate measurements without manual input.

Request Quote

Resolution	0.8 to 10 mm: 0.001 mm 10 to 100 mm: 0.01 mm 100 to 600 mm: 0.1 mm
Operating Temperature Range	-10 to 50℃, 0 to 85% RH (No condensation)
Storage Temperature Range	-10 to 60℃, 0 to 85% RH (No condensation)
Sound Velocity Range	1000 to 9999 m/s
Display	240 × 160 dot matrix LCD
Power Supply	2 × 1.5V AA alkaline batteries
Dimension	142 × 72 × 28 mm
Packaging Dimension	260 × 210 × 290 mm
Net weight	0.7 Kg
Gross Weight	0.98 Kg

Excellent Timer chips

Double crystal probe

Automatic Gain switchable

E-E measurement mode

Ultrasonic Thickness Gauge LUTG-A10 is used to check wall thickness and ensure material safety in structures and equipment. It is ideal for industries like petroleum, chemical, shipbuilding, and aerospace.

Standard probe
Minimum measuring area	φ10mm
Measuring Range (45#steel)	0.8 to 600mm
Accuracy (H is the standard value)	H<10mm: ±0.05 H>=10mm: ±0.5%H
Exposure temperature	-10 to 60℃

Download catalog for
Ultrasonic Thickness Gauge LUTG-A10 Catalog

Ultrasonic Thickness Gauge LUTG-A10 | Operating Temperature Range: -10 to 50℃, 0 to 85% RH (No condensation) | Sound Velocity Range: 1000 to 9999 m/s

Ultrasonic Thickness Gauge LUTG-A10 | Excellent Timer chips | Double crystal probe

Ultrasonic Thickness Gauge Supplier

Labtron Ultrasonic Thickness Gauge are used to measure the thickness of materials like metal, plastic, and glass without causing any damage. These gauges feature digital displays, high accuracy, and easy-to-use interfaces for quick and reliable readings. They offer various probe options to suit different surfaces and materials. Equipped with data logging and alarm functions, they enhance quality control and safety. These gauges are widely used in industries such as manufacturing, automotive, aerospace, and shipbuilding. They help detect corrosion, erosion, and wear, ensuring structural integrity and compliance with standards.

Ultrasonic Thickness Gauge LUTG-A10 FAQ's

The Labtron Ultrasonic Thickness Gauge is designed to deliver high-precision thickness measurements, making it ideal for critical applications in industries like petroleum, chemical processing, shipbuilding, and aerospace. Its advanced features like excellent timer chips, a double crystal probe, and switchable automatic gain ensure accurate and consistent results across different materials and environments. The device also has an E-E (Echo-Echo) measurement mode, which allows for precise readings even when there are surface coatings, making it extremely useful for non-destructive testing and inspection in industrial settings.
The Labtron Ultrasonic Thickness Gauge offers different resolutions depending on the thickness of the material being measured, which ensures both accuracy and efficiency. For thin materials ranging from 0.8 mm to 10 mm, it provides a high resolution of 0.001 mm. When measuring thicknesses between 10 mm and 100 mm, the resolution is 0.01 mm, and for thicker materials from 100 mm to 600 mm, it uses a resolution of 0.1 mm. This variable resolution helps users get precise results without compromising on speed or ease of use, especially when measuring different material types and thicknesses.
The Labtron Ultrasonic Thickness Gauge features two key modes: QC Mode and Statistics Mode. QC Mode is ideal for quick quality checks, enabling users to rapidly assess the thickness of a material and determine whether it meets required standards. Statistics Mode, on the other hand, is more suitable for detailed analysis, as it calculates and displays the average, maximum, and minimum thickness readings from multiple measurements. These modes help users perform both routine inspections and in-depth assessments depending on their specific needs.
Yes, the Labtron Ultrasonic Thickness Gauge comes with preset sound velocity values for various materials, allowing users to take quick and accurate measurements without having to manually enter data. It supports a wide sound velocity range from 1000 to 9999 m/s, covering most common engineering materials such as steel, aluminum, copper, and plastics. This makes it versatile and convenient, especially in industrial environments where materials vary from project to project.
The Labtron Ultrasonic Thickness Gauge is built with user convenience in mind. It can store up to 999 measurement readings, which is particularly helpful for fieldwork or when multiple readings need to be recorded for later analysis. The device is powered by two 1.5V AA alkaline batteries, making it portable and easy to use in different locations without the need for external power sources. Additionally, its compact design and lightweight build (just 0.7 kg net weight) make it easy to carry and operate, even in tight or hard-to-reach areas.
