Fixed Under Vehicle Surveillance System LFVS-B11

Labtron’s Fixed Under Vehicle Surveillance System LFVS-B11 is designed to provide real-time, high-resolution imaging of a vehicle’s undercarriage to detect prohibited items, modifications, or concealed threats such as explosives and contraband. By using a linear scanning method triggered by a ground coil and achieving a maximum scan rate of 18 kHz, the system allows security personnel to inspect vehicles quickly and accurately without manual checks, enhancing both safety and operational efficiency.

Our Fixed Under Vehicle Surveillance System LFVS-B11 uses a high-resolution CCD wire array with a vertical resolution of at least 2048 pixels and an image resolution of 12000 × 7500 (20 million pixels). It captures a wide field of view (greater than or equal to 175°) and employs a single sealed LED light source to ensure clear visibility, even in low-light or foggy conditions. The system automatically highlights suspicious areas in the scanned image and can store up to 200,000 inspection records for future reference.

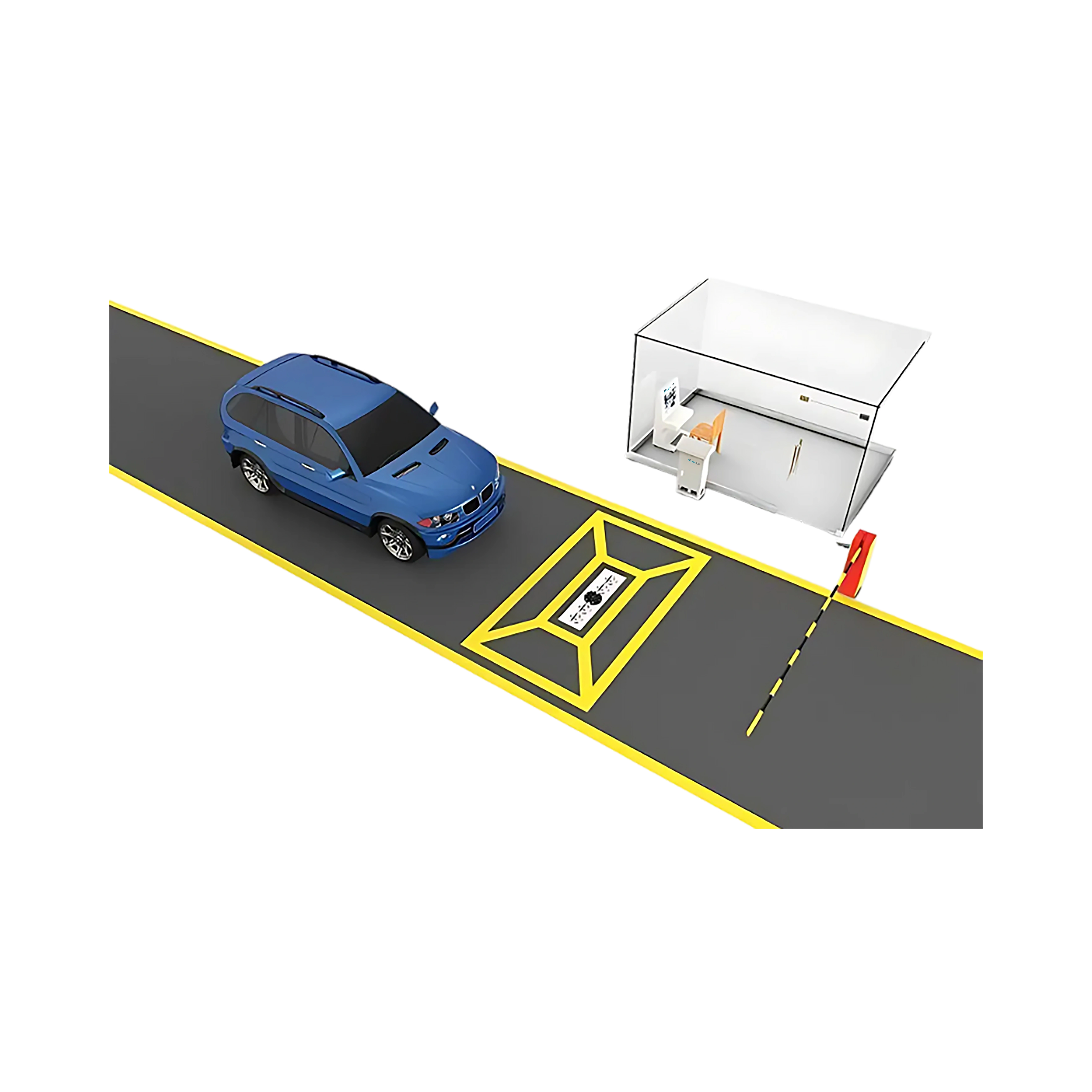

Labtron Fixed Under Vehicle Surveillance System LFVS-B11 is built with a modular stainless steel composite design for durability and easy maintenance. It operates effectively in temperatures ranging from -25 °C to 60 °C and is rated IP68 for waterproofing, making it suitable for outdoor installations in harsh environments. It requires a DC 24 V operating voltage with an AC input of 110–240 V at 50/60 Hz, and the standard setup includes a vehicle bottom scanner, control console, distribution box, and license plate recognition camera.

The Fixed Under Vehicle Surveillance System LFVS-B11 is ideal for high-security environments such as airports, seaports, customs checkpoints, military installations, prisons, and major public venues. It is also widely used for large-scale event security and border control, where quick and reliable under-vehicle inspections are essential for preventing smuggling, terrorism, and unauthorized modifications to vehicles.

Yes, the Fixed Under Vehicle Surveillance System LFVS-B11 supports system linkage with other security devices such as ID scanners, document verification systems, and facial recognition units. This integration enables a comprehensive multi-layer security protocol, improving the efficiency and accuracy of overall site monitoring.
