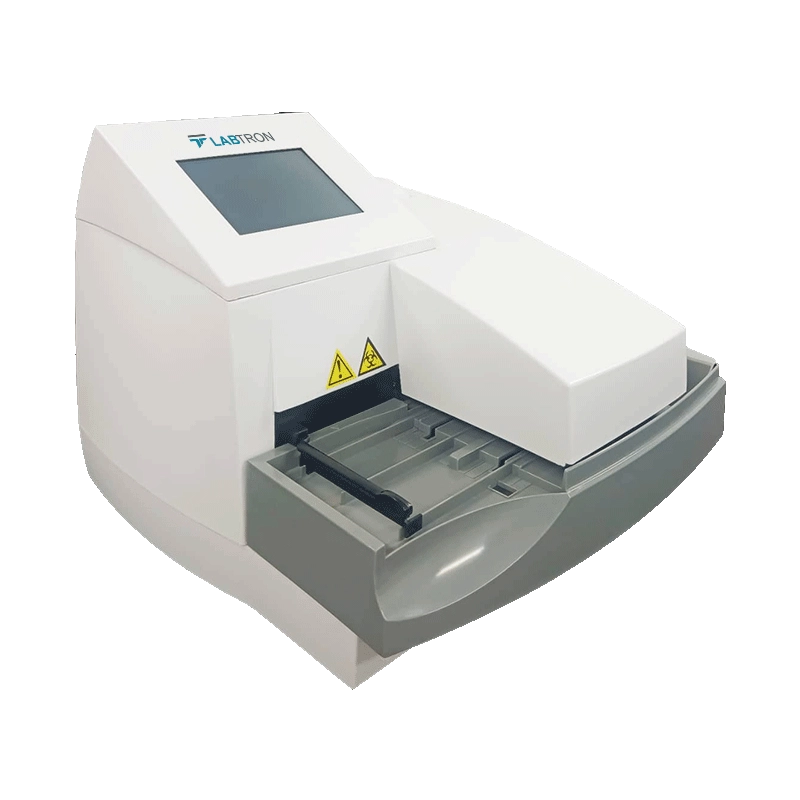

Urine Analyzer LUAR-A10

Urine Analyzer LUAR-A10

Urine Analyzer LUAR-A10 is capable of processing 500 tests per hour in continuous mode showing a faster throughput rate. Navigate effortlessly through operations using the LCD color touchscreen. Its report memory stores up to 3000 test results for convenient retrieval and analysis. It is designed to work seamlessly with urinalysis strips for conducting clinical urine tests.

Request Quote
Test Speed 500 tests/hour
Data Storage Capacity 3000 test records
Working Temperature 5 to 40 ℃
Optimum Temperature 20 to 25 ℃
Strips Shelf life 24 months
Strips Storage Temperature 2 to 30 ℃
Analysis time 2 minutes
Relative Humidity <80%
Communication Interface RS-232 interface
Transmission Rate 9600bps
Fuse T2AL 250V
Printer Built-in thermal printer
Noise < 70dB
Applicable Test Paper urine analysis test strips
Power below 45VA
Power Supply AC220V, 50HZ
Dimensions 390 × 330 × 215 mm
Weight 6.5kg ± 0.2kg
  • Includes a strip lockout mechanism
  • Utilizes RGB tricolor test theory
  • Equipped with a standard RS232 interface
  • Features a built-in thermal printer
  • Easy sample handling

Urine Analyzer is used to analyze urine samples for various health parameters and indicators. It is commonly utilized in clinical settings, hospitals, laboratories, and even in some home healthcare situations.

ItemProductQuantityUnit
1Main machine1set
2Workbench1pc
3Tooth plate2pc
4Putter2pc
5Power wire1pc
6Wire1pc
7Test strip1barrel
8Printer paper1roll
9Brush1pc
10Standard strip1box
11Manual book1pc
12Warranty card1pc
13Simple maintenance diagram1pc
Urinalysis stripTest Analysis
StripUrobilinogen (URO)
StripBilirubin (BIL)
StripUrinary calcium (CA)
StripKetone body (KET)
StripOccult blood (BLD)
StripMicroalbumin (MA)
StripProtein (PRO)
StripNitrite (NIT)
StripLeukocyte (LEU)
StripGlucose (GLU)
StripSpecific gravity (SG)
StrippH
StripAscorbate
StripCreatinine (CR)
StripCalcium
StripUrinary Tract Infection Test

Download catalog for
Urine Analyzer LUAR-A10 Catalog


Urine Analyzer Supplier

Labtron Urine Analyzers feature robust designs for high throughput testing of urine samples. They automate the detection of various components in urine, ensuring quick results. These Analyzers provide ample storage for easy result retrieval. With advanced technology, they integrate data efficiently with high accuracy. Our Urine Analyzers deliver sensitive results vital for routine health check-ups, disease screening, and ongoing clinical and research monitoring.

Urine Analyzer LUAR-A10 FAQ's
  • Labtron Urine Analyzer LUAR-A10 is ideal for high-throughput clinical settings such as hospitals, diagnostic labs, and large outpatient centers. With a test speed of 500 tests per hour, it supports quick turnaround in busy workflows. It can also be used in research labs or home care situations requiring reliable and fast urinalysis. Its compact design and built-in printer make it well-suited for space-constrained environments.

  • The Urine Analyzer LUAR-A10 features an intuitive LCD color touchscreen that simplifies navigation and operation. Sample handling is straightforward, reducing the learning curve for new users. The interface guides technicians through each step, helping prevent errors. Its automation and user-friendly controls make it suitable for both experienced and novice users.

  • Yes, our Urine Analyzer LUAR-A10 includes internal memory capable of storing up to 3000 test records. This is particularly useful for tracking patient history and conducting retrospective data analysis. Users can retrieve past results easily without relying on external databases. This built-in data retention enhances workflow and reporting accuracy.

  • Labtron’s Urine Analyzer LUAR-A10 is specifically designed for use with urinalysis test strips and features a strip lockout mechanism to ensure proper usage. It supports analysis based on RGB tricolor test theory for precise result interpretation. The analyzer maintains consistent performance with strips that are stored properly within their 24-month shelf life. Users should always use recommended strips for accurate and reliable readings.

  • The Urine Analyzer LUAR-A10, equipped with a standard RS-232 interface enables communication with external systems such as computers or hospital information systems. It operates at a transmission rate of 9600 bps, ensuring stable and efficient data transfer. This feature streamlines electronic record-keeping and integration with digital health systems. It also supports efficient lab management and result documentation.
