Vapor Pressure Tester (REID METHOD) LVPT-C10

Name: Vapor Pressure Tester (REID METHOD) LVPT-C10
Brand: Labtron
SKU: LVPT-C10
Rating: 4.9 (810 reviews)

Vapor Pressure Tester (REID METHOD) LVPT-C10 accurately measures the vapor pressure of gasoline, volatile crude oil, and other volatile petroleum products. It maintains a constant temperature of 90°C for accurate results. It is designed to withstand ambient temperatures ranging from -10°C to 35°C and relative humidity levels below 85%. Equipped with essential features for accurate testing and built according to international standards.

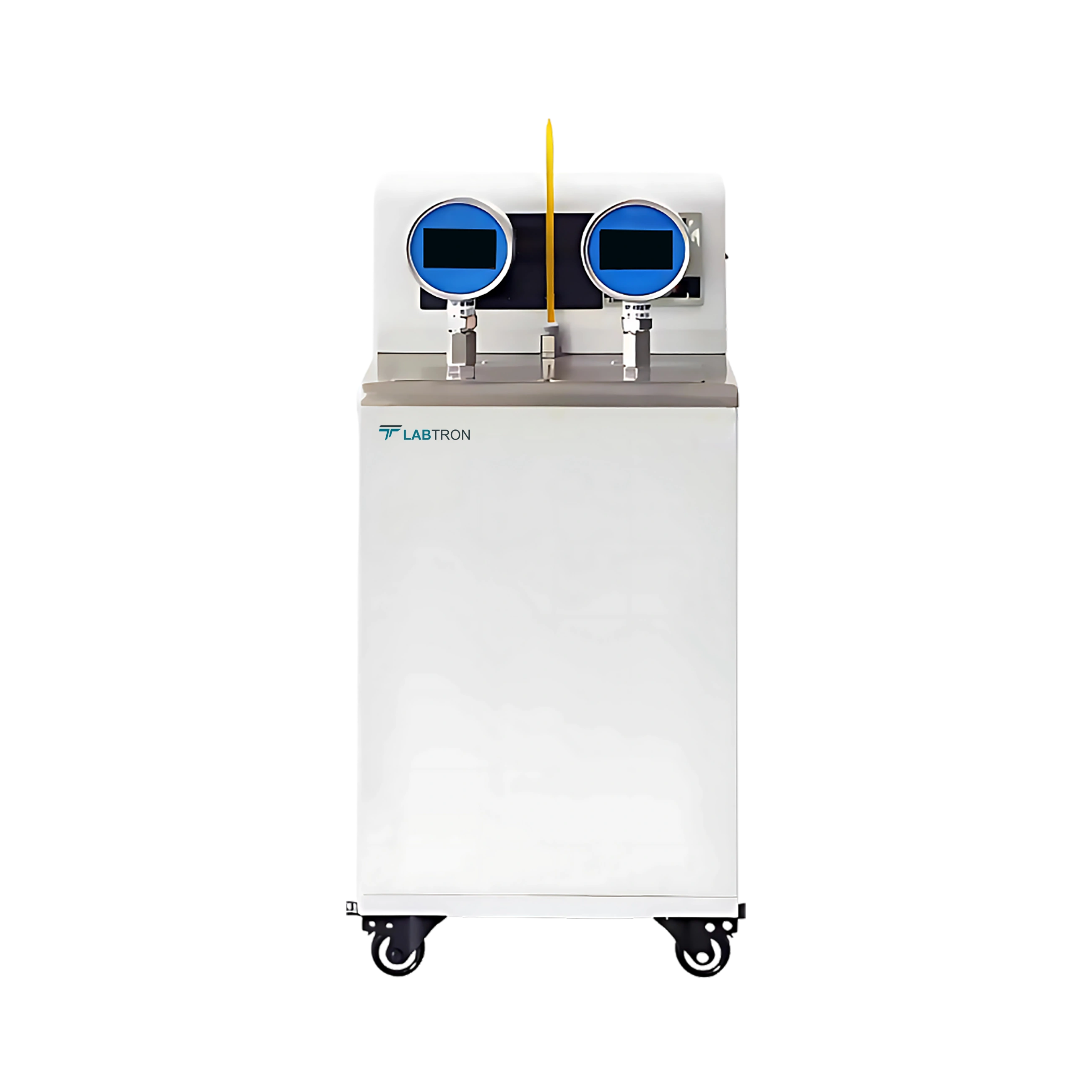

Vapor Pressure Tester (REID METHOD) LVPT-C10_Front View

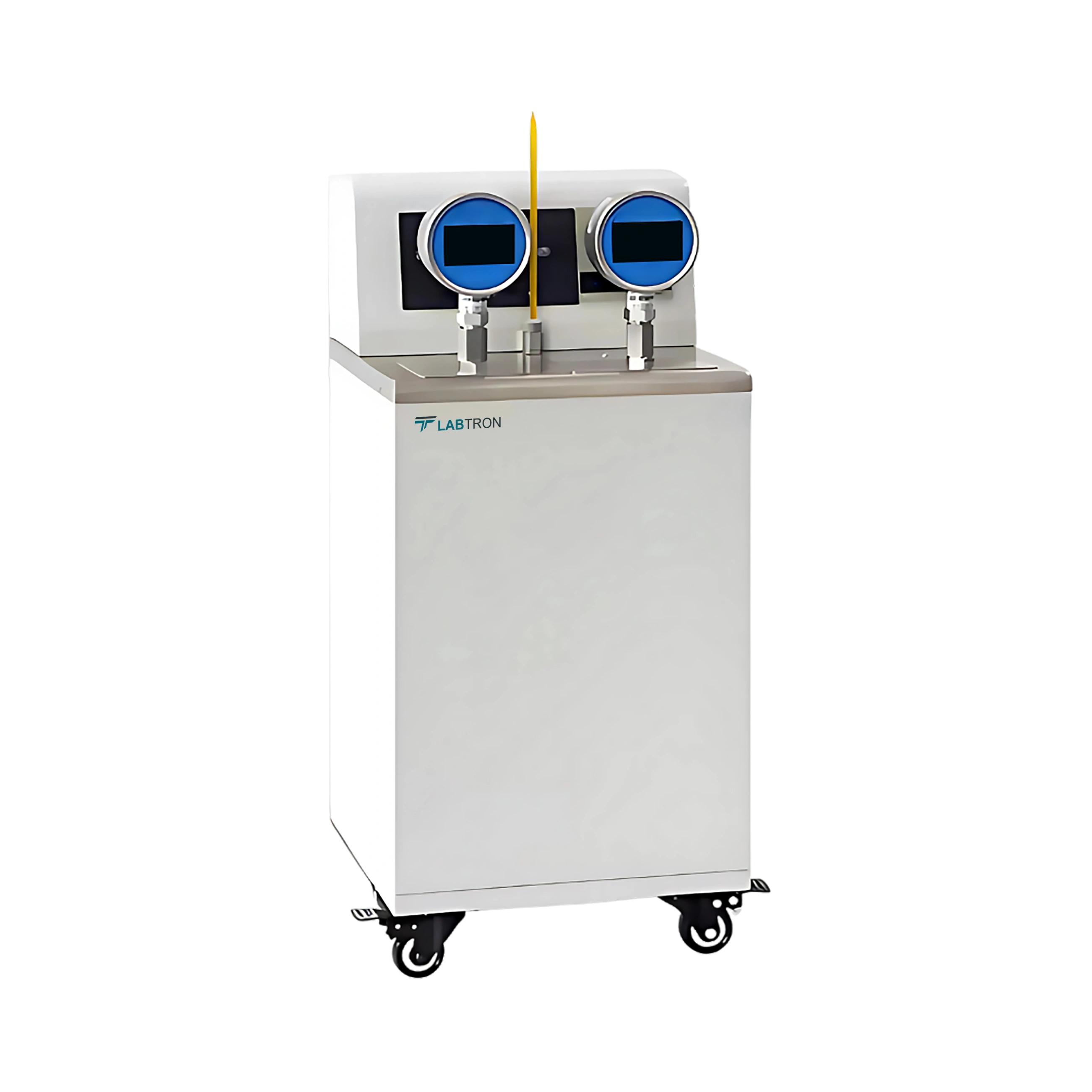

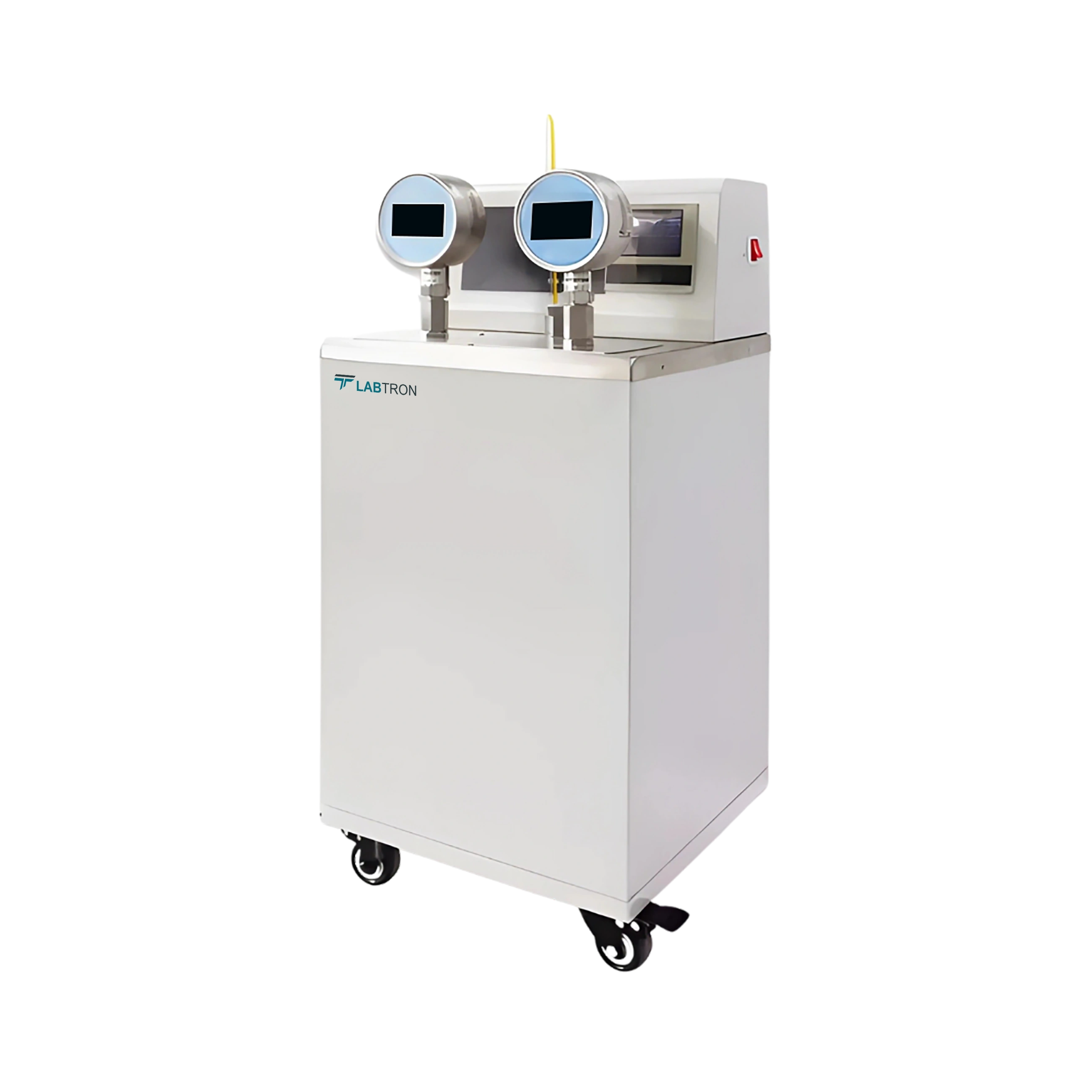

Vapor Pressure Tester (REID METHOD) LVPT-C10_Side View

Request Quote

Operation temperature of water bath	RT to 90 °C
Temperature controlling accuracy	± 0.1 °C
Ambient temperature	15°C to 35 °C
Relative humidity	≤ 85 %
Pressure meter accuracy	± 0.4 % kPa
Heating power of water bath	1600 W
Total power consumption	≤ 1700 W
Power supply	AC 220 V ± 10 %, 50 Hz
Product Dimension (L × B × H)	350 × 340 × 750 mm
Packaging Dimension (L × B × H)	470 × 410 × 910 mm
Net Weight	35 Kg
Gross Weight	41 Kg

Pressure gauge to measure the vapor pressure
Digital display temperature controller
Pump loop to circulate the sample
Two groups of experiments simultaneously
High work efficiency
Comply with the ASTM D323 standard
Accurate and reliable

The Vapor Pressure Tester LVPT-C10, following ASTM D323 standards, is vital for accurately measuring the vapor pressure of petroleum products, ensuring compliance with industry regulations, and facilitating quality control in refineries and petroleum testing laboratories.

Download catalog for
Vapor Pressure Tester (REID METHOD) LVPT-C10 Catalog

Models of Vapor Pressure

Labtron Vapor Pressure is equipped with a pressure gauge to accurately measure the vapor pressure, providing reliable readings for precise testing. These digital display temperature controllers enable easy and accurate temperature adjustments, ensuring the maintenance of optimal conditions throughout the testing process. Their pump loop circulates the sample, ensuring consistent flow and even distribution throughout the experiment. They support two groups of experiments simultaneously, maximizing efficiency and reducing processing time. Our vapor pressure has a real-time pressure curve feature that enables continuous tracking of pressure changes during testing.

Automated Reid Vapor Pressure Tester LVPT-C12

Vapor Pressure Range : 0 to 180 kPa
Accuracy : ±0.1 kPa
Measurements Positions : 3
Test Pressure Vessels : Standard stainless steel REID pressure vessel with one opening
