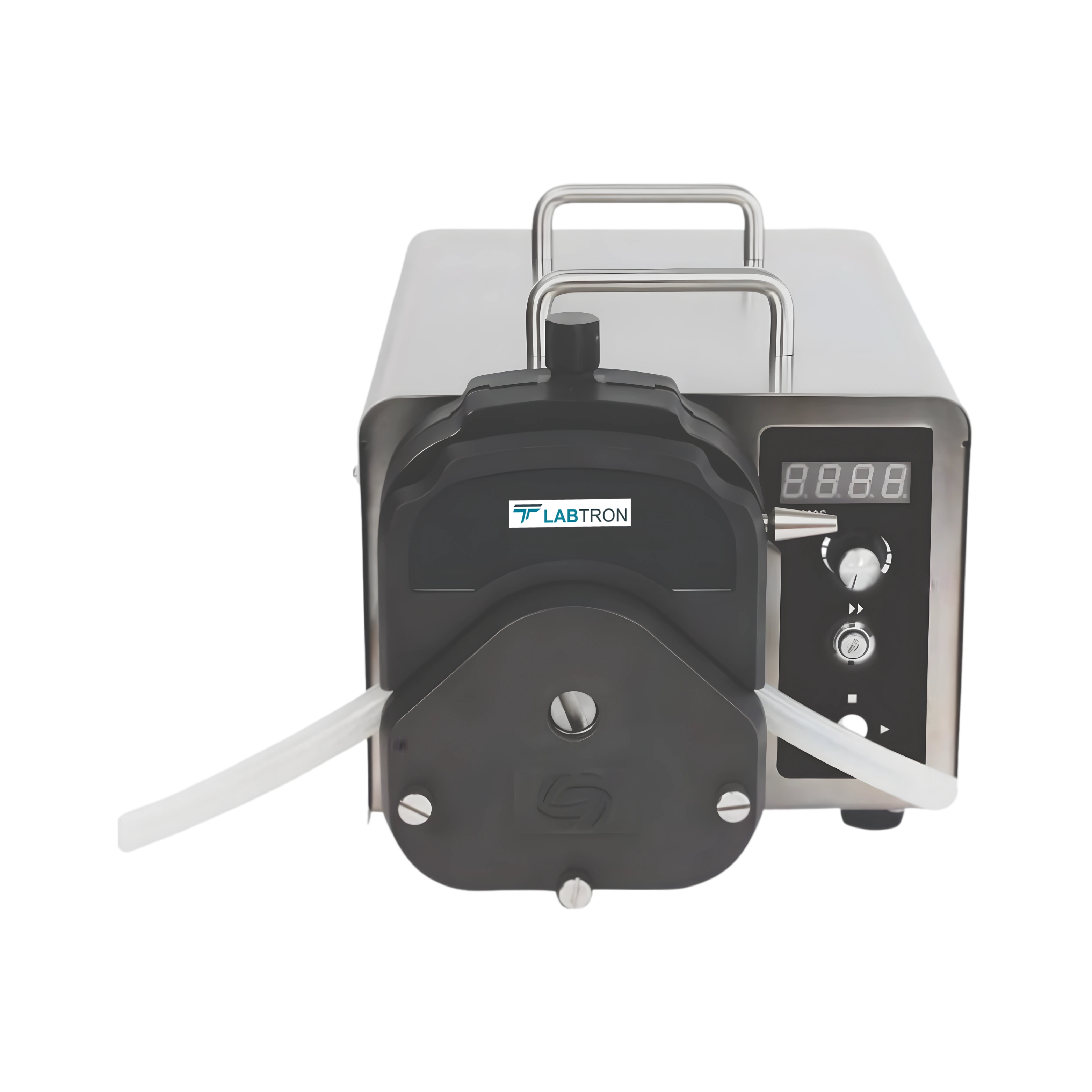

Variable Speed Peristaltic Pump LVSP-B13

Name: Variable Speed Peristaltic Pump LVSP-B13
Brand: Labtron
SKU: LVSP-B13
Rating: 4.8 (964 reviews)

The Variable Speed Peristaltic Pump LVSP-B13 offers a flow range of 0.005 to 6600 mL/min. It features a high-torque brushless servo motor for precise, stable speed control and accurate flow. It includes adjustable parameters for running time, interval time, and cycle count. The pump's stainless steel 304 shell ensures corrosion resistance and easy cleaning. Our Variable Speed Peristaltic Pump can connect to a thermal printer for parameter printing and auto-switch between voltage and current speed signals.

Request Quote

Flow Range	0.005 to 6600 mL/min
Speed Range	0.1 to 600 rpm
Speed Resolution	0.1rpm（speed ≤ 100rpm）,1rpm（speed > 100rpm）
Speed Accuracy	< ±0.5%
Temperature	0 to 40 °C
Relative Humidity	< 80 %
IP Grade	IP 31
External Control	External control analog 0 to 5V, 0 to 10V,4 to 20mA External control start and stop, External control input level 5V,12V,24V
Communication Interface	RS485, MODBUS protocol is available
Power Consumption	< 150 W
Power supply	AC 180 to 264V 50Hz/60Hz (Standard), AC 90 to 132V 50Hz/60Hz (Optional)
Dimension	318 × 185 × 230 mm
Weight	5.9 Kg

LCD-OS Software System
LCD
Power-down-Memory
Key Lock Function
Internal double-deck isolation structure
Supports output of working status signals

Variable Speed Peristaltic Pumps handle fluids in medical, lab, food, water, industrial, and cosmetic.

Model no.	Channel	Flow Rate (mL/min)	Tube
LVSP-B13 A	1	0.005 to 2562	13, 14, 19, 16, 25, 17, 18
LVSP-B13 B	2	0.005 to 2562	13, 14, 19 ,16, 25, 17, 18
LVSP-B13 C	4	0.005 to 2562	13, 14, 19, 16, 25, 17, 18
LVSP-B13 D	1	0.024 to 3000	114, 116, 15, 24, 35, 36
LVSP-B13 E	2	0.024 to 3000	114, 116, 15, 24, 35, 36
LVSP-B13 F	4	0.024 to 3000	114, 116, 15, 24, 35, 36
LVSP-B13 G	2	0.067 to 2240	19, 16, 25, 17
LVSP-B13 H	4	0.067 to 2240	19, 16, 25, 17
LVSP-B13 I	1	0.31 to 6600	15, 24, 35, 36
LVSP-B13 J	2	0.31 to 6600	15, 24, 35, 36
LVSP-B13 K	1	0.31 to 6600	15, 24, 35, 36

Download catalog for
Variable Speed Peristaltic Pump LVSP-B13 Catalog

Available Range :

Models of Variable Speed Peristaltic Pump

Labtron Variable Speed Peristaltic Pumps offer precision fluid control with adjustable speeds from 0.1 to 600 rpm. They are available in single and multi-channel configurations, ensuring steady, pulse-free flow. These pumps are portable and support bi-directional fluid movement. With advanced pump heads, they achieve high accuracy in fluid transfer rates. The corrosion-proof enclosure makes our Variable Speed Peristaltic Pumps durable for applications like dosing, metering, and sampling.
