Water-Jacketed Incubator LWJIR-B13

Water-Jacketed Incubator LWJIR-B13

Water Jacketed Incubator LWJIR-B13 has a 270L capacity, offering plenty of space for different samples and cultures. It maintains a temperature range from room temperature +5°C to 65°C, making it suitable for various incubation needs.  It uses water as the heating medium, which helps maintain a stable and uniform temperature inside the chamber for consistent incubation conditions. The built-in alarm system notifies users of any temperature changes or system faults, helping to keep operation safe and stable. This incubator is well-suited for scientific research tasks like growing cells, seedlings, and more.

Water-Jacketed Incubator LWJIR-B13 (Side view)

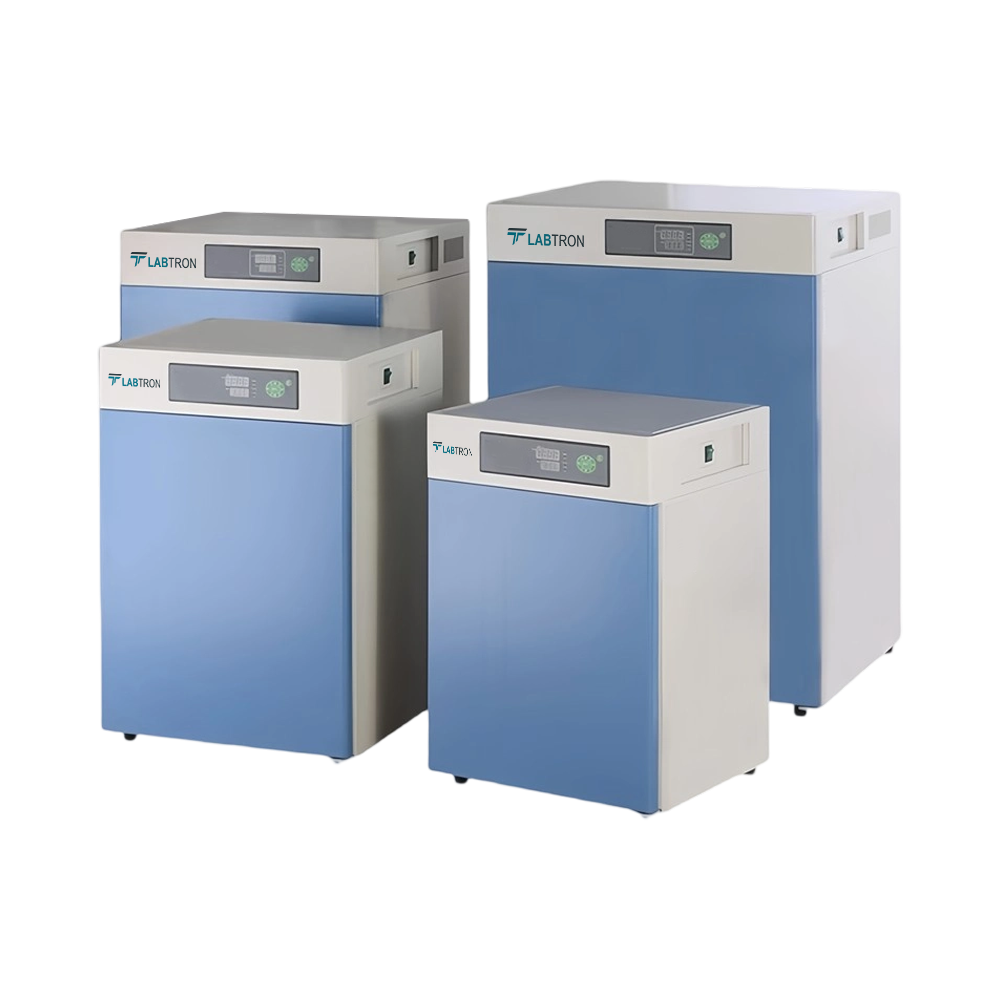

Water-Jacketed Incubator LWJIR-B13 ( Different view )
Water-Jacketed Incubator LWJIR-B13 ( Side view with open door )
Request Quote
Chamber Volume 270 L
Temperature Range RT 5 ℃ to 65 ℃
Ambient Temperature 5 ℃ to 35 ℃
Timing Range 1 to 9999 min
Display Resolution 0.1 ℃
Shelves 2
Heating Method Water Temperature
Power Consumption 1350 W
Power 220 V, 50 Hz
Interior Dimension 600 × 600 × 750 mm
Exterior Dimension 750 × 740 × 1050 mm
  • PID controller

  • User-friendly operation

  • Inner glass door

  • Durable

Water Jacketed Incubator LWJIR-B13 is used in scientific research for applications like cell cultivation, seedling growth, and more.

Accessories Name

Quantity

Intelligent programmable temperature controller

1

Printer

1

Independent temperature-limiting alarm system

1

RS485 connector

1

Models of Water Jacketed Incubator

Labtron Water Jacketed Incubator provide uniform temperature distribution within chamber by accommodating heated jacket. They feature triple-glazed door that minimizes thermal fluctuation for consistent performance. Their large viewing window offers unobstructed monitoring without compromising interior environment. They support consistent CO₂ control, ensuring ideal atmosphere for sensitive biological cultures. Our Water Jacketed Incubator commonly suitable in microbiology, cell biology, tissue engineering, and clinical laboratories.

Water-Jacketed Incubator LWJIR-A21

Water-Jacketed Incubator LWJIR-A21

  • Capacity : 80 L
  • Temperature Range : RT + 5℃ to 65℃
  • Temperature Accuracy : 0.1℃
  • Temperature Fluctuation : ± 0.5℃
Water-Jacketed Incubator LWJIR-B11

Water-Jacketed Incubator LWJIR-B11

  • Chamber Volume : 80 L
  • Temperature Range : RT 5 ℃ to 65 ℃
  • Ambient Temperature : 5 ℃ to 35 ℃
  • Timing Range : 1 to 9999 min
Water-Jacketed Incubator LWJIR-B12

Water-Jacketed Incubator LWJIR-B12

  • Chamber Volume : 160 L
  • Temperature Range : RT 5 ℃ to 65 ℃
  • Ambient Temperature : 5 ℃ to 35 ℃
  • Timing Range : 1 to 9999 min
Water Jacketed Incubator LWJIR-A13
Water Jacketed Incubator LWJIR-A13
  • Capacity : 270L
  • Temperature Range : RT+5 to 65°C
  • Temperature Resolution : 0.1℃
  • Constant Temperature Fluctuation : ±0.3℃
Water-Jacketed Incubator LWJIR-A20
Water-Jacketed Incubator LWJIR-A20
  • Capacity : 50 L
  • Temperature Range : RT + 5℃ to 65℃
  • Temperature Accuracy : 0.1℃
  • Temperature Fluctuation : ± 0.5℃
Water Jacketed Incubator LWJIR-A11

Water Jacketed Incubator LWJIR-A11

  • Capacity : 80L
  • Temperature Range : RT+5 to 65°C
  • Temperature Resolution : 0.1℃
  • Constant Temperature Fluctuation : ±0.3℃
Water Jacketed Incubator LWJIR-A12

Water Jacketed Incubator LWJIR-A12

  • Capacity : 160L
  • Temperature Range : RT+5 to 65°C
  • Temperature Resolution : 0.1℃
  • Constant Temperature Fluctuation : ±0.3℃
Water Jacketed Incubator LWJIR-A10

Water Jacketed Incubator LWJIR-A10

  • Capacity : 50L
  • Temperature Range : RT+5 to 65°C
  • Temperature Resolution : 0.1℃
  • Constant Temperature Fluctuation : ±0.3℃
Water-Jacketed Incubator LWJIR-B13 FAQ's
  • The Labtron Water Jacketed Incubator LWJIR-B13 offers a large 270-liter chamber, making it ideal for laboratories that need to incubate multiple or large-sized samples at the same time. The spacious interior allows researchers to carry out experiments involving cell cultivation, seedling growth, and microbial culturing without worrying about space constraints. This makes it suitable for high-volume research environments such as universities, research labs, and biotech facilities.

  • The LWJIR-B13 uses water as the heating medium, which surrounds the inner chamber and distributes heat evenly. This method helps to maintain a stable and uniform temperature inside the incubator, even if the ambient room temperature fluctuates. Uniform heating is especially important for sensitive samples like cells and plant tissues, where even small temperature changes can affect growth and results. This makes Labtron’s water jacketed incubator a reliable choice for maintaining precise incubation conditions.

  • Labtron’s LWJIR-B13 is equipped with several features to ensure safe and user-friendly operation. It comes with a built-in alarm system that alerts users to any temperature changes or system faults, helping prevent damage to samples. The PID controller ensures precise temperature control with minimal deviation. Additionally, it has a transparent inner glass door, allowing users to observe the samples without opening the main door, which helps to maintain internal temperature. These features make it safe, efficient, and convenient for daily use in laboratories.

  • To enhance its performance and usability, Labtron offers several optional accessories with the LWJIR-B13 model. These include an intelligent programmable temperature controller for setting advanced temperature cycles, a printer for recording temperature data, an independent temperature-limiting alarm system for extra safety, and an RS485 connector for data communication and remote monitoring. These accessories allow labs to customize the incubator to meet specific research needs.

  • The Labtron LWJIR-B13 is designed for a wide range of scientific research applications. It is particularly useful in studies involving animal and plant cell culture, microbial incubation, seedling growth, and other processes requiring a controlled temperature environment. Its large capacity, stable heating system, and reliable controls make it ideal for both educational and industrial research purposes. Whether you're working on plant biotechnology, pharmaceutical testing, or academic experiments, this incubator offers the consistency and space needed for effective results.
