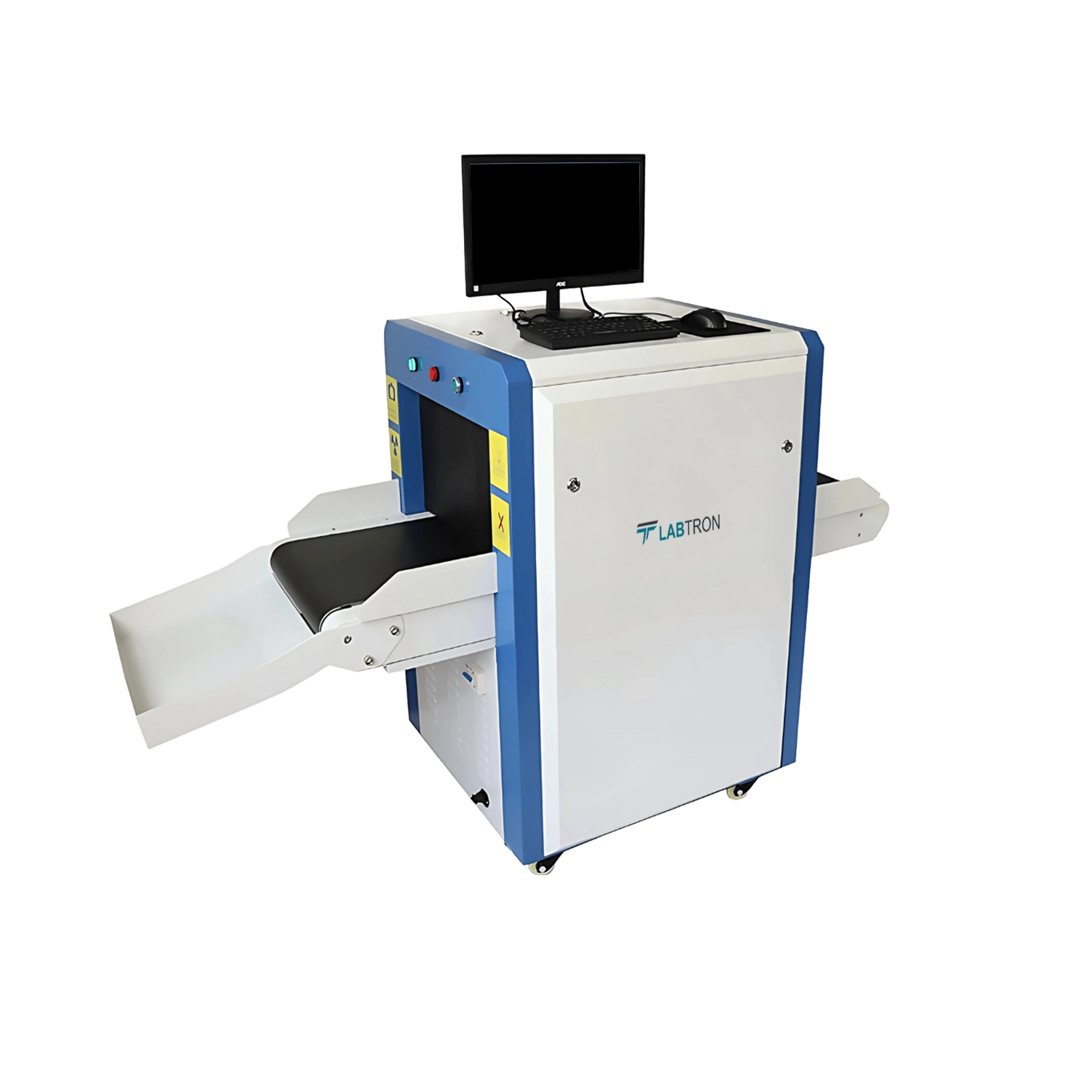

X-Ray Baggage Scanner LXBS-A10

Name: X-Ray Baggage Scanner LXBS-A10
Brand: Labtron
SKU: LXBS-A10
Rating: 4.8 (687 reviews)

X-Ray Baggage Scanner LXBS-A10 operates on LINUX, with a conveyor speed of 0.2 m/s and a maximum load capacity of 100 kg. It allows for manual deletion of dead pixels on the low-energy detection board and displays the removed pixels in the designated area. The ARM CPU offers efficient processing power for quick image analysis and system control, all while consuming minimal energy. Our X-Ray Baggage Scanner features a digital signal processor designed for continuous operation, exceeding 10,000 hours of reliable performance.

Request Quote

Conveyor Speed	0.2 m/s
Conveyor Max Load	100 kg
Operation System	LINUX
Wire Resolution	AWG40
Penetration Resolution	AWG32
Energy	Single
Spatial Resolution	Vertical: 1.0mm, Horizontal: 1.0mm
Penetration	8 mm
X-Ray Dosage Each Inspection	≤3.5µSv (uGy)
Boundary Leakage	≤0.5µSv /h (uGy/h)
S/N Ratio	< 60 dB
Film Safety	ASA/ISO1600 Film
Operation Temperature	5℃ to 40℃
Operation Humidity	0 to 90%
Storage Temperature	-20℃ to 60℃
Storage Humidity	10 to 90%
Atmospheric Pressure	86 kPa to 106 kPa AC
Generator	One
X-Ray Generator	80KV, oil cooling, from bottom to top
Electric Roller	Direct current
Computer	Hard drive: 500G, Storage: 1G
Image Storage	10,00 images stored automatically
Monitor	21.5" LED screen, 1280 × 1024 pixels
Operation Console	Single screen console
Power Consumption	0.5 KW
Leakage Current	≤ 5.0 mA
Power Supply	220V (±10%-15%), 50±3Hz
Tunnel Dimension	505 × 303 mm
Dimension	2178 × 746 × 1165 mm
Weight	260 kg

High penetration
Self-check
Energy saving Design
One key turn off
Good quality images
Alarm System

Power-on Self-Test

Image Processing

Color/BW, Negative, High/Low Penetration, Organic/Inorganic Stripping

General Enhancement and Pseudo Color

Image Recall

Real-Time Curve Monitoring

Time Setting

Probe Setting

Ray Source Setting

Troubleshooting

Image Settings

Software Registration

User Login

User Management

Authority Management

Language Settings

Log Management

TIP Report

Tip Management

Document Management

Function Setting

Data Setting

System Parameter Setting

X-Ray Baggage Scanner LXBS-A10 is suitable for checking briefcases, parcels, express mail, hand luggage, and small packages in various settings, including government agencies, transportation hubs, courts, prisons, schools, hospitals, and entertainment venues.

X-ray generator

Dedicated keyboard and mouse

Console with monitor

Extended table

Power cable

Electric drum

Control panel

Download catalog for
X-Ray Baggage Scanner LXBS-A10 Catalog

Available Range :

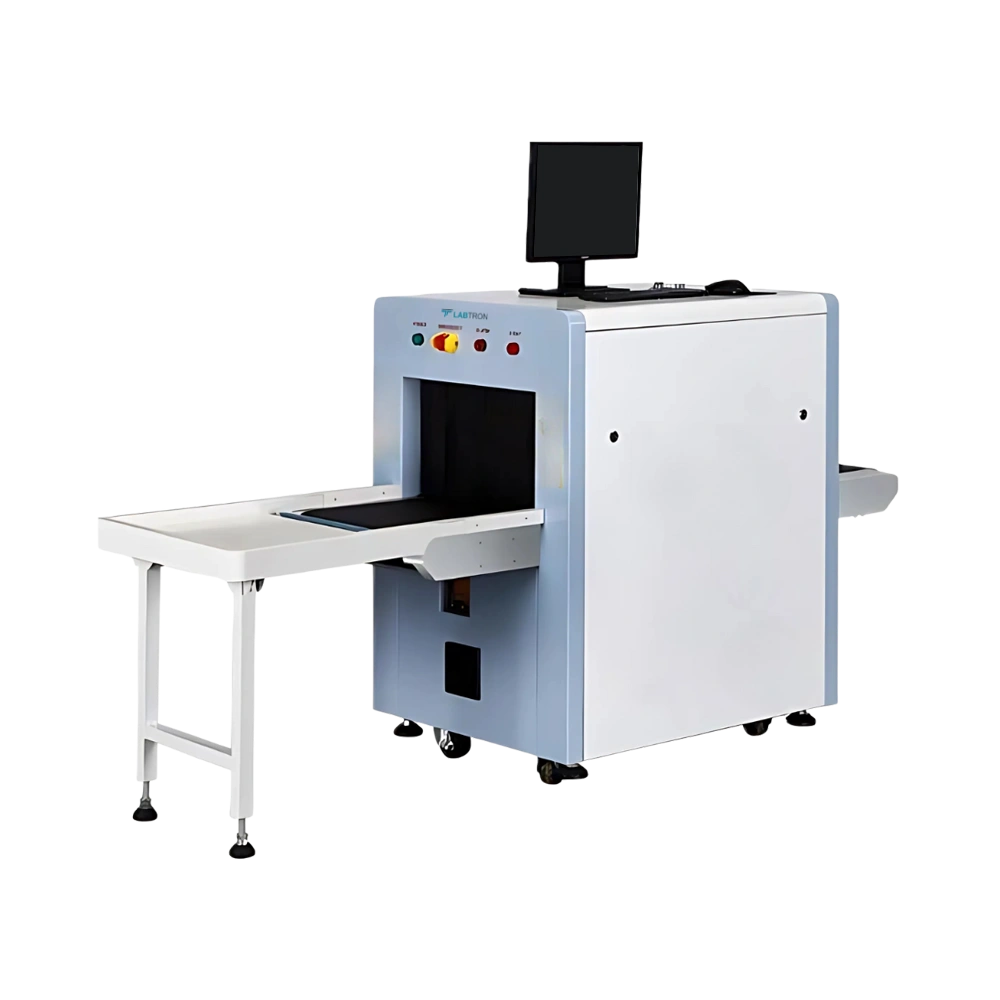

X-Ray Baggage Scanner LXBS-A10 : 0.2 m/s X-Ray Baggage Scanner LXBS-F10 : 0.22 m/s X-Ray Baggage Scanner LXBS-G10 : 0.22 m/s Bidirectional X-Ray Baggage Scanner LXBS-C10 : 0.22 m/s, bi-directional scanning X-Ray Baggage Scanner LXBS-G11 : 0.23 m/s Bidirectional X-Ray Baggage Scanner LXBS-H23 : 0.5 to 2.0 m/s X-Ray Baggage Scanner LXBS-D10 : 0.50 m/s

Models of X-Ray Baggage Scanner

Labtron X-Ray Baggage Scanners provide high-resolution imaging, enabling precise identification of items within luggage. Their dual-view technology scans from multiple angles, improving the detection of contraband, weapons, and explosives. Designed for busy environments, our x-ray baggage scanners offer high throughput. Their user-friendly touchscreens simplify operation, and compact designs allow for easy installation in smaller spaces. These scanners minimize radiation exposure, ensuring safety for both users and the public. With customizable settings for sensitivity and image quality, along with remote monitoring and real-time analysis, they enhance operational efficiency.
