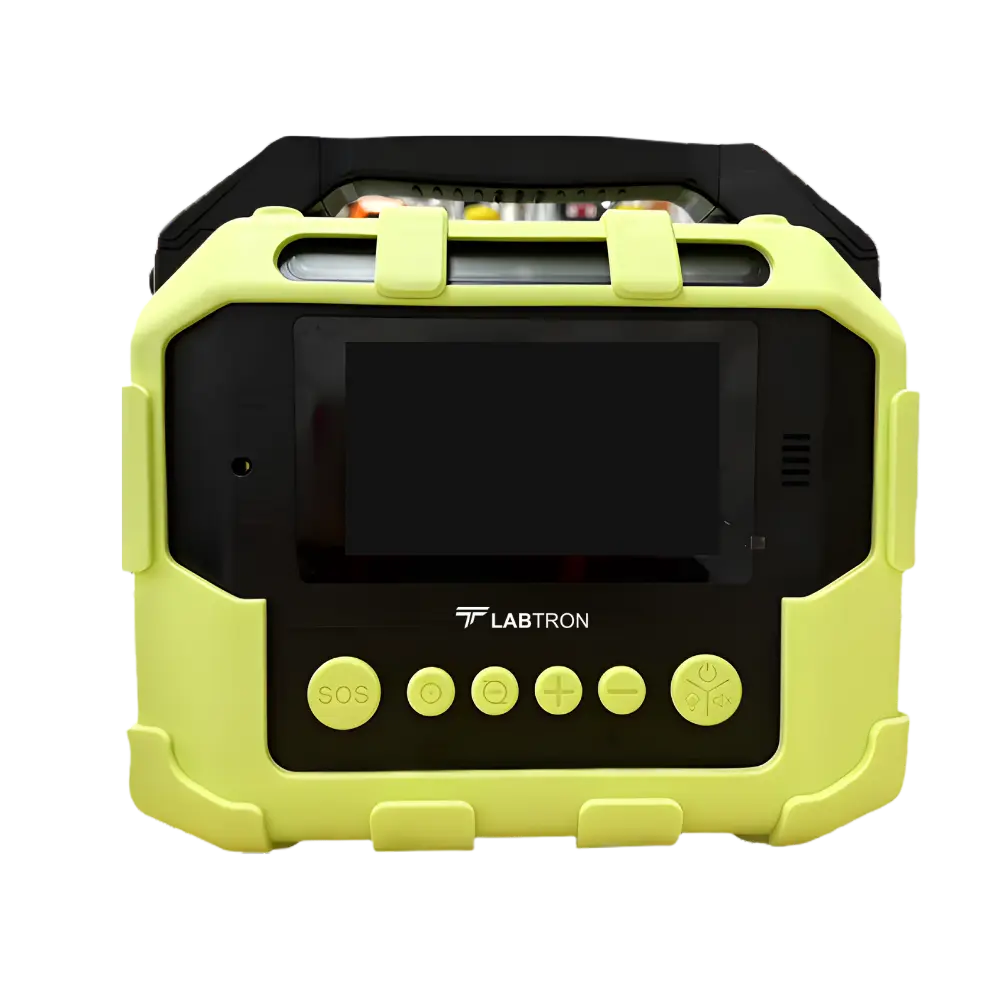

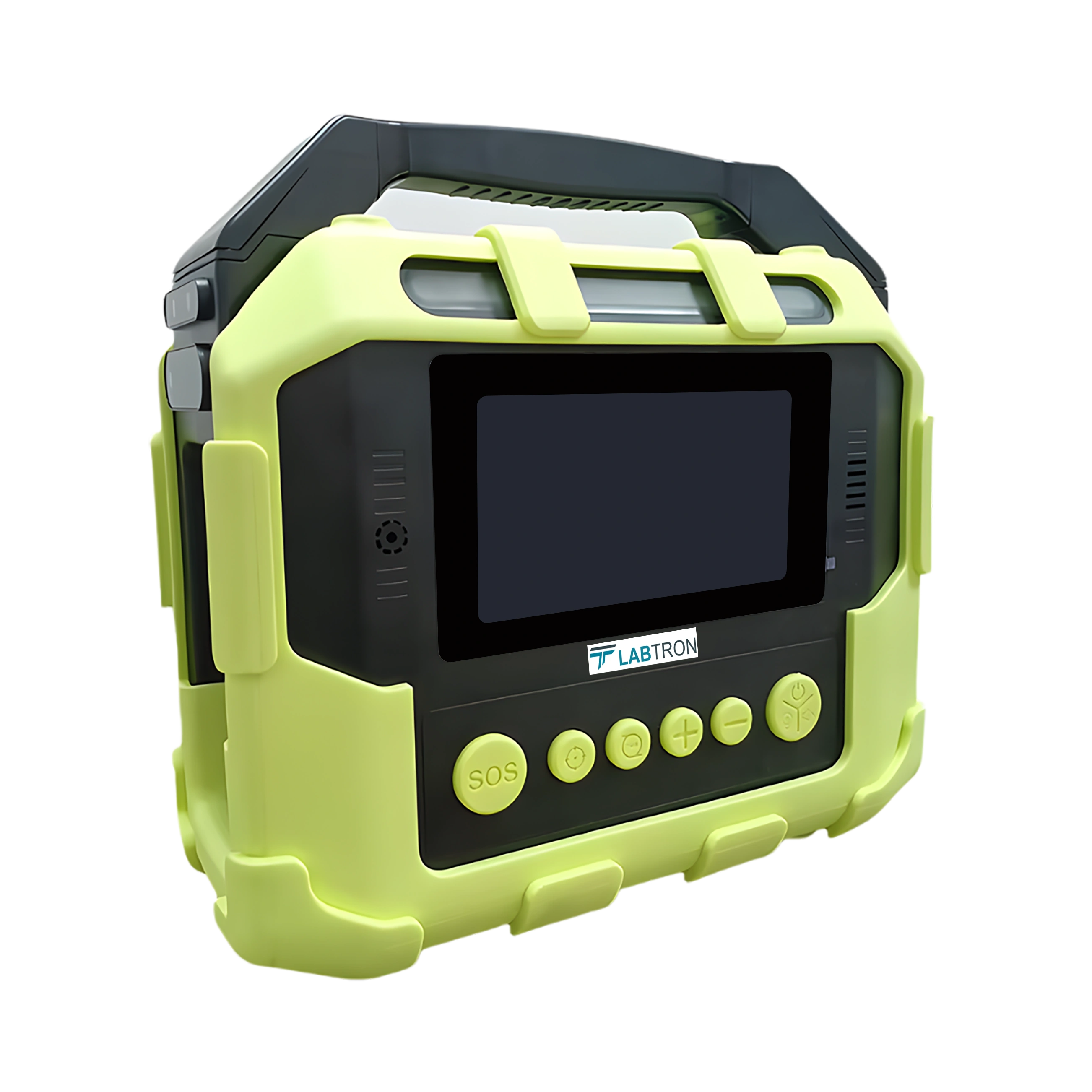

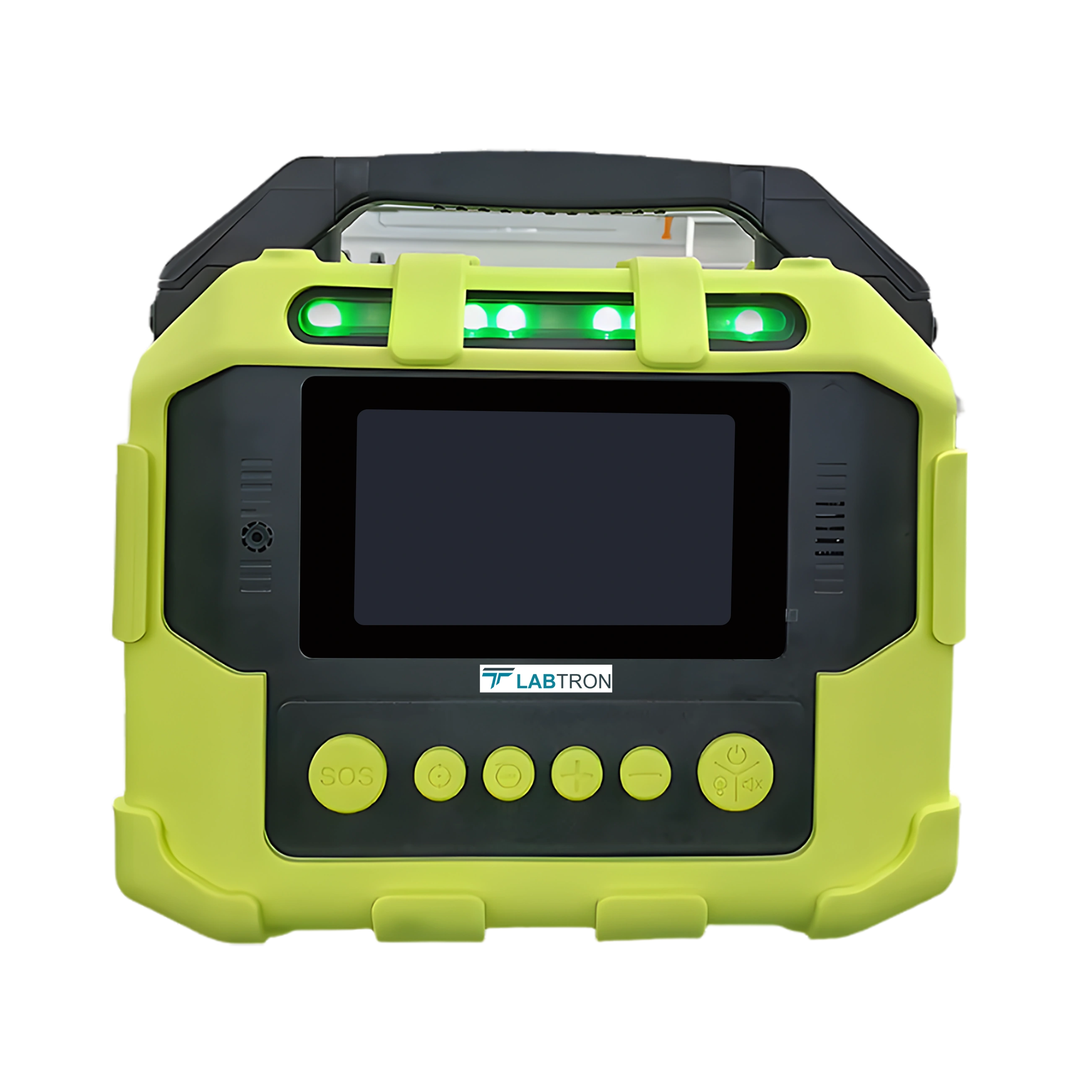

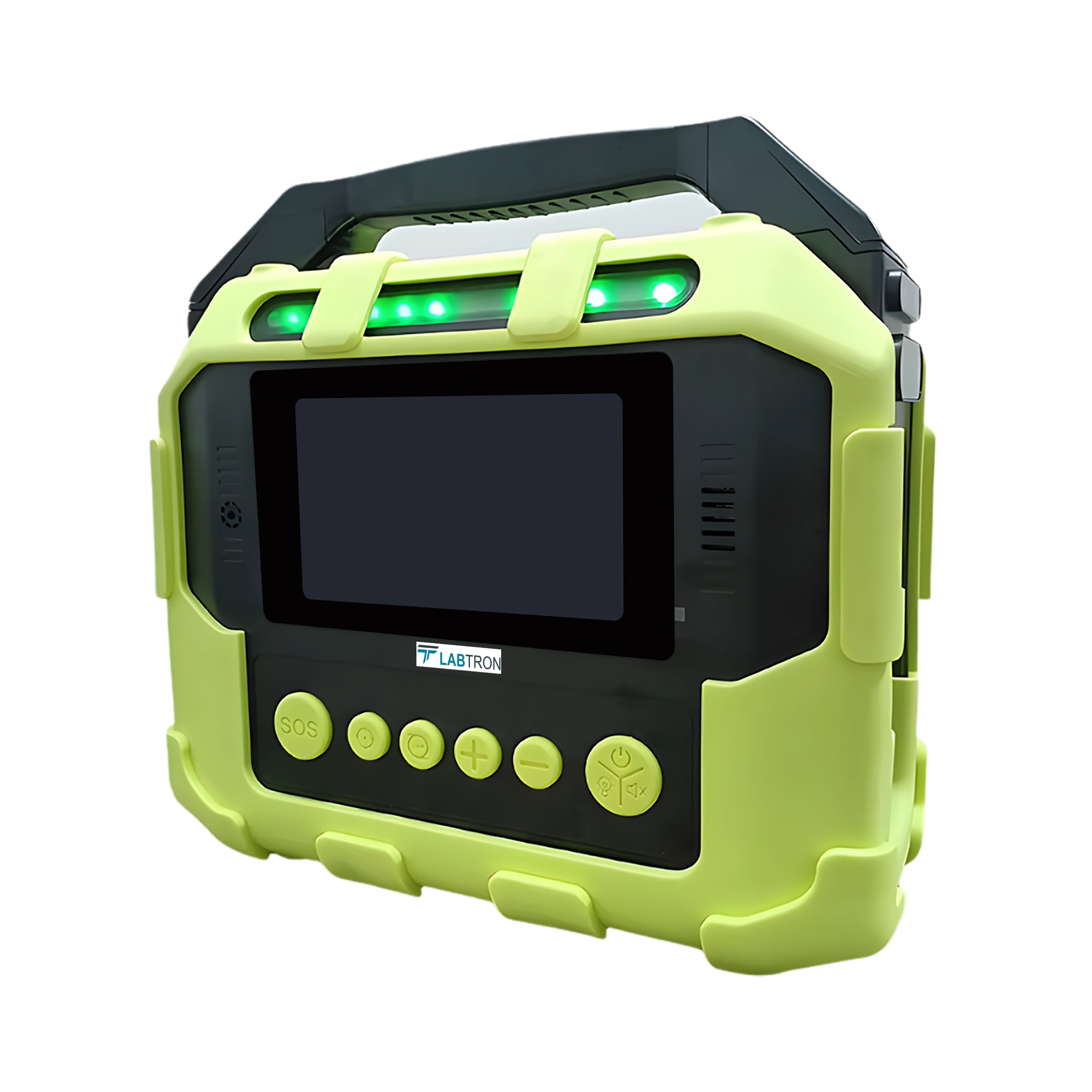

Air Quality Monitor LAQM-A11 operates from – 40° C to + 120° C to analyze air quality in variable environmental conditions. It provides a fast ≤ 20 s response time for accurate monitoring of CO, NO₂, SO₂, O₃, H₂S, NH₃, VOCs, and dust particles. Integrated Android system offers real-time data display and remote access for easy analysis. Built-in pump provides continuous sampling and consistent performance. Our Air Quality Monitor is ideal for environmental monitoring, industrial safety, and laboratory air analysis.
| Temperature Range | – 40°C to + 120°C |
| Humidity Range | 0 to 95 % RH |
| Accuracy | ≤ ± 2 % F.S |
| Response Time (T90) | ≤ 20 Seconds |
| Detection Method | Pump-Suction Sampling, Adjustable Flow |
| Detected Gases | CO, NO₂, SO₂, O₃, H₂S, NH₃, VOC |
| Particulate Detection | PM2.5 (0 to 1000 µg / m³), PM10 (0 to 1000 µg / m³) |
| Resolution | 1 ppb for gases |
| Display | 5-Inch Color Touch Screen |
| Operating System | Android |
| Data Storage | 128GB Internal, Expandable |
| Communication Interfaces | Type-C, Wi-Fi, Bluetooth |
| Optional Communication | LoRa, MESH, 4G, NB-IoT |
| Alarm Modes | Sound, Light, Vibration |
| Standard Functions | GPS, SOS alarm, LED light, Fall Detection |
| Optional Functions | Photo capture, video recording, Beidou GPS |
| Protection Level | IP66 |
| Explosion Protection | Ex ia II CT4 Ga / Ex ib I Mb |
| Battery | 30Ah Rechargeable Lithium Battery |
| Power Supply | DC 3 to 5V |
| Working Environment | – 40°C to + 55°C, ≤ 95% RH |
| Unit Dimensions | 340 × 330 × 150 mm |
| Dimensions | 510 × 690 × 290 mm |
| Gross Weight | 19 kg |
Modular Sensor Design
Wireless Data Transmission
High Storage Capacity
Rugged IP66 Protection
GPS Tracking Support
Accessory Name | Quantity |
Tripod for gas detector | 1 |
Labtron Air Quality Monitors provide quick and efficient detection of various gases, temperature, humidity, and other parameters. These can detect a wide range of pollutants including fine particulate matter, larger particulate matter, volatile organic compounds, carbon dioxide, and more. They ensure complete monitoring of indoor and outdoor air quality. They store past air quality readings for trend analysis and comparison. Our Air Quality Monitor offers a battery-powered option for flexible and portable usage.
Air quality monitor is an important tool for improving air quality, protecting public health, and ensuring compliance with regulations. It can also be used to monitor climate change or support research and development.
Our air quality monitor can detect particulate matter (PM 2.5, PM 10), carbon monoxide, ozone, nitrogen dioxide, sulphur dioxide, volatile organic compounds.
Place the air quality monitor in an area with good airflow and don’t obstruct the air intake vent. For optimal sensor readings, keep your device away from direct sunlight and in open space that’s less than 500 square feet. Avoid placing your device near air vents, such as an AC or heater vent.
Our air quality monitor is ideally suited for use in homes, offices, industrial settings, and outdoor monitoring.
Air quality monitor is a device that measures the level of common air pollutants including both tiny and large particulate matter. They provide quick and efficient detection of various gases, temperature, humidity, and other parameters. Our air quality monitor ensure complete monitoring of indoor and outdoor air quality.
