| Throughput | 200 tests/hour |
| Sample Volume | 2 to 70 µl |
| Reagent Volume | 20 to 350 µl |
| Sample Positions | 37 sample positions |
| Reagent Positions | 28 reagent positions |
| Absorbance | 0~3.0 Abs |
| Humidity | 30 to 80% |
| Washing | Automatic cuvettes washing |
| Probe Washing | Automatic washing interior and exterior |
| Reagent Cooling | Refrigerated tray with independent switch |
| Cuvettes | 48 reusable cuvettes, optical length 6mm |
| Mixed Probe | Independent stirring |
| Stat Function | Yes |
| Light Source | 6V/10W halogen lamp |
| Spectrophotometry | Post-spectral spectrophotometry |
| Calibration | Linear: K factor, 1-point, 2-point and multipoint linearNon-Linear: Spline, Polygon, Index, Logarithm, Logit-4P,Logit-5 |
| Quality Control | Real-time QC, Westward multi rule, Cumulative sum check, Twin Plot(2D) |
| Software | Windows 7/8/10, 32 or 64bit |
| LIS System | Bi-direction, support HL7 protocol |
| Interface | LAN port access |
| Printer | External, multiple reporting mode available |
| Temperature | 10 to 30°C |
| Temperature Control | 37±0.1°C, real time monitor |
| Water Consumption | Deionized water: 5 L/H |
| Power Supply | AC220V±10%, 60/50Hz,, 110V±10%, 60Hz, 300W |
| External Dimension (W×D×H) | 625×425×460 mm |
| Package Dimension (W×D×H) | 721×531×855 mm |
| Net Weight | 36 kg |
| Gross Weight | 55 kg |
This device is used in many Biology and Histopathology Laboratories to extract the serum, plasma, urine or any other body fluid, Research institutes etc.
| Name | Quantity |
| Sample Cup | 1 set 500 each |
| Cuvette (With fixed button) | 1 piece |
| 25L Bucket and Float Switch | 2 pieces |
| USB Cable | 1 piece |
| Power Cord | 1 piece |
| Operation Software (CD-ROM) | 1 piece |
| Funnel | 1 piece |
| 0.3mm, 0.5mm Needle | 2 pieces |
| Halogen Lamp | 1 piece |
| Simple Tools | 1 set |
| Water Filters | 1 piece |
| Yellow-Green Ground Cable 10m | 1 piece |
| Refrigeration Liquid | 1 piece |
| Sticking Membrane | 1 piece |
| Inlet Pipes | 1 piece |
| Exhaust Pipes Polyester Fiber Pipe, 10mm ×16mm, 2m | 1 piece |
| Exhaust Pipes Polyester Fiber Pipe, 8mm ×14mm, 2m | 1 piece |
| Wiping Cloth | 2 pieces |
| Adapter | 30 pieces |
| 50ml Reagent Bottle | 30 pieces |
| 20ml Reagent Bottle | 30 pieces |
| The Caps | 60 pieces |
| Fuse | 2 pieces |
| Reagents | Quantity |
| Blood Lipid Items | |
| Total Cholesterol | 160ml |
| Triglyceride | 160ml |
| High-density lipoprotein cholesterol | 128ml |
| Low-density Lipoprotein Cholesterol | 128ml |
| Apolipoprotein A1 | 128ml |
| Apolipoprotein B | 128ml |
| Lipoprotein a | 120ml |
| Homocysteine | 106ml |
| Phospholipid | 120ml |
| Apolipoprotein E | 128ml |
| Non-esterified Fatty Acid | 120ml |
| Liver Function Items | |
| Alkaline Phosphatase | 120ml |
| γ-Glutamoyl Transferase | 128ml |
| Aspartate Aminotransferase | 120ml |
| Alanine Aminotransferase | 120ml |
| Total Protein | 160ml |
| Albumin | 160ml |
| Total Bilirubin 1 | 120ml |
| Direct Bilirubin 1 | 120ml |
| Cholinesterase | 120ml |
| Total Bile Acid | 128ml |
| Adenosine Deaminase | 150ml |
| 5′-Nucleotidase | 150ml |
| Monoamine Oxidase | 160ml |
| Ammonia | 70ml |
| Leucine Aminopeptidase | 160ml |
| Total Bilirubin 2 | 120ml |
| Direct Bilirubin 2 | 120ml |
| Alcohol | 120ml |
| Glutamate Dehydrogenase | 120ml |
| Glygyl Proline Dipetidyl aminopeptidase | 128ml |
| Mitochondrial Aspartate aminotransferase | 140ml |
| Glycocholic Acid | 120ml |
| Glutathione Reductase | 108ml |
| Myocardium Zymogram Items | |
| Lactate Dehydrogenase | 120ml |
| α-Hydroxybutyrate Dehydrogenase | 120ml |
| Creatine Kinase | 120ml |
| Creatine Kinase-MB | 120ml |
| Myohemoglobin | 128ml |
| Angiotensin Converting Enzyme | 160ml |
| Lacate Dehydrogenase Isozyme 1 | 120ml |
| TroponinI | 128ml |
| Ischemia Modified Albumin | 150ml |
| Heart-type Fatty Acid-Binding Protein | 80ml |
| Myeloperoxidase | 128ml |
| Kidney Function Items | |
| Urea | 128ml |
| Uric Acid | 120ml |
| Creatinine | 128ml |
| Microalbuminuria | 120ml |
| Cystatin C | 128ml |
| β2-Microprotein | 128ml |
| N-Acetyl-β-D-Glucosaminidase | 128ml |
| Urinary Total Protein | 160ml |
| α1-microglobulin | 120ml |
| Retinol-binding Protein | 128ml |
| Glycometabolism Items | |
| Glucose 1 | 160ml |
| Glucose 2 | 120ml |
| Glycosylated Serum Proteins | 160ml |
| Glycosylated Hemoglobin | 50.5ml |
| D3 Hydroxybutyrate | 128ml |
| Lactic Acid | 128ml |
| Glycohemoglobin A1c | 40ml |
| Glycated albumin | 216ml |
| Pancreas Items | |
| α-Amylase | 68ml |
| Lipase | 120ml |
| Pepsinogen Items | |
| Pepsinogen I | 120ml |
| Pepsinogen II | 120ml |
| Blood Gas Electrolyte Items | |
| Chlorine | 160ml |
| Calcium | 160ml |
| Inorganic Phosphorous | 160ml |
| Magnesium | 160ml |
| Carbondioxide | 160ml |
| Sodium | 128ml |
| Potassium | 128ml |
| Copper | 128ml |
| Iron | 120ml |
| Znic | 120ml |
| Inflammation Items | |
| Rheumatoid Factor | 120ml |
| Anti-Streptolysin O | 120ml |
| C Reactive Protein 1 | 80ml |
| C Reactive Protein 2 | 128ml |
| Procalcitonin | 120ml |
| Anti cyclic Citrullinated Peptide Antibody | 128ml |
| Serum Amyloid A Protein | 128ml |
| Full Range C-reactive Protein | 120ml |
| Special Protein Items | |
| Prealbumin | 128ml |
| Transferrin | 128ml |
| Complement C3 | 120ml |
| Complement C4 | 120ml |
| Immunoglobulin IgA | 120ml |
| Immune Globulin G | 120ml |
| Immunoglobulin IgM | 120ml |
| Ferritin | 120ml |
| Unsaturated Iron Binding Capacity | 120ml |
| Immunoglobulin E | 120ml |
| Sialic Acid | 128ml |
| Haptoglobin | 120ml |
| Superoxide Dismutase | 128ml |
| Hemagglutination inspection item | |
| D-Dimer | 128ml |
| Fibrinogen | 128ml |
| Fibronectin | 160ml |
Download catalog for
Auto Chemistry Analyzer LACA-A20 Catalog
Download manual for
Auto Chemistry Analyzer LACA-A20 Manual

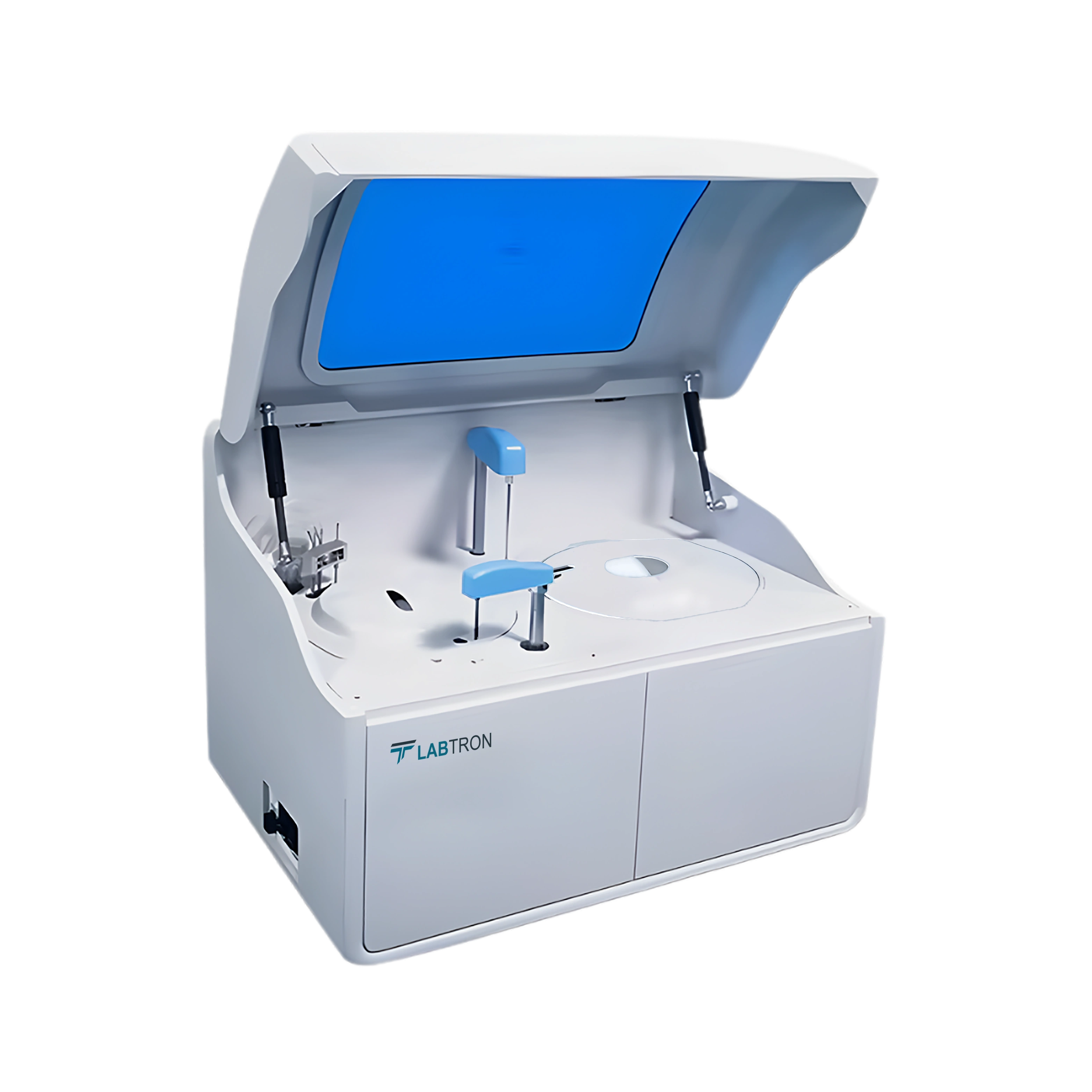

Labtron Auto Chemistry Analyzers is specialized to perform a series of chemical tests with accommodating a sample capacity range of 2µL to 70 µL. They feature touchscreen interfaces that allow users to navigate settings with ease and efficiency. Their advanced optics ensure accurate absorbance readings for reliable test results. They include data management systems for seamless integration with laboratory information systems. Our Auto Chemistry Analyzer provides rapid analysis of blood chemistry for accurate diagnosis and treatment in hospitals and pharmaceuticals.





The Auto Chemistry Analyzer LACA-A20 is designed as an open system, allowing the use of reagents from multiple suppliers instead of being restricted to proprietary options. This flexibility reduces operational costs and ensures easy reagent availability. It supports a wide range of biochemical tests, making it suitable for diverse laboratory needs. The open system design enhances adaptability, helping laboratories maintain smooth operations during supply shortages. It also allows customization of test parameters, increasing efficiency and accuracy. Users can choose preferred reagent brands without compromising performance. The analyzer’s open system feature makes it an ideal choice for small to large laboratories.
Our Auto Chemistry Analyzer LACA-A20 delivers high-speed analysis with reliable accuracy. It is designed to process multiple samples efficiently, making it suitable for high-volume testing environments. The system automates sample handling to minimize manual work. Its advanced software ensures smooth workflow and consistent results. The throughput helps laboratories save time during busy operations. Faster test cycles improve overall lab productivity. This makes the Auto Chemistry Analyzer an excellent choice for both routine and emergency testing needs.
It supports a wide variety of biochemical and clinical chemistry tests. Auto Chemistry Analyzer LACA-A20 can analyze serum, plasma, urine, cerebrospinal fluid, and other biological samples. The open system design allows customization of test parameters for different assays. It is widely used for liver, kidney, lipid, and electrolyte profiles. This versatility makes it suitable for hospitals, diagnostic centers, and research labs. The analyzer offers precision and consistency across various test categories. It ensures flexibility for laboratories with diverse testing needs.
Labtron’s Auto Chemistry Analyzer LACA-A20 is designed with an intuitive touchscreen interface for easy navigation. Its automated functions reduce the need for extensive operator training. Step-by-step prompts guide users through sample loading and result interpretation. The software is simple to use, even in high-pressure testing environments. Maintenance reminders ensure smooth operations without frequent breakdowns. Built-in features minimize human error and improve workflow efficiency. Overall, it’s a highly user-friendly system that enhances productivity in any lab setting.
Our Auto Chemistry Analyzer LACA-A20 uses advanced optical systems and precise pipetting to deliver accurate results. It is equipped with automated calibration and quality control functions. These features ensure every test run maintains consistent standards. Built-in alarms notify users of potential errors in real time. The analyzer’s high sensitivity reduces the chances of false readings. Its robust design ensures long-term reliability under continuous use. Laboratories can depend on their performance for accurate diagnostic decisions.
The Auto Chemistry Analyzer LACA-A20 is designed to work efficiently with minimal sample and reagent volumes. It typically requires 20–350 µL of reagent per test, reducing operational costs. Low-volume testing helps conserve precious samples, especially in critical cases. The flexible sample volume requirement makes it ideal for pediatric and specialized testing. Automated reagent handling ensures precision and consistency. The system’s design supports cost-effective and sustainable laboratory operations. This feature makes the Auto Chemistry Analyzer suitable for labs of all sizes.
