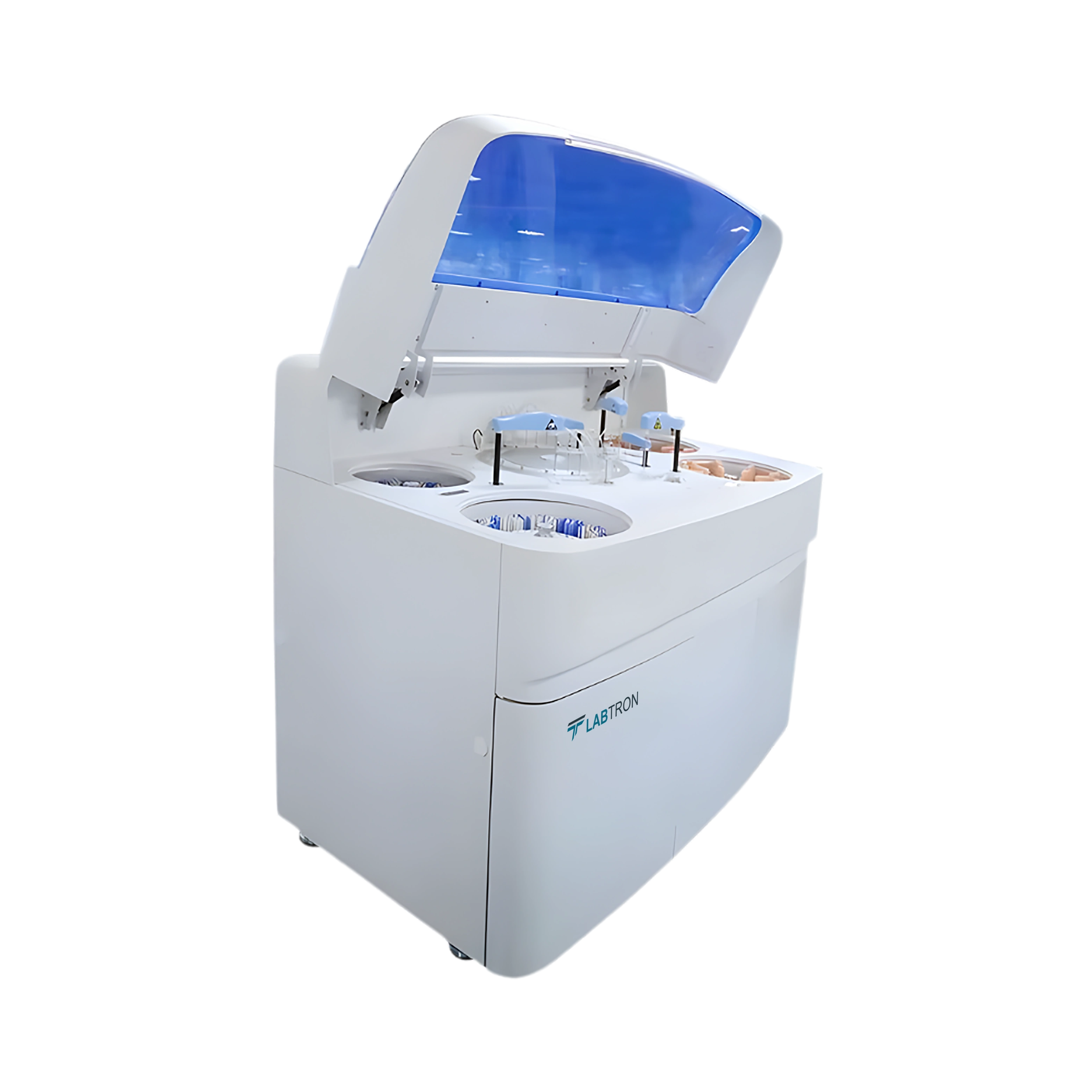

Auto Chemistry Analyzer LACA-A30

Auto Chemistry Analyzer LACA-A30

Auto Chemistry Analyzer LACA-A30 is a benchtop, fully automated chemistry analyzer with a throughput of 1200 tests per hour. It is designed to suit the needs of a diverse variety of clients, with a versatile analyzer that allows for the quick addition of new techniques. It is possible to programme and save an almost infinite number of protocols, which are organized on a user-defined panel. The user-friendly interface ensures that the basis for analytical brilliance lasts a long time. This system consists of reagents, controllers, and calibrators, and its execution is random access with the option of batch mode.

Request Quote
Throughput 800 tests/hour, 1200 tests/hour with ISE
Sample Volume 2 to 70 µl
Reagent Volume 20 to 350 µl
Sample Positions 150 sample positions
Reagent Positions 180 refrigerated reagent positions
Wavelength 340 to 800 nm
Absorbance -0.3~3.3 Abs
Humidity 30 to 80%
Analysis Method End-point, Fixed-time, Rate(Kinetic),
Washing Automatic cuvettes washing
Probe Washing Automatic washing interior and exterior
Probe Teflon coating with anti-collision and Liquid level detection function
Reagent Cooling Refrigerated tray with independent switch
Cuvettes 160 reusable cuvettes, optical length 6mm
Mixed Probe Independent stirring
Stat Function Yes
Light Source 12V/20W halogen lamp/fiber brag
Spectrophotometry Post-spectral spectrophotometry
Calibration Linear: K factor, 1-point, 2-point and multipoint linear Non-Linear: Spline, Polygon, Index, Logarithm, Logit-4P,Logit-5
Quality Control Real-time QC, Westward multi rule, Cumulative sum check, Twin Plot(2D)
Software Windows 7/8/10, 32 or 64bit
LIS System Bi-direction, support HL7 protocol
Interface LAN port access
Printer External, multiple reporting mode available
Temperature 10 to 30°C
Temperature Control 37±0.1°C, real time monitor
Water Consumption Deionized water: 20L/H
Power Supply AC220V±10%, 60/50Hz,, 110V±10%, 60Hz, 1500 W
External Dimension (W×D×H) 1360×791×1157 mm
Package Dimension (W×D×H) 1348×928×1399 mm
Net Weight 286 kg
Gross Weight 390 kg
  • Programmable automatic stand-by and wake-up functionalities
  • Intelligent software
  • High quality components
  • Uninterrupted workflow
  • Inventory management
  • Cost effective operation
  • Crash and collision detection
  • Robust testing capabilities
  • Efficient reagent and consumable use
  • Simplify operations with user friendly graphical user interface design and touch-screen monitor
  • Built-in barcode scanner
  • Refrigerated tray with independent switch

This device is used in many Biology and Histopathology Laboratories to extract the serum, plasma, urine or any other body fluid, Research institutes etc.

Compare Models

Model Throughput Sample Volume Reagent Volume Sample Positions Reagent Positions Wavelength Absorbance Humidity Analysis Method Washing Probe Washing Probe Reagent Cooling Cuvettes Mixed Probe Stat Function Light Source Spectrophotometry Calibration Quality Control Software LIS System Interface Printer Temperature Temperature Control Water Consumption Power Supply External Dimension (W×D×H) Package Dimension (W×D×H) Net Weight Gross Weight
LACA-A10 400 tests/hour 2 to 70 µl 20 to 350 µl 60/90 sample positions 45 reagent positions 340,405,450,510,546,578,630,700nm 0~3.0 Abs 30 to 80% - Automatic cuvettes washing Automatic washing interior and exterior - Refrigerated tray with independent switch 120 reusable cuvettes, optical length 6mm Independent stirring Yes 12V/30W halogen lamp Post-spectral spectrophotometry Linear: K factor, 1-point, 2-point and multipoint linear Non-Linear: Spline, Polygon, Index, Logarithm, Logit-4P,Logit-5 Real-time QC, Westward multi rule, Cumulative sum check, Twin Plot(2D) Windows 7/8/10, 32 or 64bit Bi-direction, support HL7 protocol LAN port access External, multiple reporting mode available 10 to 30°C 37±0.1°C, real time monitor Deionized water: 12L/H AC220V±10%, 60/50Hz,, 110V±10%, 60Hz, 300W 1167×780×1016 mm 1348×928×1399 mm 193 kg 267 kg
LACA-A11 600 tests/hour 2 to 70 µl 20 to 350 µl 90 sample positions 180 refrigerated reagent positions 340,405,450,510,546,578,630,700nm 0~3.0 Abs 30 to 80% - Automatic cuvettes washing Automatic washing interior and exterior - Refrigerated tray with independent switch 120 reusable cuvettes, optical length 6mm Independent stirring Yes 12V/30W halogen lamp Post-spectral spectrophotometry Linear: K factor, 1-point, 2-point and multipoint linear Non-Linear: Spline, Polygon, Index, Logarithm, Logit-4P,Logit-5 Real-time QC, Westward multi rule, Cumulative sum check, Twin Plot(2D) Windows 7/8/10, 32 or 64bit Bi-direction, support HL7 protocol LAN port access External, multiple reporting mode available 10 to 30°C 37±0.1°C, real time monitor Deionized water: 15L/H AC220V±10%, 60/50Hz,, 110V±10%, 60Hz, 300W 1167×780×1016 mm 1348×928×1399 mm 216 kg 290 kg
LACA-A20 200 tests/hour 2 to 70 µl 20 to 350 µl 37 sample positions 28 reagent positions - 0~3.0 Abs 30 to 80% - Automatic cuvettes washing Automatic washing interior and exterior - Refrigerated tray with independent switch 48 reusable cuvettes, optical length 6mm Independent stirring Yes 6V/10W halogen lamp Post-spectral spectrophotometry Linear: K factor, 1-point, 2-point and multipoint linear Non-Linear: Spline, Polygon, Index, Logarithm, Logit-4P,Logit-5 Real-time QC, Westward multi rule, Cumulative sum check, Twin Plot(2D) Windows 7/8/10, 32 or 64bit Bi-direction, support HL7 protocol LAN port access External, multiple reporting mode available 10 to 30°C 37±0.1°C, real time monitor Deionized water: 5 L/H AC220V±10%, 60/50Hz,, 110V±10%, 60Hz, 300W 625×425×460 mm 721×531×855 mm 36 kg 55 kg
LACA-A21 200 tests/hour 2-70 µl 20-350 µl 49 sample positions 56 reagent positions 340,405,450,510,546,578,630,700nm 0~3.0 Abs 30-80% - Automatic cuvettes washing Automatic washing interior and exterior - Refrigerated tray with independent switch 120 reusable cuvettes, optical length 6mm Independent stirring Yes 12V/30W halogen lamp Post-spectral spectrophotometry Linear: K factor, 1-point, 2-point and multipoint linear Non-Linear: Spline, Polygon, Index, Logarithm, Logit-4P,Logit-5 Real-time QC, Westward multi rule, Cumulative sum check, Twin Plot(2D) Windows 7/8/10 LIS system available Bi-direction, support HL7 protocol LAN port access External, multiple reporting mode available 10 - 30°C 37±0.1°C, real time monitor Deionized water: 5 L/H AC220V±10%, 60/50Hz,, 110V±10%, 60Hz, 300W 950x612x510 mm 1118x728x1151 mm 75 kg 130 kg
LACA-A30 800 tests/hour, 1200 tests/hour with ISE 2 to 70 µl 20 to 350 µl 150 sample positions 180 refrigerated reagent positions 340 to 800 nm -0.3~3.3 Abs 30 to 80% End-point, Fixed-time, Rate(Kinetic), Automatic cuvettes washing Automatic washing interior and exterior Teflon coating with anti-collision and Liquid level detection function Refrigerated tray with independent switch 160 reusable cuvettes, optical length 6mm Independent stirring Yes 12V/20W halogen lamp/fiber brag Post-spectral spectrophotometry Linear: K factor, 1-point, 2-point and multipoint linear Non-Linear: Spline, Polygon, Index, Logarithm, Logit-4P,Logit-5 Real-time QC, Westward multi rule, Cumulative sum check, Twin Plot(2D) Windows 7/8/10, 32 or 64bit Bi-direction, support HL7 protocol LAN port access External, multiple reporting mode available 10 to 30°C 37±0.1°C, real time monitor Deionized water: 20L/H AC220V±10%, 60/50Hz,, 110V±10%, 60Hz, 1500 W 1360×791×1157 mm 1348×928×1399 mm 286 kg 390 kg
LACA-A40 120 tests/hr - - - - 340, 405, 450, 510, 546, 578, 630,700 nm - - - - - - - - - - - - - - - - RS-232 Internal thermal sensitive printer - - - - - - - -
