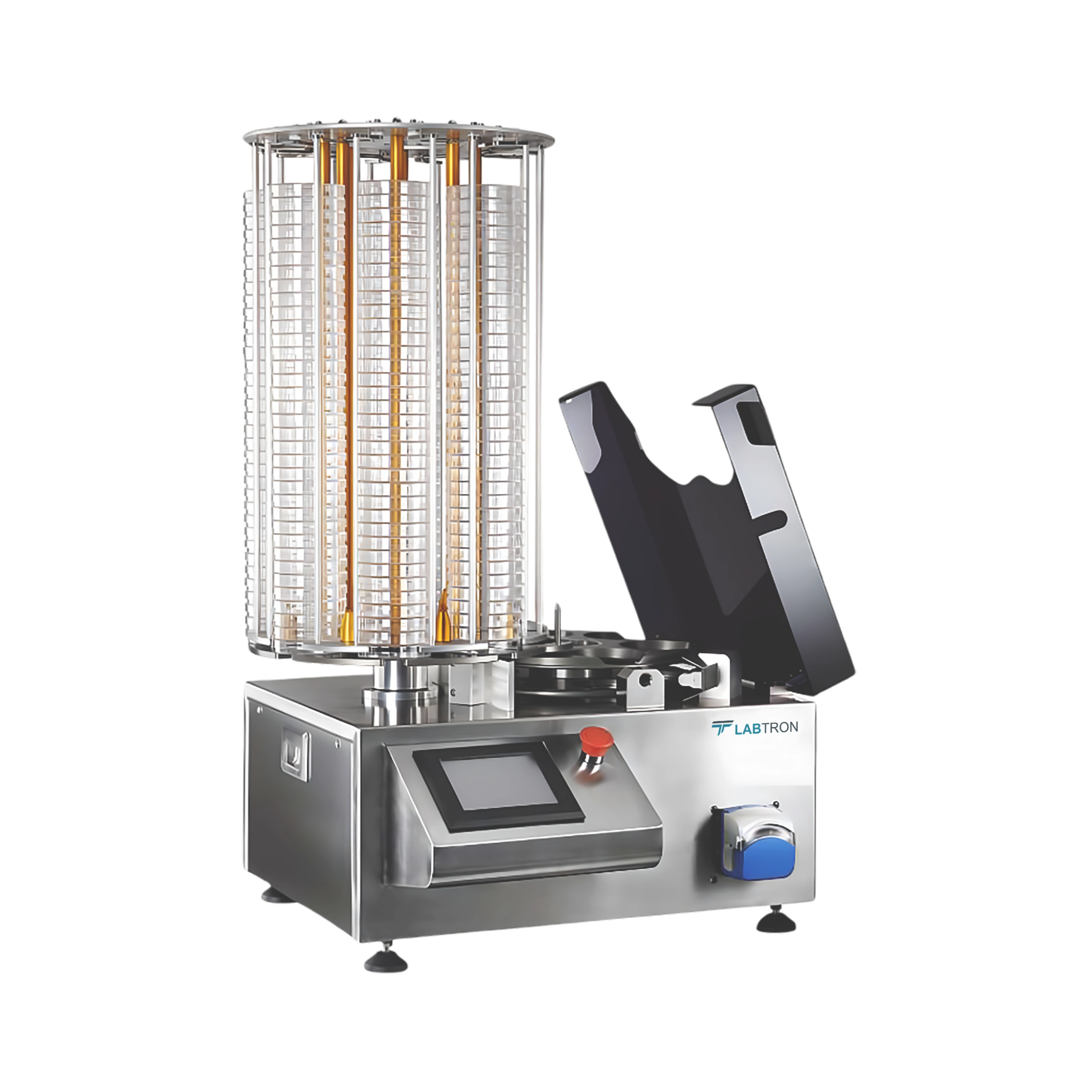

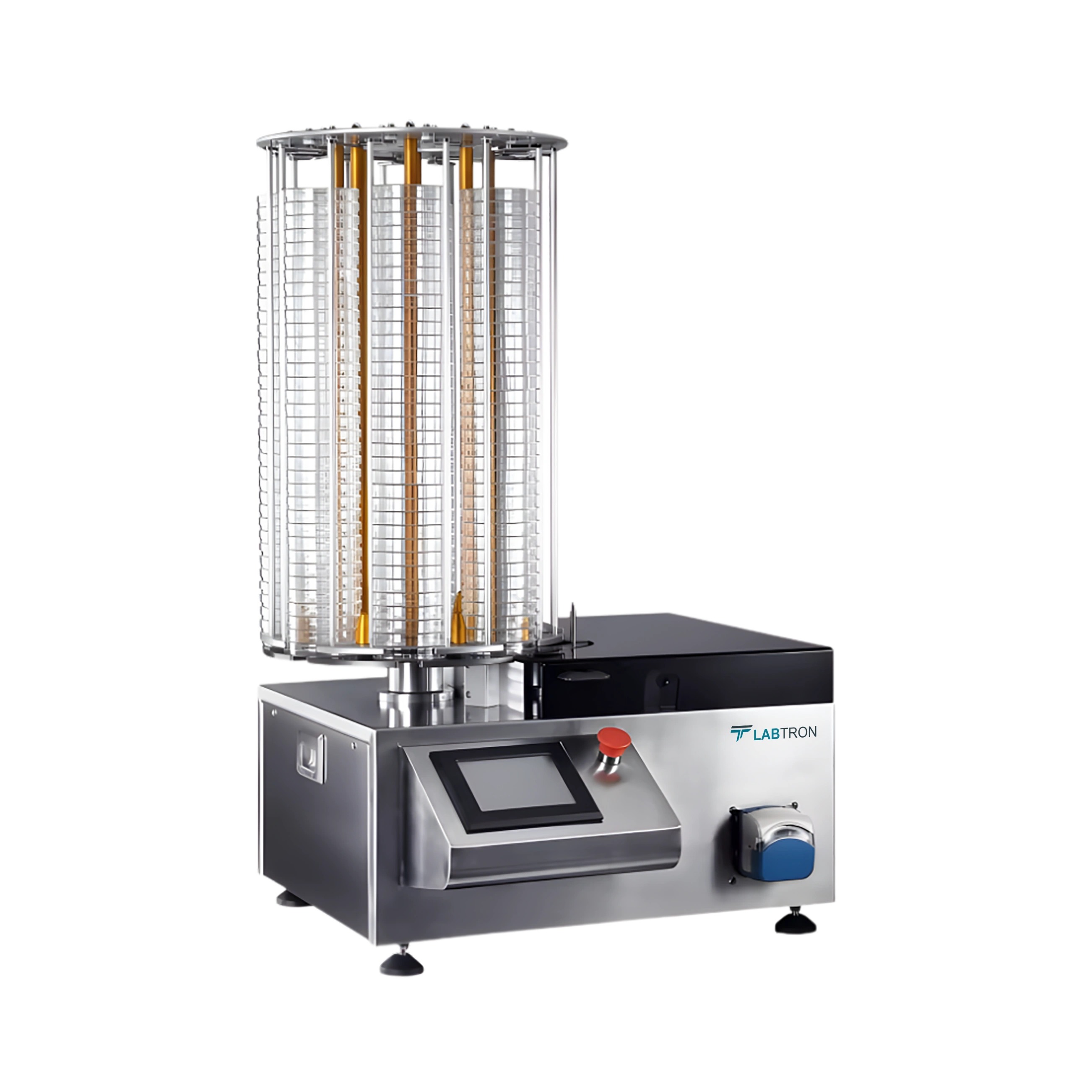

Automated Media Dispensing System LAMD-A11

Name: Automated Media Dispensing System LAMD-A11
Brand: Labtron
SKU: LAMD-A11
Rating: 4.8 (918 reviews)

Automated Media Dispensing System LAMD-A11 is with three parts main control system, rotor system and carrousel. It has 241 pcs maximum loading petri dishes and offers 1 to 99 ml filling range. Features with fast calibrate dispensing volume to set parameter as need for suitable dispensing program, and different dispensing programs can be stored. Designed with 5.7 inch touch screen and intelligent operation system for easy handling.

Request Quote

Height With carrousel	99 cm
Height of Carrousel	56 cm
Max. loading petri dishes	241 pcs
Filling range	1 to 99 ml
Filling range of manual dispense	1 to 999 ml
Flow rate setting	600 ml/min, 1000 ml/min
Petri dish type	90 mm (standard), 100 mm, 60 mm /accept custom-made
Dispense speed	500 dishes/hour (volume: 20 ml）
Dispense precision	0.01
Dimension	600 × 610 × 380 mm
Power consumption	260 W
Power supply	220 V/110V±10%，50/60 Hz
Basic device weight	44 kg
Carrousel weight	9 kg

Designed with three parts main control system, rotor system and carrousel
5.7 inch touch screen and intelligent operation system for easy handling
Two types of carrousel for choice
Dispensing area is protected by UV rays, reduce the risk of containment
Special feed support for empty dishes
Manual dispense function can set dispense volume, dispense times and dispense time interval
Adopts curved spring plate in the carrousel which is easy for unloading dishes
Equipped with fault alarm and self-check function, fast to find fault and repair
Fast calibrate dispensing volume to set parameter as need for suitable dispensing program, and to store different dispensing programs

Automated Media Dispensing System is used in laboratories involved in culture media preparation, sterile dispensing is essential for successful downstream and to meet quality Furthermore, as a growing need for cost saving and performance improvements.

Accessories no.	Name	Qty.
1	Main Control device with peristaltic pump	1 set
2	Carrousel for diameter 90 mm petri dishes, capacity of 241/94	1 pc
3	Six holes of Rotor for diameter 90 mm petri dishes	1 set
4	Two holes stacker	1 pc
5	Silicone tubing set for diameter 90 mm petri dishes	2 sets
6	Filling nozzle for diameter 90 mm petri dishes	1 pc
7	Safety cover	1pc
8	UV light	1pc
9	Tool	1 set

Download catalog for
Automated Media Dispensing System LAMD-A11 Catalog

Download manual for
Automated Media Dispensing System LAMD-A11 Manual

Available Range :

Automated Media Dispensing System LAMD-A10 : 65 cm Automated Media Dispensing System LAMD-A11 : 99 cm

Models of Automated Media Dispensing System

Labtron Automated Media Dispensing System offers efficient distribution of various samples in containers. They are equipped with nozzles for accurate release of different component types. Their advanced sensors ensure optimal flow and prevent clogs during the process. They feature anti-drip technology to prevent leakage and ensure cleanliness in work area. Our Automated Media Dispensing System can handle wide range of media, including liquids, powders, and granular substances.
