Benchtop Dissolved oxygen meter LBDO-A10


Share :

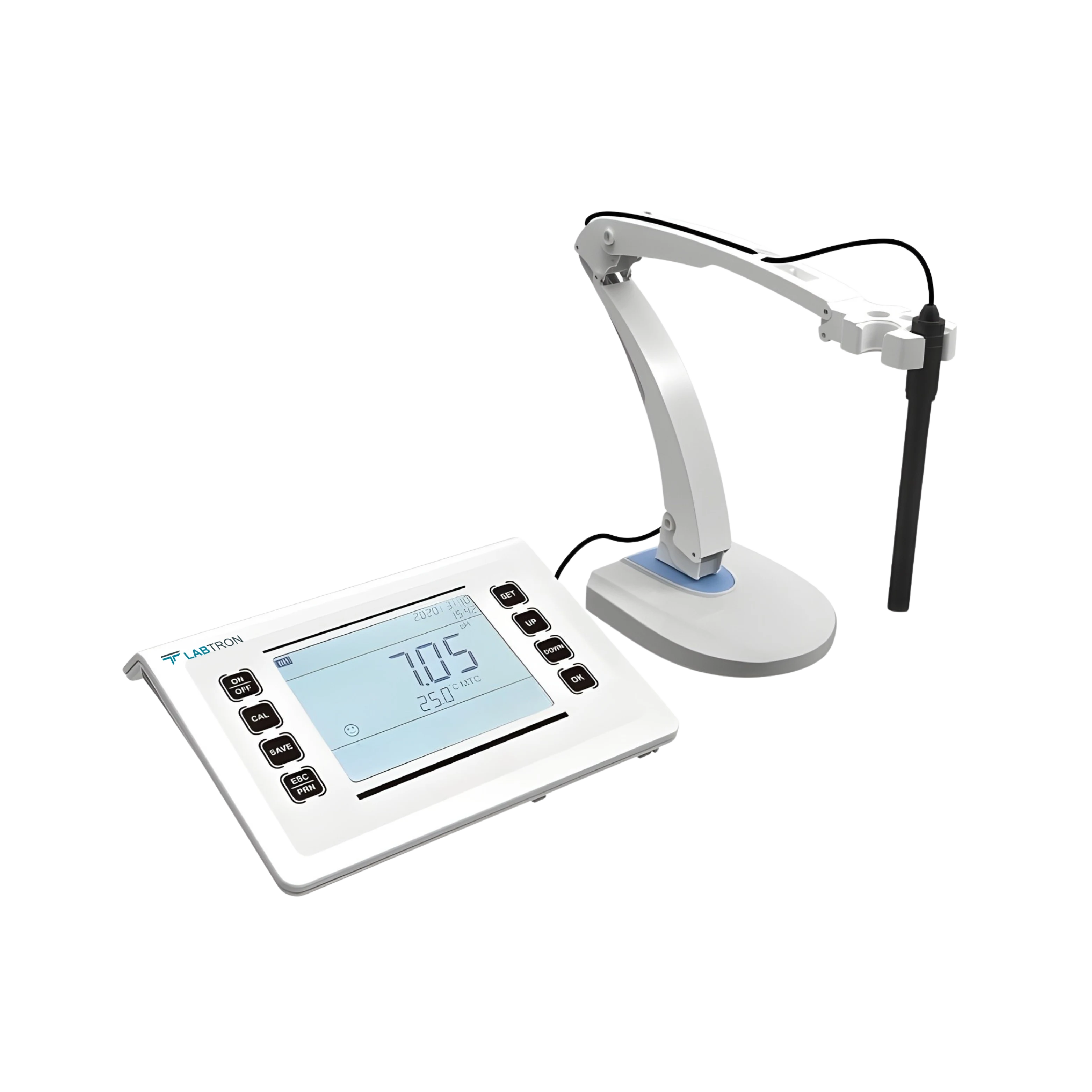

Benchtop Dissolved oxygen meter LBDO-A10


Benchtop Dissolved oxygen meter LBDO-A10 is equipped with polarographic sensor to measure the dissolved oxygen content. The manual salinity & barometric pressure compensation helps in accurate measurement of dissolved oxygen. The system menu of dissolved oxygen meter can set 6 parameters which includes the number of calibration points, temperature units etc.



Available Range :

Dissolved oxygen range : 0.0 to 20.0 mg / L (or ppm) Dissolved oxygen range : 0.0 to 20.0 mg / L (or ppm)
Dissolved oxygen range 0.0 to 20.0 mg / L (or ppm)
Dissolved oxygen accuracy ± 0.5 mg / L
Resolution 0.1 mg / L
Calibration points 1 - 2 points
Sensor type Polarographic DO probe
Temperature compensation range 0 to 40 °C, 32 to 104 °F
Barometric pressure correction 60.0 to 112.5 kPa, 450 to 850 mmHg
Salinity correction 0 - 35 g / L
% of saturation of oxygen range 0.0 to 200.0 %
% of saturation of oxygen accuracy ± 10 % F.S.
% of saturation of oxygen resolution 0.001
System menu Allows setting of 6 parameters
Data hold function Manual or automatic endpoint detection
Power off Manual or automatic (180 minutes)
Reset function Yes
Display Backlit LCD (135 × 75 mm)
Connector 6 pin mini plug
Power DC 9 V, use of SC adapter, AC 220 V / 50 Hz
Dimension (L × W × H) 210 × 205 × 75 mm
Weight 1.5 kg
  • Equipped with polarographic sensor
  • Equipped with large backlit LCD display
  • 1-2 points calibration using air saturated water & zero oxygen solution
  • Manual salinity & barometric pressure compensation for better measurement of dissolved oxygen
  • System menu allows setting the 6 optional parameters
  • Automatic temperature compensation for accurate measured value over the entire range
  • Auto hold function freezes stable, final readings for better viewing and recording
  • Reset function automatically resumes all the settings to default mode
  • Help message as an operational guide for quick beginning to the dissolved oxygen meter

Benchtop dissolved oxygen meter has applications in water & waste water management industry, environmental monitoring, surface ground water, research & development, education to detect content of dissolved oxygen.

Dissolved oxygen probe
Dissolved oxygen Electrolyte solution
Membrane cap
DC 9 V power adapter

Polarographic sensor
30 mL electrolyte solution per bottle
Membrane cap
