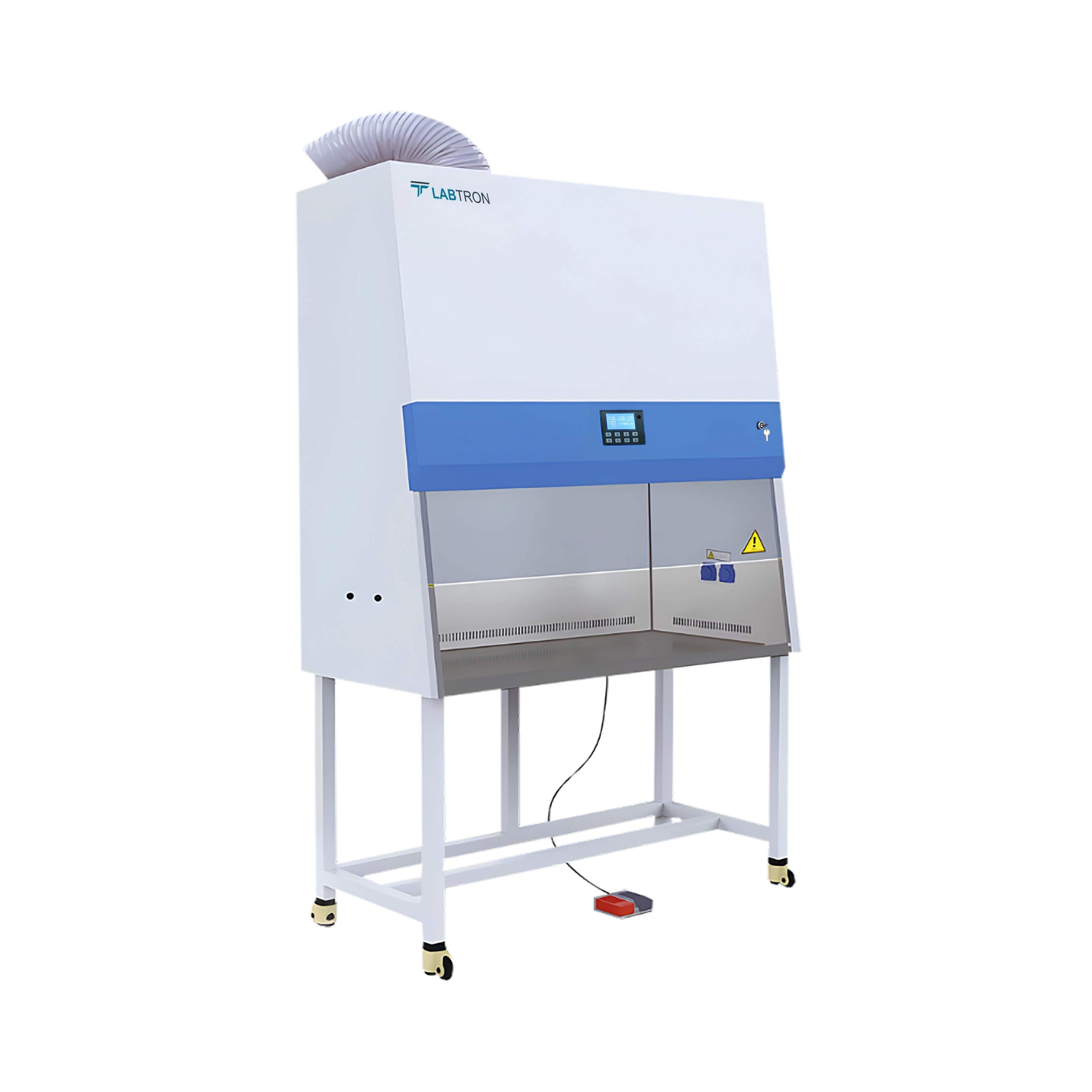

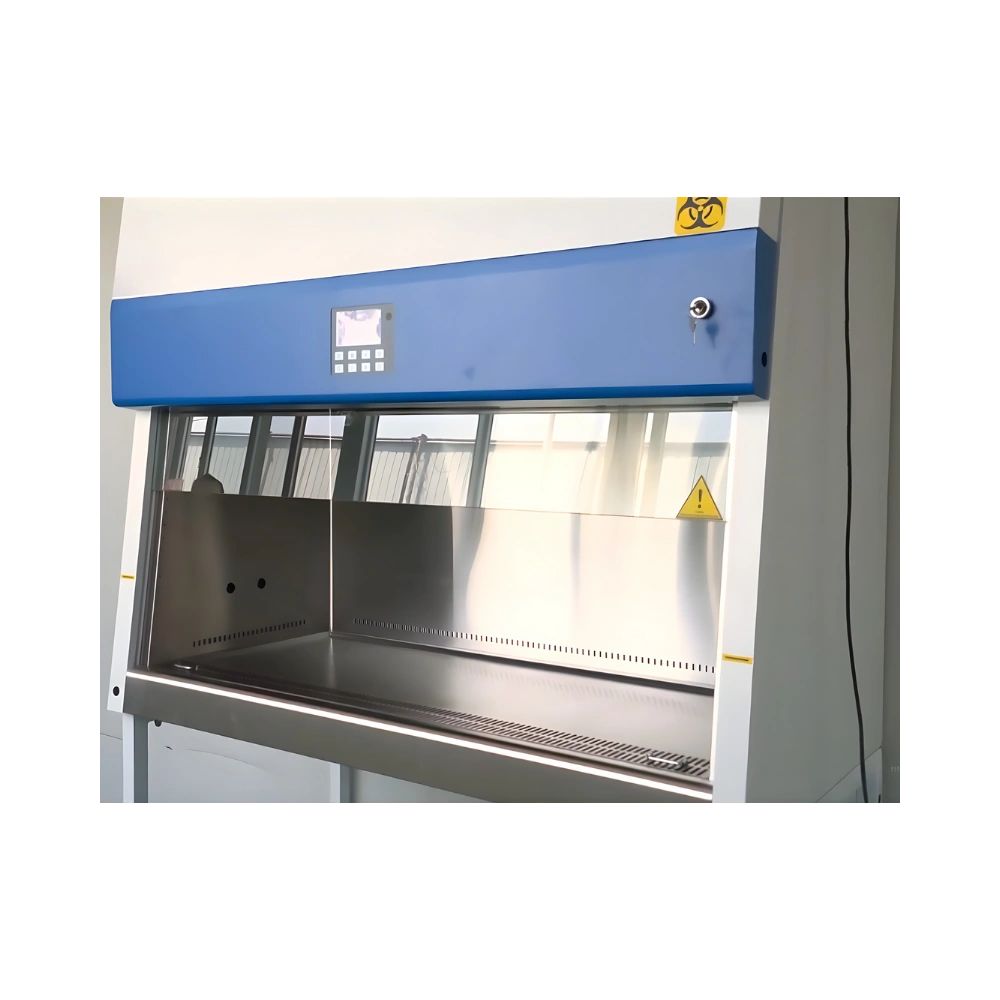

Biosafety Cabinet Class II B2 LBS2-B22

Name: Biosafety Cabinet Class II B2 LBS2-B22
Brand: Labtron
SKU: LBS2-B22
Rating: 5 (781 reviews)

Biosafety Cabinet Class II B2 LBS2-B22 is a Class II type B2 total exhaust cabinet with 500 mm (20 inch) maximum opening. It has ULPA Filter Two in number, 99.999 % efficient at 0.12 µm and offers two layer laminated toughened glass >5 mm. Designed with Large digital LCD display used to monitor all safety parameters and Universal caster for moving with brake and levelling feet. Work area surrounded by negative pressure and it can ensure maximum safety in work area.

Request Quote

Max Opening	500 mm (20 inch)
Tested Opening	Safety Height 200 mm（8 inch）
Inflow Velocity	0.53 ± 0.025 m/s
Down flow Velocity	0.33 ± 0.025 m/s
Pre-Filter	Washable
ULPA Filter	99.999 % efficiency at 0.12 μm, filter life indicator

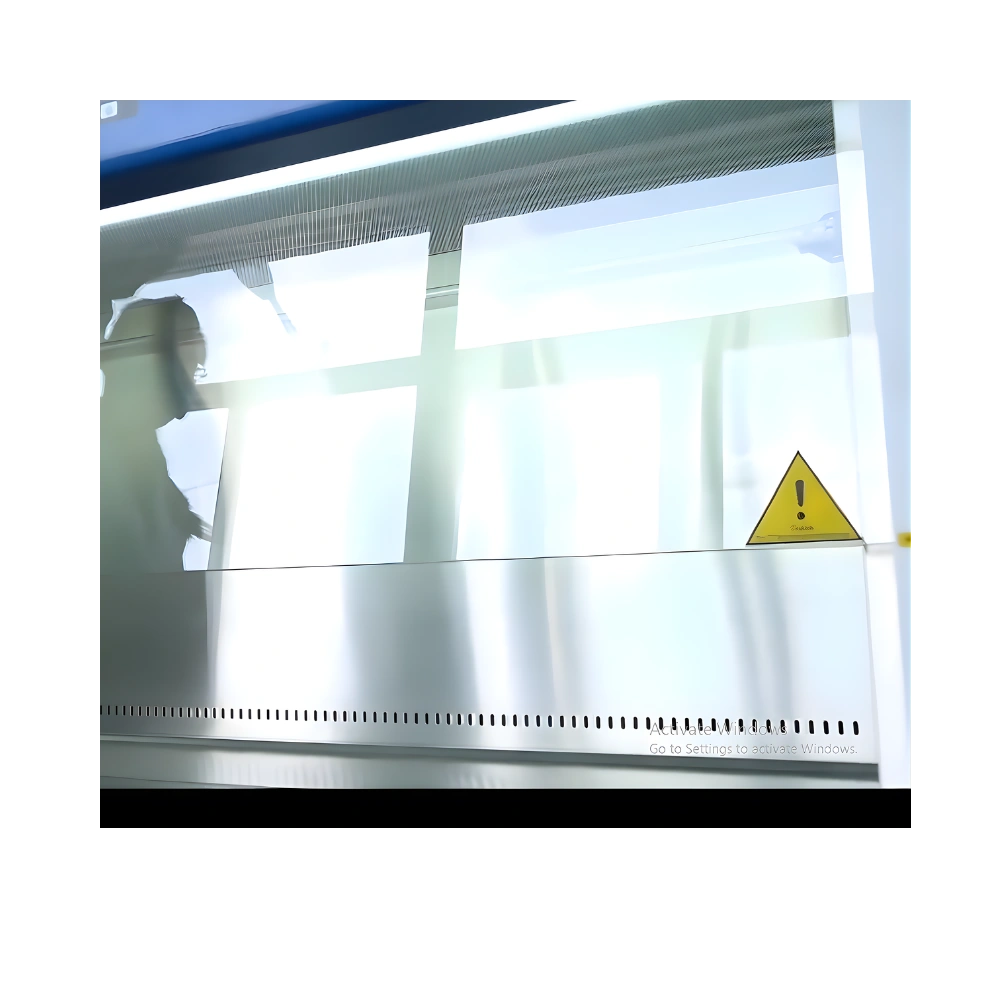

Front Window	Motorized, two-layer laminated toughened glass ≥ 5 mm, anti UV
Noise	NSF49 ≤ 61 dB / EN1246949 ≤ 58 dB
Illumination	≥ 1000 Lux
Consumption	900 W
Display	LCD display, exhaust filter and down flow filter pressure, filter and UV lamp working time, inflow and down flow velocity, filter life, humidity and temperature, system working time etc.

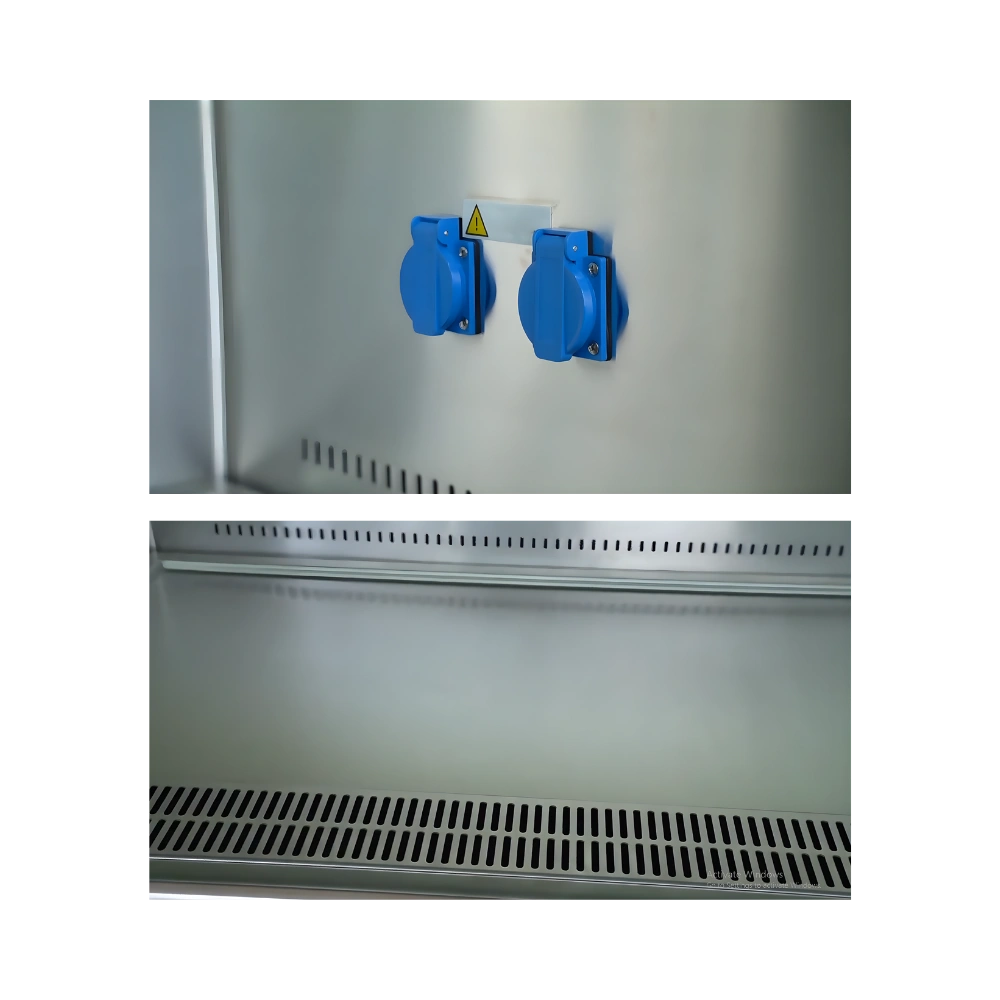

Waterproof Sockets	Two, total load of two sockets 500 W
Control System	Microprocessor
Airflow System	0 % air recirculation, 100 % air exhaust
Alarm	Abnormal airflow velocity, Filter replacement, Front window at unsafe height
Exhaust Duct	4 meters PVC duct, Diameter 300 mm
Material Work Zone	304 stainless steel
Material Main Body	Cold-rolled steel with anti-bacteria powder coating
Work Surface Height	750 mm
Caster	Foot master caster

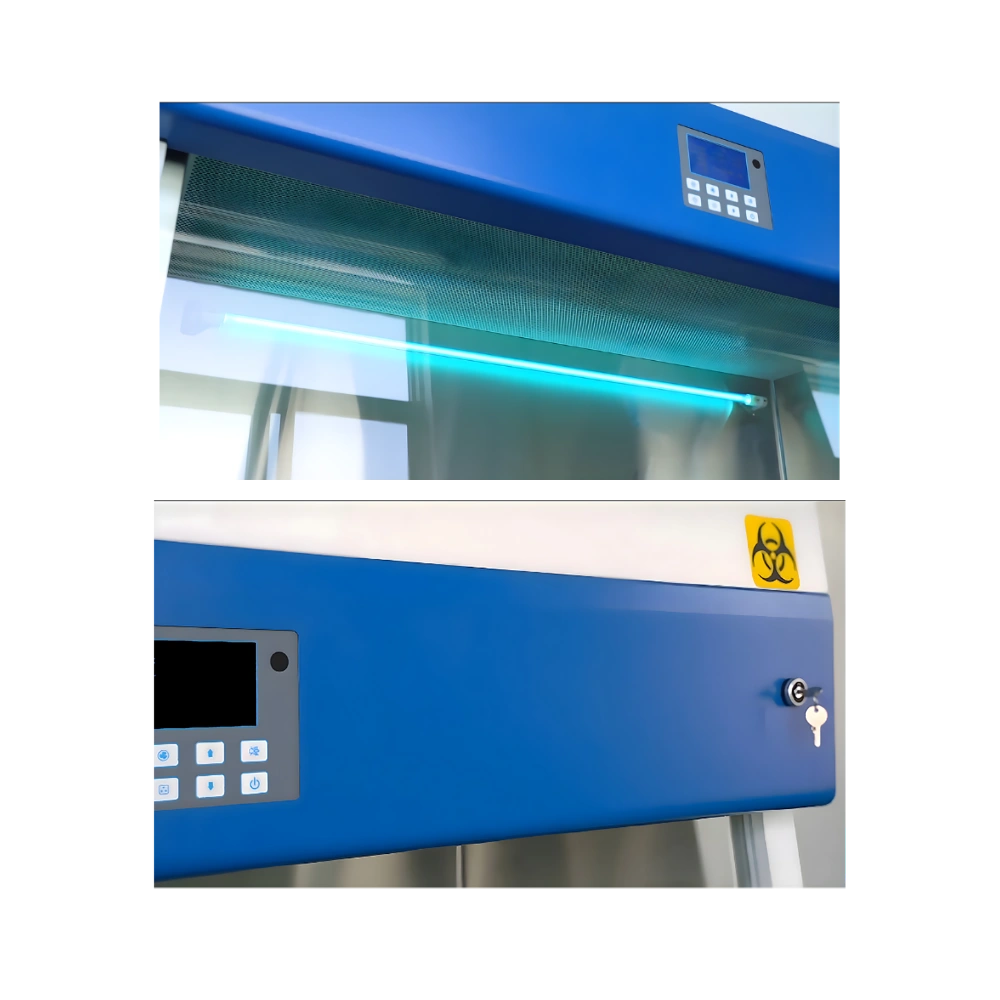

UV Lamp	30 W × 1 UV timer, UV life indicator, emission of 253.7 nano meters for most efficient decontamination
Illuminating Lamp	LED Lamp16 W × 2
Internal dimension (W×D×H)	1350 × 600 × 660 mm
External dimension (W×D×H)	1500 × 760 × 2250 mm
Power supply	AC 220V±10 %, 50/60 Hz; 110V±10 %, 60 Hz
Weight	380 kg

Designed with ULPA filter and UV indicator
Automatic air speed adjustable with filter block
Large digital display used to monitor exhaust filter and down flow filter pressure, filter and UV lamp working time, inflow and down flow velocity, filter life, humidity and temperature, system working time etc
Two layer laminated toughened glass >5 mm, anti UV
Universal caster with brake and levelling feet
Memory function in case of power-failure
Equipped with Interlock function, UV lamp, front window, fluorescent lamp
Designed with Remote control and Audio, visual alarm
Time reserve function
Motorized front window
Maximum safety in work area surrounded by negative pressure
Adjust front window height by foot during experiment, to avoid airflow turbulence caused by arm movement

Biosafety Cabinet product is used in protection from biological hazards and contamination as well as protection from volatile toxic chemicals.

Accessories no.	Name	Qty.
1	Illuminating lamp	2 pcs
2	UV lamp	1 pcs
3	Base Stand	1 pcs
4	Remote control	1 pcs
5	Foot switch	1 pcs
6	Exhaust blower	1 pcs
7	Exhaust duct	1 pcs
8	Drain valve	1 pcs
9	Waterproof sockets	2 pcs
10	Pipe strap	2 pcs

Download catalog for
Biosafety Cabinet Class II B2 LBS2-B22 Catalog

Download manual for
Biosafety Cabinet Class II B2 LBS2-B22 Manual

Available Range :

Biosafety Cabinet Class II B2 LBS2-B21 : 420 mm (17 inch) Biosafety Cabinet Class II B2 LBS2-B24 : 470 mm Biosafety Cabinet Class II B2 LBS2-B20 : 480 mm Biosafety Cabinet Class II B2 LBS2-B22 : 500 mm (20 inch)

Models of Biosafety Cabinet

Labtron Biosafety Cabinets are incorporated with advanced technology, including ULPA filters and UV indicators. These cabinets ensure advanced protection with built-in interlock functionalities. Our diverse selection encompasses Class I, Class II A2, Class II B2, and more. They provide exceptional airflow control for maintaining sterility and optimizing laboratory conditions. Our biosafety cabinet provides unparalleled durability, featuring two-layer laminated toughened glass.
