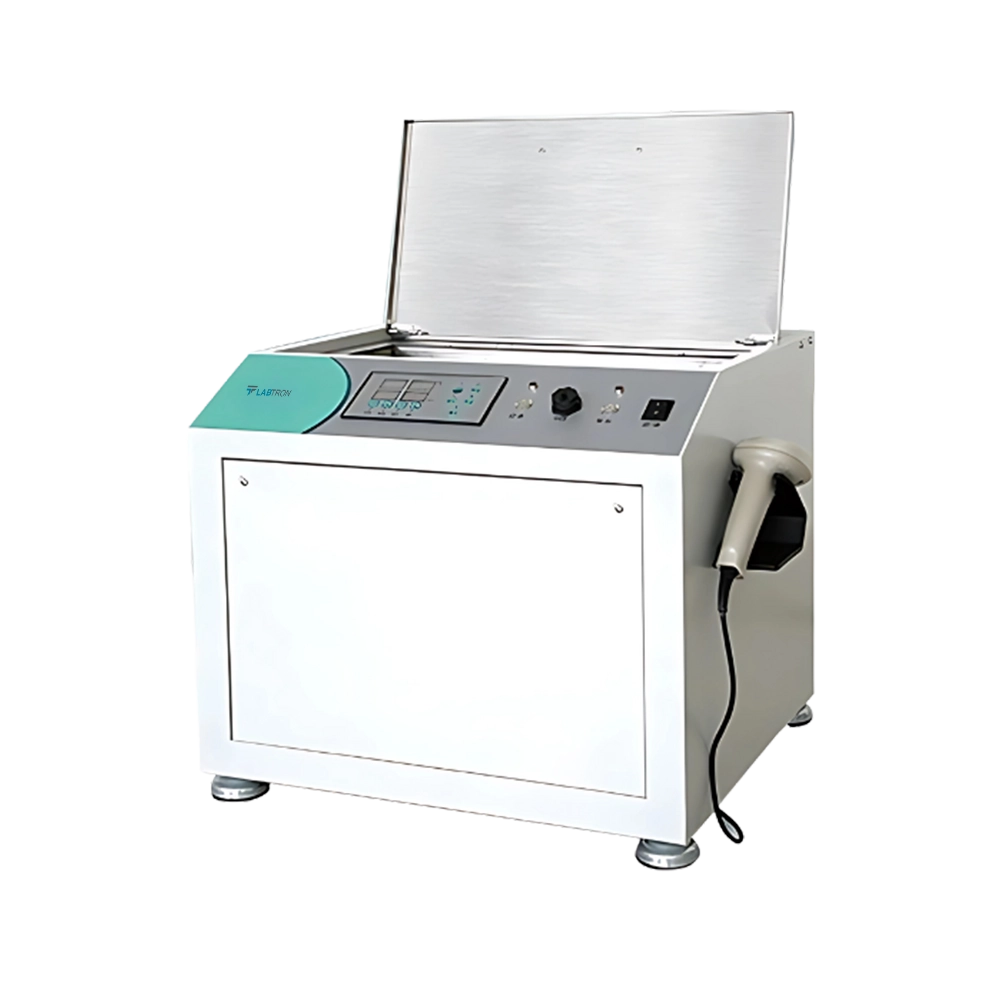

Blood Thaw Machine LBTM-A11

Blood Thaw Machine LBTM-A11

Blood Thaw Machine LBTM-A11 is a benchtop unit used for thawing and warming blood components such as frozen plasma, erythrocyte concentrate and whole blood packed in plastic bags. Thawing time is 8 to 10 min, can hold maximum 12 pcs blood bags of capacity (50 to 200 ml). Comprises 304 stainless steel chamber, fences and decomposable water tank, water circulation system to ensure rapid thawing.Facilitate automatic drying function, reducing the immersion time. Equipped with over temperature alarm and automatic power off function to notify the user of unsafe condition.

Request Quote
Blood bags Maximum 12 pcs
Blood bags capacity 50 to 200 ml
Water storage 58 ± 5% kg
Chamber volume 58 L
Temperature range 36.5 to 38 °C
Temperature accuracy ± 0.1 °C
Thawing time 8 to 10 min
Power consumption 2 kW
Power supply AC220 V, 50/60 Hz
External dimension (W × D × H) 600 × 540 × 970 mm
Packing dimension (W × D × H) 800 × 750 × 1200 mm
Gross weight 70 kg
  • Thawing time 8 to 10 min
  • Holds maximum 12 pcs blood bags
  • Blood bag capacity is 50 to 200 ml
  • Comprises 304 stainless steel chamber, fences and decomposable water tank
  • Automatic drying function reduces the immersion time
  • Equipped with over temperature alarm and automatic power off function
  • Water circulation systems ensures rapid thawing
  • Offer temperature control and sensing systems to achieve high accuracy

Blood thaw machine is used in hospitals, Blood banks, biological industries etc. for thawing or warming blood components packed in plastic bags such as frozen plasma, erythrocyte concentrate and whole blood

Compare Models

Model Blood bags Blood bags capacity Water storage Chamber volume Temperature range Temperature accuracy Thawing time Power consumption Power supply External dimension (W × D × H) Packing dimension (W × D × H) Gross weight

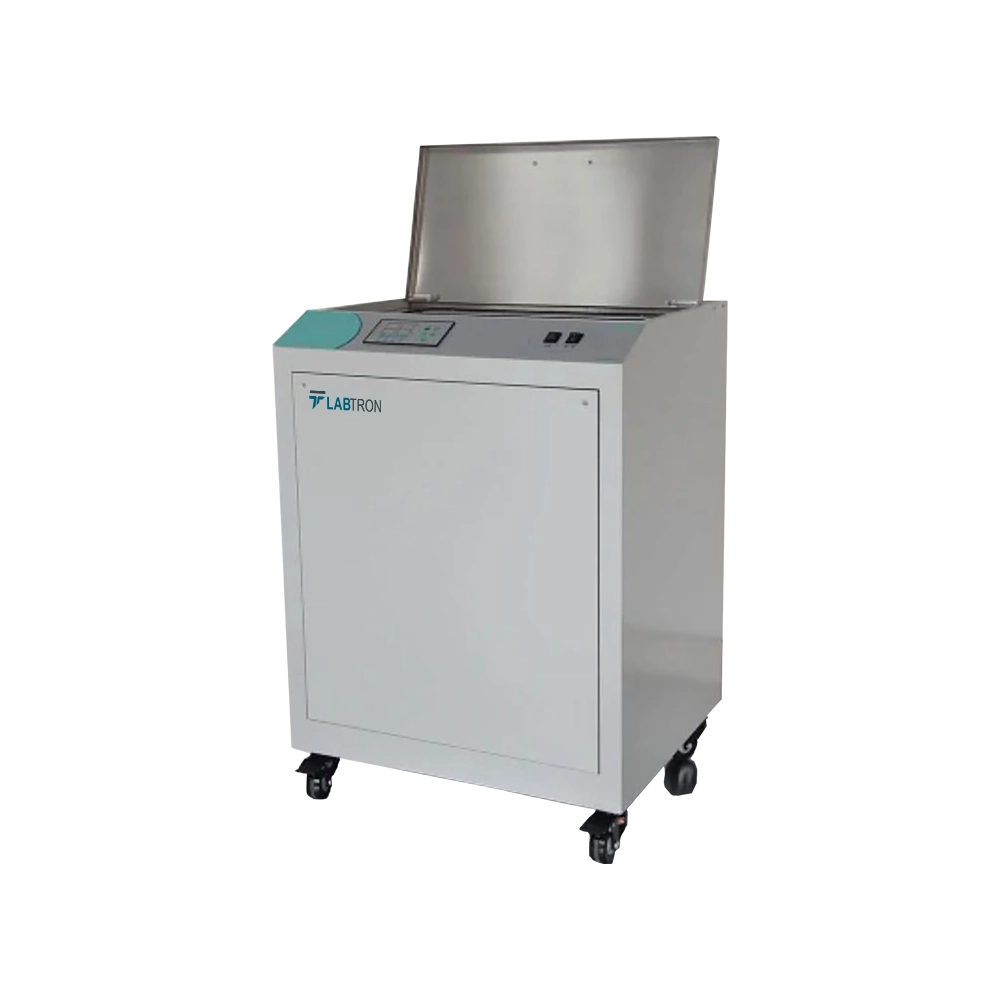

LBTM-A10 Maximum 6 pcs 50 to 200 ml 20 ± 5% kg 20 L 36.5 to 38 °C ± 0.2 °C 10 to 15 min 1 kW AC220 V, 50/60 Hz 550 × 500 × 475 mm 750 × 700 × 680 mm 40 kg
LBTM-A11 Maximum 12 pcs 50 to 200 ml 58 ± 5% kg 58 L 36.5 to 38 °C ± 0.1 °C 8 to 10 min 2 kW AC220 V, 50/60 Hz 600 × 540 × 970 mm 800 × 750 × 1200 mm 70 kg
LBTM-A12 Maximum 24 pcs 50 to 200 ml 98 ± 5% kg 98 L 36.5 to 38 °C ± 0.1 °C 8 to 10 min 3.6 kW AC220 V, 50/60 Hz 720 × 600 × 990 mm 900 × 800 × 1200 mm 100 kg
