Digital Brinell Hardness Tester LTBH-A10

Name: Digital Brinell Hardness Tester LTBH-A10
Brand: Labtron
SKU: LTBH-A10
Rating: 4.7 (715 reviews)

Digital Brinell Hardness Tester LTBH-A10 ensures accurate testing with a maximum test force of 62.5 Kgf. It achieves a high hardness resolution of 0.1 HBW for reliable material analysis. The tester includes a test microscope with 50× and 100× magnifications for precise indentation observation. Measurements can be stored as Excel files on a USB drive for streamlined data management. It is suitable for industrial laboratories requiring precise Brinell hardness testing with calibration to standard blocks and length scales.

Request Quote

Test Force	Up to 62.5 Kgf (612.94 N)
Brinell Scale	HBW1/1, HBW1/2.5, HBW1/5, HBW2.5/6.25, HBW1/10, HBW2.5/15.625, HBW5/25, HBW1/30, HBW2.5/31.25, HBW2.5/62.5, HBW5/62.5
Resolution	0.1 HBW
Carried standard	BSEN 6506, ISO 6506, ASTM E10, GB/T231

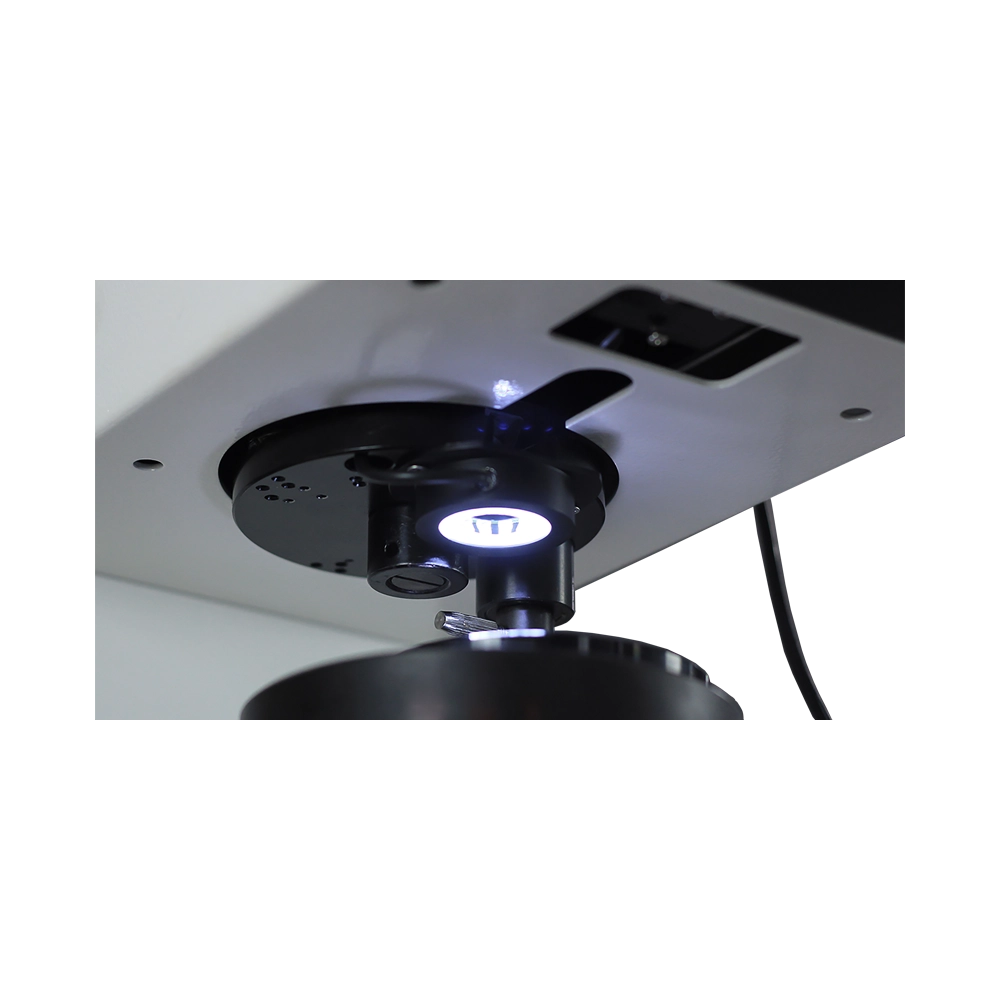

Microscope Magnification	50×, 100×
Duration Time	0 to 99 seconds
Max Specimen Height	180 mm
Indenter Distance	160 mm
Power Supply	AC220 ±5%, 50–60 Hz
Dimension (W×D×H)	590 × 200 × 680 mm
Weight	50 kg

Portable and space-efficient design
Electric loading with closed-loop control
Automatic turret ensures seamless operation
Digital encoder provides direct readings
Standard dynamometer enables self-correction

Our Digital Brinell Hardness Tester LTBH-A10 is perfect for evaluating material hardness in industries such as manufacturing, metallurgy, and quality control. Its advanced features streamline hardness testing in both research and production environments.

Accessory Name	Quantity
Eyepiece	1

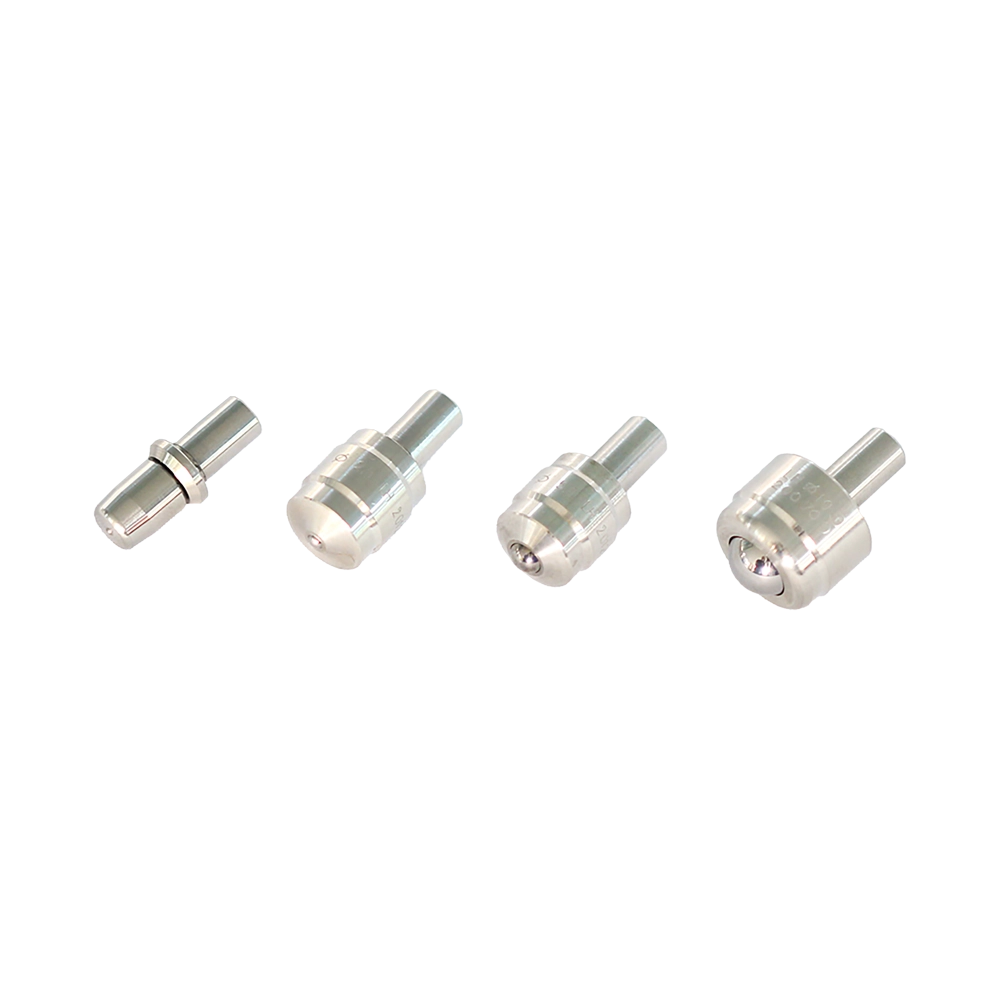

Diameter 2.5mm Hard Alloy Steel Ball Indenter	1
Diameter 5mm Hard Alloy Steel Ball Indenter	1
Diameter 10mm Hard Alloy Steel Ball Indenter	1
U disk, touch pen	1
Power cable	1
Large Testing Table	1
Medium Testing Table	1
“V” shaped Testing Table	1
Standard block HBW10/3000	1
Standard block HBW10/1000	1
Standard block HBW2.5/187.5	1
Dust bag	1
Fuse 2A	2

Download catalog for
Digital Brinell Hardness Tester LTBH-A10 Catalog

Available Range :

Digital Brinell Hardness Tester TDBH-A10 : 612.5 N, 980 N, 1225 N, 1837.5 N, 2450 N, 4900 N/7350 N, 9800 N, 14700 N/29400 N Digital Brinell Hardness Tester LTBH-A10 : Up to 62.5 Kgf (612.94 N)

Digital Brinell Hardness Tester LTBH-A14

Type : Digital Brinell Hardness Tester
Display : 8-inch Sensor Touchscreen
Data Storage : 100 sets
Brinell Scales : HBW1/30, HBW2.5/31.25, HBW2.5/62.5, HBW2.5/187.5, HBW5/62.5, HBW10/100, HBW5/250

Compare Remove

Digital Brinell Hardness Tester TDBH-A10

Test Force : 612.5 N, 980 N, 1225 N, 1837.5 N, 2450 N, 4900 N/7350 N, 9800 N, 14700 N/29400 N
Hardness Measuring Area : 8 to 650 HBW (hard metals steel ball)
Hardness Indication : Digital display
Ball Indenter : 2.5, 5, 10 mm

Compare Remove

Digital Brinell Hardness Tester LTBH-C11

Test Force Range : 62.5 kgf (612.9 N), 100 kgf (980.7 N), 125 kgf (1226 N), 187.5 kgf (1839 N), 250 kgf (2452 N), 500 kgf (4903 N), 750 kgf (7355 N), 1000 kgf (9807 N), 1500 kgf (14710 N), 3000 kgf (29420 N)
Hardness Scales : HBW2.5/62.5, HBW2.5/187.5, HBW5/62.5, HBW5/125, HBW5/250, HBW5/750, HBW10/100, HBW10/250, HBW10/500, HBW10/1000, HBW10/1500, HBW10/3000
Pressure Head : Three pressure heads
Automatic Turret : Yes

Compare Remove

Digital Brinell Hardness Tester LTBH-A12

Test Force (Kgf) : 62.5 kgf (612.9 N), 100 kgf (980.7 N), 125 kgf (1226 N), 187.5 kgf (1839 N), 250 kgf (2452 N), 500 kgf (4903 N), 750 kgf (7355 N), 1000 kgf (9807 N), 1500 kgf (14710 N), 3000 kgf (29420 N)
Brinell Scale : HBW2.5/62.5, HBW2.5/187.5, HBW5/62.5, HBW5/125, HBW5/250, HBW5/750, HBW10/100, HBW10/250, HBW10/500, HBW10/1000, HBW10/1500, HBW10/3000
Test Force Accuracy : 62.5 to 250 kgf ≤1%, 500 to 3000 kgf ≤0.5%
Measuring Device Resolution : 0.1 µm

Compare Remove

Digital Brinell Hardness Tester LTBH-A13

Type : Digital Brinell Hardness Tester
Data Storage : 100 sets
Brinell Scales : HBW1/30, HBW2.5/31.25, HBW2.5/62.5, HBW2.5/187.5, HBW5/62.5, HBW10/100
Brinell Test Forces : 30, 31.25, 62.5, 100, 187.5 kgf (294.2–1839 N)

Compare Remove

Digital Brinell Hardness Tester LTBH-B10

Brinell Hardness Scale : HBW2.5/62.5 to HBW10/3000
Experimental Force : 62.5 KGF (612.9 N) to 3000 KGF (29420 N)
Load Retention Time : 0 to 99 s
Digital Imaging : Industrial-grade digital camera

Compare Remove

Digital Brinell Hardness Tester LTBH-C10

Test Force Range : 62.5 kgf (612.9 N), 100 kgf (980.7 N), 125 kgf (1226 N), 187.5 kgf (1839 N), 250 kgf (2452 N), 500 kgf (4903 N), 750 kgf (7355 N), 1000 kgf (9807 N), 1500 kgf (14710 N), 3000 kgf (29420 N)
Hardness Scales : HBW2.5/62.5, HBW2.5/187.5, HBW5/62.5, HBW5/125, HBW5/250, HBW5/750, HBW10/100, HBW10/250, HBW10/500, HBW10/1000, HBW10/1500, HBW10/3000
Pressure Head : Dual pressure head
Test Force Accuracy : ≤1% (62.5 kgf to 250 kgf) ≤0.5% (500 kgf to 3000 kgf)

Compare Remove

Digital Brinell Hardness Tester LTBH-A11

Test Force (Kgf) : 62.5 kgf (612.9 N), 100 kgf (980.7 N), 125 kgf (1226 N), 187.5 kgf (1839 N), 250 kgf (2452 N), 500 kgf (4903 N), 750 kgf (7355 N), 1000 kgf (9807 N), 1500 kgf (14710 N), 3000 kgf (29420 N)
Brinell Scale : HBW2.5/62.5, HBW2.5/187.5, HBW5/62.5, HBW5/125, HBW5/250, HBW5/750, HBW10/100, HBW10/250, HBW10/500, HBW10/1000, HBW10/1500, HBW10/3000
Carried Standard : BSEN 6506, ISO 6506, ASTM E10, GB/T231
Test Force Accuracy : 62.5–250 kgf ≤1%, 500–3000 kgf ≤0.5%

Compare Remove
