Digital Brinell Hardness Tester LTBH-A12

Name: Digital Brinell Hardness Tester LTBH-A12
Brand: Labtron
SKU: LTBH-A12
Rating: 4.9 (990 reviews)

Digital Brinell Hardness Tester LTBH-A12 delivers precise hardness testing with an automatic turret and a range of test forces from 62.5kgf to 3000kgf. It supports a broad spectrum of Brinell scales, from HBW2.5/62.5 to HBW10/3000. Featuring a larger secondary monitor, it enables detailed image display and data analysis for enhanced testing. With a maximum specimen height of 200mm and a 155mm indenter to outer wall distance, it offers excellent versatility. Compact yet powerful, this model is ideal for both research and industrial applications.

Request Quote

Test Force (Kgf)	62.5 kgf (612.9 N), 100 kgf (980.7 N), 125 kgf (1226 N), 187.5 kgf (1839 N), 250 kgf (2452 N), 500 kgf (4903 N), 750 kgf (7355 N), 1000 kgf (9807 N), 1500 kgf (14710 N), 3000 kgf (29420 N)
Brinell Scale	HBW2.5/62.5, HBW2.5/187.5, HBW5/62.5, HBW5/125, HBW5/250, HBW5/750, HBW10/100, HBW10/250, HBW10/500, HBW10/1000, HBW10/1500, HBW10/3000
Test Force Accuracy	62.5 to 250 kgf ≤1%, 500 to 3000 kgf ≤0.5%
Measuring Device Resolution	0.1 µm
Hardness Value Resolution	0.1 HBW
Dwell Time	0 to 99 seconds
Data Output	LCD display
Maximum Height of Specimen	200 mm
Indenter to Outer Wall Distance	155 mm
Standard	BSEN 6506, ISO 6506, ASTM E10, GB/T231
Power Supply	AC220 +5%, 50–60 Hz
Dimension	550 × 210 × 800 mm
Weight	110 kg

Dual screen for enhanced visibility

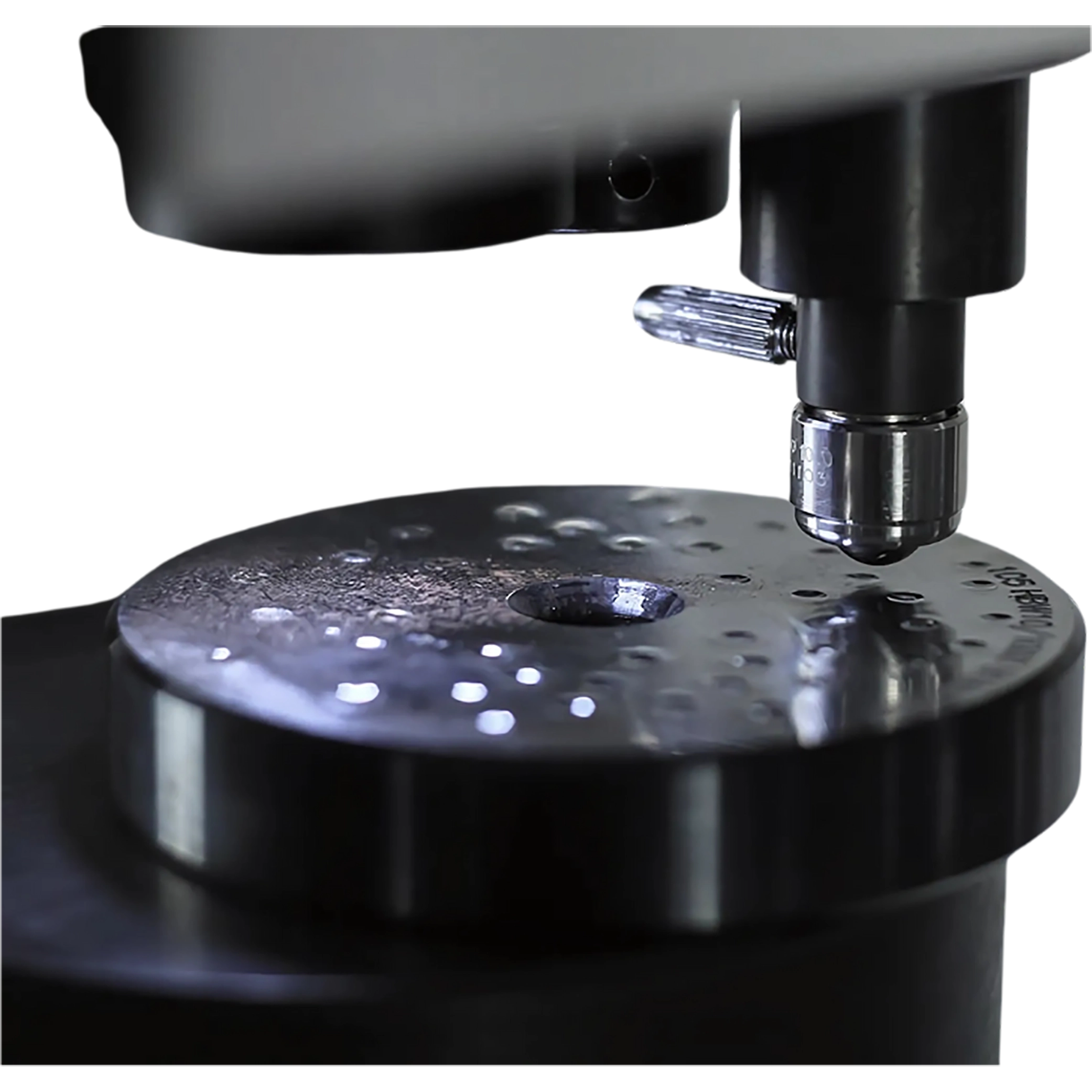

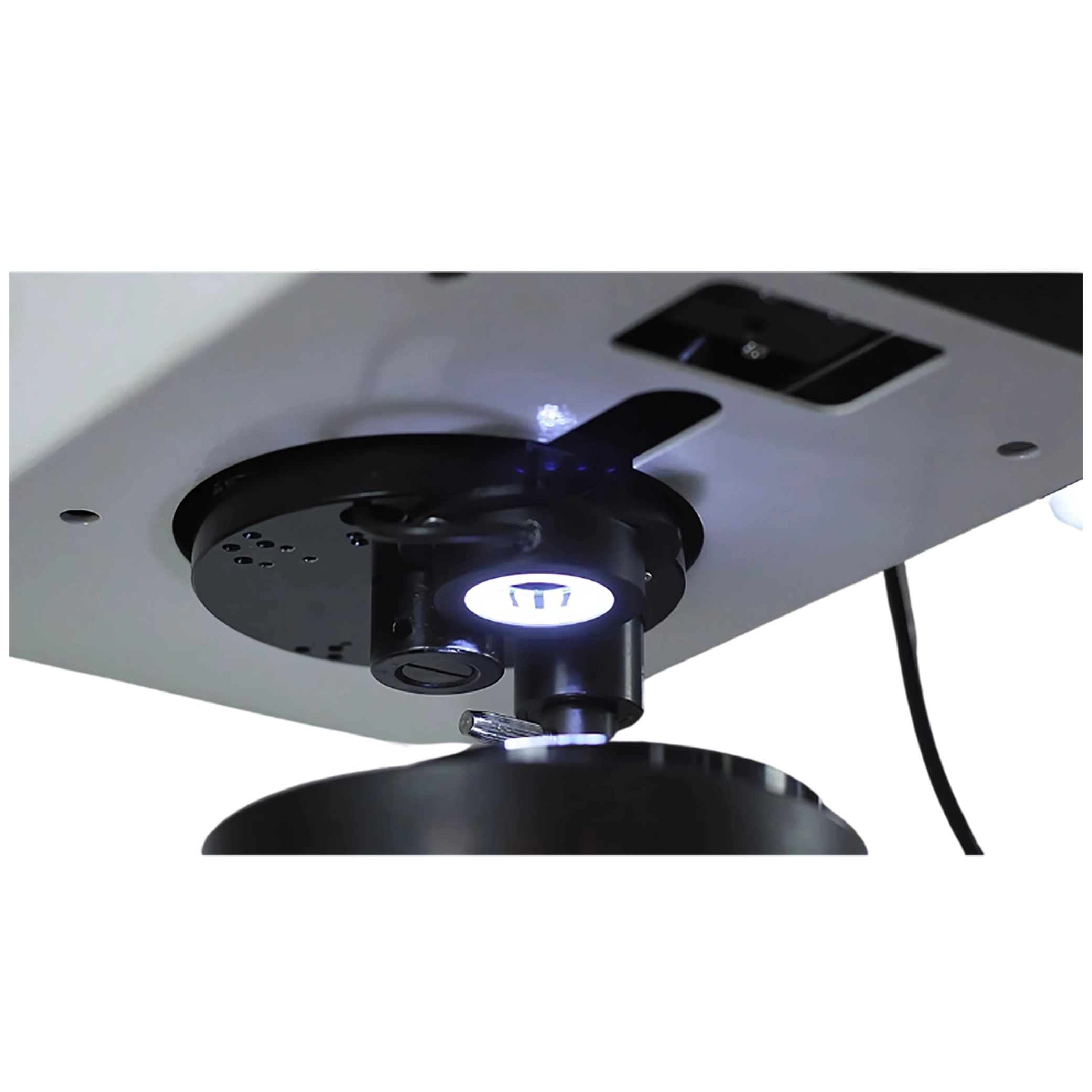

Prominent camera for detailed imaging
Robust design for stability
Auto-corrected test force accuracy
High precision closed-loop control system

Our Digital Brinell Hardness Tester LTBH-A12 ensures precise hardness testing for material integrity during production. Ideal for metallurgical labs, automotive, and aerospace research.

Accessory Name	Quantity
Eyepiece	1

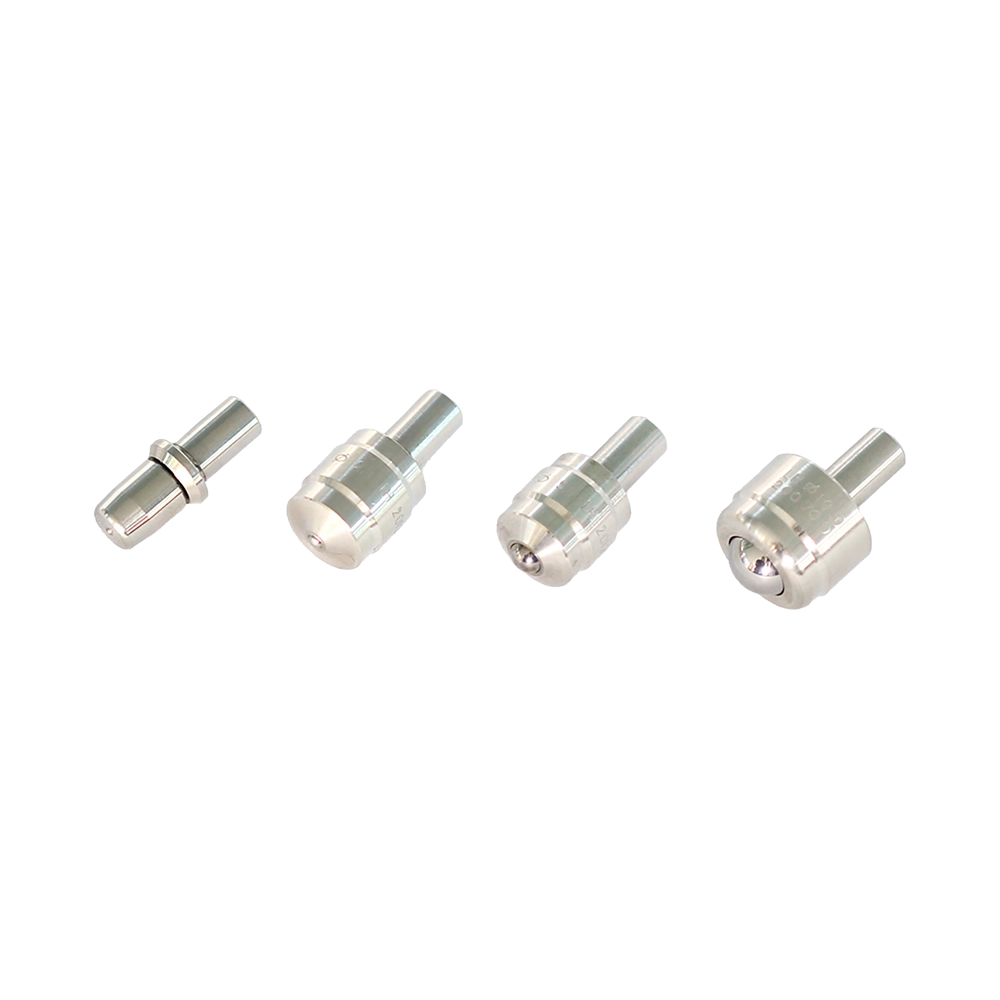

Diameter 2.5mm Hard Alloy Steel Ball Indenter	1
Diameter 5mm Hard Alloy Steel Ball Indenter	1
Diameter 10mm Hard Alloy Steel Ball Indenter	1
U Disk	1
Touch Pen	1
Power Cable	1
Large Testing Table	1
Medium Testing Table	1
“V” Shaped Testing Table	1
Standard Block (HBW10/3000)	1
Standard Block (HBW10/1000)	1
Standard Block (HBW2.5/187.5)	1
Dust Bag	1
Fuse (2A)	2

Download catalog for
Digital Brinell Hardness Tester LTBH-A12 Catalog

Digital Brinell Hardness Tester LTBH-A12 -Banner

Digital Brinell Hardness Tester LTBH-A12 -Features

Models of Brinell Hardness Tester

Labtron Brinell Hardness Testers are designed for accurate hardness testing of metals and alloys. They provide testing forces ranging from 62.5 Kgf (612.94 N) to 3000 Kgf (29420 N), making them suitable for a wide variety of materials. Their durable construction, with stable bases, ensures reliable performance during testing. They feature automatic turret operations along with digital displays and software for efficient evaluation and detailed analysis. Our Brinell Hardness Testers are ideal for material testing, the metal industry, aerospace, and industrial research.

Digital Brinell Hardness Tester LTBH-A14

Type : Digital Brinell Hardness Tester
Display : 8-inch Sensor Touchscreen
Data Storage : 100 sets
Brinell Scales : HBW1/30, HBW2.5/31.25, HBW2.5/62.5, HBW2.5/187.5, HBW5/62.5, HBW10/100, HBW5/250

Compare Remove

Digital Brinell Hardness Tester LTBH-A10

Test Force : Up to 62.5 Kgf (612.94 N)
Brinell Scale : HBW1/1, HBW1/2.5, HBW1/5, HBW2.5/6.25, HBW1/10, HBW2.5/15.625, HBW5/25, HBW1/30, HBW2.5/31.25, HBW2.5/62.5, HBW5/62.5
Resolution : 0.1 HBW
Carried standard : BSEN 6506, ISO 6506, ASTM E10, GB/T231

Compare Remove

Digital Brinell Hardness Tester LTBH-C10

Test Force Range : 62.5 kgf (612.9 N), 100 kgf (980.7 N), 125 kgf (1226 N), 187.5 kgf (1839 N), 250 kgf (2452 N), 500 kgf (4903 N), 750 kgf (7355 N), 1000 kgf (9807 N), 1500 kgf (14710 N), 3000 kgf (29420 N)
Hardness Scales : HBW2.5/62.5, HBW2.5/187.5, HBW5/62.5, HBW5/125, HBW5/250, HBW5/750, HBW10/100, HBW10/250, HBW10/500, HBW10/1000, HBW10/1500, HBW10/3000
Pressure Head : Dual pressure head
Test Force Accuracy : ≤1% (62.5 kgf to 250 kgf) ≤0.5% (500 kgf to 3000 kgf)

Compare Remove

Digital Brinell Hardness Tester LTBH-A13

Type : Digital Brinell Hardness Tester
Data Storage : 100 sets
Brinell Scales : HBW1/30, HBW2.5/31.25, HBW2.5/62.5, HBW2.5/187.5, HBW5/62.5, HBW10/100
Brinell Test Forces : 30, 31.25, 62.5, 100, 187.5 kgf (294.2–1839 N)

Compare Remove

Digital Brinell Hardness Tester LTBH-B10

Brinell Hardness Scale : HBW2.5/62.5 to HBW10/3000
Experimental Force : 62.5 KGF (612.9 N) to 3000 KGF (29420 N)
Load Retention Time : 0 to 99 s
Digital Imaging : Industrial-grade digital camera

Compare Remove

Digital Brinell Hardness Tester LTBH-C11

Test Force Range : 62.5 kgf (612.9 N), 100 kgf (980.7 N), 125 kgf (1226 N), 187.5 kgf (1839 N), 250 kgf (2452 N), 500 kgf (4903 N), 750 kgf (7355 N), 1000 kgf (9807 N), 1500 kgf (14710 N), 3000 kgf (29420 N)
Hardness Scales : HBW2.5/62.5, HBW2.5/187.5, HBW5/62.5, HBW5/125, HBW5/250, HBW5/750, HBW10/100, HBW10/250, HBW10/500, HBW10/1000, HBW10/1500, HBW10/3000
Pressure Head : Three pressure heads
Automatic Turret : Yes

Compare Remove

Digital Brinell Hardness Tester TDBH-A10

Test Force : 612.5 N, 980 N, 1225 N, 1837.5 N, 2450 N, 4900 N/7350 N, 9800 N, 14700 N/29400 N
Hardness Measuring Area : 8 to 650 HBW (hard metals steel ball)
Hardness Indication : Digital display
Ball Indenter : 2.5, 5, 10 mm

Compare Remove

Digital Brinell Hardness Tester LTBH-A11

Test Force (Kgf) : 62.5 kgf (612.9 N), 100 kgf (980.7 N), 125 kgf (1226 N), 187.5 kgf (1839 N), 250 kgf (2452 N), 500 kgf (4903 N), 750 kgf (7355 N), 1000 kgf (9807 N), 1500 kgf (14710 N), 3000 kgf (29420 N)
Brinell Scale : HBW2.5/62.5, HBW2.5/187.5, HBW5/62.5, HBW5/125, HBW5/250, HBW5/750, HBW10/100, HBW10/250, HBW10/500, HBW10/1000, HBW10/1500, HBW10/3000
Carried Standard : BSEN 6506, ISO 6506, ASTM E10, GB/T231
Test Force Accuracy : 62.5–250 kgf ≤1%, 500–3000 kgf ≤0.5%

Compare Remove
