Microwave Digestion System LMWD-A11

Name: Microwave Digestion System LMWD-A11
Brand: Labtron
SKU: LMWD-A11
Rating: 5 (672 reviews)

Microwave Digestion System LMWD-A11 is designed for smooth operation experience with great value for money and are compact making it ideal virtually for any laboratory setting. It is programmable, easy to use, low maintenance units with an exceptional feature of its outer material which is explosion proof making it safe for users.

Request Quote

Cavity	48 L Resonant Cavity
Teflon Coating	10
Power Output	1600 W
Digestion Method	50 preinstalled methods, programming 100 method
Max. Temperature	305 ℃
Temperature range	- 40°C - 305°
Temperature Accuracy	± 1 ℃
Temperature Sensor	Optical fiber sensor
Running Abnormal Monitoring	Yes
Pressure accuracy	± 0.01 Mpa
Max pressure	80 Mpa
Vessel Pressure Capacity	80 MPa
Vessel Quantity	1 - 12 / batch
Vessel Volume	100 mL
Microwave Cavity	SS316 with 10 layer Teflon
Cooling Method	Forced Air Cooling
Interface	USB RS 232
Wi-Fi Module	Optional
Display	7
Control mode	Touch screen
Power Supply	220 VAC ± 10 % 50 Hz
Detection Of Abnormal Voltage	Yes
Video Monitoring	Yes
Dimensions	520 × 593 × 660 mm
Weight	67 kg

Dense and durable pressure vessels
Multiple safety protection functions including temperature and pressure control, explosion-proof security doors, real-time temperature
Multiple layers of TEFLON coating of the cavity, high-power exhaust system
Uniform sample digestion
Real time pressure and temperature curve with 7” LCD touch screen
Optical fibre temperature control system which avoids sparks and eliminates microwave interference, providing safe and precise digestion temperature control
High power exhaust programme
Double magnetron variable frequency control system: Providing a uniform and accurate microwave field
Easy control of the system due to additional unique Wi-Fi control module

Used in the food, textile, plastic, geology, metallurgy, coal, bio-pharmaceutical, petrochemical, environmental monitoring, wastewater treatment, battery manufacturing, cosmetics and other fields.

Download catalog for
Microwave Digestion System LMWD-A11 Catalog

Available Range :

Microwave Digestion System LMWD-A10 : 48 L Resonant Cavity

Microwave Digestion System LMWD-A10

Cavity : 48 L Resonant Cavity
Teflon Coating : 10
Power Output : 1600 W
Digestion Method : 20 preinstalled methods, programming 50 method

Compare Remove

Microwave Digestion System LMWD-A13

Vessel Quantity : 6 (Batch capacity can extend up to 8 vessels)
Temperature Monitoring System : Full vessel IR temperature control system
Working conditions : 0 to 40 °C, 15 to 80% RH
Temperature Controlling Range : - 40 to 305 °C

Compare Remove

Microwave Digestion System LMWD-C12

Microwave cavity : 65L, 316L stainless steel and outer multi-layer corrosion resistant PFA Teflon spraying.
Microwave Source : 2450 MHz, dual magnetron high-energy emission.
Temperature Control : Real time detection, temperature and curve, display inside dissolving tank: maximum temperature ≥300°C.
Pressure Control : G-pressure monitors, overpressure adjustment, automatic alarm

Compare Remove

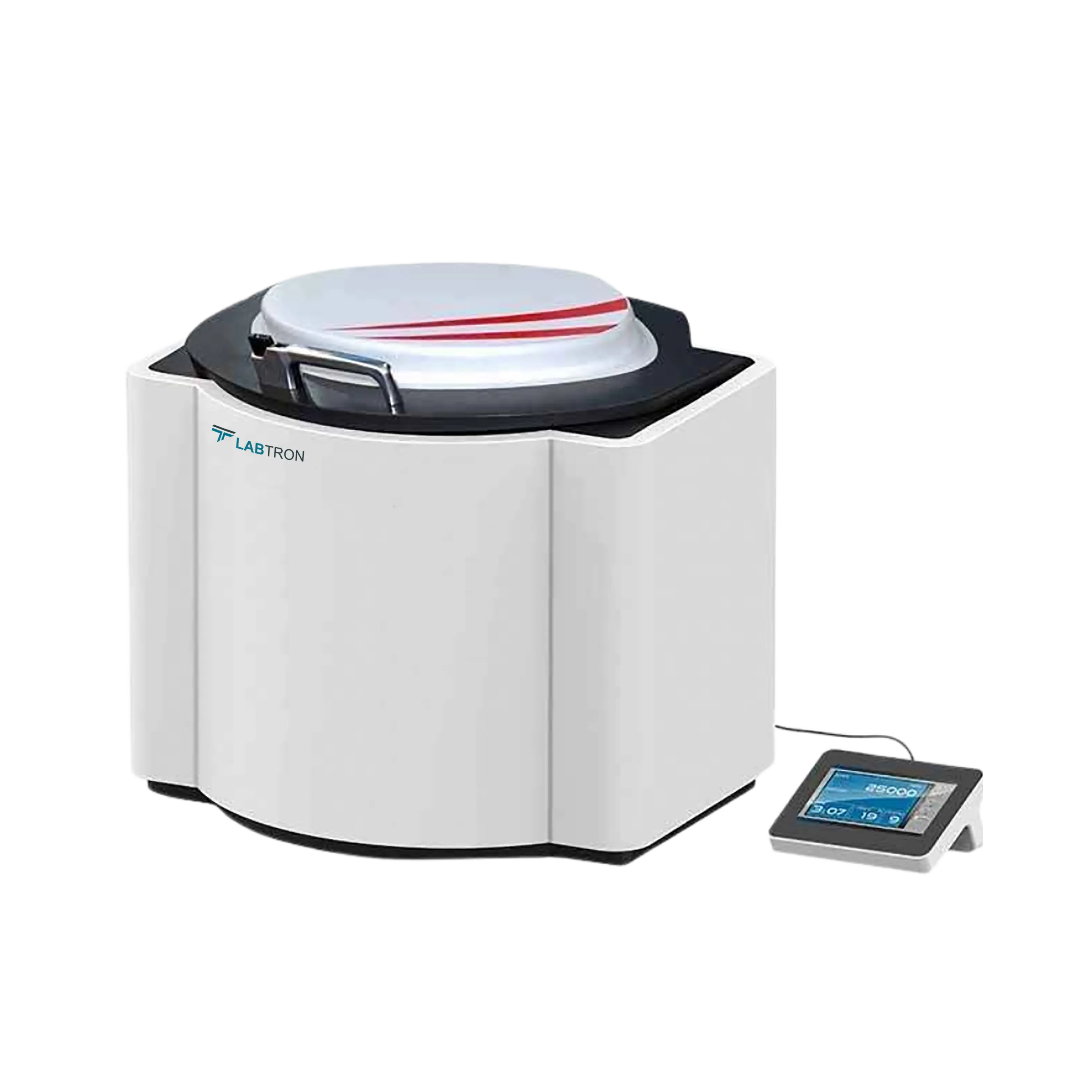

Microwave Digestion System LMWD-B13

Sample quantity : 18 per batch
Chamber volume : 100 ml
Rotation mode : 360° continuous rotation
Microwave power : 0 to 3000 W adjustable

Compare Remove

Microwave Digestion System LMWD-B14

Sample quantity : 40 per batch
Chamber volume : 50 ml
Rotation mode : 360° continuous rotation
Microwave power : 0 to 3000 W adjustable

Compare Remove

Microwave Digestion System LMWD-A20

Vessel Quantity : 6
Temperature Monitoring System : Contactless IR Sensor, scan monitoring for each vessel
Temperature Controlling Range : 50 to 400℃
Display Accuracy : ± 0.1℃

Compare Remove

Microwave Digestion System LMWD-A14

Microwave Source : 2450MHz, Dual magnetron, high-energy emission
Microwave Cavity : 65L, 316L stainless steel with multi-layer PFA Teflon coating
Temperature Control : Dual ZG system, real-time temperature detection, and curve display for all tanks
Pressure Control : G-pressure monitoring automatic overpressure adjustment and alarm (range: 0 to 2000psig)

Compare Remove

Microwave Digestion System LMWD-C10

Microwave cavity : 65L, 316 L stainless steel and outer multi-layer corrosion resistant PFA Teflon spraying.
Microwave Source : 2450 MHz, dual magnetron high-energy emission.
Temperature Control : Real time detection, temperature and curve, display inside dissolving tank: maximum temperature ≥300°C.
Pressure Control : G-pressure monitors, overpressure adjustment, automatic alarm

Compare Remove
