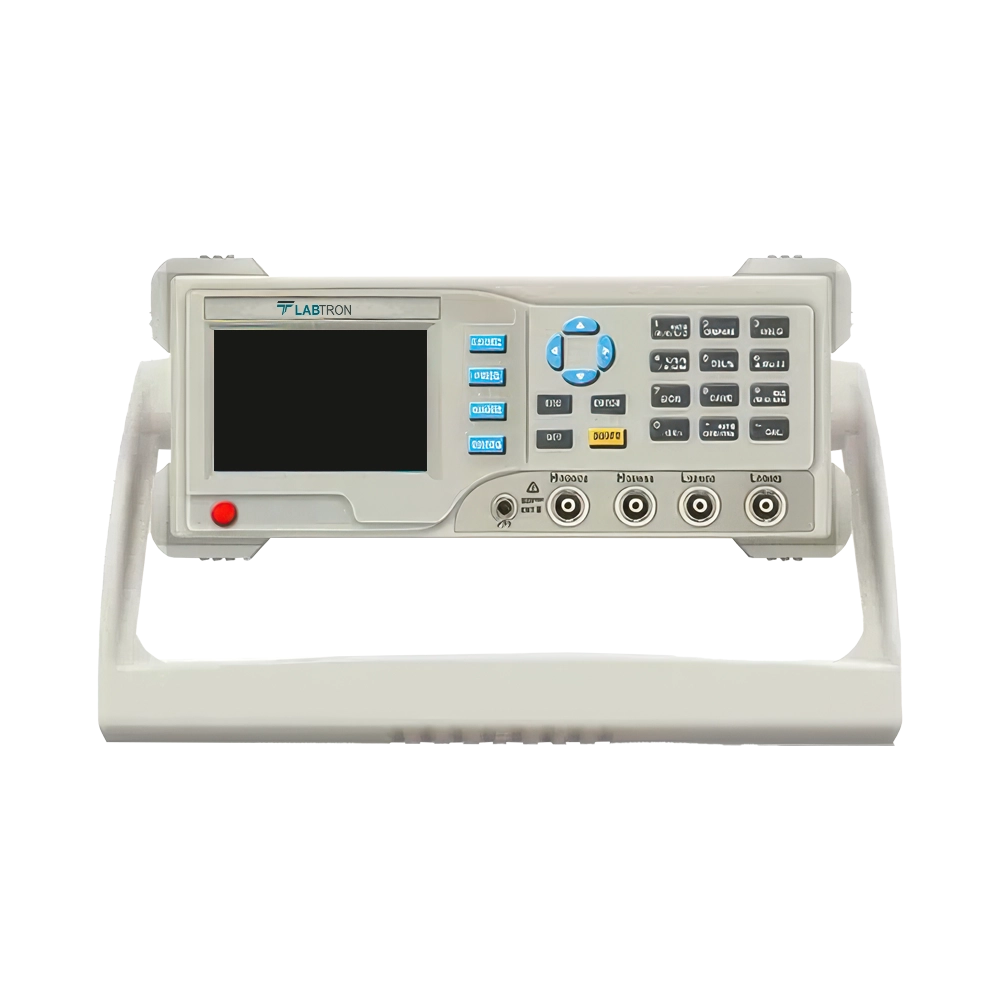

Digital LCR Multimeter LDLM-A10

Name: Digital LCR Multimeter LDLM-A10
Brand: Labtron
SKU: LDLM-A10
Rating: 4.8 (930 reviews)

Digital LCR Multimeter LDLM-A10 features a frequency range of 10 Hz to 100 KHz and 0.2% basic accuracy. It supports DC resistance and electrolytic capacitor testing, providing detailed and accurate analysis. The multimeter has a user-friendly interface, including a 3.5-inch TFT display. Its open circuit and short circuit calibration function ensures precise measurements. Our multimeter with SCPI communication protocol allows easy automation and integration with external systems.

Request Quote

Testing Frequency	10 to 100KHz Continuously adjustable, step of 1 Hz
Display Screen	3.5” TFT LCD screen
Number of Display Digits	Principal parameter: 5 digits Secondary parameter: 5 digits
Measured Parameters	Principal: L/C/R/Z Secondary: X/D/Q/θ/ESR
Inductance Measurement Range	0.001 µH to 9999 H
Capacitance Measurement Range	0.01 pF to 99.999 mF
Resistance Measurement Range	0.0001 Ω to 99.999 MΩ
Measurement Accuracy	0.2%
Measuring Speed	2 times/s (slow) 4 times/s (moderate) 8 times/s (fast)
Bias Voltage Range	0 to 1500 mV
Bias Voltage Stepping	1 mV
Filtering Range	- 50% to + 50%
Fixed Thresholds	1%, 5%, 10%, 20%
Calibration Function	Open circuit calibration, short circuit calibration
Interfaces	Standard: RS232 (or 485), USB Device, Handle Optional: GPIB, USB Host
Dimensions	370 × 360 × 230 mm
Net Weight	3.3 kg
Gross Weight	6.5 kg

Multiple communication interfaces
Data recording function
Adjustable internal bias voltage
Comparator separation
Alarm function
Compact design

Digital LCR Multimeter LDLM-A10 is widely used in R&D, quality control, and production line testing to accurately measure and analyze electronic components.

Kelvin test clamp

Power cord

RS323 cable

USB cable

Handler cable
