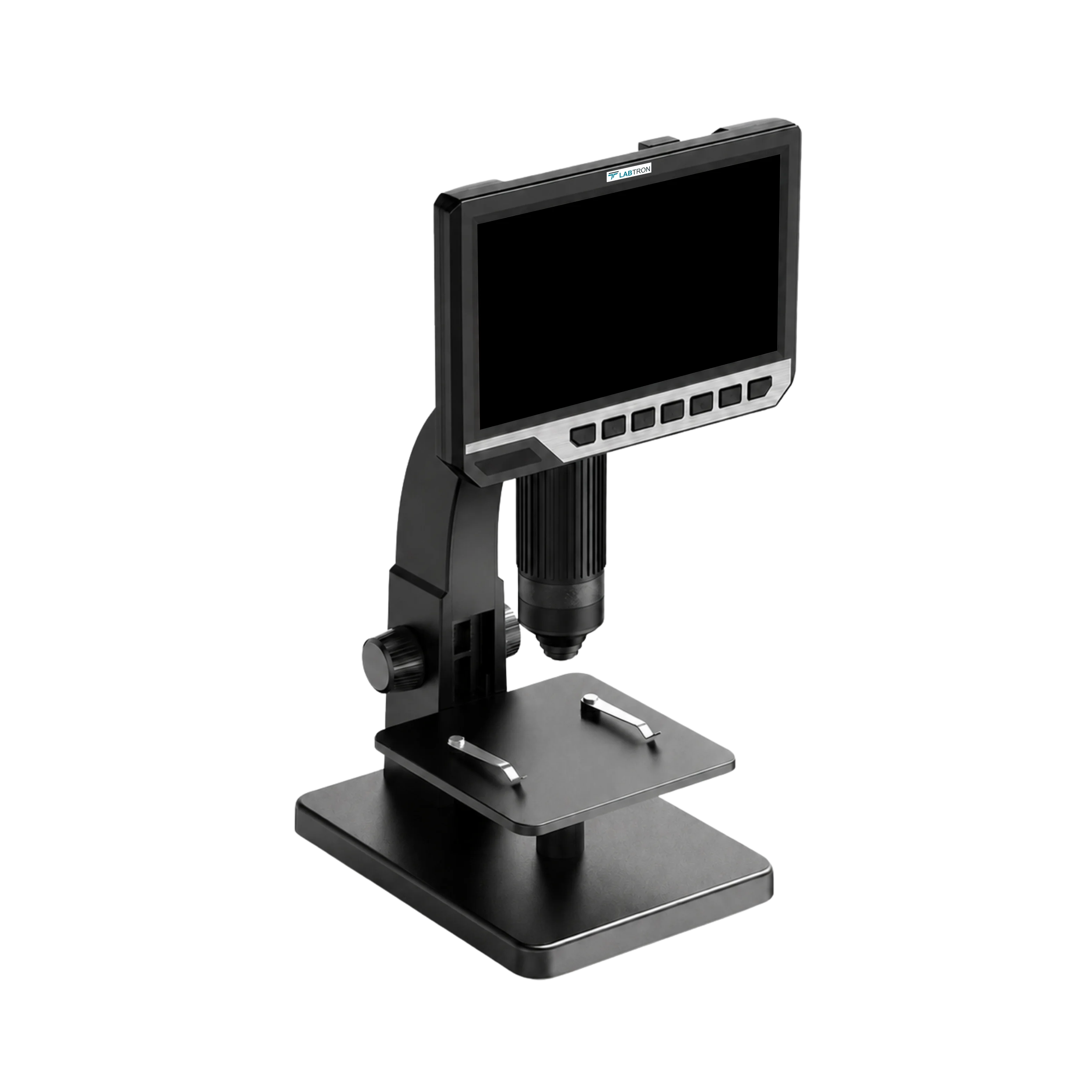

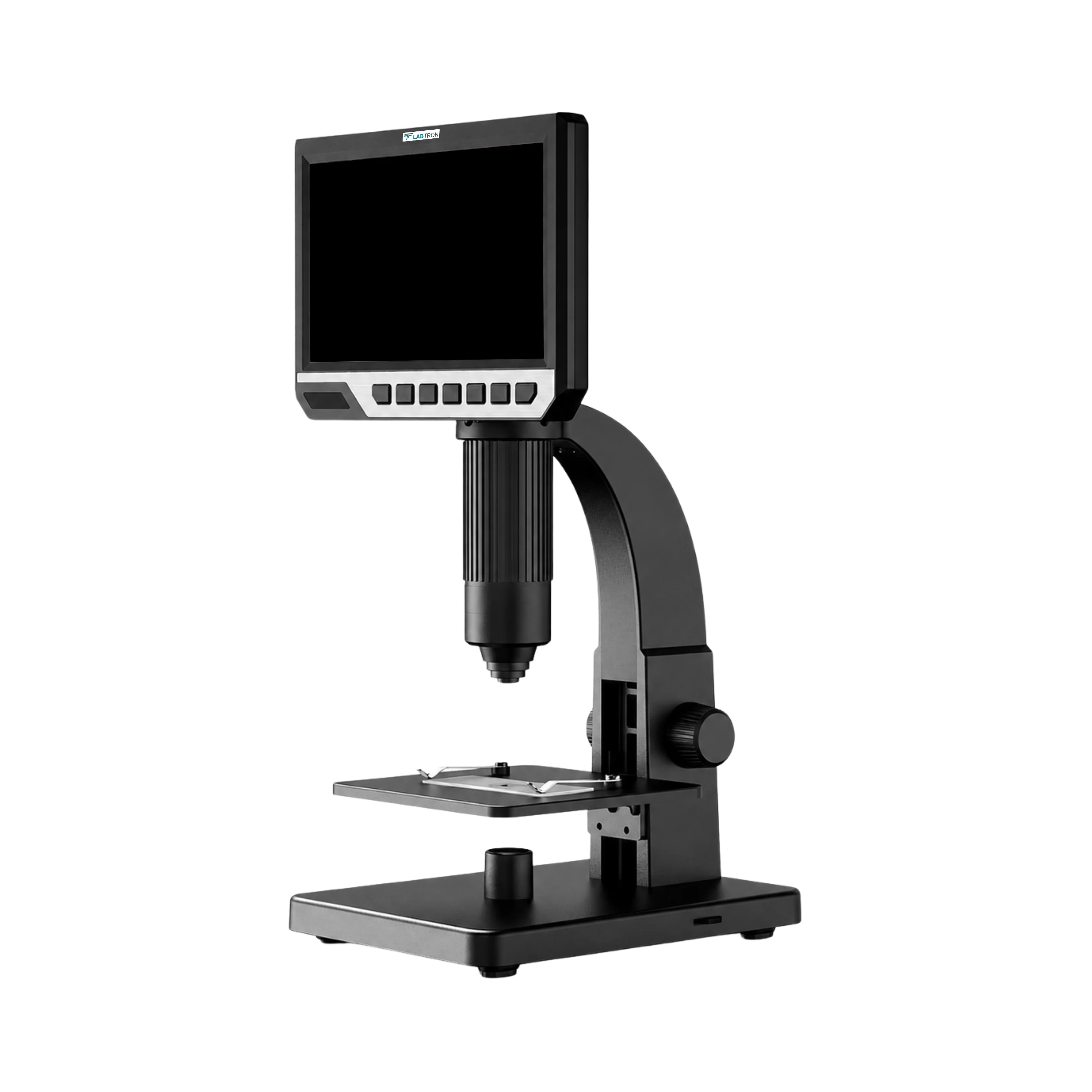

Digital Microscope LDM-G10

Digital Microscope LDM-G10

Digital Microscope LDM-G10 provides 2000X magnification with 1200W pixels for high-definition imaging. It features a 7-inch IPS display for clear viewing of magnified subjects. It is equipped with bright LED lights for enhanced visualization. A Micro TF card slot allows easy storage of images and videos via microSD. This versatile microscope is easy to handle and ideal for a wide range of laboratory applications.

Request Quote
Pixel 1200W pixels
Magnification 2000X
Display Screen 7-inch IPS HD display
Working Height 0 to 60mm
Focus Mode Manual focus
Knob Focus Range 2mm to 55mm
Picture Resolution 4032 × 3024P
Video Resolution 1920 × 1080p
Data Format JPG/MOV
Light Source 10 bright LED lights + 1 super bright LED light
Brightness adjustable
Operating System Windows XP, Vista, Win7/8/10, Mac 10.5 or above
Working Time 2 hours
Charging Time 3.5 hours
Language Multiple
Power Supply 18650 lithium battery 3.7V/2600mAh
Dimension 290 × 250 × 170 mm
Weight 1.55 Kg
  • Micro USB socket to connect with the PC
  • A focus adjustment roller for manual adjustment
  • Multiple language interface
  • Removable lens for varying magnification
  • Image adjustment wheel for image setting

Our digital microscope is widely used in research labs, hospitals, and industries to view and study opaque, translucent, and temperature-sensitive objects on LCD screens.

Low Multiple Lens × 1 piece High Multiple Lens × 1 piece Slide × 2 pieces Data Cable × 2 pieces Cleaning Cloth × 1 piece Wired Remote Control × 1 piece Packing Box × 1 piece

Digital Microscope LDM-G10 | Pixel: 1200W pixels | Magnification: 2000X
Digital Microscope LDM-G10 | Removable lens for varying magnification | Multiple language interface

Models of Digital Microscope

Labtron Digital Microscope is specialized to combine traditional microscopy with digital imaging technology. They feature camera allowing for real-time capture and display of magnified images on computer or screen. Their LED illumination provides bright, even lighting, enhancing visibility of tiny structures and details. They feature adjustable magnification settings, allowing users to zoom in on specific areas of interest. Our Digital Microscope is versatile in for art restoration, entomology, jewelry inspection and forensics.

Digital Microscope LDM-C10

Digital Microscope LDM-C10

  • Viewing head : Compensation free binocular head inclined at 30° , interpupillary distance 48 -75 mm Range of viewing field: 90%
  • Eyepiece : WF10X/18 mm
  • Objectives : Achromatic objective: 4x, 10x, 40x(s), 100x(s, oil)
  • Stage : Double layer mechanical stage: 132×142 mmMoving range: 75×40 mm
Digital Microscope LDM-B10

Digital Microscope LDM-B10

  • Viewing head : Binocular head, inclined at 20° , interpupillary distance 55-75 mm
  • Eyepiece : EW10X/ Ø22 mm
  • Objectives : Plan achromatic objective: 1x Zoom objectives: 0.8x-5x with 1:6 zoom ratio
  • Stage : working distance: 78 mm
3D Digital Microscope LDM-F10

3D Digital Microscope LDM-F10

  • Zoom Rate : 20X to 7500X
  • Image Sensor : 1/1.7-inch Sony 12MP 4K CMOS camera
  • Pixel Size : 0.5 µm
  • Image Resolution : Maximum single-shot resolution: 16000 × 12000
Digital Microscope LDM-E10
Digital Microscope LDM-E10
  • Optical system : Plan achromatic, optical system
  • Observation : Brightfield
  • Viewing head : Binocular/ trinocular head, inclined at 30º, rotating at 360⁰, Adjustable interpupillary distance 50 to 75 mm, Diopter adjustment on left eyepiece
  • Eyepiece : WF 10X/18
Digital Microscope LDM-B11
Digital Microscope LDM-B11
  • Viewing head : Binocular head, inclined at 20º , interpupillary distance 55-75 mm
  • Eyepiece : EW10X/ Ø22 mm
  • Objectives : Plan achromatic objective: 1x Zoom objectives: 0.8x-6.4x with 1:8 zoom ratio
  • Stage : working distance: 78 mm
Digital Microscope LDM-D10

Digital Microscope LDM-D10

  • Viewing Head : Compensation-free trinocular, 30° inclined
  • Interpupillary Distance : 48 to 75 mm
  • Optical System : Color Corrected Infinity System (CCIS)
  • Eyepieces : Pair of WF10X/22mm, high eyepoint, widefield
Digital Microscope LDM-B12

Digital Microscope LDM-B12

  • Viewing head : Binocular head, inclined at 20º , interpupillary distance 55-75 mm
  • Eyepiece : EW10X/ Ø22 mm
  • Objectives : Plan achromatic objective: 1x Zoom objectives: 0.8x-8x with 1:10 zoom ratio
  • Stage : working distance: 78 mm
Digital Microscope LDM-B13

Digital Microscope LDM-B13

  • Viewing head : 45° inclined and 360° rotable trinocular head, interpupillary distance 55-75 mm
  • Eyepiece : WF10X/ 22 mm
  • Objectives : Zoom objectives: 0.67x-4.5xZoom ratio: 1:6.7Magnification: 6.7x-45x
  • Stage : Working distance: 105 mm

Digital Microscope:
Digital Microscope LDM-C10, Digital Microscope LDM-B10, 3D Digital Microscope LDM-F10, Digital Microscope LDM-E10, Digital Microscope LDM-B11, Digital Microscope LDM-D10, Digital Microscope LDM-B12, Digital Microscope LDM-B13, and more.
