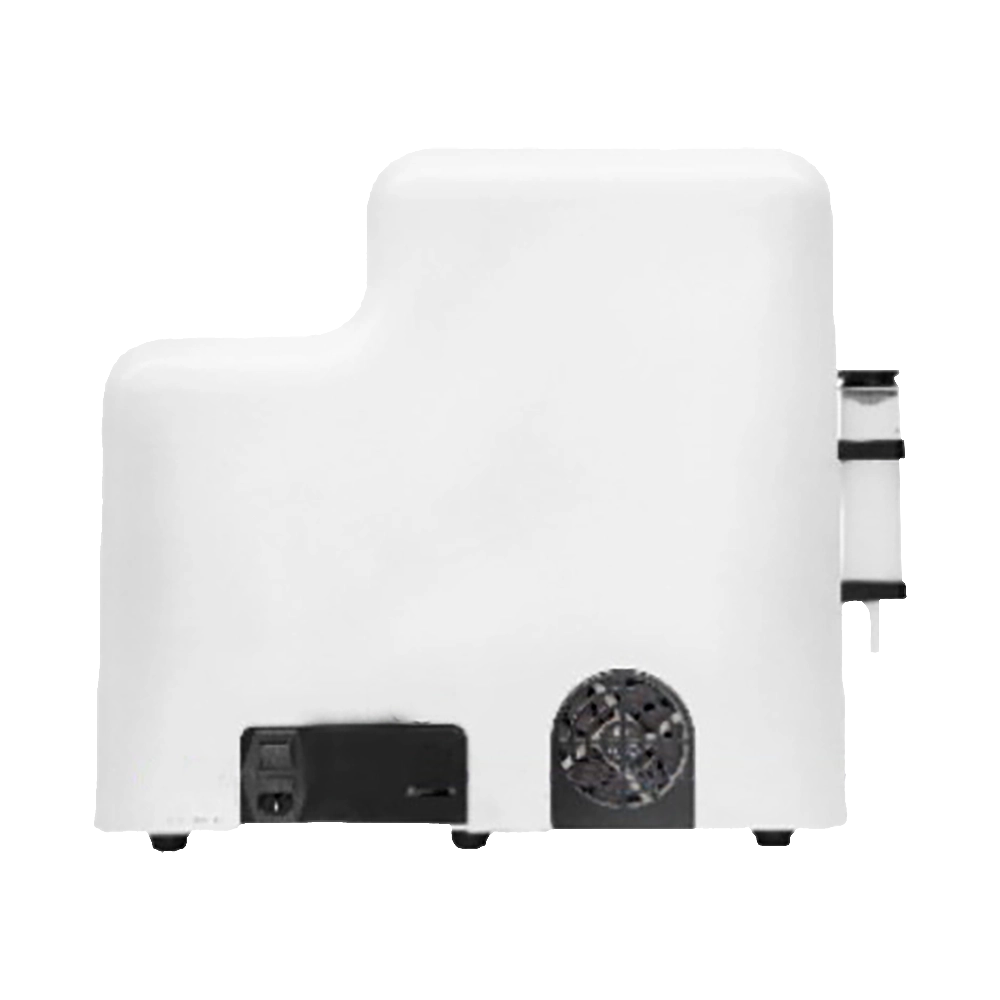

Digital Pathology Slide Scanner LDPS-A10

Name: Digital Pathology Slide Scanner LDPS-A10
Brand: Labtron
SKU: LDPS-A10
Rating: 4.8 (969 reviews)

Digital Pathology Slide Scanner LDPS-A10 offers 20x and 40x magnification in ≤40s and ≤90s scanning time ensuring rapid imaging workflows. Its advanced autofocus ensures consistently sharp and clear slide imaging every time. The integrated barcode reader streamlines sample tracking and enhances workflow efficiency. Efficient slide-loading mechanism minimizes preparation time, allowing for increased productivity. Our scanner supports high-throughput scanning, providing flexibility in handling both routine and complex pathology tasks with ease.

Request Quote

Scanning Capacity	1
Objective	20x NA0.8 40x NA0.95 (100× oil system optional)
Scanning Area	15×15 mm
Scanning Time	20x ≤40s 40x ≤90s
Resolution	20x: 0.24 µm/pixel 40x: 0.12 µm/pixel
Slide Size	1×3 inch (25 mm × 75 mm)
Camera	Large array CMOS; Pixels ≥ 5 million
Focus Axis Control	Dual-stage focusing technology: - Pre-focusing repeatability accuracy ≤ 1.0 μm - Fine focusing repeatability accuracy ≤ 10 nm
Scan Mode	Single/multi-layer scanning (maximum 15 layers)
Loading Method	Fully automatic slide loading
Identifiable Code System	Barcodes and QR codes
Product Dimension (L×W×H)	538×398×503 mm
Packaging dimension (L×W×H)	2030×1500×1470 mm
Net Weight	42kg
Gross Weight	253kg

Area array scanning technology
Auto focus recognition system
High-speed imaging scanning
Dual-stage focus control
One-click automated scanning
Tissue area auto identification
Slice label recognition support
Real-time scanning process display
Fluorescence imaging compatibility support

Our Digital Pathology Slide Scanner LDPS-A10 facilitates high-resolution imaging for diagnostic accuracy in pathology workflows. Ideal for clinical, laboratory, and research environments, it ensures efficiency and precision in slide digitization.

Download catalog for
Digital Pathology Slide Scanner LDPS-A10 Catalog

Download manual for
Digital Pathology Slide Scanner LDPS-A10 Manual

Available Range :

Digital Pathology Slide Scanner LDPS-A10 : 1 Digital Pathology Slide Scanner LDPS-A17 : 1 slide Digital Pathology Slide Scanner LDPS-A11 : 12 Digital Pathology Slide Scanner LDPS-A16 : 120 Digital Pathology Slide Scanner LDPS-A13 : 20 Digital Pathology Slide Scanner LDPS-A14 : 40 Digital Pathology Slide Scanner LDPS-A15 : 60

Models of Digital Pathology Slide Scanner

Labtron offers a range of digital pathology slide scanners designed to digitize glass slides containing tissue specimens. They have high-resolution CMOS sensors that achieve rapid scanning times. The dynamic pre-focusing system adjusts the lens in real time, optimizing focus points for clear slide images. Their Z-Stack extended focus captures 3D digitized images of specimens like cell clumps and thick tissues. Our digital pathology slide scanners automatically recognize different slide types, making them ideal for histopathology and more.
