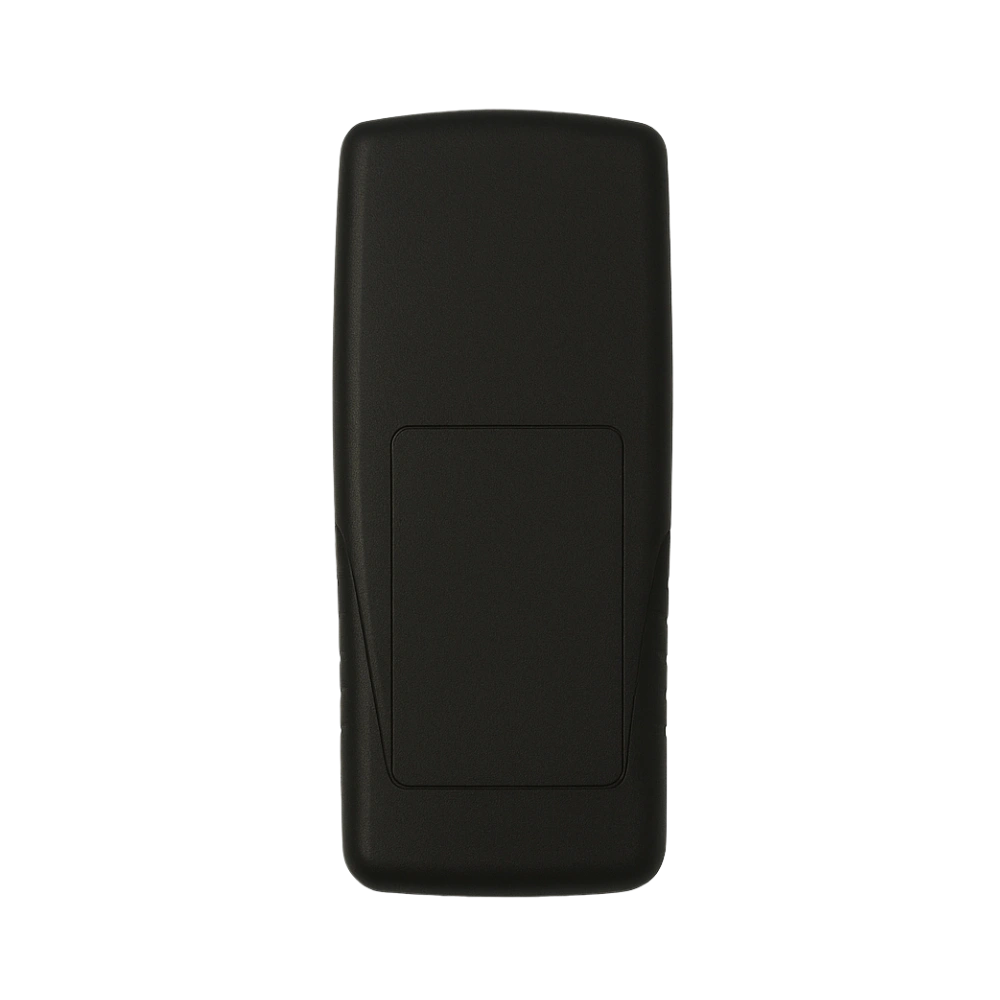

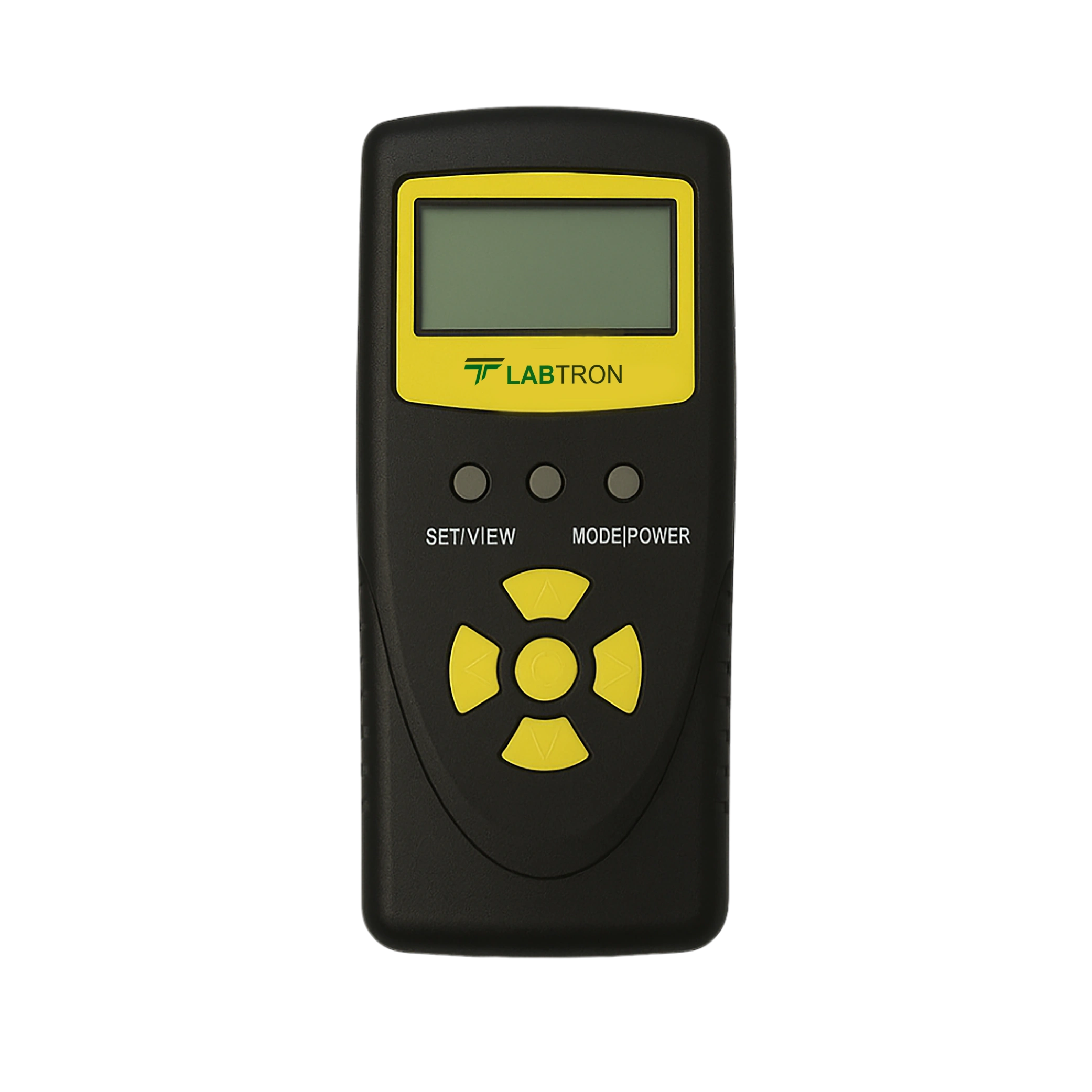

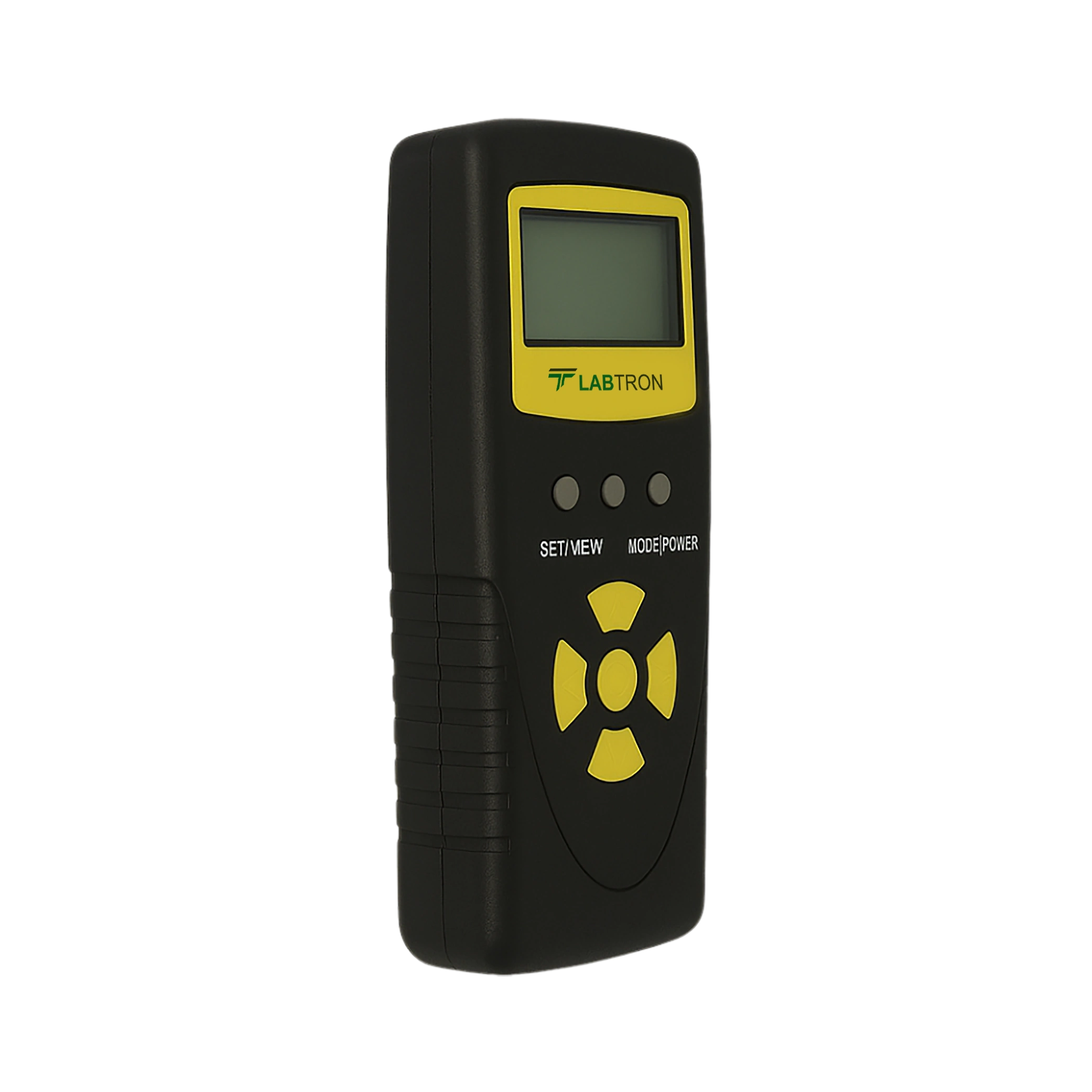

Dosimeter (α, β, γ) LDSM-B10

Name: Dosimeter (α, β, γ) LDSM-B10
Brand: Labtron
SKU: LDSM-B10
Rating: 4.7 (745 reviews)

Dosimeter (α, β, γ) LDSM-B10 is a portable surface contamination monitor with waterproof portable case having 40 °C to 50°C temperature range and 2 kinds of measurement ranges like Counting rate up to 0 to 500000 CPM, 0 to 8000 CPS where as Radiation dose rate up to 0.01 to 10000 u Sv/h, 4 alarm models programing system. Features pancake GM tube detector with detection efficiency of Sr-90 and Am-241. Instrument will see alpha, beta, and gamma radiation. It is applicable for Nuclear power station, environmental protection bureau etc.

Request Quote

Temperature Range	40 °C to 50°C
Measurement Ranges	Counting rate: 0 to 500000 CPM, 0 to 8000 CPS Radiation dose rate: 0.01 to 10000 u Sv/h
Energy Ranges	25 KeV to 7 MeV
Display Unit	CPM, CPS, Bq/cm², μ Gy/h ,μ Sv/h
Detector	Pancake GM tube. Φ : 45 mm
Detection Efficiency	Sr - 90(546 KeV, 2.3 MeV βmax) about 75% Am - 241(5.5MeV α) about 36%
Sensitivity	3500 CPM/ mR /h(according to Cs-137)
Humidity	≤ 85% RH
Power	Two AA size battery
Internal Dimension	160 × 85 × 38 mm
External Dimension	260 × 206 × 126 mm
Net Weight	0.5 kg
Gross weight	0.9 kg

LED backlight display
Pancake GM tube Detector
2 AA size battery
4 alarm models programing system with Audio and shake alarm of exceeded programmed threshold levels
Display unit: CPM ,CPS, Bq/cm²,μGy/h, μ Sv/h

Dosimeter (alpha, beta, gamma) useful in nuclear power station and other radioactive area, Environmental protection bureau, public health bureau, inspection and quarantine bureau, radiology department of hospital, radio action laboratory and Radiation in industrial radiation accelerator and gamma radiation in industrial

Download catalog for
Dosimeter (α, β, γ) LDSM-B10 Catalog

Available Range :

Dosimeter (β And γ) LDSM-A10 : -20°С to +50°С Dosimeter (α, β, γ) LDSM-B10 : 40 °C to 50°C

Models of Dosimeter

Labtron Dosimeter can detect a wide range of radiation types, including gamma, X-ray, beta, and neutron radiation. These are equipped with advanced sensors to provide accurate radiation measurements. Their simplified controls coupled with a user-friendly display ensure effortless navigation. With its compact and portable design, our Dosimeter is easy to carry. They feature built-in data logging capabilities, enabling users to store and retrieve radiation measurement data.

Dosimeter(X,γ) LDSM-D10

Detector Type : Scintillation crystal + SiPM
Measurement Range : 0.01 μSv/h to 100 mSv/h
Energy Range : 35 keV to 3 MeV
Relative Inherent Error : ≤ ±15%

Compare Remove

Dosimeter (x, γ And β) LDSM-C10

Operation Temperature : -10°C to 45°C
Operation Humidity : ≤ 95% ( +45°C)
Dose rate range : 0.01 to 1000 Svh Maximum 10 mSv/h
Cumulative dose : 0.01 usv/h to 500.0 msv

Compare Remove

Dosimeter (x, γ And β) LDSM-C11

Operation Temperature : -10°C to 50°C
Measurement Ranges : 0.01μSv/h to 10mSv/h
Energy Ranges : 48KeV to 3MeV
Sensitivity : 1.5CPS/μSv/h (compared with 137Cs)

Compare Remove

Dosimeter (β And γ) LDSM-A10

Temperature Range : -20°С to +50°С
Measurement Ranges : dose equivalent rate (137 Cs): 0.01 μ Sv/h to 10 m Sv/hdose equivalent (137 Cs): 0.01 u Sv to 9999 Sv
Energy Ranges : X and Gamma radiation: 40 KeV to 3.0 MeVBeta radiation: 0.5 to 3.0 MeV
Display Unit : Dose rate: µ Sv/h, m Sv/h, Sv/h automatic conversionDose: µ Sv, m Sv, Sv automatic conversion

Compare Remove

Dosimeter:
Dosimeter(X,γ) LDSM-D10, Dosimeter (x, γ And β) LDSM-C10, Dosimeter (x, γ And β) LDSM-C11, Dosimeter (β And γ) LDSM-A10, and more.
