Drug Stability Chamber With Illumination LDST-B22

Drug Stability Chamber With Illumination LDST-B22

Drug Stability Chamber with Illumination LDST-B22 supports temperature range of 10 to 60℃ under light exposure. Equipped with JAKEL fan and duct system for consistent internal temperatures. Temperature-limiting alarm system ensures safe and reliable experimental operation. Supports user-defined timing control from 1 to 99 hours per test. Ideal for stability and potency studies of biologics and temperature-sensitive formulations.

Drug Stability Chamber with Illumination LDST-B22 Front View

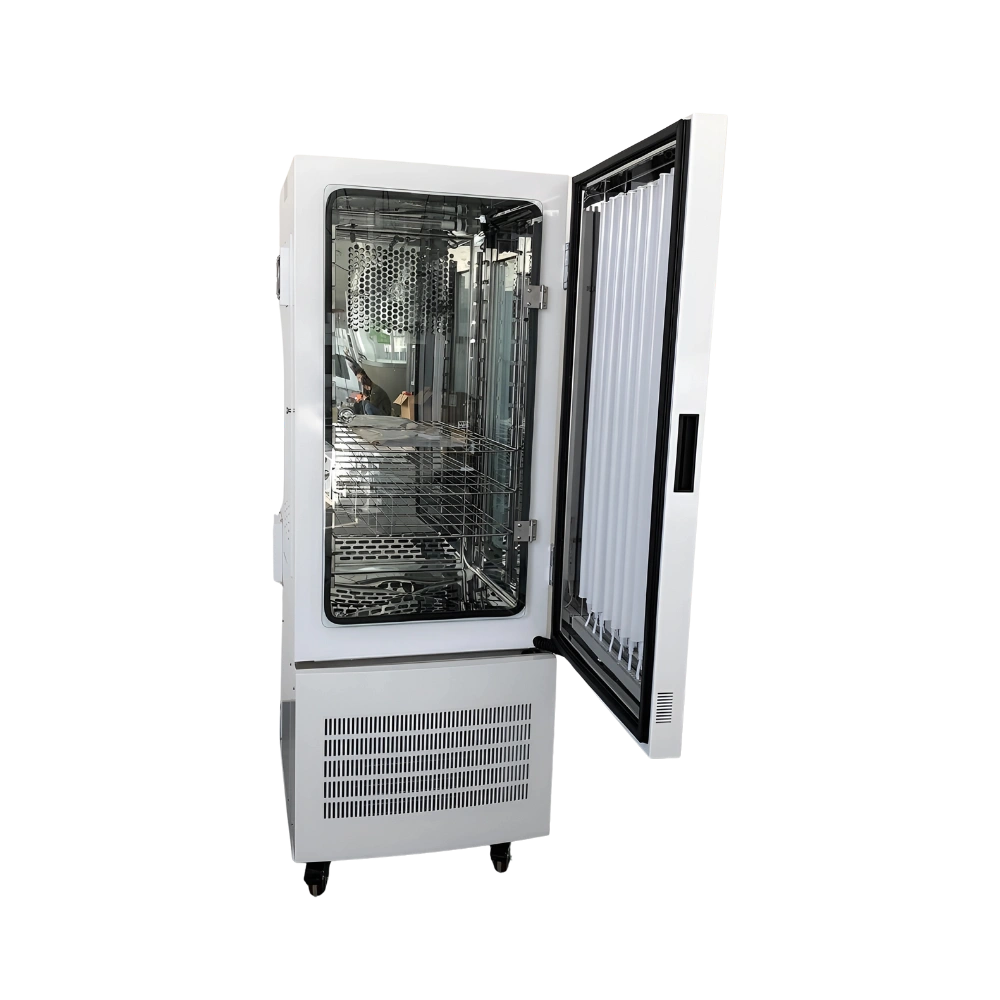

Drug Stability Chamber with Illumination LDST-B22_Chamber View
Drug Stability Chamber With Illumination LDST-B22 | Video
Request Quote
Volume 800L
Temperature Range 10 to 60℃ with light
Temperature Fluctuation ±0.5℃
Temperature Uniformity ±2℃
Operating Temperature 5 to 30℃
Humidity Range 30 to 95% RH
Humidity Stability ±3% RH
Timing Range 1 to 99 hours/period
Shelves (Std/Max) 3/10
Light Intensity 0 to 6000 LX (step control)
Power Consumption 4000W
Power Supply AC 220V±10%, 50HZ
Chamber Size 965mm x 610mm x 1370mm
Exterior Size 1100mm x 930mm x 2270mm
  • Multi-stage Programming
  • PID Controlled Regulation
  • Durable Anti-rust Chamber
  • Flexible Shelf Positioning
  • Built-in Leak Protection

Our Drug Stability Chamber with Illumination LDST-B22, is ideally used in pharmaceutical and biotechnology industry for stability and potency studies of biologics and temperature-sensitive formulations.

Drug Stability Chamber with Illumination LDST-B22 | Temperature Fluctuation : ±0.5℃ | Shelves(Std/Max) : 3/10
Drug Stability Chamber with Illumination LDST-B22 | Multi-stage Programing | PID Controlled Rgulation


Models of Drug Test Chamber

Labtron Drug Test Chamber features a highly advanced temperature and humidity touch screen controller, allowing precise adjustments and easy operation. These inner chambers are made of acid- and corrosion-resistant mirrors, ensuring durability and long-term use. Their high-quality door sealing strips and insulation materials provide excellent thermal efficiency and prevent leakage. They have a system that adopts automatic filling and a standard water pump for a reliable water supply. Our drug test chamber has included a water level automatic compensation and water shortage alarming system, ensuring continuous operation and safety.

Drug Stability Test Chamber LDST-A10

Drug Stability Test Chamber LDST-A10

  • Volume : 150 L
  • Temperature Range : 0 - 65 °C
  • Temperature Fluctuation : ± 0.5 °C
  • Temperature Control Precision : 0.1 °C
Drug Stability Chamber With Illumination LDST-B17

Drug Stability Chamber With Illumination LDST-B17

  • Chamber Volume : 1075L
  • Temperature Range : 10 to 60℃ with light 4 to 60℃ without light
  • Temperature Fluctuation : ±0.5℃
  • Temperature Uniformity : ±2℃
Drug Stability Chamber with Illumination LDST-B12

Drug Stability Chamber with Illumination LDST-B12

  • Volume : 500 L
  • Temperature Range(without illumination) : 0 - 65 °C
  • Temperature Range(with illumination) : 10 °C - 65°C
  • Temperature Fluctuation : ± 0.5 °C
Drug Stability Test Chamber LDST-A12
Drug Stability Test Chamber LDST-A12
  • Volume : 500 L
  • Temperature Range : 0 - 65 °C
  • Temperature Fluctuation : ± 0.5 °C
  • Temperature Control Precision : 0.1 °C
Drug Stability Test Chamber LDST-A20
Drug Stability Test Chamber LDST-A20
  • Interior Volume : 100 L
  • Heat load : 1000 W
  • Temperature Range : 0℃ to 100 ℃
  • Temperature Deviation in time : ± 2.0 ℃
Drug Stability Chamber With Illumination LDST-B20

Drug Stability Chamber With Illumination LDST-B20

  • Volume : 375L
  • Temperature Range : 10 to 60℃ with light
  • Temperature Fluctuation : ±0.5℃
  • Temperature Uniformity : ±2℃
Drug Stability Test Chamber LDST-A30

Drug Stability Test Chamber LDST-A30

  • Chamber Volume : 375L
  • Temperature Range : 0 to 60℃
  • Temperature Fluctuation : ±0.5℃
  • Temperature Uniformity : ±2℃
Drug Stability Test Chamber LDST-A11

Drug Stability Test Chamber LDST-A11

  • Volume : 250 L
  • Temperature Range : 0 - 65 °C
  • Temperature Fluctuation : ± 0.5 °C
  • Temperature Control Precision : 0.1 °C

Drug Stability Chamber With Illumination LDST-B22 FAQ's
  • With an 800L chamber volume and up to 10 adjustable shelves, the LDST-B22 accommodates a large number of samples efficiently. Its spacious design and flexible shelf positioning allow optimized storage and organization of test materials.

  • Yes, the chamber supports multi-stage programming with user-defined timing control ranging from 1 to 99 hours per test period. This flexibility makes it suitable for complex and extended stability testing requirements.

  • Labtron’s Drug Stability Chamber with Illumination LDST-B22 is designed for conducting stability and potency studies of biologics and temperature-sensitive pharmaceutical formulations. It simulates controlled temperature, humidity, and light conditions, making it ideal for shelf-life analysis, photostability testing, and degradation profile evaluation in accordance with ICH guidelines.

  • Labtron’s Drug Stability Chamber with Illumination LDST-B22 supports a temperature range of 10 to 60degree Celsius under light exposure and 4 to 60degree Celsius without light. It is suitable for both illuminated and dark testing conditions, meeting the needs of various pharmaceutical stability protocols.

  • Labtron’s Drug Stability Chamber with Illumination LDST-B22 is equipped with a JAKEL circulation fan and an optimized duct system to ensure consistent temperature distribution throughout the chamber. This design guarantees uniform environmental conditions, which are crucial for accurate and repeatable test results.

  • Labtron’s Drug Stability Chamber with Illumination LDST-B22 features a temperature-limiting alarm system that automatically halts operation and alerts the user if the temperature exceeds preset limits. Additionally, it includes built-in leak protection and a durable anti-corrosive chamber for long-term, reliable use.
