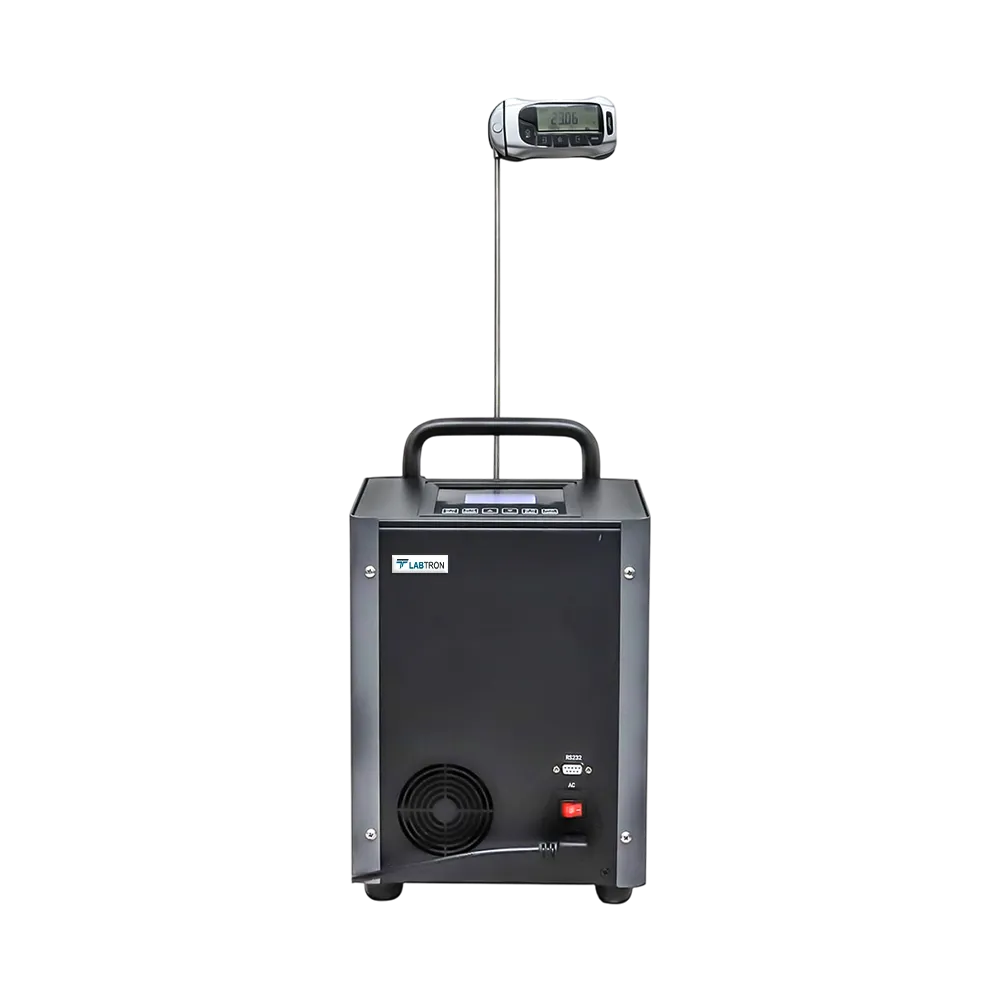

Portable Dry-Block Temperature Calibrator LPDTC-A11

Name: Portable Dry-Block Temperature Calibrator LPDTC-A11
Brand: Labtron
SKU: LPDTC-A11
Rating: 4.8 (813 reviews)

Portable Dry-Block Temperature Calibrator LPDTC-A11 delivers a temperature range from 33°C to 660°C. It features a display resolution of 0.001°C for precise measurements. Integrated temperature unit options include °C, °F, and K for versatile measurement. Our Portable Dry-Block Temperature Calibrator offers standard block insertions of Ø6, Ø8, and Ø10 mm with customization options, along with RS232 communication for easy data connectivity.

Request Quote

Temperature Range	33 to 660 ℃
Display Resolution	0.001 ℃
Temperature Units	⁰C, ⁰F, K
Temperature Deviation	±0.5℃
Temperature Stabilization Time	10 Minutes
Insert Depth	170 Mm
Outside Diameter of Soaking Block	Ø25 Mm
Standard Block Insertion	Ø6, Ø8, Ø10mm/ Customized
Temperature Fluctuation	±0.03℃/15min
Radial Uniformity For Dry Block	≤0.05℃
Axial Uniformity For Dry Block	≤0.5℃
Operating Temperature	0 to 50℃
Communication	RS232
Power Consumption	1.2 Kw
Power Supply	220 VAC 50HZ
Product Dimension	300 × 175 × 380 mm
Packaging Dimension	480 × 440 × 540 mm
Net Weight	14 kg
Gross Weight	20 kg

Multi-Signal Measurement
Switch Signal Testing
Dual-Channel Operation
Large Screen Display

Our Portable Dry-Block Temperature Calibrator LPDTC-A11 is widely used in calibration laboratories, industrial process control, power plants, pharmaceuticals, and HVAC systems for accurate temperature sensor and transmitter calibration.

Power Adaptor
Test Leads
Soaking Block Picking Tool

Download catalog for
Portable Dry-Block Temperature Calibrator LPDTC-A11 Catalog

Available Range :

Portable Dry-Block Temperature Calibrator LPDTC-A10 : -25°C to 150°C Portable Dry-Block Temperature Calibrator LPDTC-A11 : 33 to 660 ℃

Models of Dry-Block Temperature Calibrator

Labtron Dry-Block Temperature Calibrators provide a stable and uniform heat source for sensor testing. These devices feature digital controls with rapid heating and cooling for efficient operation. Their large display offers clear, easily readable measurements to enhance usability. They include replaceable soaking blocks, allowing flexibility for different sensor types. Our calibrators are suitable for laboratories, industrial environments, and on-site verification tasks requiring consistent thermal control.
