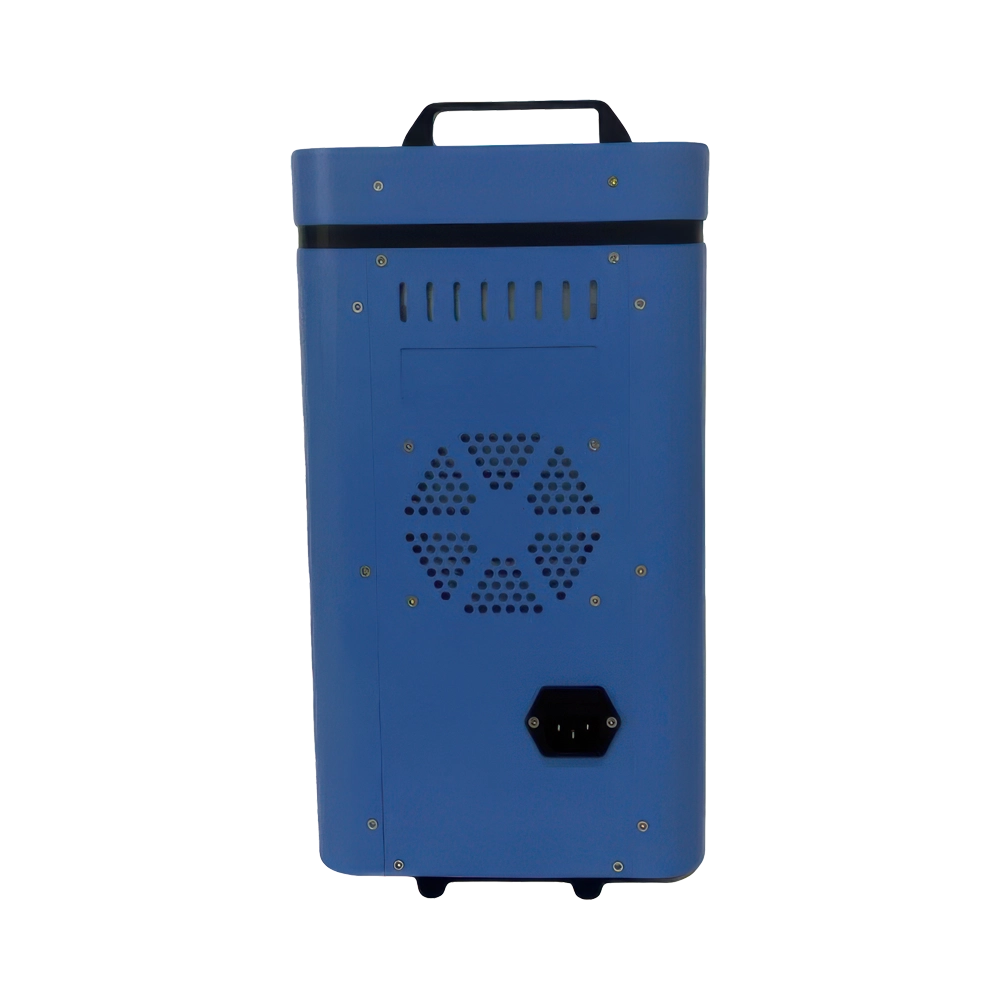

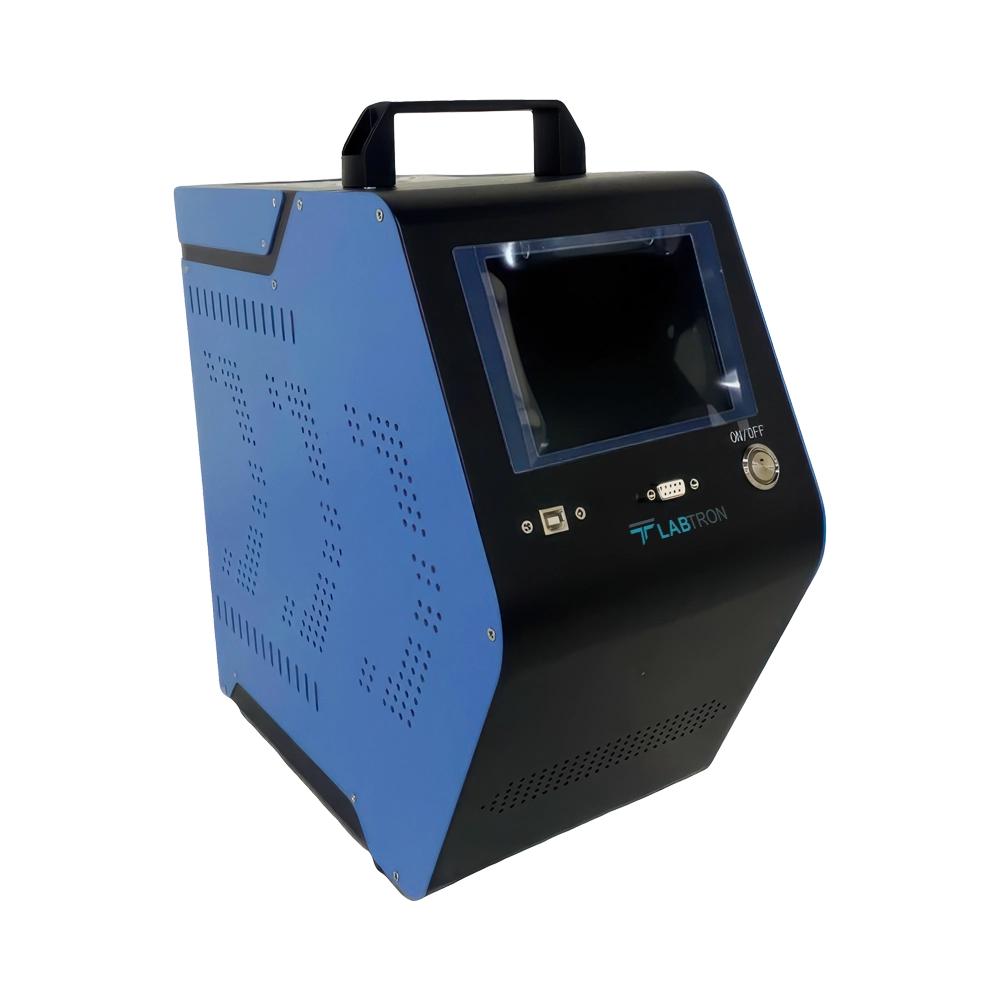

Portable Dry-Block Temperature Calibrator LPDTC-A10

Name: Portable Dry-Block Temperature Calibrator LPDTC-A10
Brand: Labtron
SKU: LPDTC-A10
Rating: 4.9 (604 reviews)

Portable Dry-Block Temperature Calibrator LPDTC-A10 operates within a range of -25°C to 150°C for accurate calibration. It maintains temperature stability of ≤±0.05°C per 15 minutes, ensuring consistent performance. A 150mm insertion depth allows sufficient immersion for sensor calibration. The digital control system enables rapid heating and cooling adjustments for efficient operation. Its compact, lightweight design makes it ideal for on-site calibration in laboratories and industries.

Request Quote

Temperature Range	-25°C to 150°C
Display Resolution	0.01°C (optional 0.001°C)
Temperature Deviation Accuracy	±0.1°C
Temperature Stability	equal to or less than ±0.05°C/15min
Horizontal Temperature Uniformity	equal to or less than ±0.1°C
Vertical Temperature Uniformity	equal to or less than 0.5°C
Insertion Depth	150mm (customizable)
Soaking Block Aperture	Standard 5 holes (Ø4, Ø6, Ø6, Ø8, Ø10)mm (customizable)
Outer Diameter of Soaking Block	Ø30mm
Power	500W
Power Supply	220VAC; 50Hz
Overall Dimensions	365×190×400 mm
Weight	8.5kg

High-brightness backlit display
Uniform heat distribution
Replaceable soaking blocks for flexibility
Overheat and safety protection system
Low power consumption
Multi-sensor compatibility support
Integrates with external calibration software
Top-mounted handle for easy carrying

Our Portable Dry-Block Temperature Calibrator LPDTC-A10 ensures precise calibration of thermocouples, resistance thermometers, and temperature transmitters. Ideal for industrial, research, and metrology applications, its portable design enables on-site calibration.

Soaking Block Handle
Soaking Block
Power Cable

Download catalog for
Portable Dry-Block Temperature Calibrator LPDTC-A10 Catalog

Available Range :

Portable Dry-Block Temperature Calibrator LPDTC-A10 : -25°C to 150°C Portable Dry-Block Temperature Calibrator LPDTC-A11 : 33 to 660 ℃

Models of Dry-Block Temperature Calibrator

Labtron Dry-Block Temperature Calibrators provide a stable and uniform heat source for sensor testing. These devices feature digital controls with rapid heating and cooling for efficient operation. Their large display offers clear, easily readable measurements to enhance usability. They include replaceable soaking blocks, allowing flexibility for different sensor types. Our calibrators are suitable for laboratories, industrial environments, and on-site verification tasks requiring consistent thermal control.
