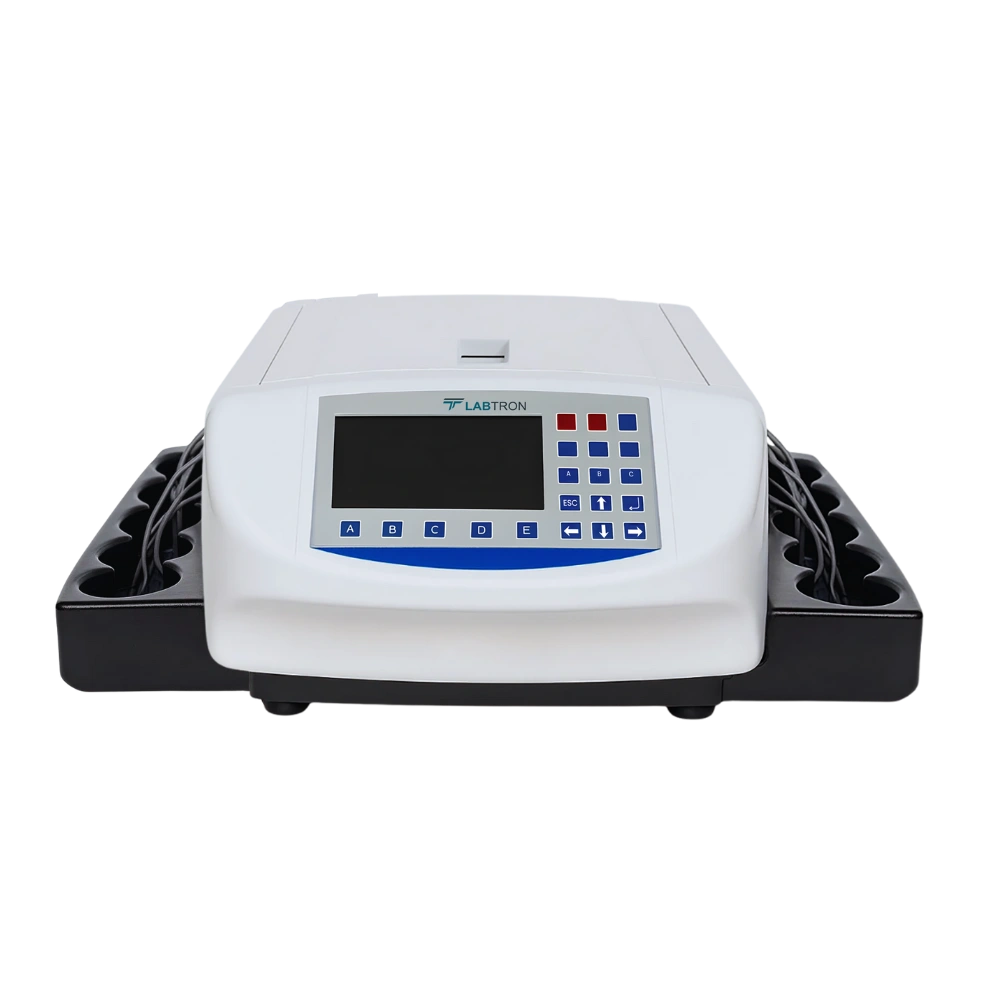

Dual Automated Stainer Gram & Fluorescence LAGS-A20F

Dual Automated Stainer LAGS-A20F incorporates a GRAM and Fluorescence technique for staining gram positive and negative micro bacteria in microbiological applications. A maximum of 10 slides can be stained per cycle, which takes 15 minutes and requires 1.2 to 1.8 ml of reagent per slide. The device is small enough to fit on any countertop and is simple to use, with an automatic cleaning cycle and internal diagnostic software.

Request Quote

Staining Method

GRAM & Fluorescence

Slide Tray Capacity

1 to 10 slides

Clearance Height

Lid Open: 565 mm

Tray Rotation Speed

Approx. 6 rpm (stain mode) / Approx. 300 rpm (dry mode)

Used Reagent

GRAM	Crystal Violet: 1.2 ml to 1.8 ml Gram-Iodine: 1.2 ml to 1.8 ml Acetone Alcohol: 1.2 ml to 1.8 ml Safranine: 1.2 ml to 1.8 ml
Fluorescence	Auramine-Rhodamine: 1.2 ml to 1.8 ml Acid Alcohol: 1.2 ml to 1.8 ml Potassium Permanganate: 1.2 ml to 1.8 ml

Reagents Capacity

1.2 ml to 1.8 ml

Operating Control

6 mode key (stain, prime, clean, dry, reset, slide up/down)

Staining Time

GRAM	10 slides : 13 minutes 20 slides: 18 minutes
Fluorescence	10 slides : 15 minutes 20 slides: 18 minutes

Display

LCD

Staining Process

Stain, Prime, Clean, Dry, Reset, Slide up/down

Power

50 W

Power Supply

AC100 to 240V /50 to 60 Hz(Auto selection)

Dimension (WxDxH)

480x 445x265 mm

Weight

20 kg

Innovative and compact design
Automated gram stainer is capable of uniformly staining up to 10 slides (optional 20 slides and optional tray available) in a matter of minutes
The device comes with a self-contained and more convenient staining reagent kits
Staining is controlled with a microprocessor built with advanced software for flexibility in stain application
Offers high-quality and excellent adhesive, features microscopic slides for longer adhesion of sample without any cross-contamination
The front operative panel provides easy regulation and adjustment for rapid loading with the carousel button
Provides automatic cleaning system for easy and maintenance free for tray cleaning
Prevents falling of the sample slides by fixing slides horizontally inside the automated stain chamber
Avoids excess use of reagent by allowing the reagent to get along the plastic tubing through the carousel inside the chamber with total reagent consumption of 1.2 to 1.8 ml per slide
The unit comes with six functional key controls including Stain, Prime, Clean, Dry, Reset, Up & Down stains for quick and manual free staining
The unit is prompt with easy 7 to 8 steps processing
An automatic stainer allows stain time for a single cycle of 13 to 18 minutes, which can be varied by a timer

The Automated Stainer is vastly used in positive and negative gram staining in R&D, microbiological and clinical diagnostic applications.

Available Range :

Staining Method : GRAM & Hematology (MGG, Wright) Staining Method : GRAM & Fluorescence Staining Method : GRAM & Ziehl-Neelsen

Related Models :

Dual Automated Stainer Gram & Fluorescence LAGS-A20F

Compare Models

Most Viewed

Customer Enquiry Form

Model	Staining Method	Slide Tray Capacity	Clearance Height	Tray Rotation Speed	Reagents Capacity	Operating Control	Display	Staining Process	Power	Power Supply	Dimension (WxDxH)	Weight
LAGS-A20G	GRAM & Hematology (MGG, Wright)	1 to 10 slides	Lid Open: 565 mm	Approx. 6 rpm (stain mode) / Approx. 300 rpm (dry mode)	-	6 mode key (stain, prime, clean, dry, reset, slide up/down)	LCD	Stain, Prime, Clean, Dry, Reset, Slide up/down	50 W	AC100 to 240V /50 to 60 Hz(Auto selection)	480x 445x265 mm	20 kg
LAGS-A20F	GRAM & Fluorescence	1 to 10 slides	Lid Open: 565 mm	Approx. 6 rpm (stain mode) / Approx. 300 rpm (dry mode)	1.2 ml to 1.8 ml	6 mode key (stain, prime, clean, dry, reset, slide up/down)	LCD	Stain, Prime, Clean, Dry, Reset, Slide up/down	50 W	AC100 to 240V /50 to 60 Hz(Auto selection)	480x 445x265 mm	20 kg
LAGS-A20Z	GRAM & Ziehl-Neelsen	1 to 10 slides	Lid Open: 565 mm	Approx. 6 rpm (stain mode) / Approx. 300 rpm (dry mode)	1.2 ml to 1.8 ml	6 mode key (stain, prime, clean, dry, reset, slide up/down)	LCD	Stain, Prime, Clean, Dry, Reset, Slide up/down	50 W	AC100 to 240V /50 to 60 Hz(Auto selection)	480x 445x265 mm	20 kg
