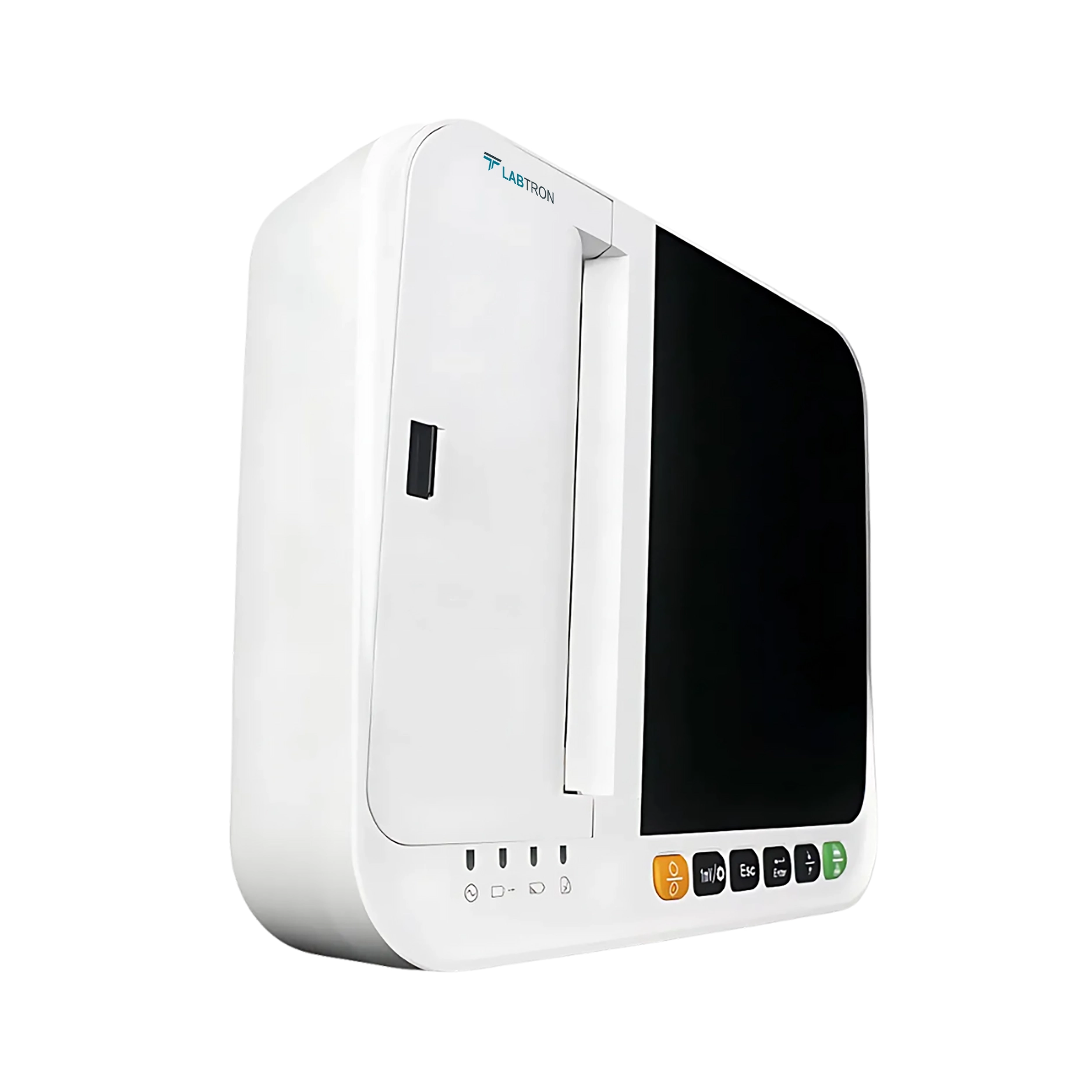

ECG Monitor LECG-D16

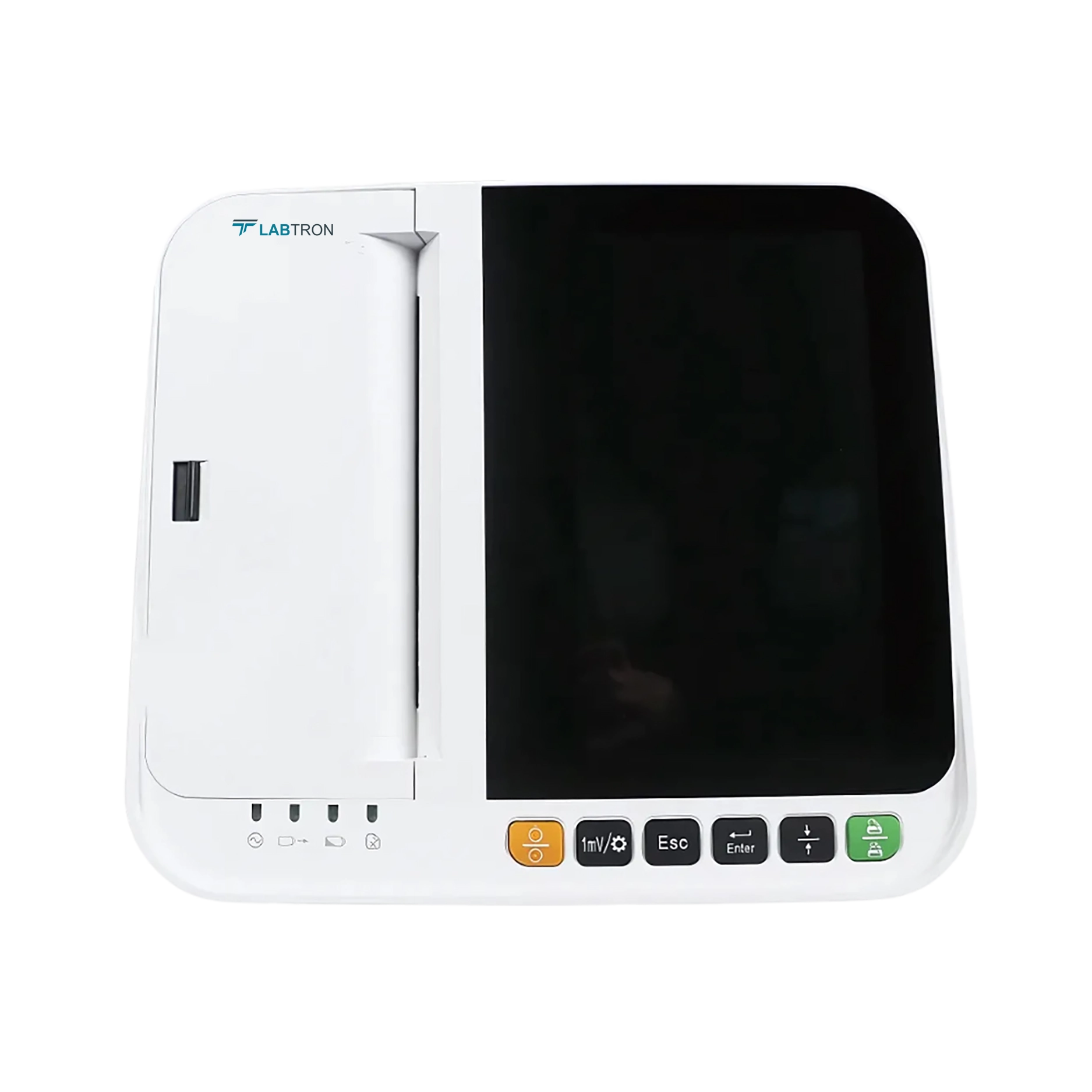

The ECG Monitor LECG-D16 offers a range of advanced features that make it ideal for both routine and emergency cardiac diagnostics. It supports 3, 6, and 12-lead configurations, allowing flexibility based on the patient's condition. With a high sampling rate of 24-bit / 32000Hz and a CMRR of greater than equal to 105 dB, it ensures accurate and noise-free ECG signal acquisition. Its 10.2-inch TFT color display with 800×480 resolution provides clear waveform visualization, while the built-in thermal printer enables high-resolution output. It also includes AC and EMG filters, defibrillation protection, rechargeable battery backup, and multiple connectivity options such as USB ports, VGA output, Ethernet, and SD card support, making it a highly efficient and reliable tool for hospitals and diagnostic centers.

Patient safety is a key focus in the design of the ECG Monitor LECG-D16. It uses a floating input circuit with defibrillation protection, minimizing the risk of electrical hazards during operation. The monitor also features high input impedance (greater than equal to 50 M) and a very low patient leakage current of less than 10 microamperes, which adheres to international safety standards for medical devices. These specifications ensure that patients are protected even in critical conditions or while undergoing defibrillation.

Yes, the ECG Monitor LECG-D16 is designed with mobility in mind. It is compact and lightweight, making it easy to transport between departments or for use in ambulatory and emergency settings. The built-in 14.8V rechargeable battery provides a backup time of over 2 hours, allowing uninterrupted operation even in the absence of direct power. This makes it suitable for ambulances, mobile clinics, field hospitals, and other temporary medical facilities where reliable cardiac monitoring is critical.

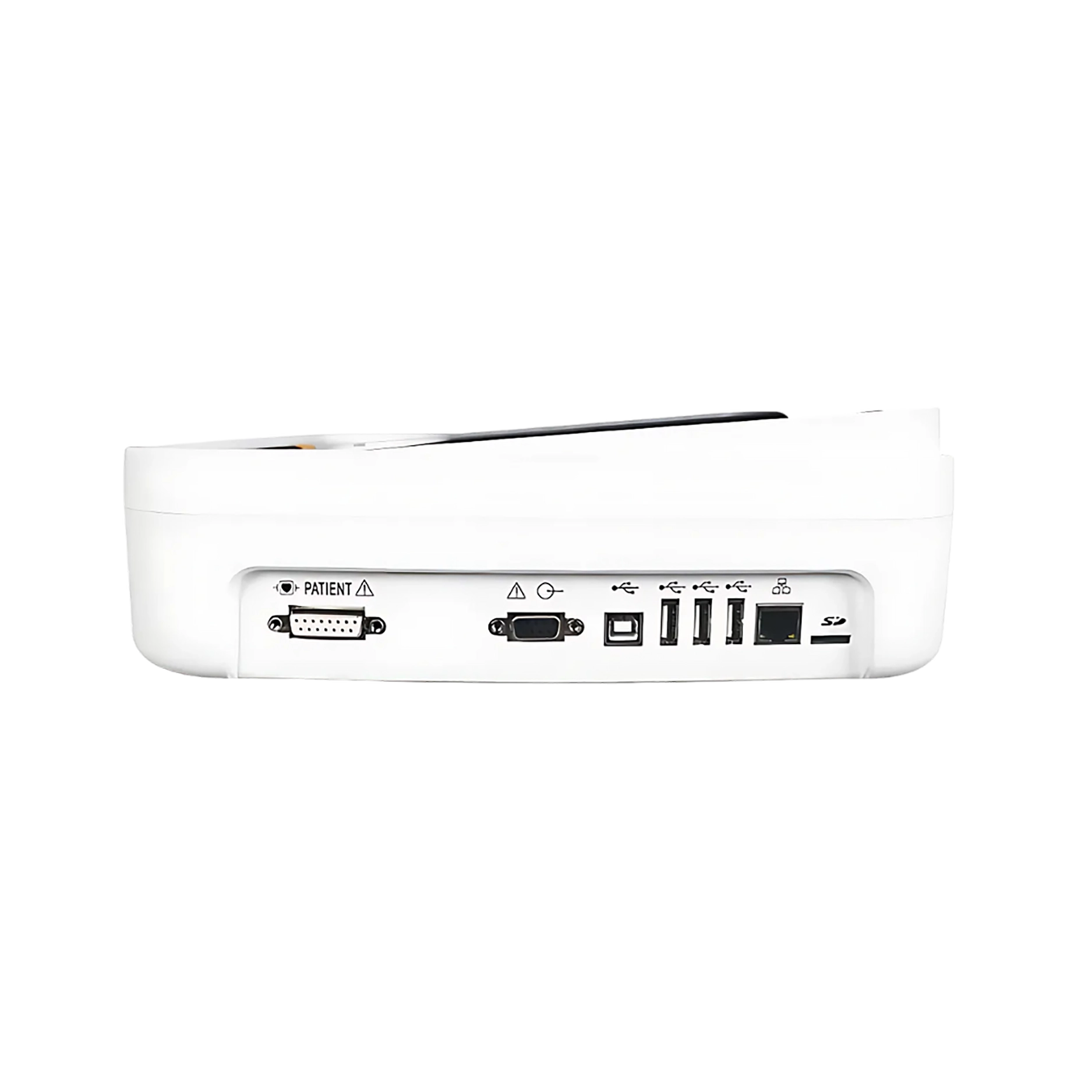

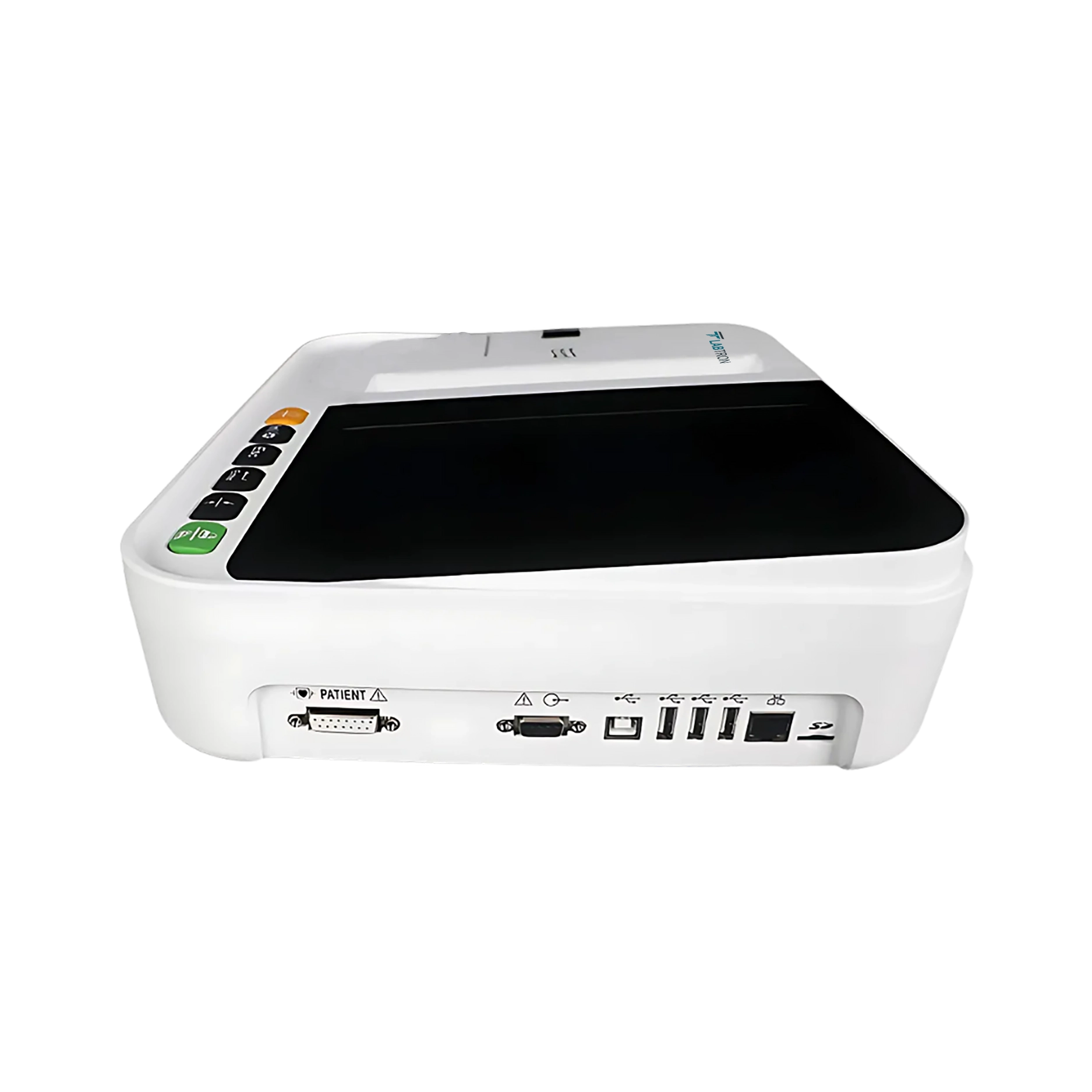

The ECG Monitor LECG-D16 comes with an integrated high-resolution thermal printer that uses 210 mm wide paper and supports multiple print speeds, including 5.0, 6.25, 10, 12.5, 25, and 50 mm/s. This allows clinicians to choose the appropriate print format based on clinical needs. For data storage and transfer, the device supports USB connections (2 USB 2.0 Host ports and 1 USB Slave), SD card storage, and even VGA output for external display. These features ensure secure storage, easy sharing, and efficient review of ECG data.

The ECG Monitor LECG-D16 is highly versatile and suitable for a wide range of healthcare environments. It is commonly used in hospitals, cardiac care units, outpatient clinics, emergency departments, intensive care units (ICUs), and diagnostic laboratories. Its advanced features also make it a good fit for academic medical institutions and research facilities. Thanks to its portability and battery backup, it is also used in ambulances, mobile health vans, and temporary field clinics, ensuring high-quality ECG monitoring in both urban and remote locations.

An ECG (Electrocardiogram) Monitor is a portable device that records your heart's electrical activity to detect irregularities like arrhythmias, atrial fibrillation (AFib), or palpitations. It works by placing your fingers or chest on the sensors, which measure electrical signals and display real-time heart rhythms on a connected app or screen.

Absolutely! Our device is designed for easy home use—just place your fingers on the sensors or attach the electrodes (depending on the model), and the monitor will guide you through the process. Results are displayed in simple terms for better understanding.

While smartwatches offer basic heart rate tracking, our dedicated ECG Monitor provides: Higher accuracy (medical-grade sensors) Multi-lead detection (some models) Detailed PDF reports for doctors Longer recording times for better analysis

If you have a known heart condition, follow your doctor’s advice. For general wellness, occasional checks (e.g., weekly) are fine. Use it when experiencing symptoms like dizziness, chest pain, or irregular heartbeat.

Yes! Our advanced algorithm can identify AFib, tachycardia (fast heartbeat), bradycardia (slow heartbeat), and irregular rhythms. For confirmed AFib detection, share reports with your doctor for further evaluation.
