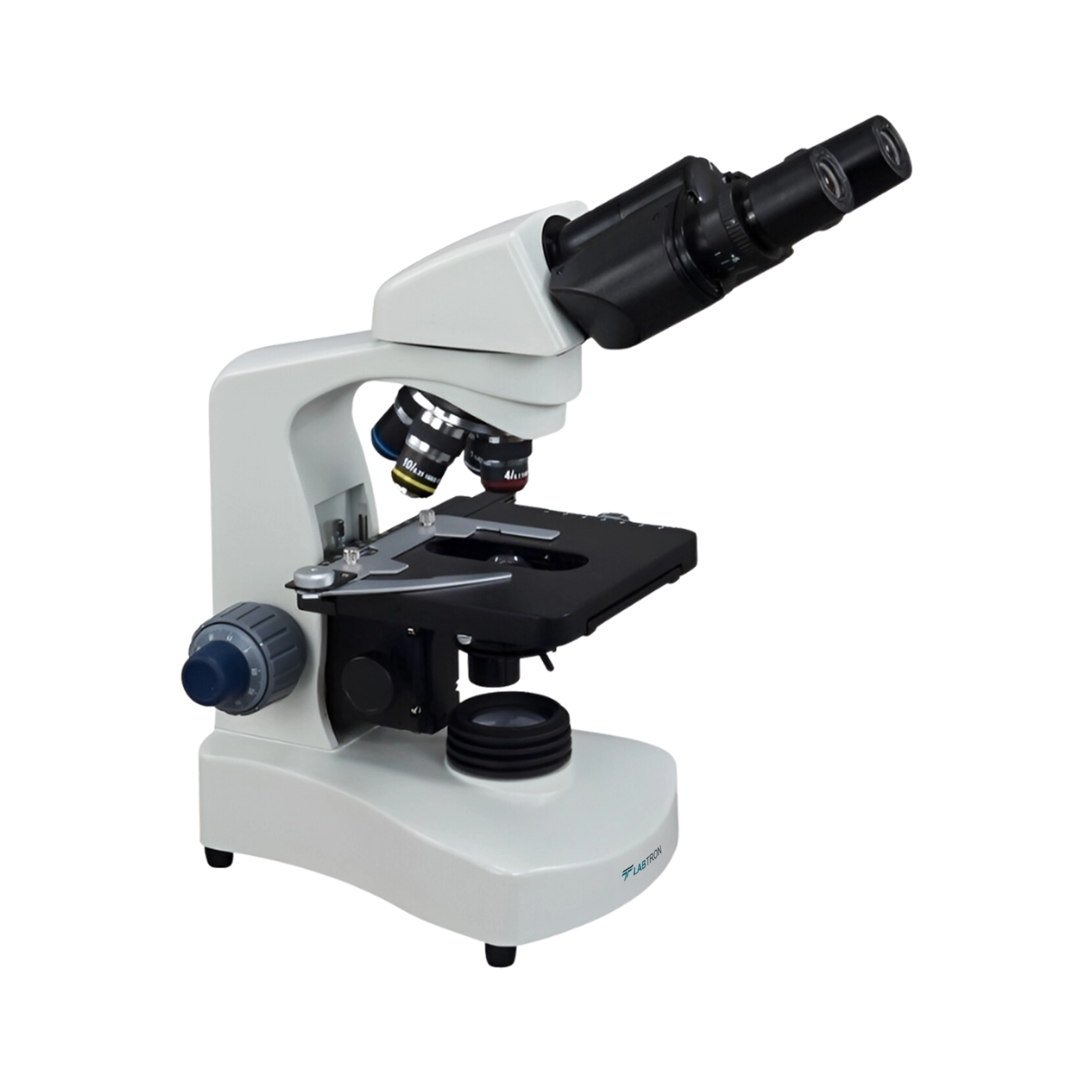

Educational Microscope LEM-C11 features a Seidentopf Binocular head with an interpupillary distance range of 55 to 75mm for user flexibility. The Abbe condenser NA 1.20 with an iris diaphragm enhances contrast for high-resolution imaging. The 1W S-LED illumination with adjustable brightness ensures clear visualization under varying light conditions. A sturdy metal construction provides durability for long-term use. It is suitable for research in educational, academic, and laboratory settings.
| Optical System | Infinite Optical System |
| Viewing Head | Seidentopf binocular, 30° inclined, 360° rotatable, interpupillary distance 48-75mm |
| Eyepiece | WF10x Wide Field |
| Objective Lenses | 4×, 10×, 40×, 100× (Oil) |
| Magnification Range | 40x to 1000x |
| Stage | Double-layer mechanical stage, 132×142mm, 75×40mm moving range |
| Nosepiece | Quadruple revolving nosepiece |
| Focusing Mechanism | Coaxial coarse and fine adjustment |
| Illumination Type | S-LED illumination, brightness adjustable |
| Illumination Power | 1W S-LED light |
| Condenser | Abbe NA 1.20 with iris diaphragm and filter |
| Diaphragm Type | Iris diaphragm |
| Immersion Oil | 5ml |
| Power Supply | AC 110V to 240V, 50/60Hz |
| Dimensions | 395×265×500 mm |
| Weight | 7 kg |
Compact and space-saving design
Ergonomic 30° inclined head
Quadruple revolving nosepiece
Smooth coaxial focusing control
Includes immersion oil for clarity
360° rotatable viewing head
Stable base for steady imaging
Double-layer mechanical stage
Our Educational Microscope LEM-C11 is ideal for student training, academic research, and biological specimen analysis. It supports scientific studies in educational institutions, laboratories, and research centers.
Download catalog for
Educational Microscope LEM-C11 Catalog
Labtron Educational Microscope has a Siedentopf binocular head that ensures comfortable viewing with easy interpupillary adjustment for enhanced user convenience. These are equipped with a wide-field eyepiece, providing a broader and clearer field of view for detailed observations. Their quadruple nosepiece allows seamless switching between multiple objective lenses, improving workflow efficiency. They have achromatic objectives, delivering high-contrast, sharp, and color-corrected images for precise analysis. Our microscope has an inward quadruple nosepiece design that enhances stability and ease of use.
