| Optical System | Infinite Optical System |

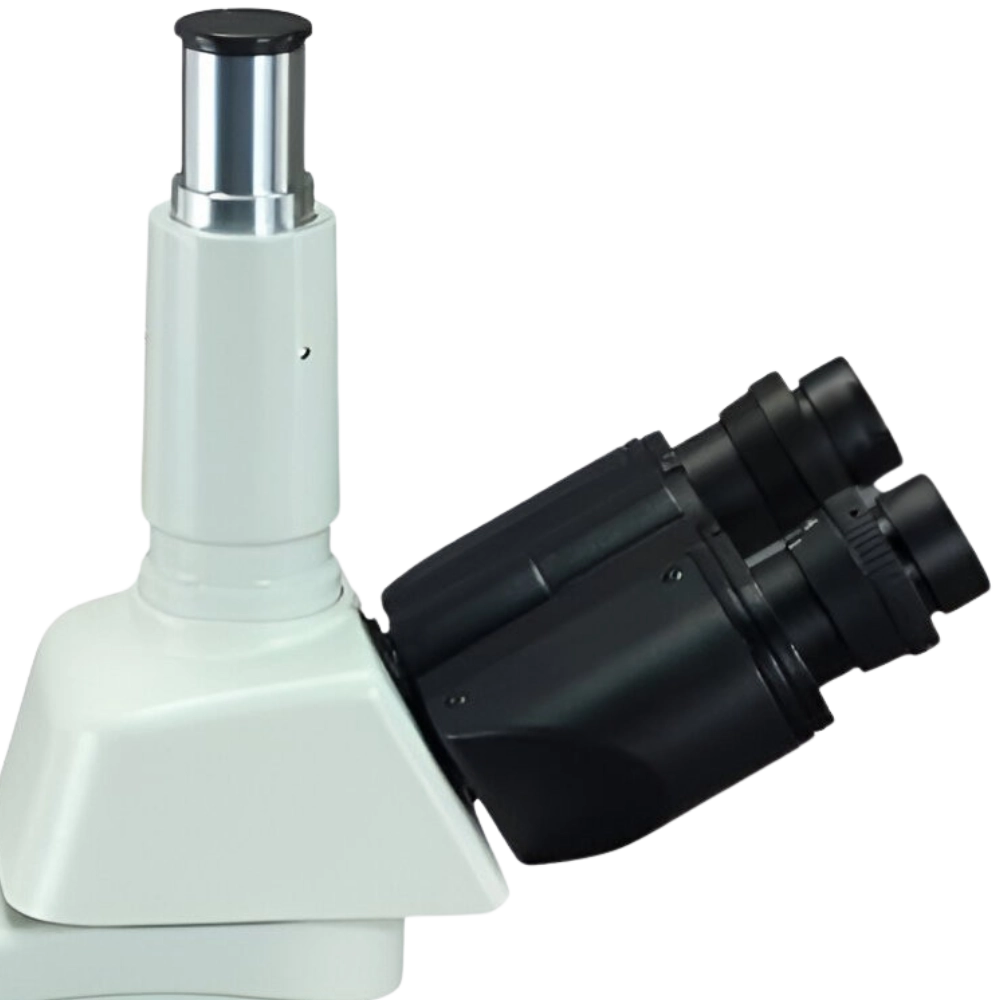

| Viewing Head | Seidentopf Trinocular Head, Inclined at 30°, 360° Rotatable, Interpupilary Distance 55-75mm |
| Eyepiece | WF10x Wide Field |
| Objectives | 4×, 10×, 40×, 100× (Oil) |
| Magnification Range | 40x to 1000x |
| Stage | Double-layer mechanical stage, 132×142mm, 75×40mm moving range |
| Nosepiece | Quadruple revolving nosepiece |
| Focusing Mechanism | Coaxial coarse and fine adjustment |
| Illumination Type | S-LED illumination, brightness adjustable |
| Illumination Power | 1W S-LED light |
| Condenser | Abbe NA 1.20 with iris diaphragm and filter |
| Diaphragm Type | Iris diaphragm |
| Immersion Oil | 5ml |
| Power Supply | AC 110V to 240V, 50/60Hz |
| Dimensions | 395×265×500 mm |
| Weight | 7 kg |
Interpupillary distance 55-75mm
High-resolution image clarity
Sturdy and durable design
Smooth slide positioning
Adjustable illumination control
Oil immersion for clear view
Ergonomic viewing angle
Efficient light transmission
Our Educational Microscope LEM-C12 is ideal for in-depth research, academic education, and biological investigations. With its advanced optical system and robust build, it is well-suited for laboratories, universities, and research institutions.
Download catalog for
Educational Microscope LEM-C12 Catalog
Labtron Educational Microscope has a Siedentopf binocular head that ensures comfortable viewing with easy interpupillary adjustment for enhanced user convenience. These are equipped with a wide-field eyepiece, providing a broader and clearer field of view for detailed observations. Their quadruple nosepiece allows seamless switching between multiple objective lenses, improving workflow efficiency. They have achromatic objectives, delivering high-contrast, sharp, and color-corrected images for precise analysis. Our microscope has an inward quadruple nosepiece design that enhances stability and ease of use.
